Carbon Steel Pipe - High-Quality Seamless & Welded Pipes for Industrial Applications

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

Technical Specifications of Carbon Steel Pipe

Property	Parameter	Description
Product Name	Carbon Steel Pipe	Seamless and welded carbon steel pipe for industrial use
Material Grade	ASTM A106 Gr.B / A53 Gr.B / API 5L Gr.B	Common international grade equivalents
Standard Compliance	ASTM A106, ASTM A53, API 5L, EN 10210, GB/T 8162	Meets major international and industry standards
Manufacturing Process	Seamless (HFS/CDS) / ERW / LSAW / SSAW	Multiple manufacturing methods available
Carbon (C)	≤0.30%	Primary strengthening element
Manganese (Mn)	0.29–1.06%	Improves hardenability and tensile strength
Phosphorus (P)	≤0.035%	Controlled to maintain ductility
Sulfur (S)	≤0.035%	Low sulfur ensures good weldability
Silicon (Si)	≥0.10%	Acts as deoxidizer and strengthener
Tensile Strength	≥415 MPa	Minimum value per ASTM A106 Gr.B
Yield Strength	≥240 MPa	Minimum yield strength at room temperature
Elongation	≥30%	Measured in 50mm gauge length
OD Range	10.3mm–1420mm (1/8''–56'')	Covers small bore to large diameter pipes
Wall Thickness	1.0mm–120mm (SCH 10–SCH XXS)	Standard schedules and custom thickness
Length	5.8m, 6m, 11.8m, 12m or custom	Single random, double random, or cut-to-length
Surface Treatment	Black painted, varnished, oiled, galvanized, 3LPE	Anti-corrosion coating options
Application	Oil & gas, power plant, construction, water supply	Suitable for high-temperature and structural service
Certification	EN 10204 3.1, ISO 9001, API 5L, PED 2014/68/EU	Quality certifications and mill test reports provided
Packaging	Bundled with steel strips, beveled ends, plastic caps	Standard seaworthy export packaging
MOQ	5 tons	Minimum order quantity per size

Carbon Steel Pipe - High-Quality Seamless & Welded Pipes for Industrial Applications

Carbon steel pipe serves as the backbone of modern industrial piping systems, delivering exceptional mechanical strength and reliable performance across demanding environments. Manufactured from iron-carbon alloys with carbon content ranging from 0.05% to 0.25% for low-carbon grades and up to 0.65% for medium-carbon variants, these pipes are the preferred choice for oil and gas transmission, structural construction, power generation, and water distribution networks. Whether you require seamless or welded configurations, our carbon steel pipe inventory is engineered to meet stringent international standards and support global procurement needs with factory-competitive pricing and flexible order quantities.

Carbon steel pipe supplier

What Is Carbon Steel Pipe?

Carbon steel pipe is a tubular steel product where carbon acts as the primary strengthening element within the iron matrix. Unlike alloy steel pipes that incorporate significant amounts of chromium, nickel, or molybdenum, carbon steel pipe relies on controlled carbon content and manganese levels to achieve its target mechanical properties. This composition delivers a cost-effective balance of tensile strength, weldability, and machinability suited for both pressure service and structural applications.

Carbon Steel Pipe Technical Specifications

Our carbon steel pipes are manufactured according to ASTM A106/A106M-19a for seamless high-temperature service and ASTM A53/A53M-20 for welded and seamless general-purpose applications. Key technical parameters include:

Property	ASTM A106 Grade B	ASTM A53 Grade B
Tensile Strength	415 MPa minimum	415 MPa minimum
Yield Strength	240 MPa minimum	240 MPa minimum
Carbon Content	0.30% maximum	0.30% maximum
Manganese Content	0.29–1.06%	1.20% maximum
Outside Diameter Range	NPS 1/8" to 48"	NPS 1/8" to 26"
Wall Thickness	Schedule 10 to Schedule XXS	Schedule 10 to Schedule 160

Additional standards supported include API 5L (PSL1 and PSL2) for line pipe, EN 10216-1:2013 for seamless non-alloy pressure tubes, and GB/T 8163 for fluid transport applications. Each pipe undergoes hydrostatic testing or non-destructive examination per the applicable specification.

Primary Applications of Carbon Steel Pipe

Oil & Gas Transmission: API 5L Grade B and X42–X70 carbon steel pipes transport crude oil, natural gas, and refined products over long distances under high-pressure conditions.
Power Generation: ASTM A106 Grade B seamless pipes serve critical roles in boiler systems, steam lines, and heat exchanger circuits operating at temperatures up to 425°C.
Structural & Construction: ASTM A53 welded pipes find extensive application in building frameworks, piling, scaffolding, and fencing where robust structural integrity is essential.
Water & Fire Protection: Schedule 40 carbon steel pipes are commonly employed for municipal water distribution, sprinkler systems, and HVAC piping networks.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for carbon steel pipe?

Our standard MOQ starts at 1 metric ton for common sizes in stock. For non-standard dimensions or custom wall thicknesses, a minimum mill order of 5 metric tons typically applies.

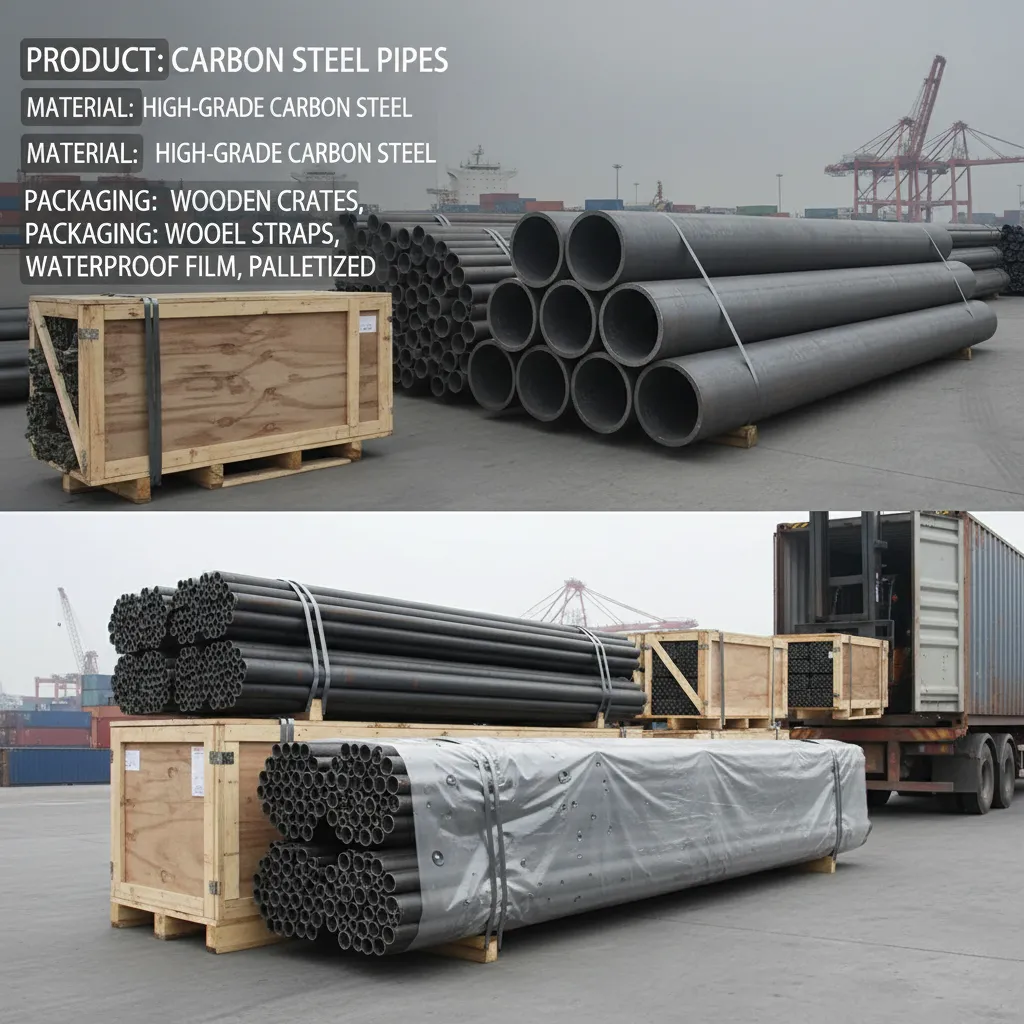

Carbon steel pipe wholesale

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 Mill Test Certificates documenting chemical composition, mechanical test results, hydrostatic test data, and dimensional verification traceable to the production heat.

What is the typical delivery time?

Stock items ship within 3–7 business days. Mill-produced or custom-specification carbon steel pipe orders require approximately 20–35 days depending on size, grade, and current production schedules.

Can you cut to custom sizes?

Absolutely. We offer precision cutting, beveling, threading, and coating services. Custom lengths from 0.5 meters to 12 meters are available with tolerances per ASTM A530/A530M requirements.

Carbon steel pipe China

Get a Competitive Quote for Carbon Steel Pipe

Ready to source premium-grade carbon steel pipe for your next project? Our technical sales team provides detailed quotations with mill-direct rates, full specification support, and logistics planning for global delivery. Contact us today with your required grade, dimensions, quantity, and destination to receive a tailored proposal within 24 hours.
