Galvalume Steel Coil Supplier | AZ50-AZ150, ASTM A792

Galvalume Steel Coil Technical Specifications

Galvalume Steel Coil Supplier | AZ50-AZ150, ASTM A792

Galvalume Steel Coil is a cold-rolled steel substrate coated with an aluminum-zinc-silicon alloy to provide durable corrosion protection and a distinctive metallic surface. It is intended for overseas distributors, roofing manufacturers, roll-forming companies, appliance producers, and project procurement teams that require consistent coating performance and reliable downstream processing. Available coating designations include commonly requested AZ50-AZ150 options, subject to the governing standard and purchase specification. The product combines the barrier protection of aluminum with the sacrificial protection of zinc, making it suitable for exposed building components and manufactured steel products where corrosion resistance, formability, and supply consistency are important.

Product Overview: Galvalume Steel Coil

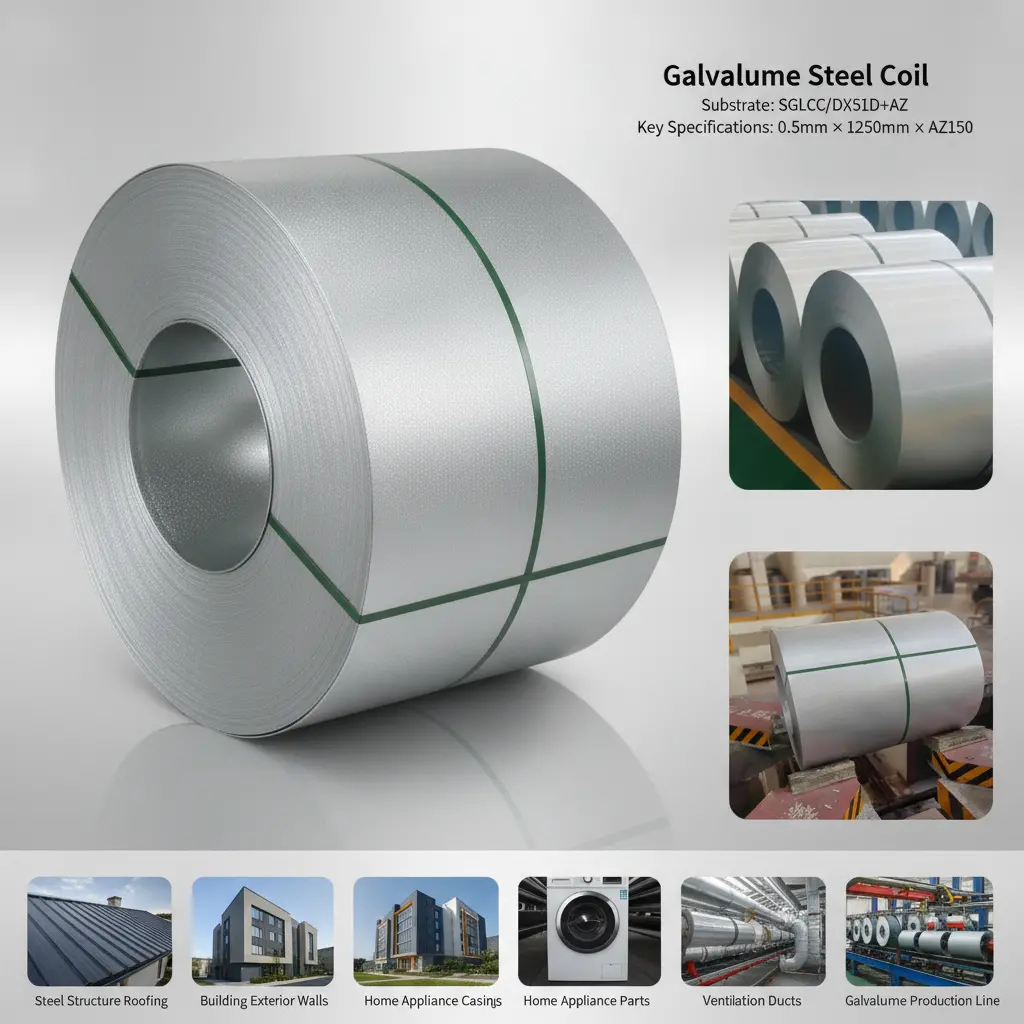

Galvalume Steel Coil consists of a flat steel base continuously coated by hot dipping in an alloy containing approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by mass. This coating composition is associated with aluminum-zinc alloy-coated sheet products covered by ASTM A792/A792M. Aluminum provides long-term barrier protection, zinc helps protect exposed steel at cut edges and scratches, and silicon supports control of the alloy layer formed between the coating and the steel substrate.

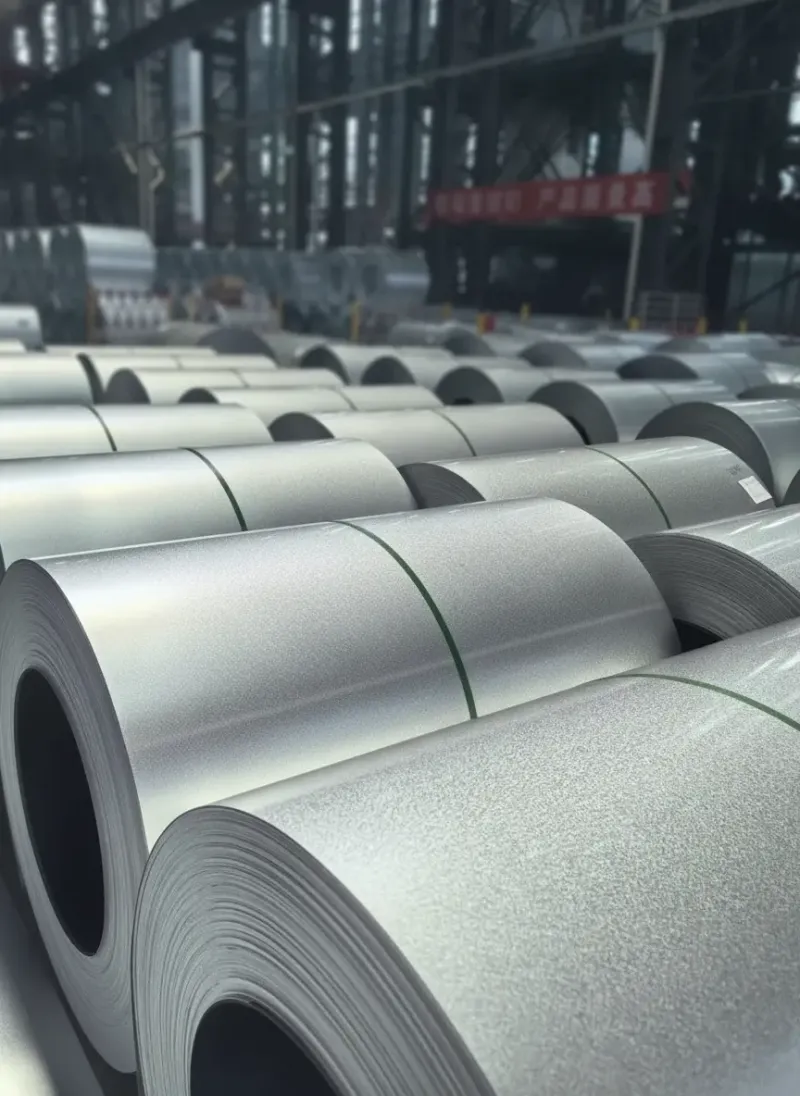

The product is supplied in coil form for efficient storage, transport, slitting, blanking, profiling, and roll forming. Depending on the purchase specification, it may be ordered as commercial steel, forming steel, structural steel, or another grade recognized by the applicable standard. The base-metal grade must be selected according to the required forming operation, design strength, and end-use environment rather than by coating mass alone. Buyers comparing coated products can review related metallic-coated steel options at [[INTERNAL_LINK]].

Typical characteristics of Galvalume Steel Coil include:

• Aluminum-zinc alloy coating for atmospheric corrosion protection.
• Metallic spangled appearance, with visual characteristics influenced by manufacturing conditions and surface treatment.
• Suitability for roll forming, profiling, slitting, shearing, and other common sheet-processing operations when the correct substrate grade is selected.
• Availability with different coating mass designations, surface treatments, dimensions, and coil configurations according to the supplier’s production range.
• Compatibility with selected painting or coating systems after appropriate surface preparation and confirmation of pretreatment requirements.

Galvalume should not automatically be treated as interchangeable with galvanized steel. Galvanized material is primarily zinc-coated, while Galvalume uses an aluminum-zinc-silicon coating. The two products differ in coating behavior, surface appearance, paint preparation, corrosion mechanisms, and suitability for particular environments. A detailed comparison with galvanized coil is available at [[INTERNAL_LINK]].

Specifications & Standards for Galvalume Steel Coil

Galvalume Steel Coil should be ordered against a clearly identified product standard, grade, coating designation, dimensional tolerance, surface condition, and test-document requirement. ASTM A792/A792M is a principal specification for steel sheet coated with 55% aluminum-zinc alloy by the hot-dip process. Other markets may specify EN 10346 for continuously hot-dip-coated steel flat products, JIS G 3321 for hot-dip 55% aluminum-zinc alloy-coated steel sheet and strip, or GB/T 14978 for continuously hot-dip aluminum-zinc alloy-coated steel sheet and strip.

These standards are not identical. Grade names, coating symbols, test methods, dimensional conventions, and certification language can differ. A designation from one standard should not be substituted for another without a documented technical review. Buyers should state the required standard edition in the purchase order and verify whether the quoted coating designation refers to total coating mass on both surfaces, an imperial coating designation, or another agreed measurement basis.

The nominal coating alloy composition commonly associated with ASTM A792/A792M material is shown below. This table describes the metallic coating rather than the chemical composition of the steel substrate. Base-steel chemistry varies by ordered grade and must be evaluated using the governing specification and mill test documentation.

Mechanical properties cannot be stated responsibly from the coating designation alone. Yield strength, tensile strength, elongation, and bend performance depend on the substrate grade, thickness, rolling direction, and applicable standard. For example, structural and forming grades under ASTM A792/A792M have different requirements. Procurement teams should request a mill test certificate that identifies the ordered grade and reports applicable test results rather than accepting a generic property sheet. Guidance on reading steel inspection certificates is available at [[INTERNAL_LINK]].

Dimensional tolerances should also be incorporated into the contract. ASTM A924/A924M provides general requirements for steel sheet metallic-coated by the hot-dip process and is relevant where invoked by the product specification. EN orders may require dimensional tolerances under EN 10143. Packaging, coil mass, internal diameter, allowable welds, surface acceptance, and marking should be agreed separately because they affect handling and production efficiency even when the steel complies with the main material standard.

Applications of Galvalume Steel Coil

Galvalume Steel Coil is used where metallic-coated sheet must combine corrosion resistance with efficient forming and fabrication. Suitability still depends on exposure conditions, component geometry, maintenance expectations, and compatibility with adjacent materials.

Roofing and Wall Cladding

Profiled roofing sheets, standing-seam panels, wall cladding, flashings, and related building components are major applications. The coil can be roll formed into trapezoidal, corrugated, or other profiles, provided the substrate grade and coating system can tolerate the required bend radii. Roofing manufacturers should define profile geometry, paint requirements, and local exposure conditions before selecting material. Related roofing-sheet products can be reviewed at [[INTERNAL_LINK]].

Light-Gauge Steel Building Components

Selected purlins, framing members, ceiling components, channels, and accessories may be manufactured from Galvalume Steel Coil. Structural use requires an appropriate structural grade and verified mechanical properties. The coating designation does not establish load-bearing capacity, so calculations must be based on the certified base-metal grade and effective section design.

Appliance and Equipment Panels

Metallic-coated panels may be used in appliance housings, cabinets, ventilation equipment, and selected equipment enclosures. For visible or painted parts, buyers should evaluate surface uniformity, flatness, pretreatment, paint adhesion, and appearance criteria. Samples or trial coils can be useful where the finish is commercially sensitive.

HVAC and Fabricated Duct Components

Galvalume material can be processed into selected ducting, plenums, housings, and ventilation components. The fabricator should assess seam design, joining methods, coating damage during forming, and the service environment. For broader HVAC sheet options, see [[INTERNAL_LINK]].

General Roll-Formed Products

Cable-management components, partitions, shutters, panels, and other roll-formed articles may use Galvalume Steel Coil when the material specification matches the fabrication process. Tight bends, deep drawing, welding, sealants, and post-painting should be validated before volume procurement.

How to Choose Galvalume Steel Coil: Buying Guide

Purchasing Galvalume Steel Coil requires more than comparing coating labels and unit prices. A technically complete inquiry reduces quotation gaps, avoids unsuitable substitutions, and helps suppliers plan production and logistics accurately.

Define the Governing Specification

State whether the order must comply with ASTM A792/A792M, EN 10346, JIS G 3321, GB/T 14978, or another contractually accepted specification. Include the grade, coating designation, surface treatment, and required inspection document. If the destination country has mandatory conformity or labeling rules, identify them before production.

Match the Grade to the Manufacturing Process

Commercial-quality material may be adequate for straightforward profiling, but demanding bends, drawing operations, or structural components can require a different substrate grade. Send the supplier a drawing or describe the forming sequence, minimum bend radius, and finished part. Buyers can consult the coil-forming guide at [[INTERNAL_LINK]] when preparing technical requirements.

Specify Dimensions and Tolerances Completely

An inquiry should list thickness, width, edge condition, allowable tolerances, coil ID, target or maximum coil weight, and any coil OD restriction. These details determine whether the coil can run on the buyer’s equipment. For slit material, define burr orientation or burr limits where they are critical to assembly or operator safety.

Verify Certification and Traceability

Request the required certificate format in the inquiry. A useful document should connect the delivered coil to identifiable production or inspection records and report the information required by the applicable standard. If third-party inspection is needed, agree on the inspection scope, sampling point, acceptance criteria, and responsible cost before manufacturing.

Confirm MOQ and Production Lead Time

Minimum order quantity is supplier-, grade-, width-, coating-, and production-route dependent. A standard mill width may have a different MOQ from a narrow slit coil or a non-routine specification. Lead time also varies with raw-material availability, production scheduling, testing, slitting, export packing, and vessel arrangements. Ask for separate estimated dates for production completion and shipment rather than relying on a single general lead-time statement.

Plan Export Packing and Logistics

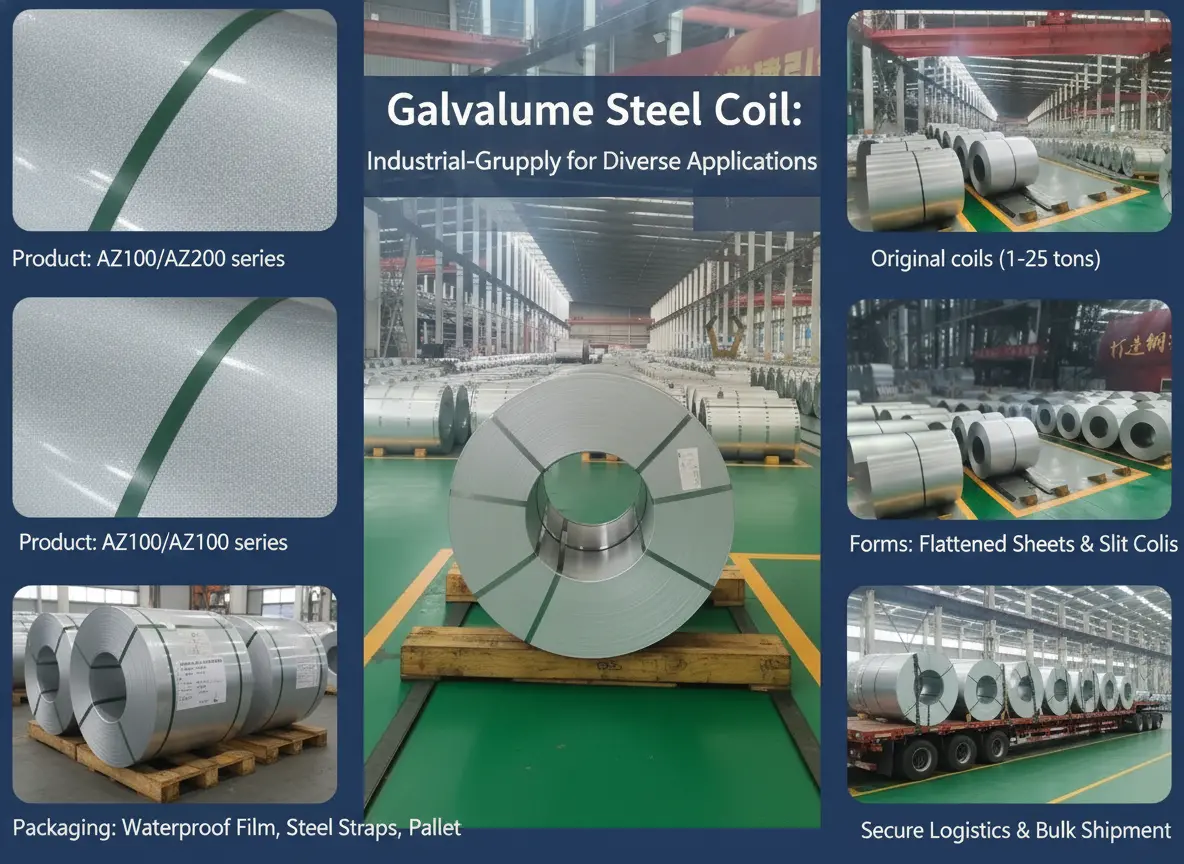

Coils are dense cargo and require suitable lifting, blocking, moisture protection, and transport planning. Confirm eye orientation, packaging method, label information, net and gross weight limits, container or breakbulk suitability, and unloading capability at destination. The final arrangement should reflect the coil dimensions, route, climate exposure, and destination handling facilities. Export packing considerations are discussed at [[INTERNAL_LINK]].

Evaluate the Complete Commercial Offer

Compare offers on the same technical basis. Check the quoted standard, grade, coating, dimensions, tolerance, order quantity, inspection document, packing, delivery term, payment condition, quotation validity, and exclusion list. A lower unit price may not represent a lower landed cost if it includes wider tolerances, heavier packaging, unsuitable coil weights, or additional processing at destination.

Frequently Asked Questions About Galvalume Steel Coil

Q: What is the difference between Galvalume Steel Coil and galvanized steel coil?

A: Galvalume uses an aluminum-zinc-silicon alloy coating, commonly described as approximately 55% aluminum, 43.4% zinc, and 1.6% silicon. Galvanized steel uses a predominantly zinc coating. Their corrosion behavior, appearance, paint preparation, forming response, and applicable standards differ. The correct choice depends on the component, exposure, fabrication process, and project specification.

Q: Does AZ150 mean the same thing under every standard?

A: No. Coating symbols and measurement conventions must be interpreted under the specified standard. In many metric specifications, a number associated with the coating designation refers to a minimum total coating mass across both surfaces, but purchasers should not assume equivalence across ASTM, EN, JIS, and GB/T documents. The purchase order should identify both the coating designation and governing standard.

Q: Can Galvalume Steel Coil be supplied with ASTM A792 certification?

A: Material can be ordered to ASTM A792/A792M when that specification is within the supplier’s confirmed production capability. The inquiry should state the ASTM grade, coating designation, dimensions, surface treatment, and documentation requirement. Buyers should review the issued certificate against the purchase order and applicable specification instead of relying only on package labels.

Q: What is the minimum order quantity for Galvalume Steel Coil?

A: There is no universal MOQ. It depends on the producing mill or service center, substrate grade, coating designation, thickness, width, coil weight, and whether slitting or special packing is required. Standard production combinations may support different quantities from custom specifications. Submit the complete size list and required total tonnage to receive an applicable MOQ.

Q: What payment methods are available for an export order?

A: Payment terms are agreed between buyer and seller and may depend on order value, production status, credit approval, destination, and trade history. Common international trade arrangements can include bank transfer or letter of credit, but availability must be confirmed in the formal quotation or sales contract. Buyers should check bank details through an established verification process before remitting funds.

Q: How long is the production and delivery lead time?

A: Lead time depends on specification availability, production scheduling, order quantity, testing, slitting, packing, inland transport, and shipping arrangements. Non-standard widths or grades may require additional planning. Request a written production estimate and an estimated shipment schedule, while allowing for changes in vessel space, customs procedures, and destination logistics.

Q: Can Galvalume Steel Coil be painted or color coated?

A: It can be used as a substrate for selected paint systems, but surface treatment and paint compatibility must be confirmed. Oil, passivation, fingerprints, storage contamination, and pretreatment affect adhesion. For prepainted applications, specify the required metallic substrate, pretreatment, primer, topcoat, back coat, color, gloss, and performance tests. Related prepainted coil information is available at [[INTERNAL_LINK]].

Q: Is Galvalume suitable for welding and forming?

A: The material can be formed and joined using appropriate procedures, but performance depends on substrate grade, thickness, coating mass, tooling, bend radius, and joining method. Welding metallic-coated steel requires suitable process controls and ventilation. Prototype trials are recommended for severe forming, visible surfaces, or production processes that could damage the coating.

Q: What information should be included in a quotation request?

A: Include the applicable standard, substrate grade, coating designation, thickness, width, tolerances, edge condition, surface treatment, coil ID, coil weight limit, quantity, packing, inspection document, destination, delivery term, and requested schedule. Drawings or end-use details should be supplied when formability, structural performance, or appearance is critical.

Q: How should Galvalume coils be stored after delivery?

A: Store coils in a dry, ventilated area protected from rain, condensation, ground moisture, and corrosive contaminants. Keep packaging intact until controlled unpacking, inspect incoming material promptly, and avoid long-term storage in wet wrapping. Handling equipment should protect coil edges and prevent surface abrasion. Detailed storage guidance can be reviewed at [[INTERNAL_LINK]].

Send your Galvalume Steel Coil specification, requested AZ50-AZ150 coating designation, dimensions, quantity, applicable standard, certification needs, destination, and delivery terms to obtain a technical review and quotation. Complete purchasing details allow the supplier to confirm production feasibility, documentation, packing, lead time, and logistics without relying on assumptions.
