AZ55 Galvalume Steel Coil Technical Specifications

AZ55 Galvalume Steel Coil Manufacturer | Corrosion Resistant

AZ55 Galvalume Steel Coil is a continuously hot-dip coated steel product with an aluminum-zinc-silicon alloy layer designed to protect the steel substrate from atmospheric corrosion. It is specified by overseas roofing manufacturers, roll-forming companies, appliance producers, construction-material distributors, and metal service centers that require consistent coating performance and reliable downstream processing. Compared with conventional zinc-coated sheet, the 55% aluminum-zinc coating combines aluminum’s barrier protection with zinc’s sacrificial protection at exposed edges. Buyers can order the coil by substrate grade, coating designation, thickness, width, surface treatment, spangle, and coil weight to match forming equipment and end-use requirements.

AZ55 Galvalume Steel Coil Product Overview

AZ55 Galvalume Steel Coil consists of a cold-rolled steel substrate coated on both sides through a continuous hot-dip process. The nominal metallic coating composition is approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. Aluminum creates a stable barrier against the surrounding environment, zinc contributes galvanic protection to exposed steel, and silicon helps control the alloy reaction between the coating and the steel substrate during production.

The term “AZ55” is commonly associated with the ASTM inch-pound coating designation for aluminum-zinc alloy-coated sheet. It should not be interpreted as the percentage of aluminum alone or used interchangeably with every metric coating designation. Purchase orders should state both the governing standard and the required coating designation so that coating-mass expectations are unambiguous. Buyers comparing other metallic-coated products can review [[INTERNAL_LINK]] before deciding between Galvalume, galvanized, or other coated sheet.

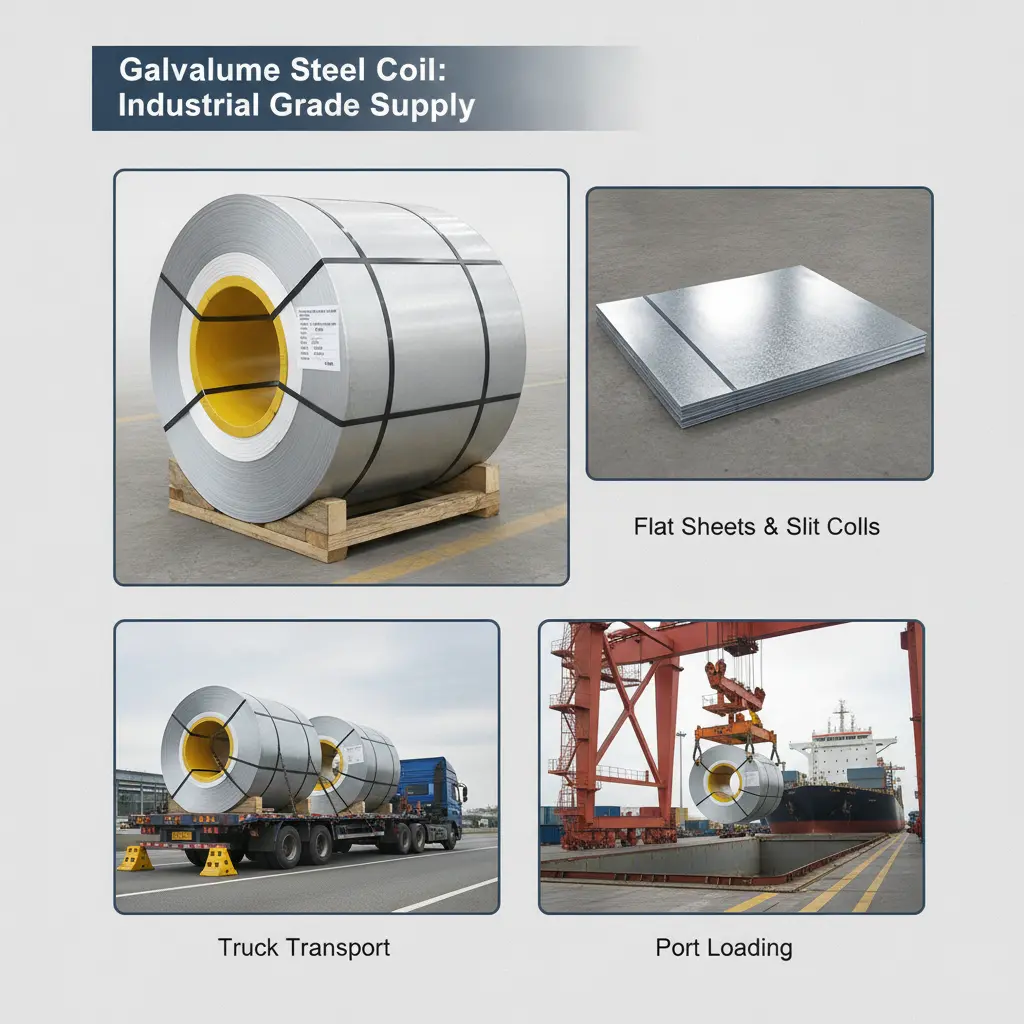

Typical commercial forms include full-width master coils, slit coils, and flat sheets processed from coil. Depending on the agreed specification, AZ55 Galvalume Steel Coil can be supplied with a regular spangle appearance and with surface treatments intended to improve storage stability, fingerprint resistance, paint adhesion, or forming behavior. Available treatment systems are mill-dependent, so the selected finish should be confirmed in the quotation and approved sample rather than assumed from the product name.

Key procurement characteristics include corrosion resistance in appropriate atmospheric environments, heat reflectivity associated with the aluminum-rich surface, suitability for roll forming, and compatibility with many construction and manufacturing processes. Actual service life is not fixed by the AZ55 designation alone. It varies with coating mass, local climate, installation design, cut-edge exposure, condensation, chemical contact, maintenance, and whether the material is painted. For coastal, industrial, agricultural, or chemically aggressive locations, buyers should provide environmental details for a project-specific material assessment.

Formability is governed mainly by the substrate grade, steel chemistry, coating adhesion, thickness, and forming radius. A structural grade intended for load-bearing panels does not provide the same forming behavior as a commercial or drawing-quality grade. Manufacturers of corrugated sheet, standing-seam panels, or formed components should submit the required profile drawing and mechanical-property range during technical review. Further processing guidance is available through [[INTERNAL_LINK]].

AZ55 Galvalume Steel Coil Specifications & Standards

AZ55 Galvalume Steel Coil is widely ordered to ASTM A792/A792M, the established specification for steel sheet coated by the hot-dip process with 55% aluminum-zinc alloy. Because standards are revised and may be superseded in some markets, contracts should identify the required edition and confirm whether a current successor specification, such as ASTM A1087/A1087M where applicable, is required by the destination country, customer, or project engineer.

Other relevant references include EN 10346 for continuously hot-dip coated steel flat products for cold forming, JIS G 3321 for hot-dip 55% aluminum-zinc alloy-coated steel sheet and strip, and GB/T 14978 for continuously hot-dip aluminum-zinc alloy-coated steel sheet and strip. These standards are not automatically equivalent. Their coating designations, grade systems, test methods, dimensional tolerances, and inspection documents can differ. Substitution should therefore be approved in writing by the purchaser or design authority. A standards comparison resource can be linked at [[INTERNAL_LINK]].

The values above describe the nominal metallic coating composition identified in ASTM A792/A792M and related 55% aluminum-zinc coating specifications. They are not the chemical composition limits of the underlying steel. Substrate chemistry and mechanical properties depend on the ordered grade and must be stated separately.

Mechanical values should not be assigned solely from the term AZ55 because the designation defines the coating rather than one universal substrate strength. For example, ASTM, EN, JIS, and GB/T structural grades use different grade names and test requirements. The mill test certificate should report the results required by the purchase specification, and critical applications may require independent inspection or additional testing. Buyers can consult [[INTERNAL_LINK]] for an overview of steel coil test certificates.

Thickness and width availability also depend on the selected grade, mill line, order volume, and current production schedule. A technically complete inquiry should include nominal coated thickness, width, coating designation, steel grade, surface treatment, coil inner diameter, target coil weight, and applicable tolerances. This prevents quotations for superficially similar coils that cannot run correctly on the purchaser’s equipment.

AZ55 Galvalume Steel Coil Applications

AZ55 Galvalume Steel Coil is used where corrosion protection, continuous-coil productivity, and formability must be balanced. Its suitability still depends on the substrate grade, coating condition, fabrication method, and service environment. Common application areas include the following:

• Roofing and wall cladding: The coil is roll formed into corrugated roofing, trapezoidal panels, standing-seam profiles, wall panels, flashings, and related building components. Profile manufacturers should confirm forming radii, coating adhesion, fastener compatibility, and cut-edge protection. Related roofing products may be found at [[INTERNAL_LINK]].
• Prepainted metal production: Properly pretreated aluminum-zinc coated coil can serve as a substrate for prepainted steel used in construction and manufactured products. Paint-system selection requires coordination among the metallic-coated coil supplier, pretreatment provider, and paint applicator. See [[INTERNAL_LINK]] for information about prepainted Galvalume coil.
• Light-gauge steel fabrication: Suitable grades may be formed into purlins, channels, frames, ducts, cabinets, and enclosures. Structural calculations must use the certified substrate properties, not generic values associated with the coating name.
• Appliance and equipment components: Manufacturers may use the material for housings, liners, panels, trays, or heat-exposed non-pressure components where its surface and corrosion behavior are appropriate. Lubrication, joining, appearance, and contact conditions should be validated through production trials.
• Rainwater and accessory systems: Slit coil can be processed into gutters, downpipes, ridge caps, trim, and other formed accessories. Attention is required at bends, seams, soldered or welded areas, and cut edges because fabrication can alter local corrosion performance.

AZ55 material is not universally suitable for every environment. Prolonged contact with wet concrete, copper-bearing runoff, strong alkalis, strong acids, or persistently trapped moisture may cause premature deterioration. The end-user should evaluate drainage, ventilation, compatible fasteners, sealants, and contact materials. Technical guidance for storing metallic-coated coils is available at [[INTERNAL_LINK]].

How to Choose AZ55 Galvalume Steel Coil / Buying Guide

Purchasing AZ55 Galvalume Steel Coil should begin with the finished component and manufacturing process, not with coating terminology alone. A procurement manager should first identify the governing product standard and substrate grade. For load-bearing construction products, specify the required yield and tensile properties. For deep or severe forming, discuss the geometry and expected elongation with the supplier rather than ordering an unspecified commercial grade.

Define dimensions precisely. State whether thickness refers to base-metal thickness or total coated thickness, because this distinction affects mass calculations, tolerances, and roll-forming setup. Include width tolerance, edge condition, maximum burr, coil inside diameter, acceptable coil-weight range, and any outside-diameter restriction imposed by the uncoiler or container loading plan.

Confirm coating and surface condition. The order should identify AZ55 under the applicable standard, together with the required surface treatment. If the coil will be painted, laminated, bonded, or printed, request written confirmation that the treatment is suitable for that process. A representative trial coil or sample can reduce risk before volume production. Surface appearance requirements should distinguish functional acceptance criteria from purely cosmetic expectations.

Review certification requirements. Specify the required inspection document and reported tests at the inquiry stage. Depending on the contract, this may include a mill test certificate showing heat or coil identification, substrate grade, mechanical results, coating designation, dimensions, and relevant test results. European projects may request inspection documentation under EN 10204, such as a 3.1 certificate, when contractually applicable. Third-party inspection should be arranged before shipment and should define sampling, witness points, and acceptance criteria.

Ask for a realistic MOQ and production plan. Minimum order quantity is determined by mill policy, dimensions, grade, coating setup, slitting requirements, and whether material can be combined with an existing production campaign. There is no responsible universal MOQ for every AZ55 Galvalume Steel Coil order. Buyers should provide the required tonnage per size so the supplier can distinguish mill-production quantities from stock or service-center quantities.

Align lead time with approvals. Production lead time may include technical review, raw-material planning, coating-line scheduling, testing, slitting, packing, and export documentation. Custom grades, narrow tolerances, nonstandard coil weights, special treatments, or third-party inspections may extend the schedule. Request a written timeline covering order confirmation, estimated production completion, inspection, and shipment readiness.

Plan export packing and logistics. Metallic-coated coil must be protected against seawater, condensation, impact, and shifting during transport. Agree on moisture-resistant wrapping, edge protection, steel strapping, coil orientation, handling points, and any pallet or skid requirements. Packing must also suit the destination’s unloading equipment and local restrictions. Shipping marks should match the packing list and coil identification. Additional export packing considerations are covered in [[INTERNAL_LINK]].

For an effective quotation comparison, evaluate more than the unit price. Compare the standard edition, grade, coating designation, actual order tolerance, surface treatment, coil weight, packaging, certificate scope, inspection cost, delivery term, and claim procedure. Differences in these items can materially affect processing yield and landed cost.

Frequently Asked Questions About AZ55 Galvalume Steel Coil

Q: What does AZ55 mean for Galvalume steel coil?

A: AZ55 is an ASTM inch-pound coating designation used for steel sheet coated with a nominal 55% aluminum-zinc alloy. It refers to the required coating category and associated coating-weight criteria under the applicable standard, not to the steel grade or sheet thickness. The purchase order should cite ASTM A792/A792M or another contractually accepted specification and edition. Metric designations should be confirmed separately rather than inferred from the letters and number.

Q: How is AZ55 Galvalume Steel Coil different from galvanized steel coil?

A: Galvalume uses a nominal coating composition of 55% aluminum, 43.4% zinc, and 1.6% silicon, while conventional hot-dip galvanized steel uses a predominantly zinc coating. The aluminum-rich Galvalume coating provides strong barrier behavior in many atmospheric applications, while zinc coatings have different sacrificial and cut-edge characteristics. Neither product is automatically superior in every environment. Forming severity, wet storage, chemical exposure, edge design, paint system, and local standards should guide the selection.

Q: Which certificates can be supplied with AZ55 Galvalume Steel Coil?

A: Certification depends on the contracted standard and order terms. A mill test certificate commonly identifies the product standard, grade, dimensions, coating designation, coil number, and specified test results. If an EN 10204 3.1 inspection certificate, certificate of origin, conformity document, or third-party inspection report is required, state this before order confirmation. The supplier should confirm which documents are available and whether external inspection adds cost or lead time.

Q: What is the minimum order quantity for AZ55 Galvalume Steel Coil?

A: MOQ varies by manufacturer, substrate grade, width, thickness, coating schedule, surface treatment, and slitting requirement. Stock dimensions may be available in smaller quantities through a service center, while made-to-order mill production usually requires a production-compatible quantity. Send a size-by-size tonnage schedule for an accurate MOQ assessment. Buyers should also ask whether multiple widths can be combined under one production order.

Q: What payment methods are available for international orders?

A: Payment terms are agreed commercially and may depend on order value, destination, credit assessment, production status, and previous transaction history. Common international arrangements can include bank transfer or a letter of credit, but no method should be assumed until it appears in the signed contract or pro forma invoice. Buyers should verify beneficiary details through an established communication channel before transferring funds and should confirm responsibility for bank charges.

Q: How long is the lead time for AZ55 Galvalume Steel Coil?

A: Lead time depends on mill scheduling, raw-material availability, grade, dimensions, coating run, quantity, inspection, and finishing operations such as slitting. Export packing and document preparation must also be included. The supplier should provide an order-specific estimate after technical details are approved. Distinguish production lead time from transit time, and allow additional time for vessel schedules, customs procedures, or destination inspections.

Q: Can AZ55 Galvalume Steel Coil be painted or roll formed?

A: Yes, suitable material can be roll formed and can serve as a substrate for an appropriate paint system. Successful processing depends on the substrate grade, bend radius, tooling condition, coating adhesion, lubricant, pretreatment, and surface treatment. Buyers should disclose the profile geometry or paint process and conduct qualification trials where appearance or adhesion is critical. Anti-fingerprint and passivation treatments are not automatically interchangeable with paint-compatible pretreatments.

Q: How should Galvalume coils be stored after delivery?

A: Store coils indoors in a dry, ventilated area, away from rain, standing water, corrosive chemicals, and rapid temperature changes that can cause condensation. Keep packaging intact until processing where practical, but inspect any package suspected of water ingress immediately. Use appropriate coil supports and handling equipment to prevent edge damage or telescoping. If moisture is found, follow an agreed drying and inspection procedure to reduce the risk of storage staining.

Q: What information is needed to request an accurate quotation?

A: Provide the standard and edition, substrate grade, AZ55 coating designation, thickness basis, width, quantity per size, surface treatment, edge condition, coil inside diameter, coil-weight range, packaging, certificate requirement, inspection requirement, destination, and requested delivery term. Also identify whether the coil will be roll formed, painted, laminated, or used in a structural application. A complete specification allows technical compliance and landed-cost factors to be compared consistently.

Send your AZ55 Galvalume Steel Coil specification, required quantity, destination, and application details to request a technical review and quotation. Include drawings or forming requirements where relevant so coating, substrate grade, tolerances, packing, certification, and delivery terms can be evaluated before the order is placed.
