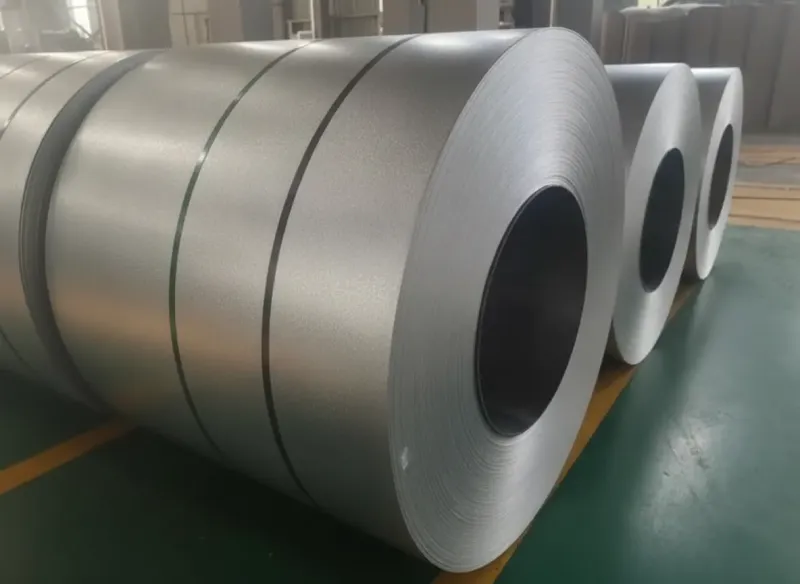

Zero Spangle Galvanized Coil is a continuously hot-dip zinc-coated steel product engineered to provide a smooth, visually uniform surface with little or no visible zinc crystal pattern. It serves overseas manufacturers, steel distributors, construction-material importers, appliance producers, and fabricators that require corrosion protection together with consistent appearance and reliable downstream processing. Compared with conventional regular-spangle galvanized steel, the minimized-spangle finish is better suited to painted, formed, profiled, or exposed components where surface uniformity matters. Buyers can specify the substrate grade, dimensions, zinc coating mass, surface treatment, coil weight, and applicable standard according to the intended manufacturing process and destination-market requirements.

Zero Spangle Galvanized Coil Product Overview

Zero Spangle Galvanized Coil, also called minimized-spangle or spangle-free GI coil in commercial purchasing, is produced by passing a cold-rolled steel strip through a molten zinc bath in a continuous galvanizing line. The zinc layer forms a sacrificial barrier that helps protect the steel substrate from atmospheric corrosion. Controlled solidification and coating-line technology suppress the large, visible zinc crystals associated with traditional regular-spangle material.

The term “zero spangle” describes the surface appearance rather than a separate steel grade. The underlying substrate may be selected for commercial forming, drawing, structural use, or another application-specific performance category. Consequently, purchase documents should identify both the required surface finish and the applicable substrate designation. Buyers comparing other metallic-coated products can also review [[INTERNAL_LINK]] before deciding whether pure zinc coating or an alternative alloy coating is more appropriate.

Key characteristics of Zero Spangle Galvanized Coil include:

• A smooth and consistent visual finish suitable for visible components and coated products.
• Zinc-based sacrificial corrosion protection on both sides of the steel strip.
• Compatibility with bending, roll forming, stamping, slitting, cutting, and profiling when the correct substrate grade is selected.
• A practical base for painting or powder coating after appropriate cleaning and pretreatment.
• Optional surface treatments, subject to mill capability, for storage protection, fingerprint resistance, lubrication, or paint preparation.
• Availability under internationally recognized galvanized steel standards, provided the ordered grade and coating designation are clearly stated.

Zero spangle does not automatically mean improved corrosion resistance. Service life depends primarily on coating mass, exposure conditions, fabrication quality, edge protection, installation details, and maintenance. A thicker zinc coating generally provides more available zinc for sacrificial protection, but it can affect forming behavior, weld settings, surface texture, and cost. Procurement teams should therefore evaluate the complete specification rather than choosing material solely by appearance. Guidance on zinc-coated steel selection is available through [[INTERNAL_LINK]].

Zero Spangle Galvanized Coil Specifications & Standards

Zero Spangle Galvanized Coil should be ordered against a recognized product standard and a complete technical specification. Relevant standards include ASTM A653/A653M for steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process; EN 10346 for continuously hot-dip coated steel flat products; JIS G 3302 for hot-dip zinc-coated steel sheet and strip; and GB/T 2518 for continuously hot-dip zinc-coated steel sheet and strip. The applicable edition and any customer-specific supplementary requirements should be confirmed on the purchase order.

These standards do not use identical grade names, coating designations, test methods, or acceptance rules. A designation from one system must not be treated as an automatic one-to-one substitute for a designation from another system. For export orders, the buyer and supplier should agree on the governing standard, grade, coating class, dimensions, tolerances, surface quality, treatment, testing, and inspection documents before production. See [[INTERNAL_LINK]] for additional information about comparing international steel standards.

The following table summarizes the standards commonly referenced for Zero Spangle Galvanized Coil. It is a selection guide, not a declaration that every grade or coating class is available from every production line.

Chemical composition and mechanical properties depend on the ordered substrate grade; there is no single chemistry or strength value that applies to all Zero Spangle Galvanized Coil. For this reason, values should be taken directly from the selected grade and current edition of ASTM A653/A653M, EN 10346, JIS G 3302, or GB/T 2518. The mill test certificate should identify the actual heat and coil results where required by the governing standard or purchase contract.

Dimensional tolerances may be governed by the product standard or by related tolerance standards. Buyers should not assume that nominal dimensions alone define acceptance. Thickness tolerance, width tolerance, flatness, camber, edge condition, coil telescoping, and weld locations should be addressed where they affect processing. A detailed coil specification template can be found at [[INTERNAL_LINK]].

Zero Spangle Galvanized Coil Applications

Zero Spangle Galvanized Coil is selected for fabricated products that need the corrosion protection of galvanized steel and a restrained, uniform surface. Its suitability for a specific component still depends on the chosen substrate grade, coating mass, treatment, geometry, and exposure environment.

Building and Construction Components

The material is roll-formed into roofing accessories, wall panels, ceiling systems, partitions, ventilation components, light-gauge framing parts, and other building products. Zero spangle is particularly useful when the galvanized surface remains visible or receives a decorative coating. For exterior applications, the project team must evaluate local humidity, pollutants, salt exposure, water retention, cut edges, and expected service life. Related construction steel products are available through [[INTERNAL_LINK]].

Household Appliances and Equipment Housings

Appliance manufacturers use galvanized sheet for internal panels, back plates, cabinets, brackets, and equipment enclosures. A uniform surface can support consistent paint appearance, while the zinc layer provides protection during service. Forming grade, surface cleanliness, oil level, paint pretreatment, and fingerprint resistance should be matched to the production line rather than specified independently.

HVAC and Ventilation Systems

Zero Spangle Galvanized Coil can be slit and formed into air ducts, covers, plenums, ventilation fittings, and equipment casings. HVAC fabricators should check coating performance at lock seams and bends, particularly when using small radii. Material thickness, stiffness, coating designation, and surface treatment also influence automated duct-forming performance. More processing considerations are discussed at [[INTERNAL_LINK]].

Electrical Cabinets and General Fabrication

Electrical enclosures, cable-management products, control cabinets, shelving, lockers, and general metal housings may use zero-spangle material as a bare or prepainted substrate. Where welding is required, users should establish suitable parameters and ventilation controls for zinc-coated steel. Weld zones and damaged coating areas may require additional corrosion-protection procedures appropriate to the finished product.

Prepainted and Laminated Steel Production

A controlled, low-visibility spangle is often preferred as a substrate for organic coating, film lamination, or other decorative finishing. Successful conversion depends on surface chemistry, roughness, cleanliness, pretreatment compatibility, and coating adhesion. Buyers supplying a coil-coating line should identify the intended pretreatment and paint system during technical review. Information about prepainted steel products can be accessed through [[INTERNAL_LINK]].

How to Choose Zero Spangle Galvanized Coil / Buying Guide

Purchasing Zero Spangle Galvanized Coil requires more than requesting a thickness, width, and zinc coating. A precise inquiry reduces technical disputes, improves quotation accuracy, and helps the supplier plan raw material, galvanizing, slitting, inspection, and export packing.

Define the End Use and Forming Process

Start with the finished component and manufacturing route. State whether the coil will be roll-formed, stamped, deeply drawn, bent, welded, painted, laminated, or used without further coating. This information allows the supplier to assess whether the requested substrate grade, mechanical properties, surface treatment, and coating mass are compatible. Critical components may require trial material or sample approval before a commercial order.

Specify the Governing Standard and Grade

Choose ASTM A653/A653M, EN 10346, JIS G 3302, GB/T 2518, or another contractually accepted specification, then state the full grade and coating designation. Avoid mixing a grade from one standard with coating terminology from another unless both parties document the conversion and acceptance criteria. Confirm the standard edition when a regulated project or formal inspection is involved.

Set Dimensions and Coil Handling Limits

List nominal thickness, width, tolerances, edge condition, inside diameter, preferred coil weight, and maximum coil weight. Maximum weight is especially important where receiving facilities have crane, forklift, decoiler, floor-loading, or container-handling restrictions. For slit coil, specify slit width, number of strips if relevant, burr orientation, and packaging arrangement. Buyers may consult [[INTERNAL_LINK]] for guidance on steel coil handling.

Confirm Coating and Surface Requirements

State the required zinc coating designation and zero-spangle appearance. If the final product is appearance-sensitive, define acceptable surface quality, oiling condition, treatment, and protected side, and agree on reference samples where practical. A visual term alone cannot replace measurable requirements. For painted products, confirm compatibility between the galvanized surface treatment and the buyer’s degreasing, pretreatment, primer, and topcoat system.

Review Certification and Inspection

Request the required inspection document before quotation. Depending on the standard, contract, and destination, this may include a manufacturer’s test certificate showing grade, chemistry, mechanical test results, coating mass, dimensions, and coil identification. Third-party inspection can be arranged when contractually required, but the scope, inspection agency, hold points, cost allocation, and acceptance criteria should be agreed before production.

Align MOQ, Production Lead Time, and Shipment

Minimum order quantity is not universal. It depends on grade, dimensions, coating designation, treatment, production scheduling, and whether the material requires full-width rolling or slitting. Lead time likewise varies with specification complexity, mill workload, raw-material availability, inspection, and packing. Ask the supplier to confirm MOQ and delivery timing against the exact specification rather than relying on a general catalogue figure.

For logistics, identify the destination, trade term, shipment mode, packaging restrictions, and document requirements. Coil weight and dimensions must suit both transport limits and unloading equipment. Export packing should reduce exposure to rain, condensation, seawater, and handling damage, but even protected galvanized coils should be stored promptly in a dry, ventilated location. Additional storage guidance is available at [[INTERNAL_LINK]].

Zero Spangle Galvanized Coil Frequently Asked Questions

Q: What is the difference between zero-spangle and regular-spangle galvanized coil?

A: The primary difference is visual appearance. Regular-spangle galvanized steel displays visible zinc crystal patterns formed during coating solidification, while Zero Spangle Galvanized Coil has a much more uniform surface with little or no visible crystal pattern. Spangle size alone does not determine zinc coating mass, substrate strength, or corrosion resistance. Those properties must be specified separately under the applicable standard.

Q: Is Zero Spangle Galvanized Coil more corrosion-resistant than regular-spangle material?

A: Not necessarily. If both products have equivalent coating mass, coating integrity, substrate, and exposure conditions, the visible spangle pattern is not the main indicator of corrosion performance. Coating designation, environment, cut-edge exposure, fabrication damage, drainage, storage, and maintenance have greater practical importance. Buyers should select coating mass based on service conditions and design life.

Q: Which standards can be supplied for Zero Spangle Galvanized Coil?

A: Commonly referenced specifications include ASTM A653/A653M, EN 10346, JIS G 3302, and GB/T 2518. Availability depends on the requested grade, coating designation, size, surface treatment, and production capability. The inquiry should name one governing standard and the complete designation so that compliance can be reviewed before order acceptance.

Q: Can a mill test certificate be provided?

A: Certification may be provided according to the agreed standard and purchase contract. Buyers should state whether they need a manufacturer’s test certificate, specific test results, traceable coil numbers, or third-party inspection. The required document type and inspection scope must be confirmed before production because documentation requirements can affect testing, scheduling, and cost.

Q: What is the minimum order quantity for Zero Spangle Galvanized Coil?

A: MOQ depends on the combination of substrate grade, thickness, width, zinc coating, treatment, coil weight, and processing requirements. Standard production combinations may have different minimums from narrow slit coils or special specifications. Submit the full technical requirement and estimated quantity to receive an order-specific MOQ rather than assuming a fixed minimum.

Q: What payment methods are available for export orders?

A: Payment terms are agreed commercially for each transaction and may depend on order value, customer history, destination, production status, and credit arrangements. Buyers should request the accepted payment methods and banking details in the formal quotation or sales contract. Payment should only be made to a verified beneficiary account stated in authenticated commercial documents.

Q: How long is the production and delivery lead time?

A: Lead time varies with material availability, galvanizing-line schedules, order quantity, testing, slitting, packing, and shipment arrangements. Special grades, unusual dimensions, restricted coil weights, or third-party inspection may require additional time. A reliable schedule can be issued only after the specification, quantity, commercial terms, and required delivery date have been reviewed.

Q: Can Zero Spangle Galvanized Coil be painted or powder coated?

A: Yes, it can be used as a substrate for liquid paint, coil coating, or powder coating when the surface condition and pretreatment are compatible with the selected coating system. Oil, passivation chemistry, storage contamination, white rust, and surface damage can reduce adhesion. The buyer should disclose the intended paint process and conduct production-line adhesion and appearance trials where the application is critical.

Q: Is Zero Spangle Galvanized Coil suitable for bending and deep drawing?

A: Suitability depends on the substrate grade, thickness, coating mass, surface treatment, bend radius, component geometry, and tooling. Zero spangle describes the coating appearance and does not guarantee deep-drawing performance. For demanding stamped parts, specify a drawing-grade material under the selected standard and evaluate samples using the actual tools and process conditions.

Q: How should galvanized coils be packed and stored for international shipment?

A: Packaging should be agreed according to coil dimensions, shipment mode, climate exposure, and local handling methods. Typical protective measures may include moisture-resistant wrapping, edge protection, secure strapping, identification labels, and a suitable support arrangement. After arrival, coils should remain dry, protected from condensation, and isolated from corrosive contaminants. Wet storage conditions can cause white rust even when the zinc coating is otherwise intact.

Q: What information is required to obtain an accurate quotation?

A: Provide the product standard, substrate grade, thickness, width, zinc coating designation, zero-spangle finish, surface treatment, edge condition, coil inside diameter, coil-weight limits, total quantity, certification requirements, packing instructions, destination, and requested trade term. Include the end use and processing method when possible. A complete inquiry allows technical feasibility, MOQ, lead time, logistics, and commercial terms to be evaluated together.
