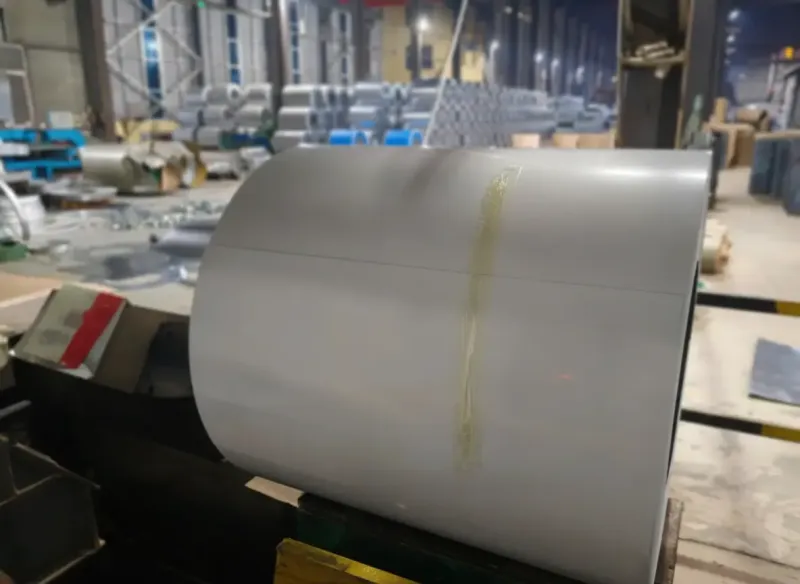

Matte Color Coated Steel Coil Manufacturer | Premium Matte Finish Steel Coil

彩图镀锌

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$860 1-24 ton Base price

$780 25-99 ton 9.3% off

$720 ≥100 ton 16.3% off

Price validity: subject to market conditions

Quantity

Minimum order quantity: 25 ton

Shipping total: To be negotiated

Subtotal of goods US$ 21,500.00

Start order request

Payment and delivery

Product details

Matte Color Coated Steel Coil Technical Specifications
Parameter	Specification
Product Name	Matte Color Coated Steel Coil
Product Type	Pre-painted galvanized steel coil (PPGI) or pre-painted galvalume steel coil (PPGL)
Base Metal	Hot-dip galvanized steel, galvalume steel, or cold-rolled steel
Applicable Standards	EN 10169, ASTM A755/A755M, JIS G3312, and GB/T 12754
Steel Grade	DX51D, DX52D, S280GD, S350GD, CS-B, or equivalent grades
Steel Thickness	0.20–1.20 mm, with custom thickness available
Coil Width	600–1,250 mm, with custom widths available
Metallic Coating	Z30–Z275 g/m² for galvanized steel or AZ30–AZ150 g/m² for galvalume steel
Paint Coating	Matte polyester, SMP, HDP, or PVDF coating; top coat typically 15–30 µm and back coat 5–15 µm
Surface Finish	Matte, low-gloss textured finish, typically 10–30% gloss at 60°
Color	RAL colors or customer-specified colors
Mechanical Properties	Yield strength 220–550 MPa, tensile strength ≥300 MPa, and elongation ≥12%, depending on grade
Coil Inner Diameter	508 mm or 610 mm
Coil Outer Diameter	Typically 1,000–2,000 mm, subject to production requirements
Coil Weight	Approximately 3–8 metric tons per coil, customizable
Performance	Good corrosion resistance, weather resistance, UV resistance, formability, and color retention
Applications	Roofing sheets, wall cladding, sandwich panels, doors, garage doors, ceilings, and architectural panels
Packaging	Export seaworthy packaging with moisture protection and vertical or horizontal eye orientation
