| Property | Parameter | Description |
|---|---|---|

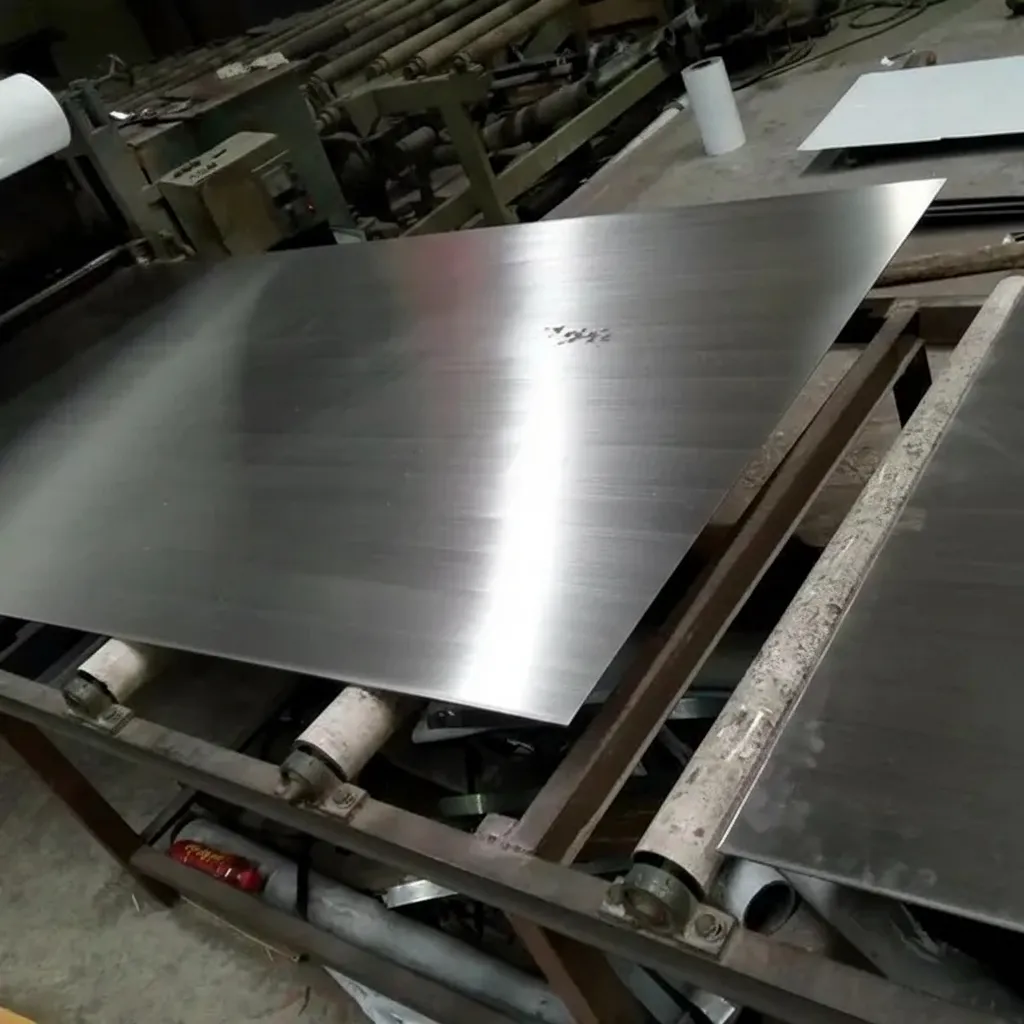

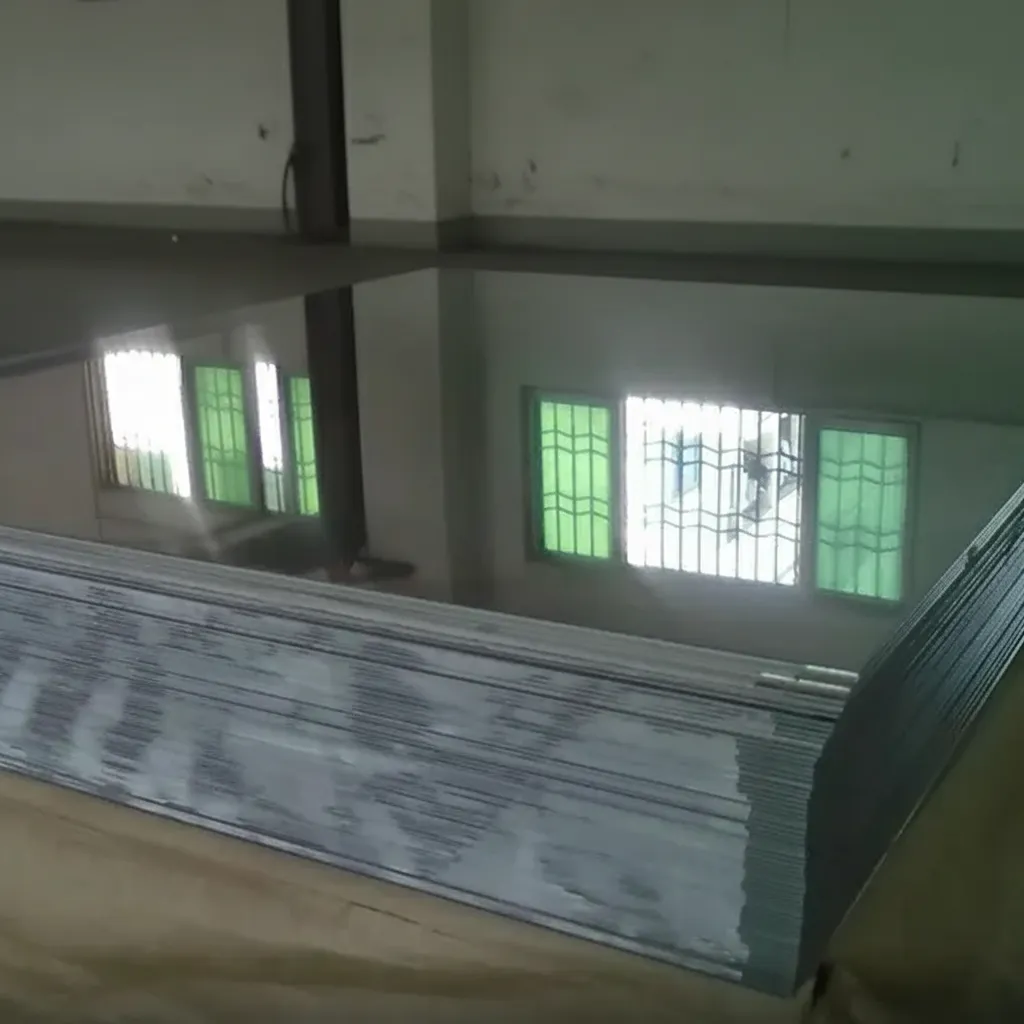

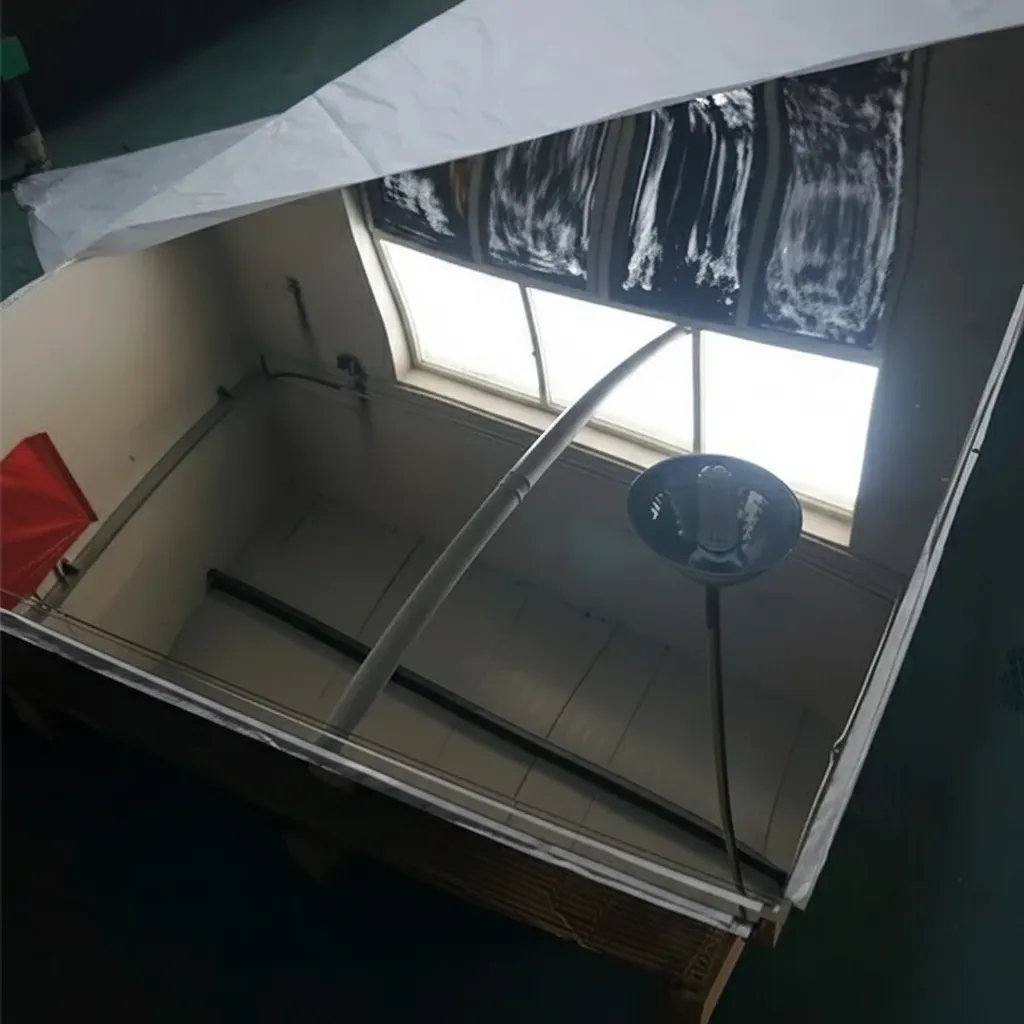

| Product Name | Mirror Finish Stainless Steel Sheet | High-reflectivity polished stainless steel flat product with 8K/6K/4K surface treatment |
| Material Grade | 304 / 304L / 316 / 316L / 430 | AISI 304 (EN 1.4301), AISI 316 (EN 1.4401), AISI 430 (EN 1.4016); JIS SUS304 / SUS316 |
| Standard Compliance | ASTM A240 / EN 10088-2 / JIS G4304 / GB/T 3280 | Meets international flat-rolled stainless steel standards for chemical composition and mechanical properties |
| Chemical Composition (304) | C ≤0.08%, Mn ≤2.0%, Si ≤0.75%, Cr 18.0–20.0%, Ni 8.0–10.5%, P ≤0.045%, S ≤0.030% | Austenitic grade; excellent corrosion resistance and formability suitable for mirror polishing |
| Chemical Composition (316) | C ≤0.08%, Cr 16.0–18.0%, Ni 10.0–14.0%, Mo 2.0–3.0%, Mn ≤2.0%, P ≤0.045%, S ≤0.030% | Mo addition enhances pitting and crevice corrosion resistance in chloride environments |
| Tensile Strength | ≥515 MPa (304) / ≥515 MPa (316) | Per ASTM A240; minimum ultimate tensile strength for austenitic grades |
| Yield Strength | ≥205 MPa (304) / ≥205 MPa (316) | 0.2% proof stress per ASTM A240 / EN 10088-2 |
| Elongation | ≥40% (304) / ≥40% (316) | Minimum elongation in 50 mm gauge length; ensures excellent formability for decorative applications |
| Hardness | ≤201 HBW (304) / ≤217 HBW (316) | Brinell hardness per ASTM A240; Rockwell B ≤92 HRB |
| Thickness Range | 0.3 mm – 6.0 mm | Standard thicknesses: 0.5 / 0.8 / 1.0 / 1.2 / 1.5 / 2.0 / 3.0 mm; custom thickness available on request |
| Width Range | 600 mm – 2000 mm | Common widths: 1000 mm, 1219 mm (4 ft), 1500 mm, 2000 mm; slit coil widths available |
| Length Range | 1000 mm – 6000 mm | Standard: 2438 mm (8 ft), 3048 mm (10 ft); custom cut-to-length service available |

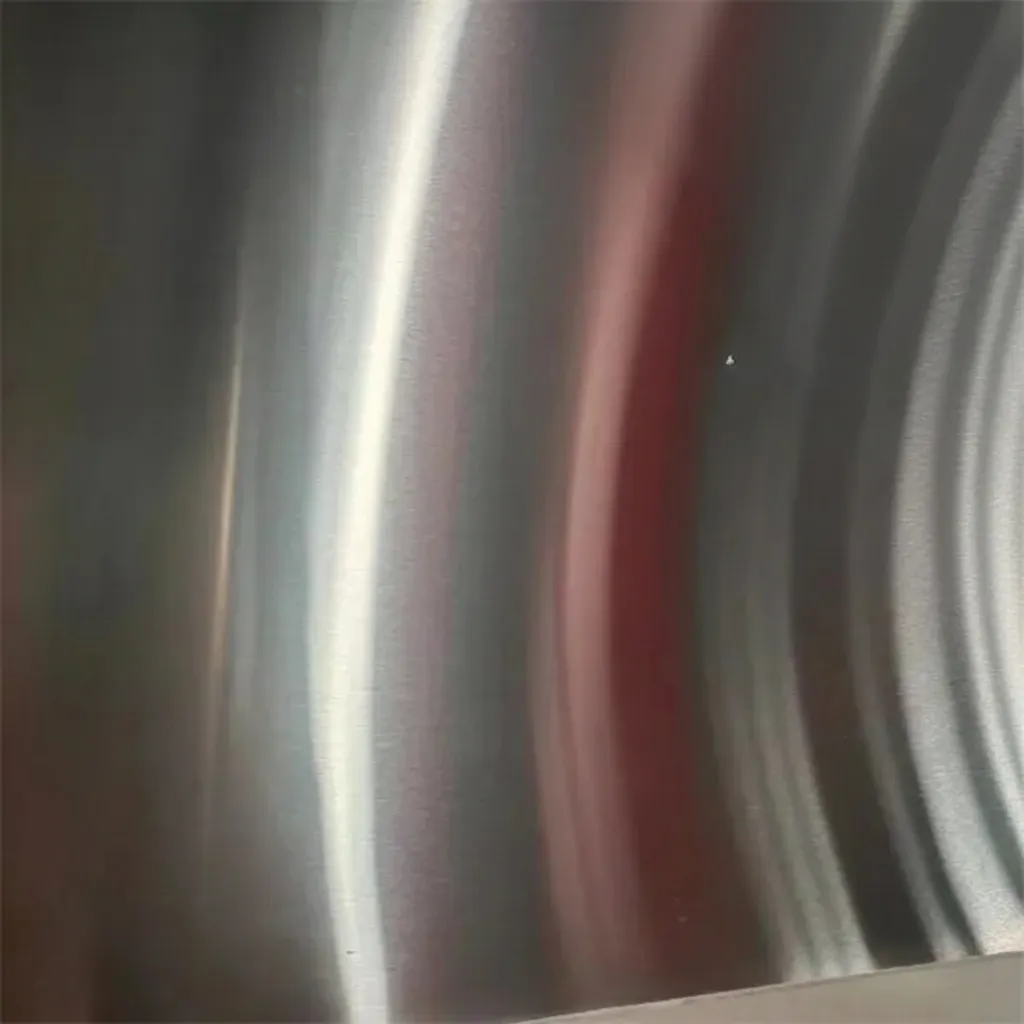

| Surface Finish | 8K Mirror / 6K Mirror / 4K Mirror | 8K: Ra ≤0.05 µm, reflectivity ≥95%; 6K: Ra ≤0.10 µm; 4K: Ra ≤0.20 µm; achieved by progressive abrasive and buffing polishing |
| Application | Architecture, Interior Decoration, Elevator Panels, Kitchenware, Signage, Automotive Trim | Widely used in decorative cladding, column covers, ceiling tiles, furniture, and food-grade equipment |
| Certification | ISO 9001:2015, SGS, Mill Test Certificate (EN 10204 3.1 / 3.2) | Full material traceability; third-party inspection available upon request |
| Packaging | PVC protective film + wooden pallet / wooden crate | Each sheet protected with blue/transparent PVC film; export seaworthy packaging with moisture-proof paper |
| MOQ | 500 kg per grade/finish | Mixed grades accepted to meet MOQ; spot stock available for standard sizes 304 8K |
Initial Flatness Issue on 3mm Sheets – Resolved After Communication
We ordered SS 304 mirror finish at 3.0mm × 1219mm × 2438mm, 80 sheets for equipment housing fabrication. On arrival, roughly 12 sheets showed slight bow exceeding our flatness tolerance of 3mm per metre, which would have caused fit-up problems in our CNC workflow. We raised this with the supplier immediately and sent measurement data. To their credit, they responded within one business day, arranged replacement of the affected sheets at no charge, and confirmed a revised flatness check procedure for our account going forward. Replacement arrived in 14 days. Issue resolved professionally — quality on the replacement batch was fully within spec.
