| Property | Parameter | Description |
|---|---|---|

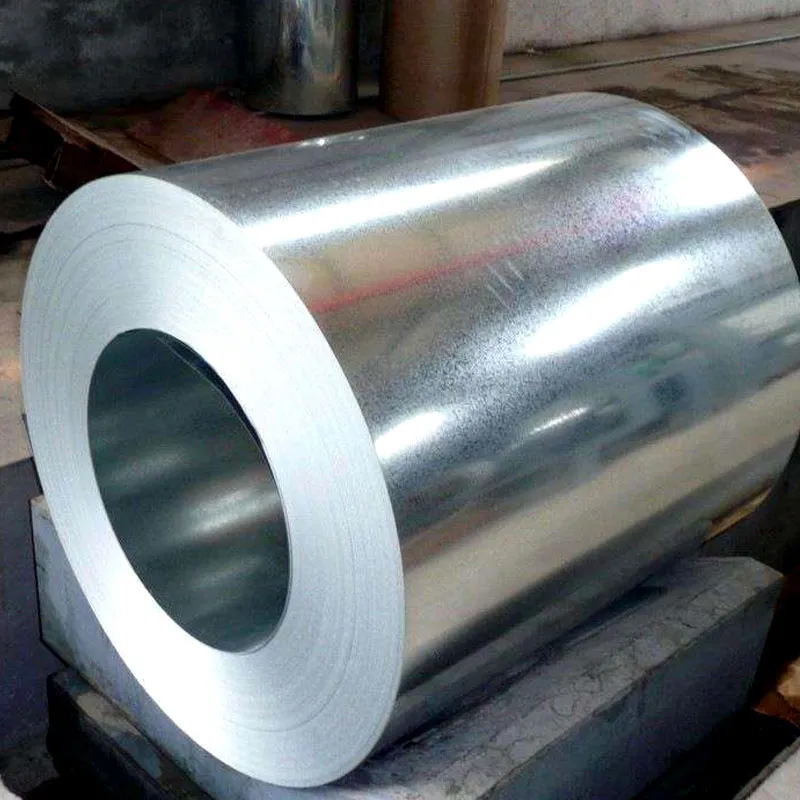

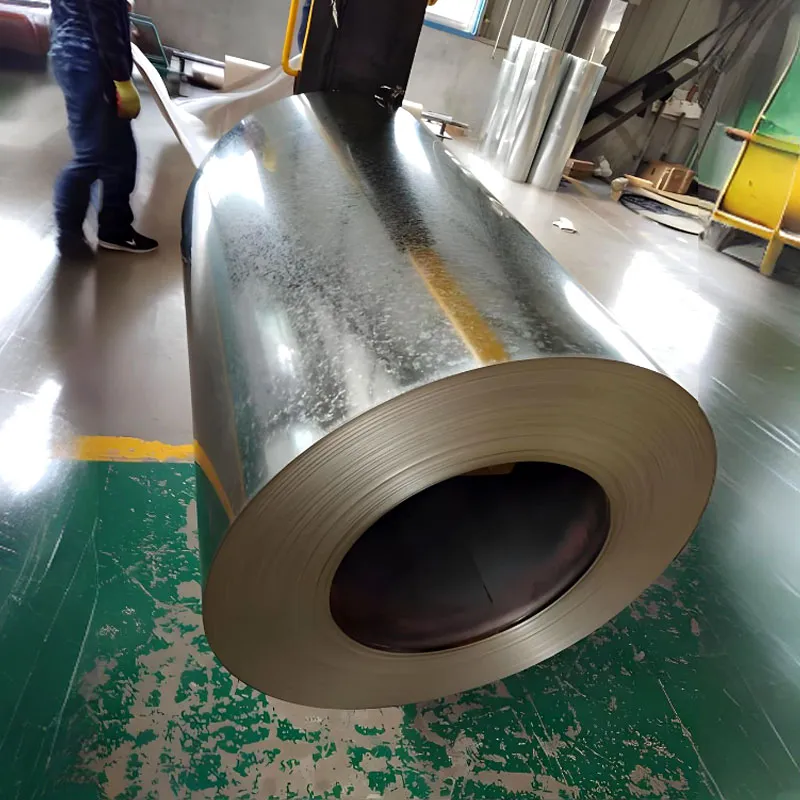

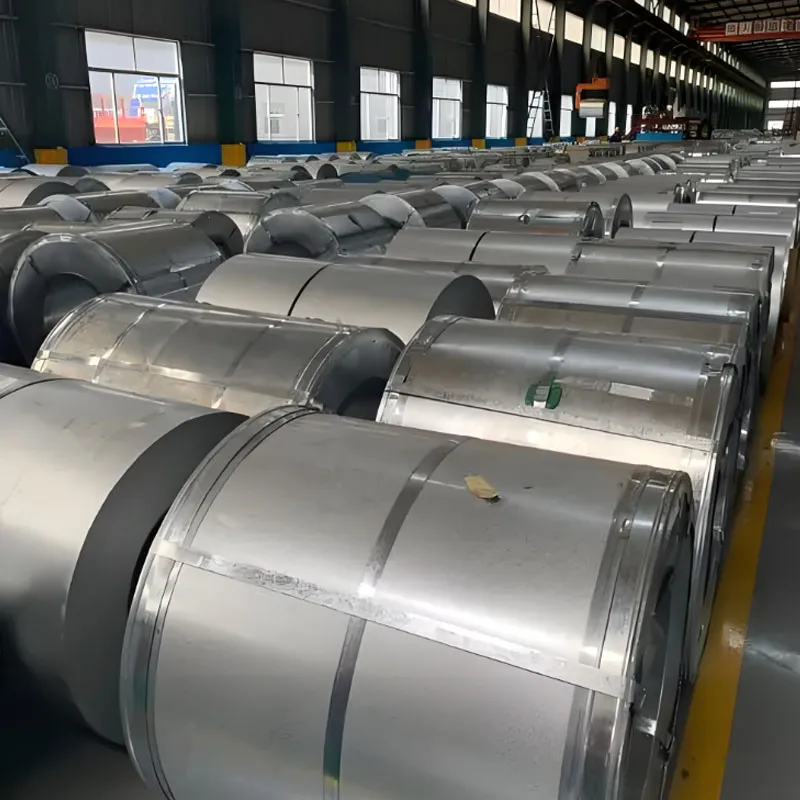

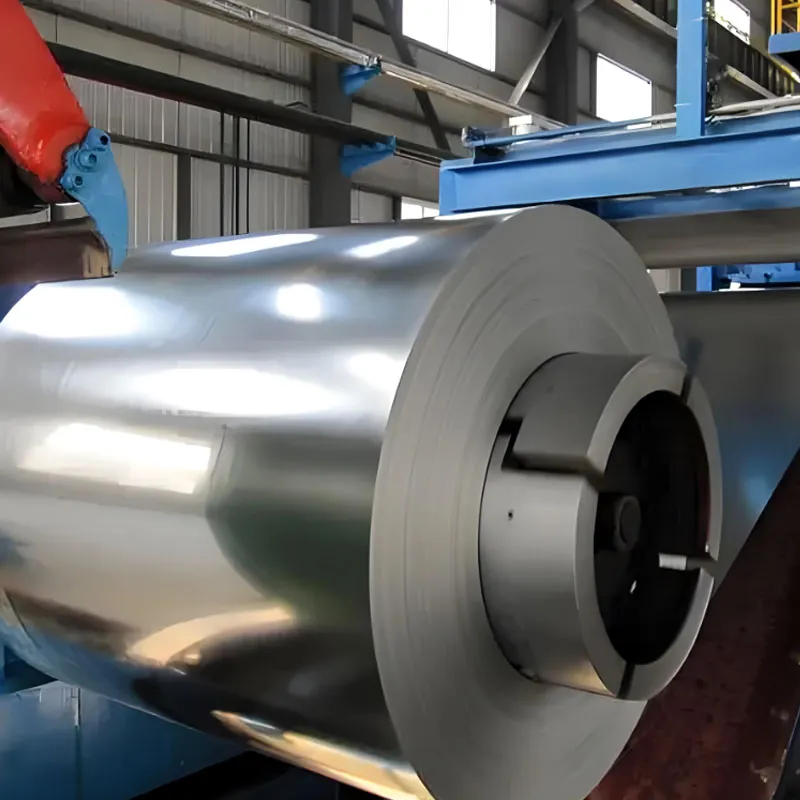

| Product Name | Galvanized Steel Coils for Construction | Hot-dip or electro-galvanized steel coils designed for structural and construction applications |
| Material Grade | DX51D, DX52D, DX53D / S220GD, S250GD, S280GD, S320GD, S350GD | Equivalent to ASTM A653 CS Type A/B/C, SS Grade 33/37/40/50; JIS G3302 SGCC/SGCD |
| Standard Compliance | ASTM A653/A653M, EN 10346, JIS G3302, GB/T 2518 | Meets international standards for hot-dip zinc-coated steel sheet and strip |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel base; composition varies by grade per EN 10346 / ASTM A653 |
| Tensile Strength | 270–560 MPa | DX51D: ≥270 MPa; S350GD: ≥420 MPa; per EN 10346 / ASTM A653 |
| Yield Strength | 140–420 MPa | S220GD: ≥220 MPa; S350GD: ≥350 MPa; structural grades per EN 10346 |
| Elongation | ≥16%–26% | DX51D: ≥22%; S350GD: ≥16%; measured on A80 gauge per EN 10346 |
| Zinc Coating Weight | Z60–Z600 (g/m²); AZ50–AZ150 (Galvalume) | Both sides combined; Z275 (275 g/m²) most common for construction; per ASTM A653 G30–G235 |
| Thickness Range | 0.12–6.00 mm | Standard construction range: 0.3–3.0 mm; tolerance per EN 10143 or ASTM A924 |
| Width Range | 600–1,500 mm | Custom slit widths available; standard coil width 914 mm, 1,000 mm, 1,219 mm, 1,250 mm |
| Coil Inner Diameter | 508 mm / 610 mm | Standard inner diameter; coil weight typically 3–25 MT per coil |
| Surface Finish | Regular Spangle, Minimized Spangle, Zero Spangle, Skin-passed | Chromate passivation or oiled surface available; smooth finish suitable for roll-forming and profiling |
| Application | Roofing sheets, wall cladding, purlins, steel frames, corrugated panels, HVAC ducts, structural profiles | Widely used in residential, commercial, and industrial construction projects |
| Certification | ISO 9001, CE Marking, Mill Test Certificate (EN 10204 3.1/3.2), SGS, BV | Third-party inspection available; full traceability documentation provided |
| Packaging | Eye-to-sky or eye-to-wall coil packaging; steel strip banding; waterproof paper + steel outer wrap | Suitable for sea freight, rail, and road transport; fumigation-free wooden pallet optional |
| MOQ | 25 MT per order | Mixed grades and specifications accepted; spot stock available for standard grades |
Initial width tolerance issue — resolved promptly by supplier
Our first order of 50 MT of 1.0mm Z350 coils, width 1,250mm per ASTM A653, arrived with two coils measuring 1,238mm — outside our ±3mm tolerance for our roll-forming line. We raised the issue immediately. The supplier responded within 4 hours, issued a formal non-conformance report, and arranged replacement coils plus a partial credit within 10 days. The replacement material was within spec. The resolution process was professional and fast. We have since placed a second order and quality control appears tightened. Cautiously optimistic going forward.
