| Property | Parameter | Description |
|---|---|---|

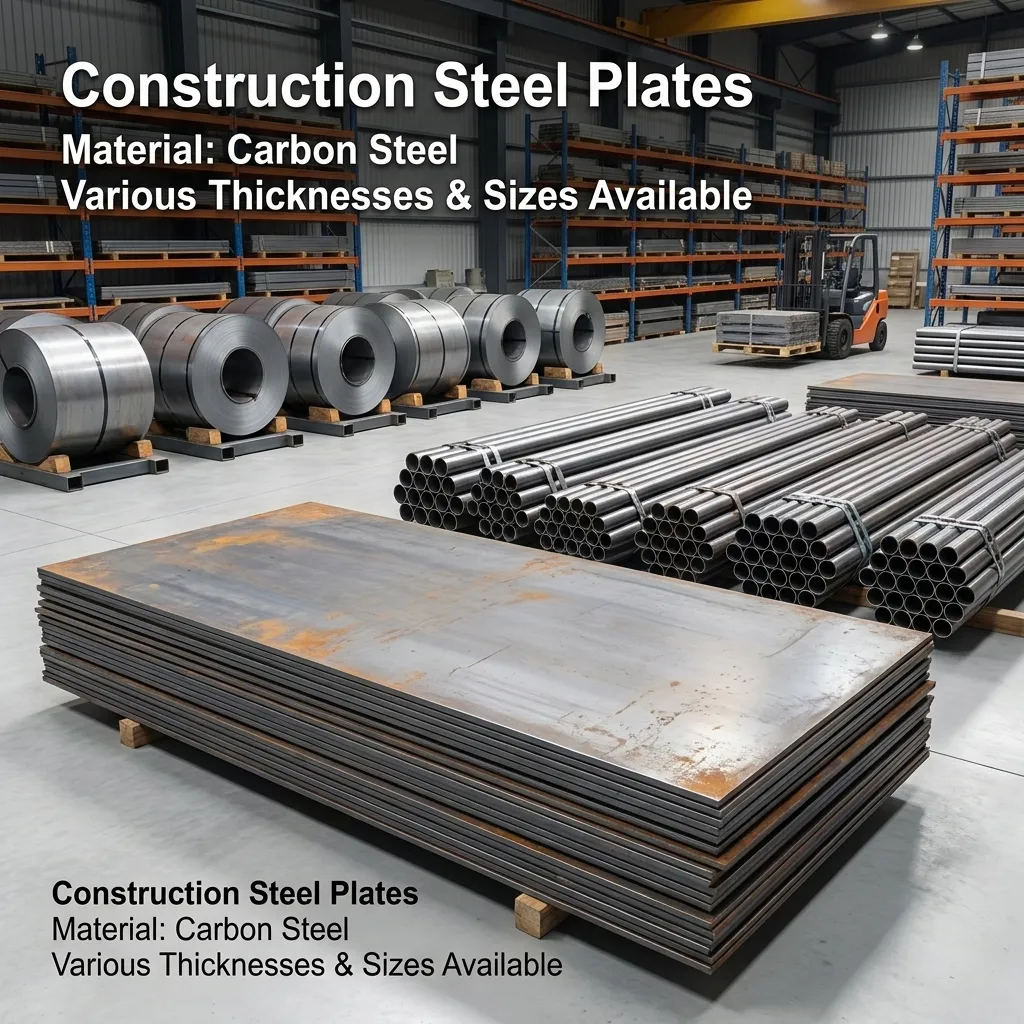

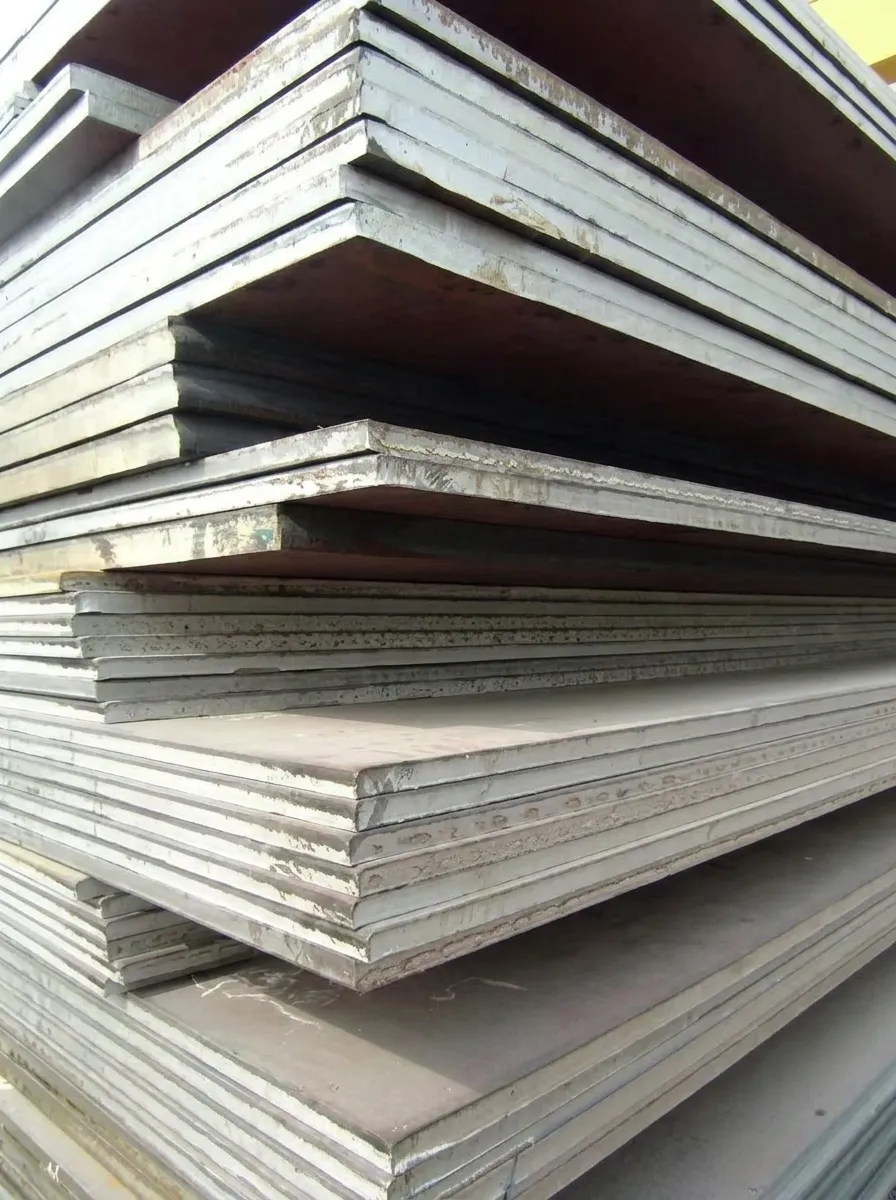

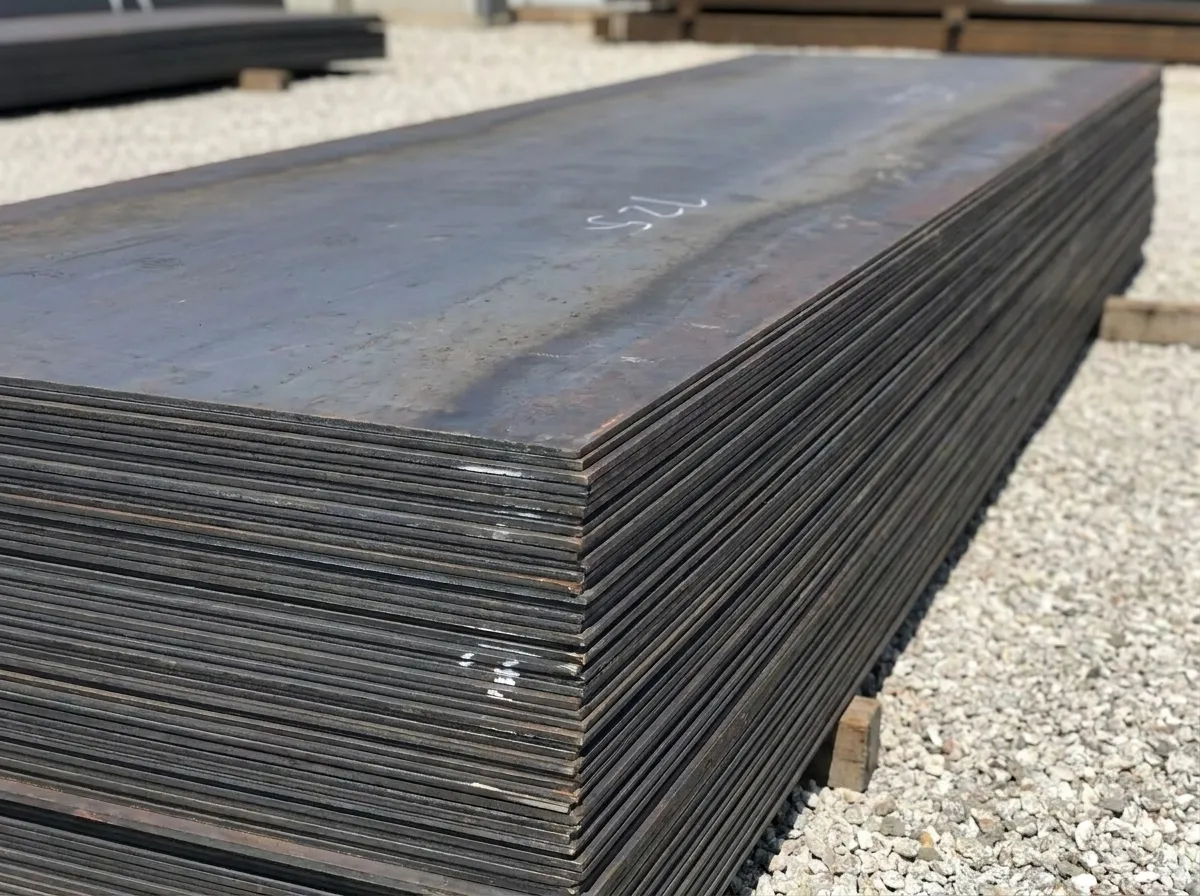

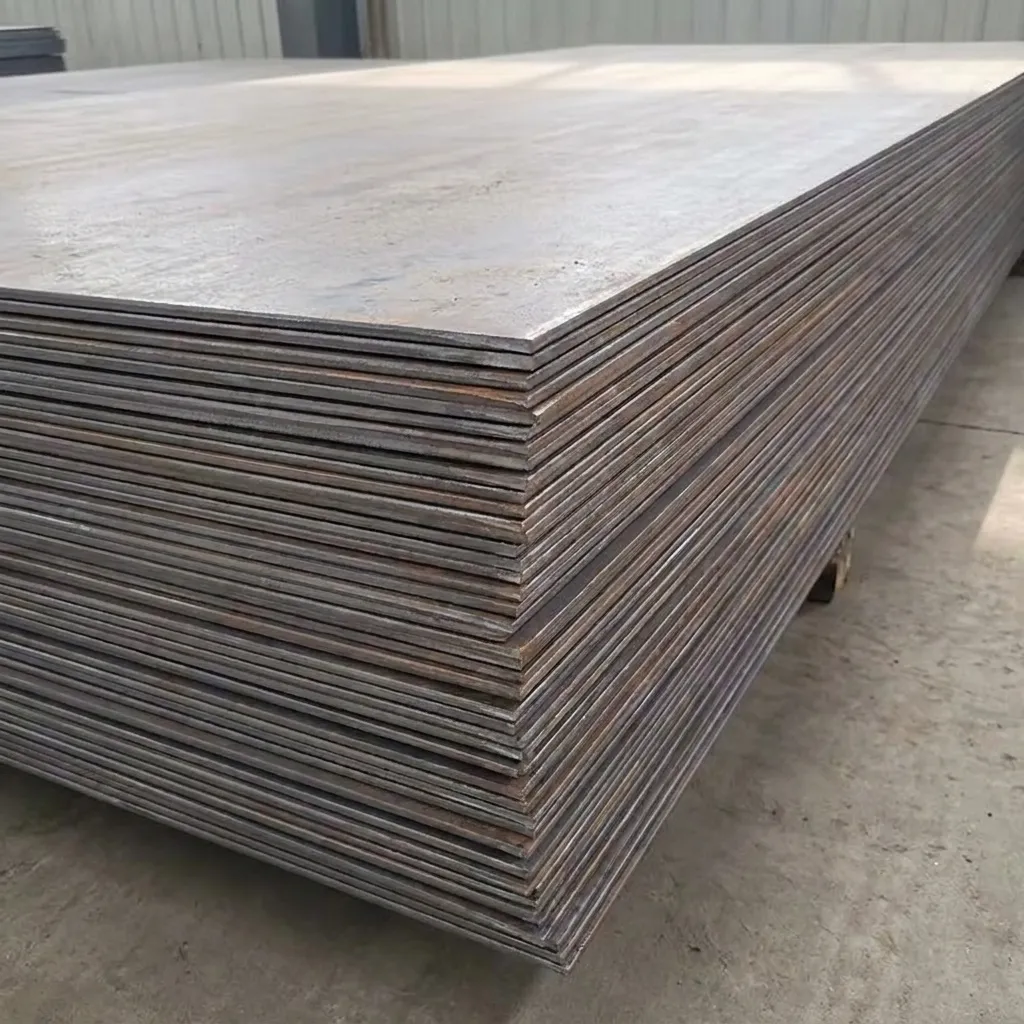

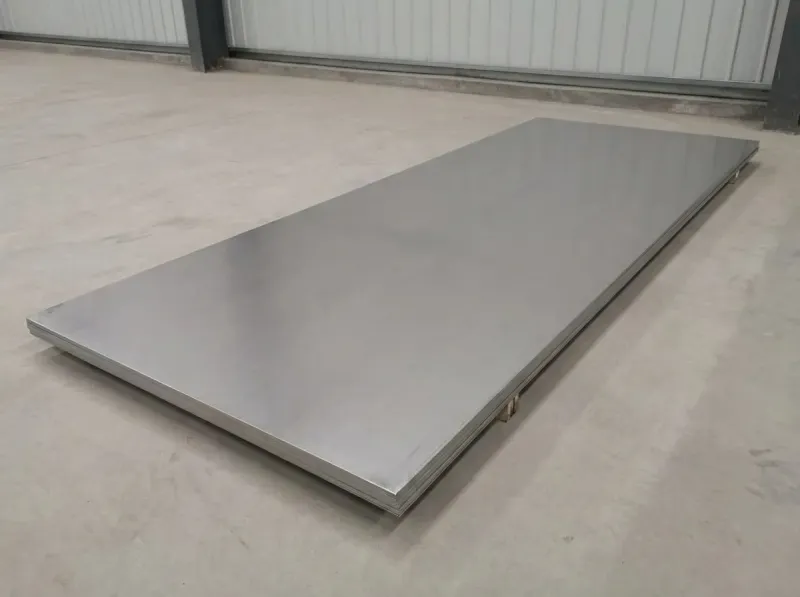

| Product Name | ASTM A36 Steel Plate for Construction | Hot-rolled structural carbon steel plate widely used in building and civil engineering |
| Material Grade | A36 / S235JR (EN) / SS400 (JIS) / Q235B (GB) | Low-carbon structural steel with equivalent international grades |
| Standard Compliance | ASTM A36/A36M | Standard specification for carbon structural steel issued by ASTM International |
| Carbon (C) | ≤ 0.26% | Controls hardness and weldability; low carbon ensures excellent field weldability |
| Manganese (Mn) | ≤ 1.03% | Enhances strength and toughness of the steel plate |
| Phosphorus (P) | ≤ 0.04% | Kept low to prevent brittleness and improve ductility |
| Sulfur (S) | ≤ 0.05% | Controlled to improve impact toughness and hot workability |
| Silicon (Si) | 0.15% – 0.40% | Acts as deoxidizer; improves strength without reducing ductility |
| Tensile Strength | 400 – 550 MPa (58 – 80 ksi) | Per ASTM A36/A36M; ensures structural integrity under load-bearing conditions |
| Yield Strength | ≥ 250 MPa (36 ksi) | Minimum yield point per ASTM A36; suitable for primary structural members |
| Elongation | ≥ 20% (in 200 mm gauge length) | High elongation ensures good ductility and energy absorption in seismic zones |
| Thickness Range | 3 mm – 150 mm (0.125 in – 6 in) | Available in various thicknesses to meet diverse construction requirements |
| Width × Length | Width: 1000 – 4500 mm; Length: 2000 – 12000 mm | Custom cutting available; standard mill plates and cut-to-size sheets supplied |

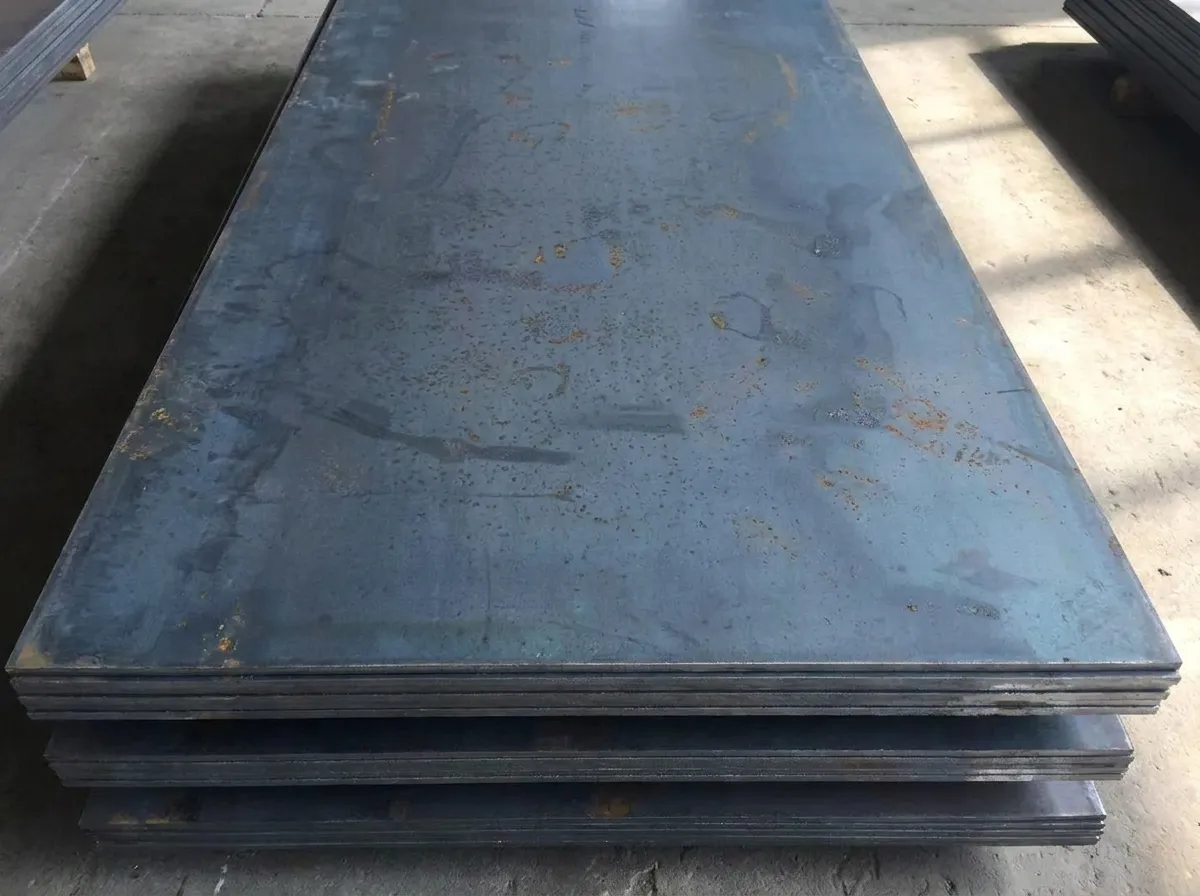

| Surface Finish | Hot-rolled, mill scale surface (as-rolled) | Can be supplied shot-blasted, primed, or with anti-rust coating upon request |
| Application | Structural beams, columns, bridges, frames, base plates, machinery foundations | Ideal for general construction, industrial buildings, and infrastructure projects |
| Certification | Mill Test Certificate (MTC) per EN 10204 3.1; CE Marking available | Full traceability with heat number, chemical and mechanical test reports |

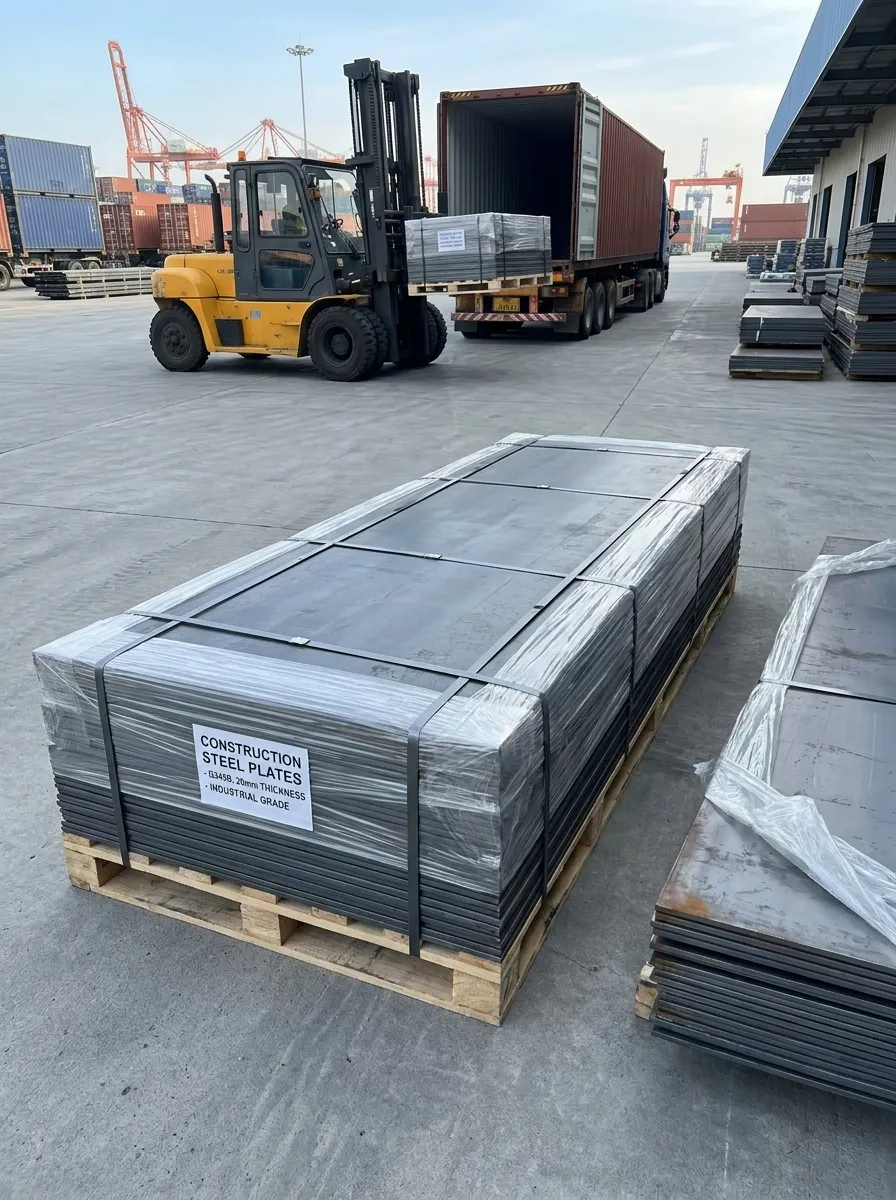

| Packaging | Bundled with steel strips; wooden dunnage protection; seaworthy export packing | Suitable for container, flat-rack, or bulk vessel shipment |
| MOQ | 1 Metric Ton (MT) | Small orders accepted; competitive pricing for orders ≥ 25 MT |
Initial surface finish issue on one batch — but supplier handled the resolution professionally
On our first order of 22 tons of ASTM A36 plate in 8 mm and 12 mm, roughly 15% of plates in one pallet had surface scale that exceeded our as-rolled acceptance criteria for a visible architectural steelwork application. We raised this immediately with the team. They responded within 24 hours, offered blast-cleaned replacements at no additional charge, and expedited the corrected shipment within 10 days. The replacement plates fully met spec. The problem-handling was professional and transparent. We have since placed a second order with blast-cleaned finish specified upfront.
On our first order of 22 tons of ASTM A36 plate in 8 mm and 12 mm, roughly 15% of plates in one pallet had surface scale that exceeded our as-rolled acceptance criteria for a visible architectural steelwork application. We raised this immediately with the team. They responded within 24 hours, offered blast-cleaned replacements at no additional charge, and expedited the corrected shipment within 10 days. The replacement plates fully met spec. The problem-handling was professional and transparent. We have since placed a second order with blast-cleaned finish specified upfront.
