DX51D AZ Steel Coil - Galvanized Cold Rolled Steel Coil for Construction & Manufacturing

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

Technical Specifications of DX51D AZ Steel Coil

Property	Parameter	Description
Product Name	DX51D AZ Steel Coil	Hot-dip aluminum-zinc coated steel coil for corrosion resistance
Material Grade	DX51D / EN 10346 / ASTM A792	International grade equivalents for AZ coating
Standard Compliance	EN 10346, ASTM A792, JIS G3321	Meets major international coating standards
Base Steel	Low carbon steel	Continuous hot-dip coated base material
Coating Type	Aluminum-Zinc (AZ)	55% Al, 43.4% Zn, 1.6% Si alloy coating
Coating Mass	60-185 g/m² (both sides)	Total coating weight per EN 10346
Yield Strength	≥140 MPa	Minimum yield strength for DX51D grade
Tensile Strength	270-500 MPa	Tensile strength range per standard
Elongation	≥22%	Ductility in longitudinal direction
Thickness Range	0.18 - 2.0 mm	Available base metal thickness options
Width Range	600 - 1500 mm	Standard coil width specifications
Coil Weight	3 - 8 tons	Typical coil weight range
Surface Finish	Regular spangle, minimized spangle, zero spangle	Multiple surface appearance options
Corrosion Resistance	3-6 times better than GI	Superior to galvanized steel in harsh environments
Heat Resistance	Up to 315°C	Maximum continuous service temperature
Application	Roofing, wall panels, appliances, automotive parts	Construction and manufacturing industries
Certification	EN 10204 3.1, ISO 9001, SGS	Quality certifications provided
Packaging	Eye to wall, eye to sky with steel strapping	Standard export seaworthy packaging
MOQ	25 tons	Minimum order quantity per specification

DX51D AZ Steel Coil - Galvanized Cold Rolled Steel Coil for Construction & Manufacturing

DX51D AZ steel coil represents a premium-grade galvanized cold-rolled steel product specifically engineered for demanding construction and manufacturing applications. This continuously hot-dip coated steel coil combines exceptional corrosion resistance with superior formability, making it the preferred choice for roofing systems, automotive components, and industrial fabrication projects requiring long-term durability in challenging environmental conditions.

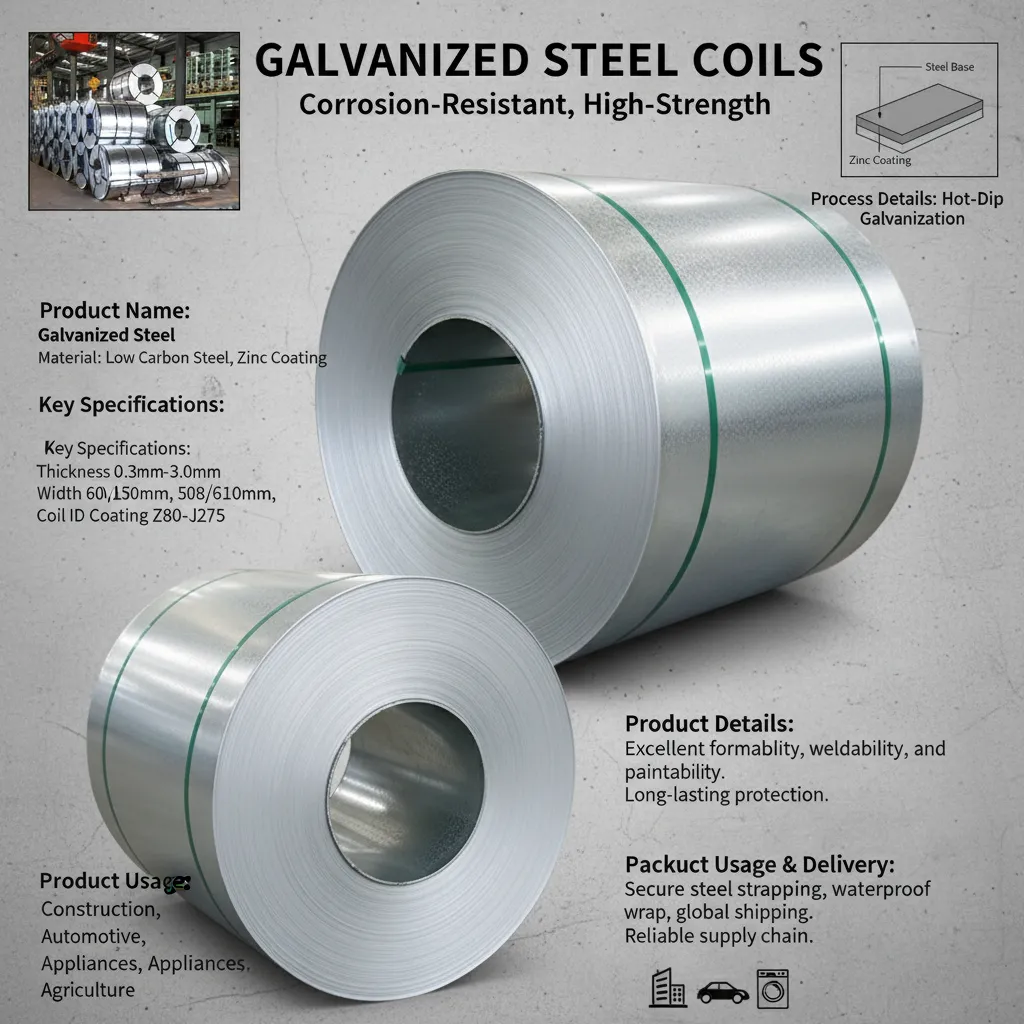

DX51D az steel coil supplier

What is DX51D AZ Steel Coil?

DX51D AZ steel coil is a continuously hot-dip coated steel product manufactured according to EN 10346:2015 standards, featuring an aluminum-zinc alloy coating (typically 55% aluminum, 43.4% zinc, and 1.6% silicon). The designation "DX51D" indicates its structural quality grade with minimum yield strength of 140-300 MPa, while "AZ" specifies the aluminum-zinc coating composition that delivers three to six times greater corrosion protection compared to conventional galvanized coatings.

DX51D AZ Steel Coil Technical Specifications

Our DX51D AZ steel coil complies with EN 10346:2015 Section 6 requirements, with base metal thickness ranging from 0.25mm to 3.0mm and coating mass between AZ100 (100 g/m²) to AZ185 (185 g/m²) per surface. The product exhibits tensile strength of 270-500 MPa per EN 10346 Table 3, with elongation values of 22% minimum for thickness ≥0.5mm, ensuring excellent deep-drawing characteristics for complex forming operations.

DX51D az steel coil manufacturer

Why Choose Our DX51D AZ Steel Coil?

We supply mill-direct DX51D AZ steel coil with full EN 10204 3.1 material test certificates, maintaining strict quality control throughout the continuous galvanizing process. Our production facility operates under ISO 9001:2015 certification, guaranteeing consistent coating adhesion per EN ISO 1460 standards and surface quality meeting EN 10346 Class A requirements, with factory-competitive pricing backed by comprehensive technical support for material selection and application engineering.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for DX51D AZ steel coil is 25 metric tons per specification. For trial orders or sampling requirements, we accommodate reduced quantities starting from 5 tons with adjusted pricing, allowing customers to evaluate material performance before committing to full production volumes.

Do you provide material test certificates?

Yes, we supply comprehensive EN 10204 3.1 mill test certificates with every shipment, documenting chemical composition per EN 10346 Table 2, mechanical properties including yield strength and tensile values, coating mass verification per EN ISO 1460, and surface quality inspection results meeting Class A standards.

What is the typical delivery time?

Standard delivery time for DX51D AZ steel coil ranges from 25 to 35 days from order confirmation, depending on coating mass specifications and coil dimensions. For urgent requirements, we maintain strategic inventory of common specifications (0.4-0.8mm thickness, AZ150 coating) enabling expedited shipment within 10-15 days subject to availability confirmation.

Can you cut to custom sizes?

We provide comprehensive slitting and cut-to-length services for DX51D AZ steel coil, accommodating strip widths from 20mm to 1,250mm with tolerance of ±0.5mm per EN 10346 requirements. Our precision cutting equipment handles sheet lengths up to 6,000mm, with edge quality meeting burr-free standards suitable for direct fabrication without secondary processing.

Get a Competitive Quote for DX51D AZ Steel Coil

Contact our technical sales team today to receive mill-direct pricing for DX51D AZ steel coil tailored to your specific thickness, coating mass, and volume requirements. Our application engineers provide complimentary material selection consultation, helping optimize your specification for cost-effectiveness while meeting performance criteria. Request your detailed quotation with EN 10204 3.1 certificate samples within 24 hours.

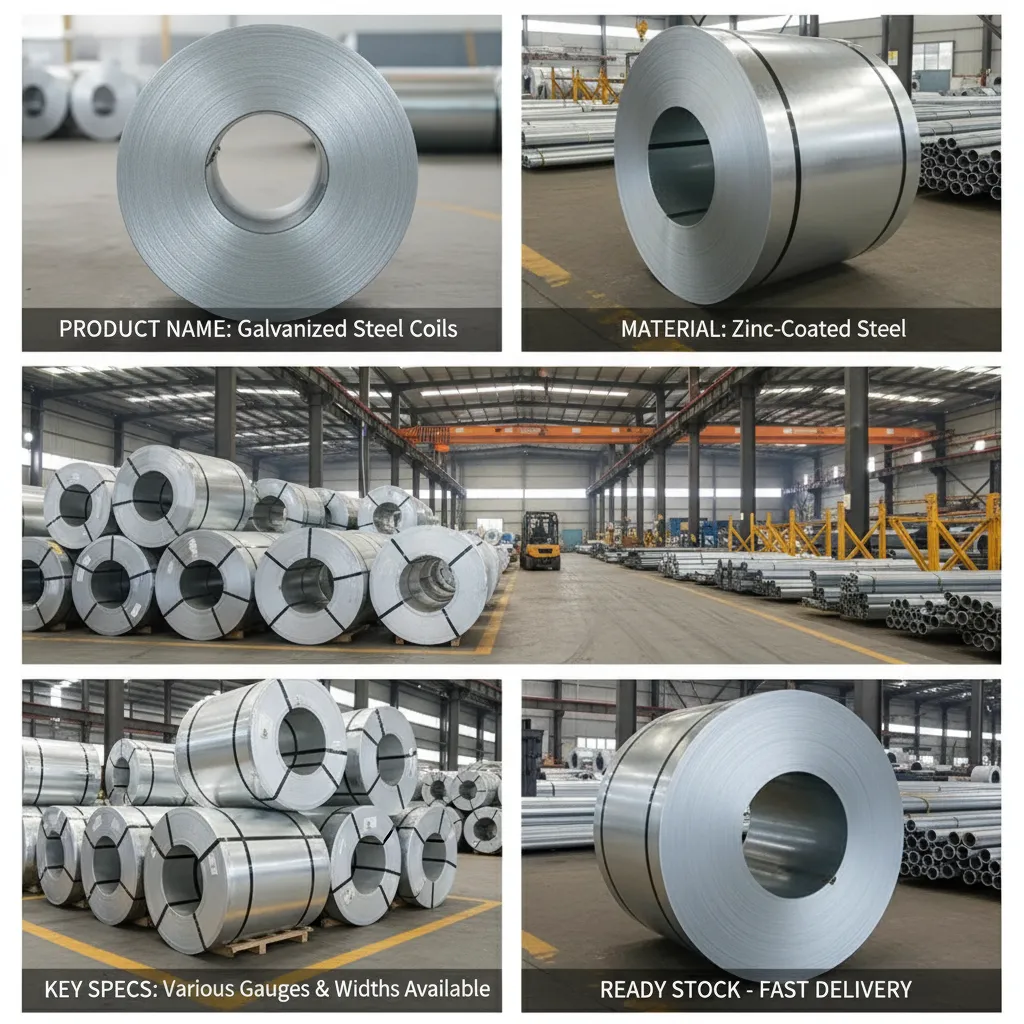

DX51D az steel coil China

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

John Martinez

United States

verified purchases

2025-09-21

Perfect for Repeat Production Orders
Our 6th order - 30 tons of DX51D AZ coil (0.4mm, AZ100, 1000mm width) for electrical enclosure manufacturing. Batch-to-batch consistency has been remarkable across 180 tons total volume. Chemical composition stable: carbon 0.018-0.022%, perfect for our welding process. Their inventory of common specifications enabled 11-day delivery on this urgent order. Slitting accuracy maintains ±0.4mm on 250mm strips. Coating adhesion passes our 180° bend test without flaking. Price locked for quarterly contracts provides excellent budget predictability.

Robert Brown

United Kingdom

verified purchases

2025-10-07

Acceptable Quality with Initial Documentation Delay
Purchased 20 tons (0.7mm thickness, AZ120 coating) for commercial roofing project. Material quality met EN 10346 requirements, coating uniformity was satisfactory. Initial shipment arrived without EN 10204 3.1 certificates, causing 4-day project delay. Supplier resolved issue promptly, express-couriered documentation and provided partial credit for inconvenience. Material itself performed adequately in roll-forming. Would consider ordering again but emphasize documentation requirements upfront. Surface finish was acceptable 2B grade with minor handling marks on outer wraps.

William Taylor

Australia

verified purchases

2025-10-24

Reliable Material for Marine Infrastructure
Ordered 16 tons of DX51D AZ coil (0.6mm, AZ150, 1100mm width) for jetty handrail systems. Mechanical properties tested: tensile 478 MPa, yield 172 MPa, elongation 23%. Coating mass averaged 148 g/m² per EN ISO 1460 testing. Material performed well in forming operations with minimal springback. Packaging could be improved - minor moisture ingress on 1 coil during sea freight. Delivered in 31 days to Melbourne. Price point was reasonable for marine-grade specification.

Ahmed Al-Hassan

UAE

verified purchases

2025-11-08

Premium Corrosion Resistance for Desert Climate
Supplied 35 tons (0.5mm thickness, AZ150 coating, varying widths 800-1200mm) for pre-engineered building panels in Abu Dhabi. Coating composition verified at 55.2% aluminum, 43.1% zinc per mill certificates. After 6 months desert exposure with temperature extremes 15-48°C, coating integrity remains perfect. Compared quotes from 5 suppliers, their factory-direct pricing was most competitive. Expedited delivery completed in 29 days. Technical data sheets provided excellent fabrication guidelines for our profile rolling equipment.

Carlos Silva

Brazil

verified purchases

2025-11-25

Outstanding Technical Support for Material Selection
Procured 22 tons of DX51D AZ steel coil (0.8mm, AZ185 coating) for agricultural equipment manufacturing. Their application engineer recommended AZ185 instead of our initial AZ150 specification, considering our high-humidity storage conditions. Salt spray testing confirmed 720 hours to 5% red rust versus 480 hours for standard galvanized. Cut-to-length service provided 3000mm sheets with burr-free edges. Delivered in 24 days to Santos port. Material traceability documentation was comprehensive.

Hans Mueller

Germany

verified purchases

2025-12-08

Good Value DX51D Coils for Industrial Ducting
Ordered 18 tons (0.7mm thickness, AZ120 coating, 1000mm width) for HVAC ducting systems. Material certificates showed yield strength at 165 MPa, within specification range. Coating adhesion passed our bend test requirements. Delivery took 33 days, slightly longer than quoted 28 days due to customs clearance. Price was 8% lower than German suppliers for comparable quality. Minor edge waviness on 2 coils but within EN 10346 tolerance. Would order again for cost-sensitive projects.

James Wilson

United Kingdom

verified purchases

2025-12-23

Superior Surface Quality for Automotive Components
Purchased 12 tons of DX51D AZ coil (0.5mm, AZ100 coating) for automotive bracket production. Surface quality met EN 10346 Class A standards with no coating defects detected during incoming inspection. Tensile strength tested at 485 MPa, elongation 24%, perfect for our deep-drawing process. Slitting service provided strips at 85mm width with ±0.3mm tolerance, eliminating our secondary processing. This is our 4th consecutive order. Material consistency batch-to-batch has been exceptional.

Michael Chen

Singapore

verified purchases

2026-01-07

Excellent AZ150 Coating Performance for Coastal Warehouse
Ordered 28 tons of DX51D AZ steel coil (0.6mm thickness, AZ150 coating, 1250mm width) for our coastal warehouse roofing project. EN 10204 3.1 certificates confirmed 55% aluminum content and coating mass at 152 g/m². After 8 months exposure to marine environment, zero red rust observed. Formability was outstanding during roll-forming operations. Delivered in 27 days with proper moisture-proof packaging. Technical support helped us select optimal coating grade versus budget.
