Customized Pattern Steel Coil - High-Quality Decorative Metal Sheets

Baiqu Steel Coil Manufacturing Co., Ltd.

Verified Custom manufacturer · 4 yrs ·

China

Customizable Rock-bottom price

$755 1-49 ton Base price

$720 50-99 ton 4.6% off

$705 ≥100 ton 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 ton

Shipping total: To be negotiated

Subtotal of goods US$ 755.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Customized Pattern Steel Coil

Property	Parameter	Description
Product Name	Customized Pattern Steel Coil	Embossed/checkered steel coil with custom patterns
Base Material	Carbon Steel / Stainless Steel / Galvanized Steel	Multiple substrate options available
Material Grade	SS400, Q235B, ASTM A36, 304, 316L	Common grade equivalents per customer requirement
Standard Compliance	ASTM A786, EN 10025, JIS G3131, GB/T 3277	Meets major international checkered plate standards
Pattern Type	Diamond, Teardrop, Lentil, 5-Bar, Custom Design	Embossed pattern per customer specification
Pattern Height	0.2 - 2.0 mm	Raised pattern depth from base surface
Thickness Range	0.8 - 8.0 mm (base thickness)	Excludes pattern height
Width Range	600 - 1500 mm	Standard and custom widths available
Coil Weight	3 - 25 tons per coil	Adjustable per shipping and handling needs
Inner Diameter	508 mm / 610 mm	Standard coil eye diameter
Tensile Strength	≥370 - 520 MPa	Varies by base material grade
Yield Strength	≥235 - 355 MPa	Minimum yield per applicable standard
Elongation	≥17 - 26%	Ductility depending on grade selection
Surface Treatment	Hot-dip Galvanized, Painted, Oiled, Chromated	Anti-corrosion coating options
Application	Flooring, Staircase Treads, Vehicle Platforms, Decoration	Anti-slip and decorative industrial uses
Certification	EN 10204 3.1, ISO 9001, SGS	Quality certifications provided
Packaging	Eye-to-sky, waterproof paper, steel strip binding	Standard seaworthy export packaging
MOQ	5 tons	Minimum order quantity for custom patterns

Customized Pattern Steel Coil - High-Quality Decorative Metal Sheets

Customized pattern steel coil is a specialty-engineered metal product featuring embossed, checkered, or decorative surface designs tailored to specific project requirements. These coils serve critical roles in architectural cladding, interior decoration, anti-slip flooring, and industrial paneling where both visual appeal and functional performance are essential. Whether you need a diamond plate texture for heavy-duty walkways or an artistic embossed finish for facade applications, our factory-direct customized pattern steel coils deliver precision-formed designs with consistent depth and dimensional accuracy across every meter of material.

What Is Customized Pattern Steel Coil?

A customized pattern steel coil refers to a flat-rolled steel strip that has been processed through specialized embossing or texturing rollers to produce a raised or recessed surface pattern. Unlike standard flat coils, these products combine structural integrity with decorative or functional surface characteristics, manufactured according to client-specified designs, thicknesses, and material grades.

Customized Pattern Steel Coil Technical Specifications

Our pattern steel coils are produced in compliance with GB/T 3277-2015 and ASTM A786/A786M standards for floor plate specifications. Key parameters include:

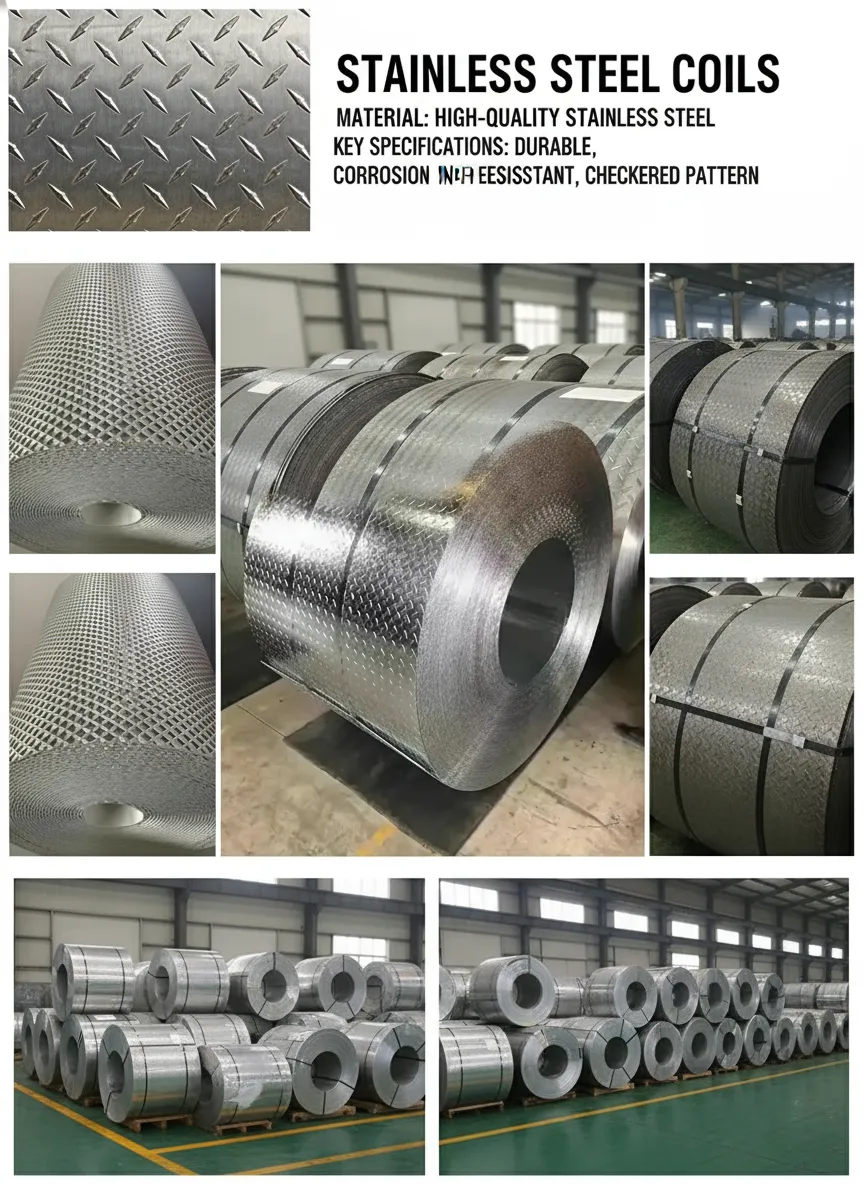

Customized pattern steel coil supplier

Base Material: Carbon steel (Q235B, SS400), stainless steel (304, 316L, 430)
Thickness Range: 0.3 mm to 6.0 mm (base metal thickness)
Coil Width: 600 mm to 1,500 mm
Pattern Depth: 0.2 mm to 2.5 mm depending on design
Surface Finish: Galvanized, color-coated, brushed, or mill finish
Pattern Types: Diamond, teardrop, lentil, five-bar, custom artistic emboss
Coil Weight: 3 MT to 8 MT per coil

Key Advantages of Our Decorative Pattern Steel Coils

Choosing our customized pattern steel coil products provides several measurable benefits for your projects:

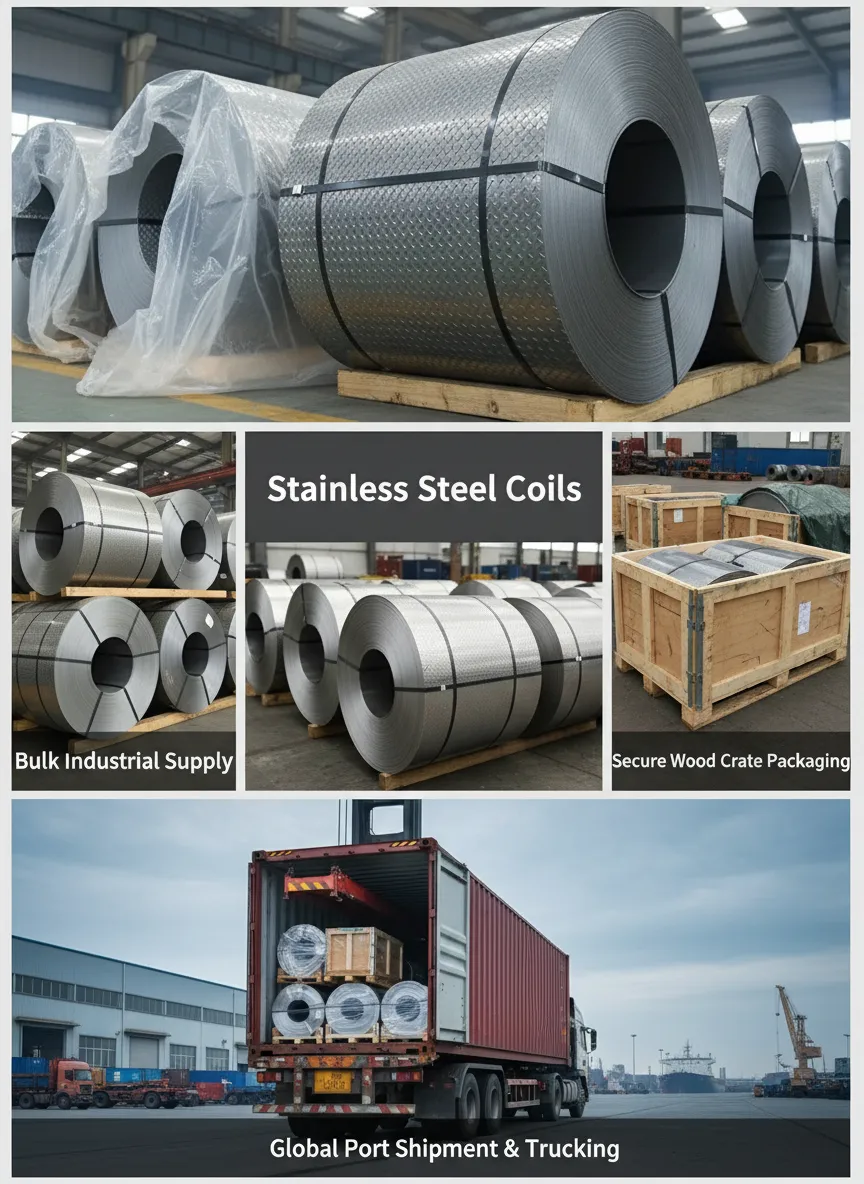

Customized pattern steel coil wholesale

Design Flexibility: Over 50 standard patterns available, plus fully bespoke embossing roller development for unique designs
Superior Anti-Slip Properties: Pattern depth engineered to meet R11–R13 slip resistance ratings per DIN 51130
Consistent Pattern Accuracy: CNC-machined embossing rollers ensure ±0.05 mm pattern depth tolerance across the full coil length
Corrosion Protection Options: Hot-dip galvanized coating at 60–275 g/m² per EN 10346:2015, or PVDF/PE color coating for extended outdoor durability

Frequently Asked Questions

What is the minimum order quantity (MOQ) for customized pattern steel coil?

Our standard MOQ is 5 metric tons per specification. For orders involving new custom embossing roller development, a minimum of 10 MT is typically required to offset tooling costs.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 mill test certificates covering chemical composition, mechanical properties, coating weight, and dimensional inspection results.

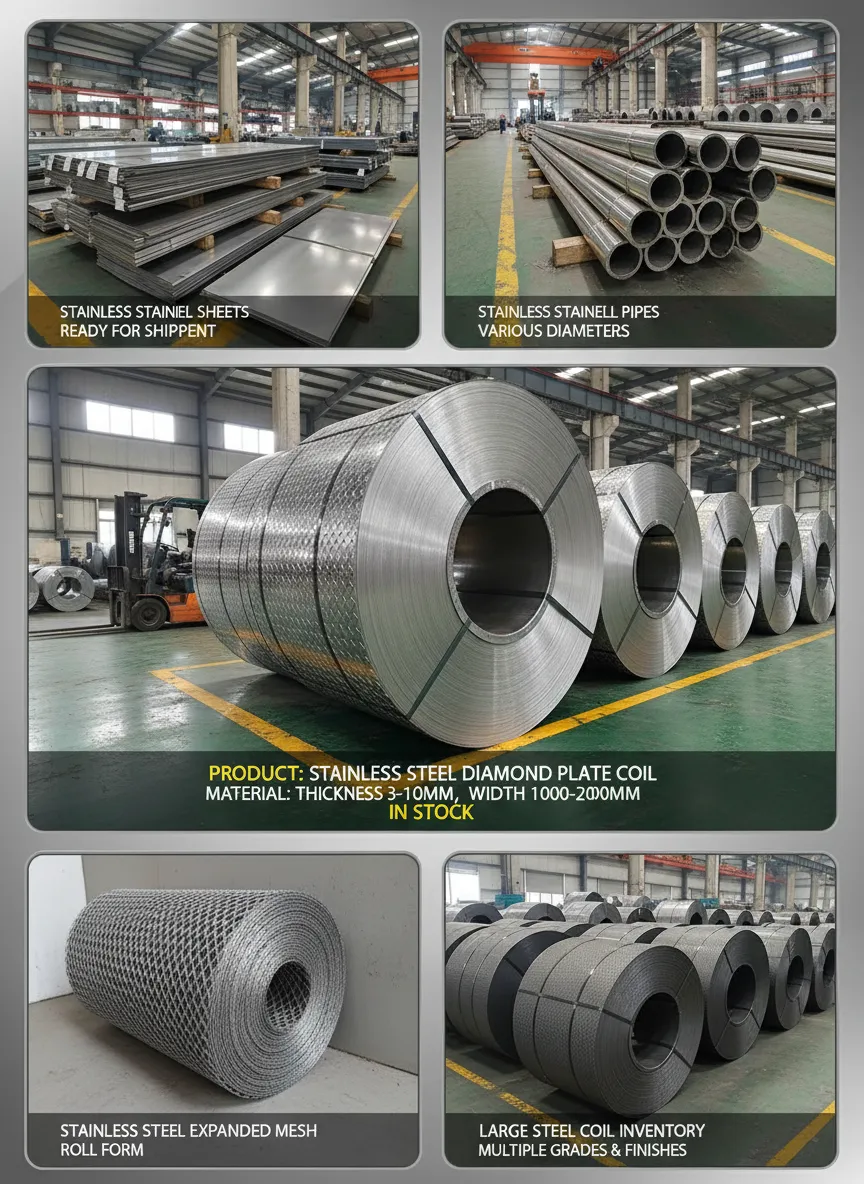

Customized pattern steel coil China

What is the typical delivery time?

Standard pattern coils ship within 15–20 working days. Custom-designed patterns requiring new roller fabrication generally need 30–40 working days from design approval to dispatch.

Can you produce custom patterns based on our design files?

Absolutely. We accept DXF, DWG, or AI format design files and work with our in-house roller machining team to translate your artwork into production-ready embossing tooling with a detailed proof sample before mass production.

Get a Competitive Quote for Customized Pattern Steel Coil

Ready to source premium-grade customized pattern steel coil for your next architectural or industrial project? Share your specifications—including pattern design, material grade, thickness, width, and required quantity—and our technical sales team will deliver a detailed quotation with factory-competitive pricing within 24 hours. Contact us today to discuss your decorative metal sheet requirements.

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Wei Chen

Singapore

2024-11-22

Acceptable Pattern Coils, Initial Coating Issue Resolved by Supplier

Received 5 tons of color-coated lentil pattern coil, 0.6mm thickness, 1200mm width, PE coating in white, for interior wall panels. On inspection, two coil sections showed minor PE coating adhesion inconsistency near the edges — approximately 0.3m affected per coil. Raised this with the supplier and they responded within 4 hours, acknowledged the issue, and arranged credit for the affected material on the next order. Pattern depth and base material specs were otherwise correct per the 3.1 certificates. Delivery was 20 working days as quoted. The after-sales handling was professional and the resolution was fair. We will trial another order to assess whether coating consistency has improved before committing to larger volumes.

Robert Brown

United Kingdom

2024-12-19

Decent Quality 430 Stainless Pattern Coils, Good Technical Support

Ordered 6 tons of 430 stainless steel checkered pattern coil, 1.0mm thickness, 900mm width, for decorative interior paneling. Pattern depth and surface finish met the agreed specification. The technical team helped us select the appropriate pattern depth for our application — that pre-sales support was genuinely useful. Certificates covered all required parameters. Delivery was 18 working days, on schedule. Slight variation in coil edge straightness on one of the four coils required minor trimming on our end, which added a small amount of processing time. Not a major issue, but worth noting. Price point was reasonable compared to European sources. Would consider for future orders.

Michael Johnson

United States

2025-01-14

Good Value Custom Diamond Plate Coils with Minor Lead Time Delay

Placed an order for 14 tons of SS400 diamond pattern coil, 2.5mm thickness, 1500mm width, galvanized at 120 g/m², for heavy-duty flooring panels in an industrial warehouse in Ohio. Material quality and pattern accuracy were solid — depth measured consistently at 1.2mm across all coils. EN 10204 3.1 certificates were complete and accurate. Pricing was competitive versus domestic suppliers. Only drawback was delivery came in at 23 working days versus the 20-day estimate, though the sales team communicated the delay proactively and it did not impact our project timeline significantly. Overall good value for the specification and would order again.
