| Property | Parameter | Description |
|---|---|---|

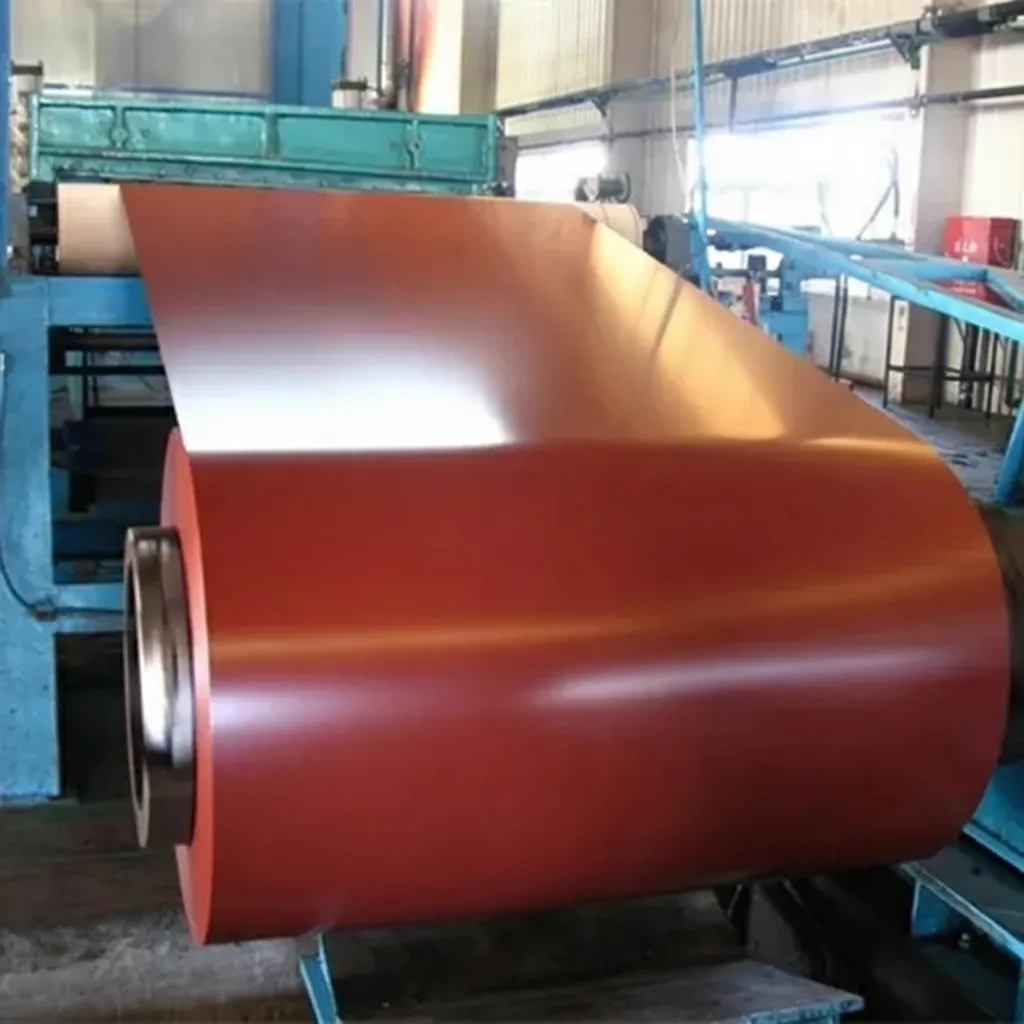

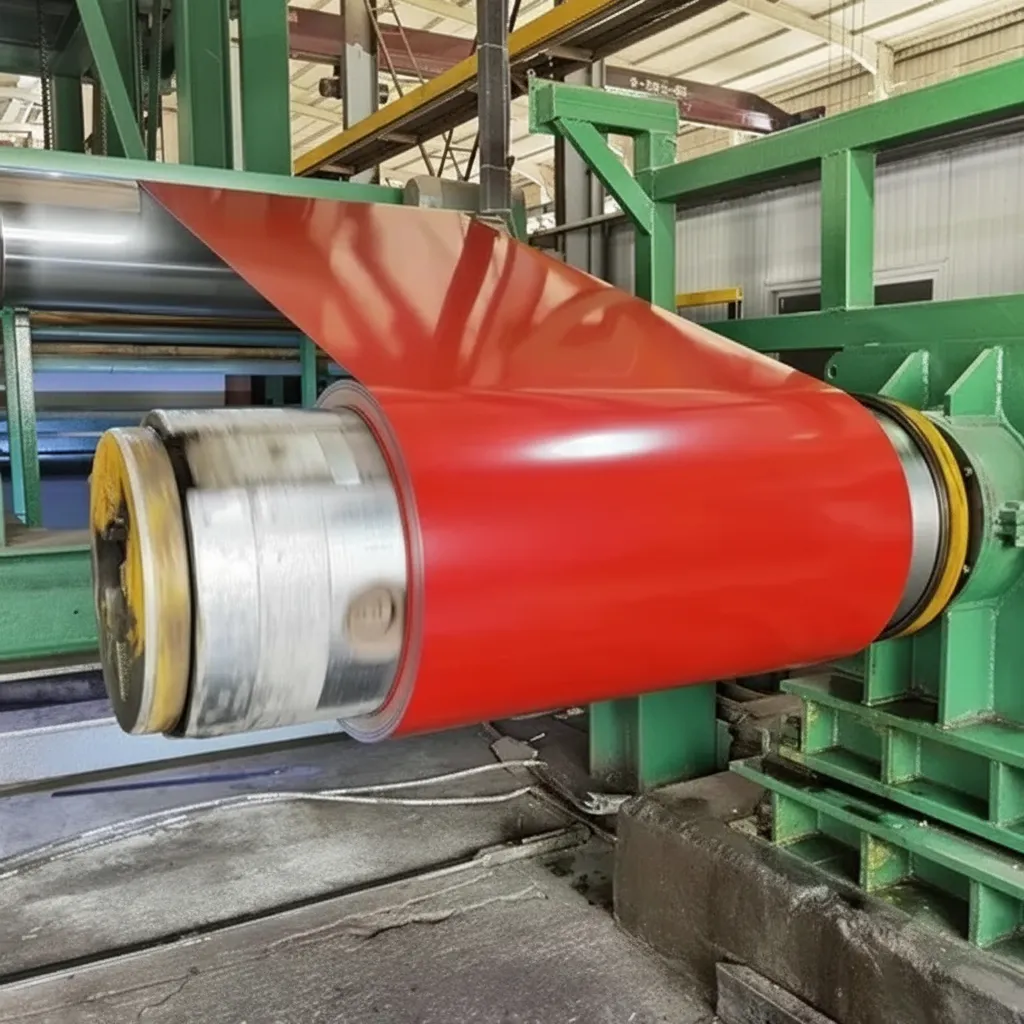

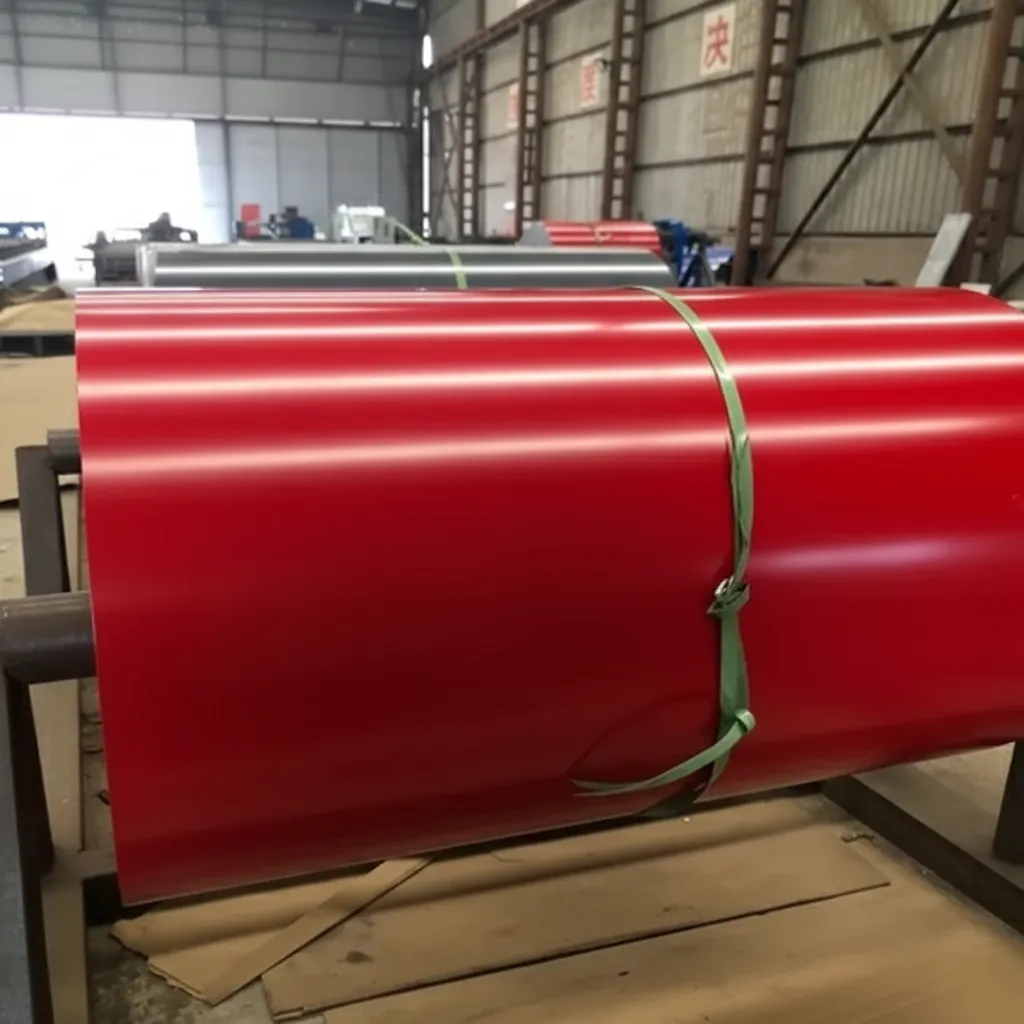

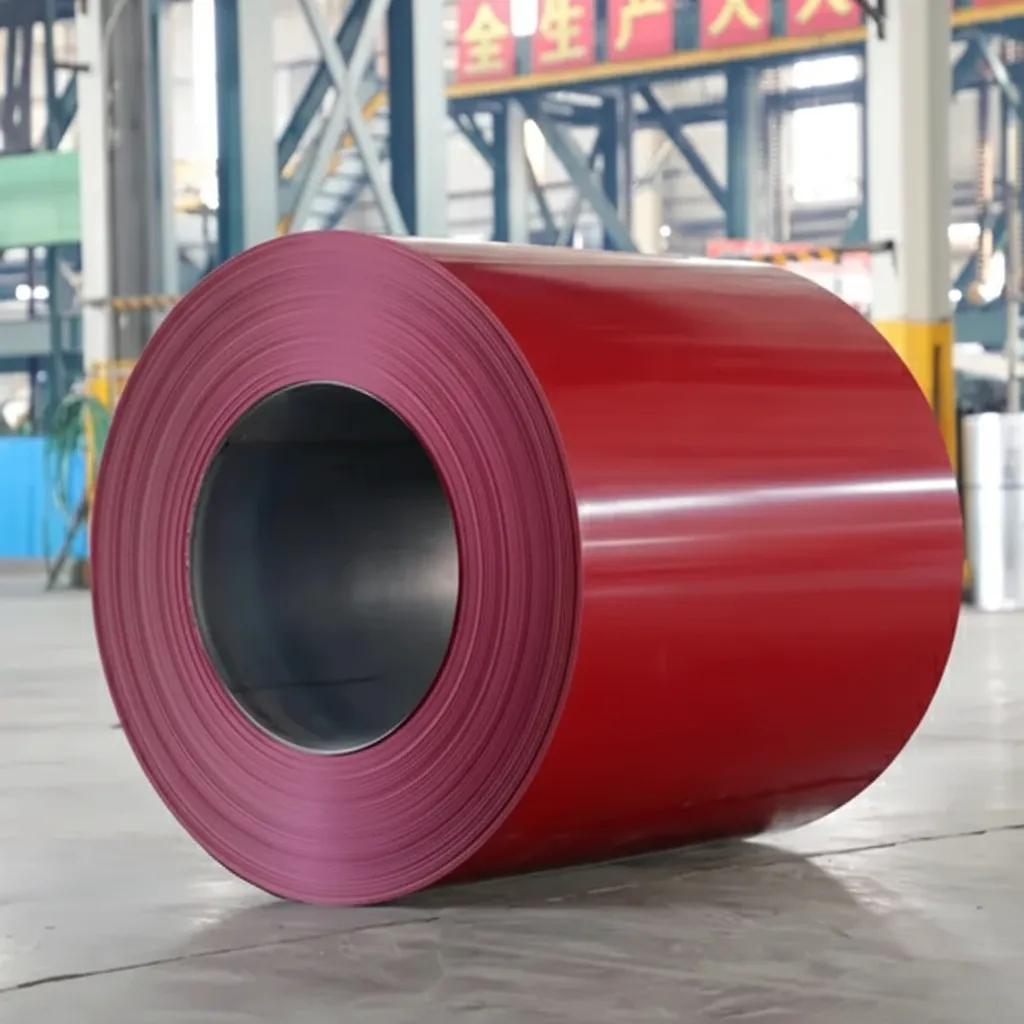

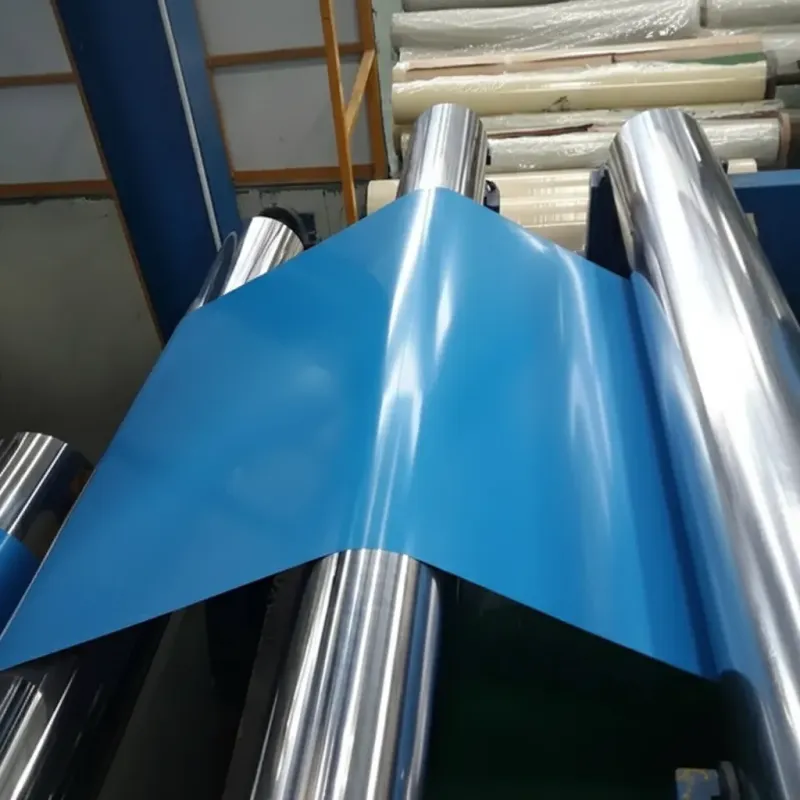

| Product Name | Prepainted Steel Coil (PPGI/PPGL) | Color-coated steel coil with protective paint layer |
| Base Material | Hot-dip Galvanized (GI) / Galvalume (GL) | Zinc or Al-Zn alloy coated substrate |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | Meets major international standards |
| Substrate Grade | SGCC, DX51D, S250GD, CS Type B | Common commercial and structural grades |
| Zinc Coating Weight | 60 - 275 g/m² | Total zinc coating on both sides |
| Thickness Range | 0.12 - 1.2 mm | Base metal thickness before painting |
| Width Range | 600 - 1250 mm | Standard and custom widths available |
| Coil Weight | 3 - 8 tons | Typical coil weight per unit |
| Top Paint System | PE, SMP, HDP, PVDF | Polyester, silicone modified, high durability, fluorocarbon |
| Top Coat Thickness | 15 - 25 μm | Front side paint film thickness |
| Back Coat Thickness | 5 - 15 μm | Reverse side protective coating |
| Pencil Hardness | ≥2H (PE) / ≥3H (PVDF) | Surface hardness per ASTM D3363 |
| Gloss Level (60°) | 20 - 80% | Adjustable gloss from matte to high gloss |
| T-Bend | ≤2T (PE) / ≤1T (HDP) | Flexibility performance per ASTM D4145 |
| Color Options | RAL, Pantone, custom colors | Wide range of standard and custom colors |
| Application | Roofing, wall cladding, sandwich panels, appliances | Construction and manufacturing industries |
| Certification | ISO 9001, EN 10204 3.1, SGS, BV | Quality and inspection certifications |
| Packaging | Eye-to-sky, waterproof paper, steel strip | Standard seaworthy export packaging |
| MOQ | 5 tons | Minimum order quantity per color |
Acceptable Quality PPGI, Color Variance Issue Resolved
Ordered 20 tons of PE-coated prepainted coil (0.55mm, 900mm width, RAL 6005 moss green) for agricultural storage building panels. On arrival, we measured a Delta E of 2.1 on approximately 15% of the coils, which exceeded the ≤1.5 tolerance specified in the order. We raised this with the supplier and they acknowledged the issue, providing a partial credit and priority replacement coils that were dispatched within 10 days and measured Delta E 1.1. The mechanical properties and coating adhesion on all coils were fine — the issue was isolated to color accuracy on part of the batch. The resolution process was handled professionally, but the initial quality miss did cause a 12-day delay to our fabrication schedule. Would consider reordering with stricter pre-shipment color verification agreed contractually.
