Color Coated Aluminum Coil - Premium Pre-Painted Aluminum Coil for Construction & Manufacturing

Baiqu Steel Coil Manufacturing Co., Ltd.

Verified Custom manufacturer 4yrs

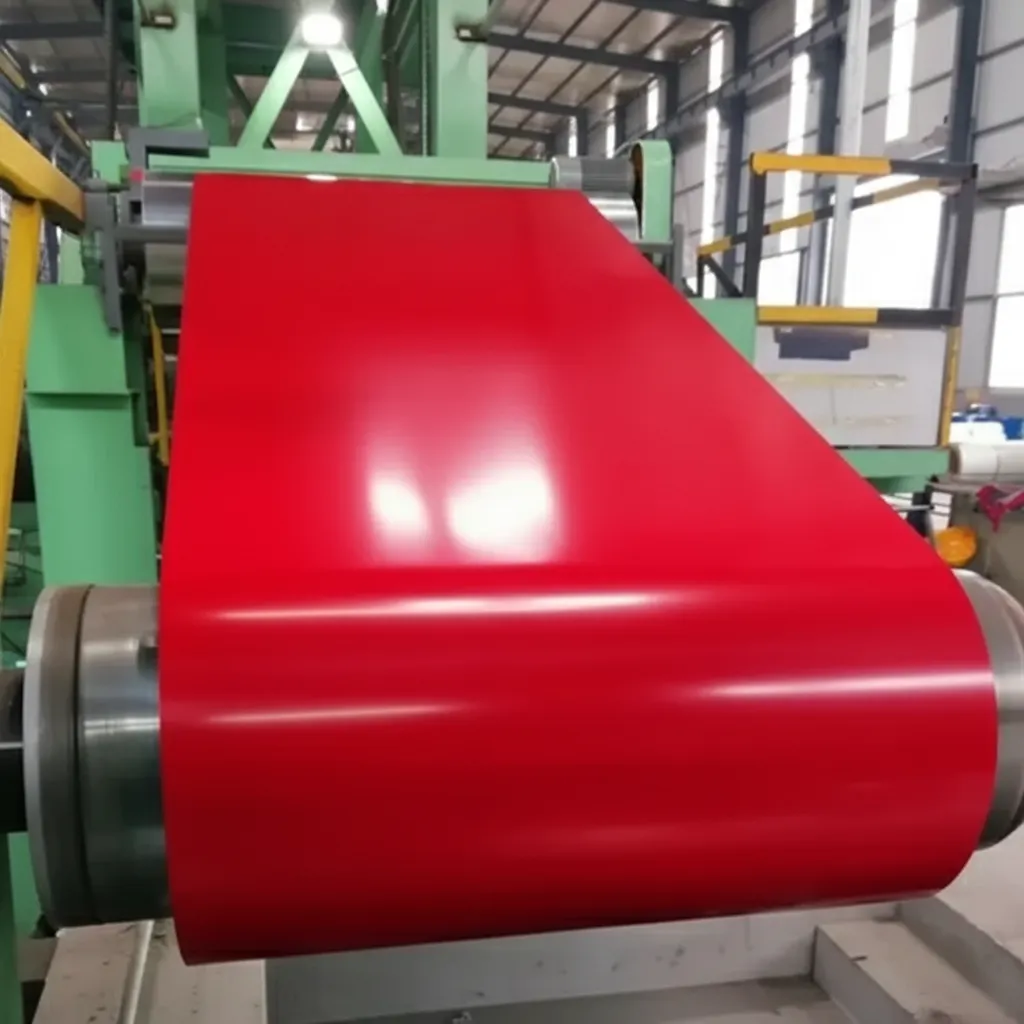

Color coated aluminum coil image thumbnail

Technical Specifications of Color Coated Aluminum Coil

Property	Parameter	Description
Product Name	Color Coated Aluminum Coil	Pre-painted aluminum coil with protective coating
Alloy Grade	1100, 3003, 3105, 5005, 8011	Common alloy grades for coating applications
Temper	H14, H16, H18, H24, O	Material hardness and workability options
Thickness Range	0.2mm - 1.5mm	Available thickness options for various applications
Width Range	500mm - 1500mm	Standard coil width range
Coating Type	PE, PVDF, Polyester	Protective coating material options
Coating Thickness	Top: 15-25μm, Back: 5-10μm	Standard coating thickness for durability
Color Options	RAL, Pantone, Custom	Wide range of color standards available
Gloss Level	High Gloss, Matt, Metallic	Surface finish appearance options
Tensile Strength	≥130 MPa (3003-H14)	Minimum tensile strength per alloy grade
Yield Strength	≥115 MPa (3003-H14)	Minimum yield strength specification
Elongation	≥3% (3003-H14)	Ductility in standard gauge length
Pencil Hardness	≥2H	Surface coating hardness measurement
Corrosion Resistance	1000 hours salt spray test	Meets ASTM B117 standard
Application	Roofing, cladding, signage, interior decoration	Typical application industries
Standard Compliance	ASTM B209, EN 485, JIS H4000	Meets international aluminum standards
Coil ID	150mm, 300mm, 405mm, 505mm	Inner diameter options for coil core
Coil Weight	2-5 tons per coil	Standard coil weight range
Packaging	Wooden pallet, waterproof paper, steel strapping	Export-standard protective packaging
MOQ	3 tons	Minimum order quantity

Color Coated Aluminum Coil - Premium Pre-Painted Aluminum Coil for Construction & Manufacturing

Color coated aluminum coil represents a versatile pre-finished aluminum product featuring factory-applied organic coatings that deliver exceptional durability and aesthetic appeal. Engineered for architects, construction contractors, and manufacturing professionals, these coils combine lightweight aluminum substrate with high-performance paint systems to serve demanding applications in building facades, roofing systems, and industrial equipment. With superior corrosion resistance and design flexibility, color coated aluminum coils provide cost-effective solutions for projects requiring both structural integrity and visual impact.

What is Color Coated Aluminum Coil?

Color coated aluminum coil is a continuously processed aluminum product where base aluminum alloy coils undergo chemical pretreatment followed by precision application of primer and topcoat layers through roll-coating technology. The coating process typically involves alloys such as 1100, 3003, or 5052, with coating thickness ranging from 18 to 25 micrometers for standard applications, conforming to ASTM B209 specifications for aluminum sheet and coil dimensions.

Color coated aluminum coil supplier

Color Coated Aluminum Coil Technical Specifications

Standard color coated aluminum coils are manufactured with alloy tempers H14, H16, or H18, featuring thickness ranges from 0.20 mm to 1.50 mm and widths up to 1,600 mm. Coating systems include polyester (PE) with 60-degree gloss retention per ASTM D523, polyvinylidene fluoride (PVDF) offering 20-year weatherability according to AAMA 2605, and polyurethane (PU) formulations. The substrate demonstrates tensile strength of 130-165 MPa for 3003-H14 alloy per ASTM B209, with coating adhesion meeting ASTM D3359 classification 4B minimum.

Why Choose Our Color Coated Aluminum Coil

Our manufacturing facility operates continuous coil coating lines equipped with three-coat/three-bake systems, ensuring uniform film thickness within ±2 micrometers tolerance. We maintain ISO 9001:2015 certification with full material traceability, providing mill test certificates documenting chemical composition per ASTM E1251 optical emission spectrometry. Our color matching capabilities achieve ΔE values below 0.8 when measured against standard references using spectrophotometry per ASTM D2244, guaranteeing batch-to-batch consistency for large-scale architectural projects.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is established at 5 metric tons per color and specification combination, though we accommodate smaller trial orders of 2 metric tons for new customer evaluation purposes, subject to premium pricing adjustments to offset coil coating line setup procedures.

Do you provide material test certificates?

We issue comprehensive mill test certificates with every shipment, documenting alloy composition verified through optical emission spectrometry per ASTM E1251, mechanical properties including tensile strength and elongation per ASTM E8, and coating performance data encompassing pencil hardness (ASTM D3363), MEK double rubs (ASTM D5402), and salt spray resistance (ASTM B117) for 1,000-hour exposure cycles.

What is the typical delivery time?

Standard color selections from our inventory range ship within 15-20 business days FOB our coating facility, while custom color formulations require 25-30 business days to accommodate color matching protocols, coating system optimization, and quality verification procedures including accelerated weathering testing per ASTM G155.

Color coated aluminum coil manufacturer

Can you cut to custom sizes?

Our precision slitting capabilities accommodate custom widths from 100 mm to 1,600 mm with tolerance of ±1.0 mm, utilizing carbide slitting knives to maintain edge quality without coating damage. We also provide cut-to-length services for sheet dimensions up to 3,000 mm × 1,600 mm, with cutting tolerance of ±2.0 mm per ASTM B209 requirements, suitable for immediate fabrication without secondary processing.

Color coated aluminum coil China

Get a Competitive Quote for Color Coated Aluminum Coil

Request factory-direct pricing for your color coated aluminum coil requirements by contacting our technical sales team with project specifications including alloy grade, coating system preference, dimensions, volume requirements, and delivery timeline. Our application engineers provide complimentary consultation services to optimize material selection based on environmental exposure conditions, forming requirements, and performance expectations, ensuring your project achieves both aesthetic objectives and long-term durability standards.
