| Property | Parameter | Description |
|---|---|---|

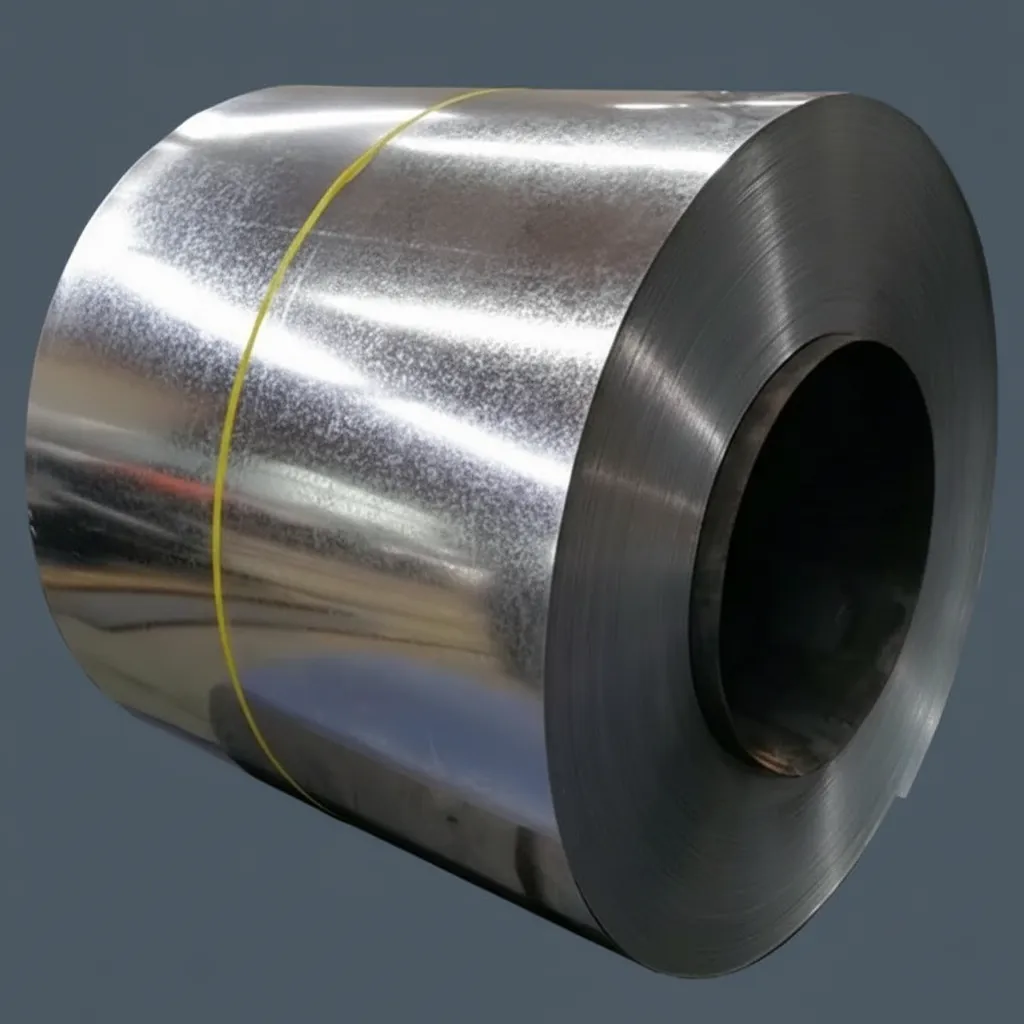

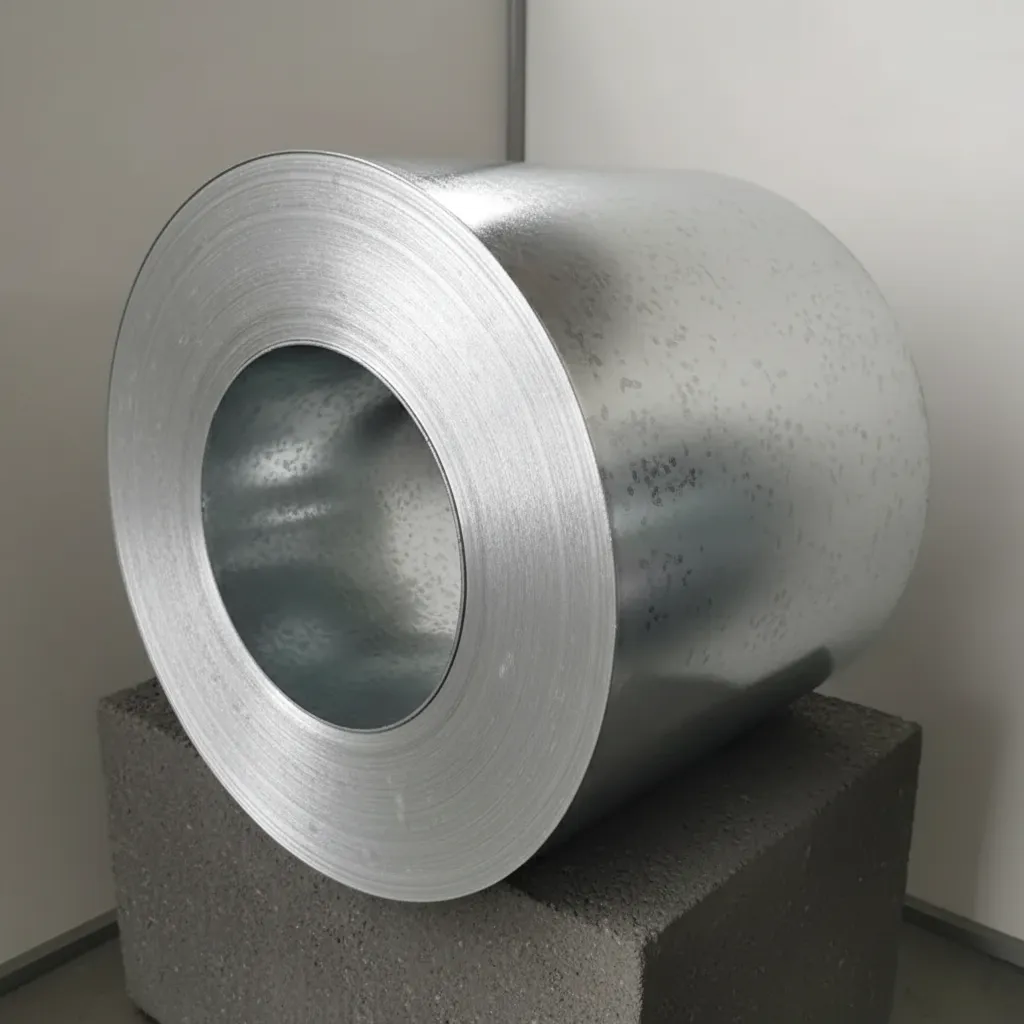

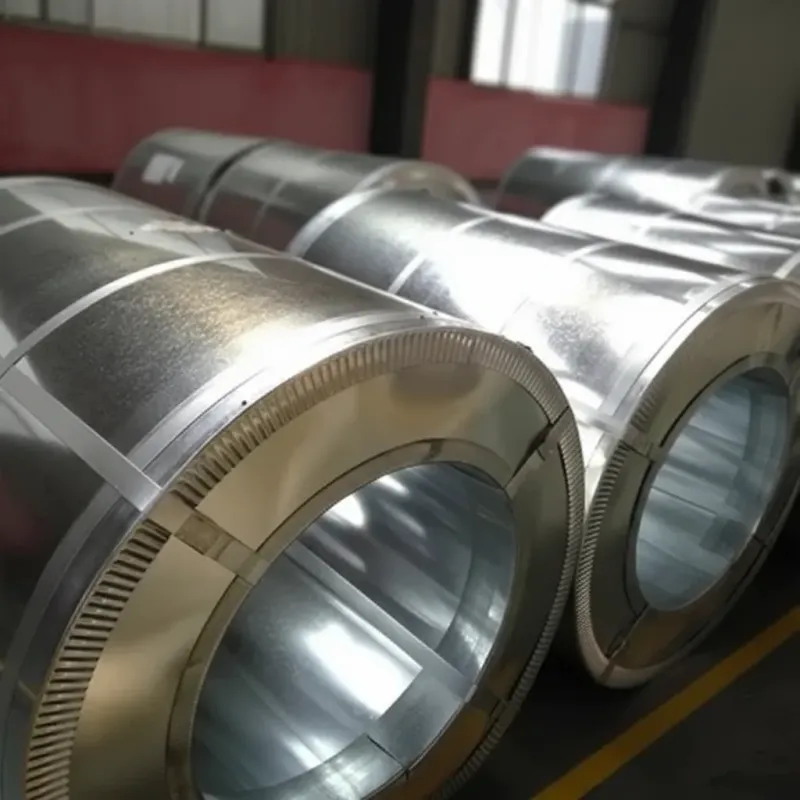

| Product Name | SGCC Galvanized Steel Coil | Hot-dip galvanized commercial quality steel coil |
| Material Grade | SGCC / DX51D / CS Type B | JIS G3302, EN 10346, ASTM A653 equivalents |
| Standard Compliance | JIS G3302, EN 10346, ASTM A653 | Meets major international galvanizing standards |
| Manufacturing Process | Hot-Dip Galvanizing (Continuous) | Sendzimir or inline annealing process |
| Base Metal Carbon (C) | ≤0.15% | Low carbon for excellent formability |
| Manganese (Mn) | ≤0.80% | Improves strength and hardness |
| Phosphorus (P) | ≤0.035% | Controlled for ductility |
| Sulfur (S) | ≤0.035% | Low sulfur for improved weldability |
| Zinc Coating Weight | 60-275 g/m² (Z60-Z275) | Double-sided total coating mass per JIS/EN |
| Tensile Strength | ≥270 MPa | Minimum tensile strength per JIS G3302 |
| Yield Strength | ≥205 MPa | Typical yield strength for SGCC grade |
| Elongation | ≥20% | Ductility in 50mm gauge length |
| Thickness Range | 0.12 - 3.0 mm | Available substrate thickness options |
| Width Range | 600 - 1500 mm | Standard and custom widths available |
| Coil Weight | 3 - 10 tons | Standard coil weight range |
| Spangle Type | Regular / Minimized / Zero Spangle | Surface crystallization pattern options |
| Surface Treatment | Chromate-passivated, Oiled, Anti-fingerprint | Post-galvanizing surface protection options |
| Application | Construction, HVAC, Appliances, Automotive | Typical end-use industries |
| Certification | ISO 9001, EN 10204 3.1, SGS | Quality certifications provided |
| MOQ | 5 tons | Minimum order quantity |
Acceptable SGCC Quality, Delivery Delay on Custom Width Resolved
Ordered 28 tons of SGCC coil, 0.8mm thickness, 750mm slit width, Z120 coating for wall cladding panel fabrication in Bogotá. Material quality itself was acceptable — chemical composition and mechanical properties per JIS G3302 were confirmed on the mill cert. The issue was delivery: quoted 20-25 days for the custom slit width but actual loading happened on day 33, causing a 10-day delay in our project schedule. After raising the concern, the supplier expedited the shipping arrangement and provided partial freight compensation. Communication during the delay could have been more proactive. Quality of the steel is good enough that we would consider reordering, but only after confirming production slot availability upfront before placing the next order.
Ordered 28 tons of SGCC coil, 0.8mm thickness, 750mm slit width, Z120 coating for wall cladding panel fabrication in Bogotá. Material quality itself was acceptable — chemical composition and mechanical properties per JIS G3302 were confirmed on the mill cert. The issue was delivery: quoted 20-25 days for the custom slit width but actual loading happened on day 33, causing a 10-day delay in our project schedule. After raising the concern, the supplier expedited the shipping arrangement and provided partial freight compensation. Communication during the delay could have been more proactive. Quality of the steel is good enough that we would consider reordering, but only after confirming production slot availability upfront before placing the next order.
