High performance bend insensitive fiber represents a breakthrough in modern optical fiber technology, engineered to maintain signal integrity even when subjected to tight bends, sharp curves, and constrained routing environments. Unlike conventional single-mode fibers that suffer significant macrobending losses at bend radii below 30 mm, this advanced fiber category sustains attenuation below 0.1 dB at bend radii as tight as 7.5 mm — meeting or exceeding ITU-T G.657.A2 and G.657.B3 standards. These fibers find extensive application in fiber-to-the-home (FTTH) deployments, indoor wiring, data centers, and dense cable routing scenarios where physical space constraints demand extreme flexibility. Telecommunications contractors, network integrators, and building infrastructure specialists increasingly rely on bend insensitive fiber to reduce installation complexity, minimize signal loss, and lower long-term maintenance costs. As global broadband demand accelerates, sourcing premium grade bend insensitive fiber directly from the mill offers measurable advantages in both performance consistency and cost efficiency.

What is High Performance Bend Insensitive Fiber?

High performance bend insensitive fiber is a specialized optical fiber designed with an advanced trench-assisted or nanostructured core profile that dramatically reduces bending-induced signal attenuation. Compliant with ITU-T G.657 classifications, it delivers a standard mode field diameter of 9.2 µm at 1310 nm, a cutoff wavelength ≤1260 nm, and macrobend loss ≤0.1 dB/turn at a 7.5 mm bend radius — enabling reliable data transmission in mechanically demanding installations.

High Performance Bend Insensitive Fiber Manufacturing Process

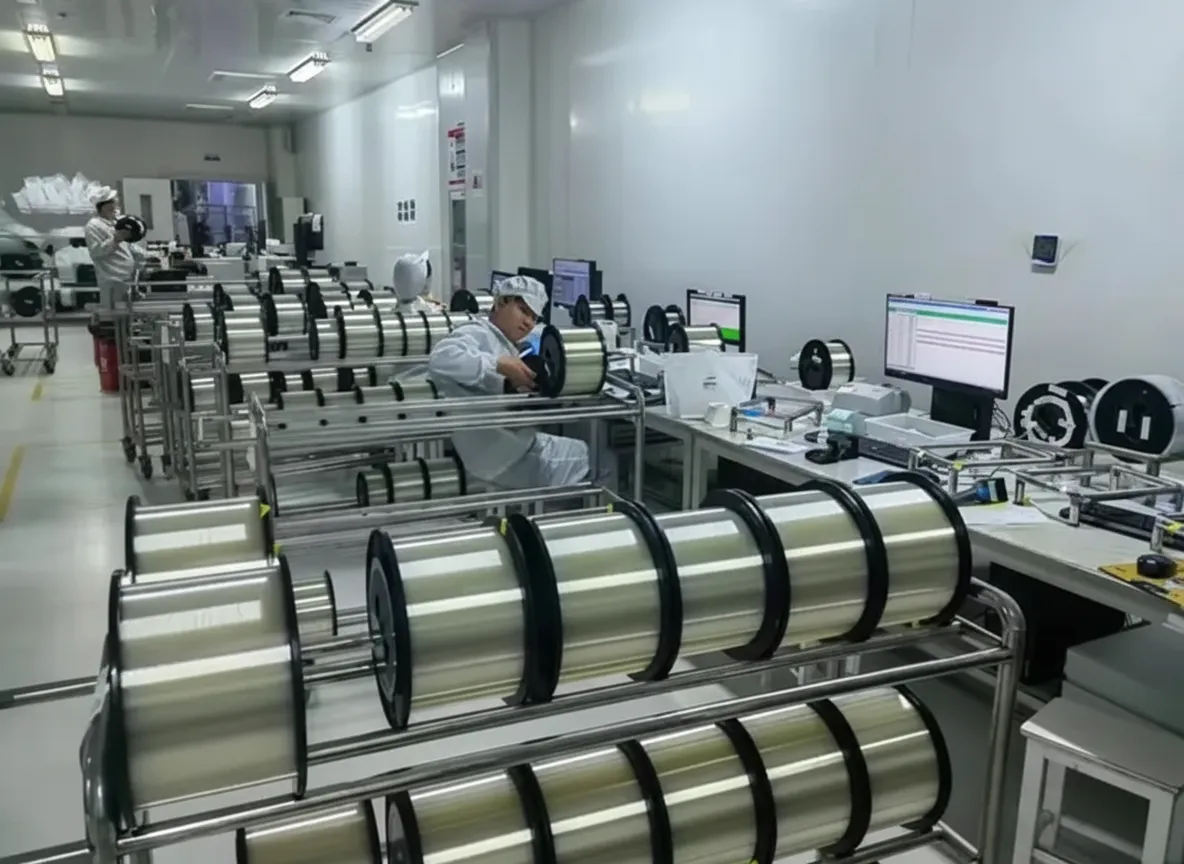

Production begins with ultra-pure silica preform fabrication using modified chemical vapor deposition (MCVD) or outside vapor deposition (OVD) techniques. Engineers precisely engineer the refractive index profile — incorporating depressed cladding trenches or air-hole nanostructures — to confine light more effectively within the core. The preform is then drawn into fiber at temperatures exceeding 2000°C, coated with dual-layer UV-cured acrylate at 250 µm outer diameter, and subjected to rigorous proof testing at ≥100 kpsi tensile strength to ensure mechanical reliability.

High Performance Bend Insensitive Fiber Technical Specifications

Key parameters include a core/cladding diameter of 8.2/125 µm ±0.7 µm, attenuation ≤0.35 dB/km at 1310 nm and ≤0.20 dB/km at 1550 nm, chromatic dispersion ≤3.5 ps/(nm·km) at 1285–1330 nm, and polarization mode dispersion ≤0.1 ps/√km. Operating temperature range spans −60°C to +85°C. The fiber achieves macrobend loss ≤0.5 dB/turn at 10 mm bend radius per IEC 60793-2-50 test methods, making it fully compatible with existing G.652.D infrastructure for seamless network integration.

Get a Competitive Quote for High Performance Bend Insensitive Fiber

Partner with our mill-direct supply chain to access cost-effective pricing, consistent lot-to-lot quality, and rapid global delivery for your bend insensitive fiber requirements. Whether you need small evaluation quantities or large-volume project orders, our technical team is ready to support your specifications.

• 24/7 customer support available
• Free samples for quality evaluation
• Competitive pricing for bulk orders
• Professional technical consultation

Contact us today to get your free quote within 24 hours!
