850nm Multimode Fiber Optic Cable for Short Haul

Anxun optical fiber Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

850nm multimode fiber optic cable for short haul

Customizable Rock-bottom price

$285 1-49 kilometers Base price

$273 50-99 kilometers 4.2% off

$266 ≥100 kilometers 6.7% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 285.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of 850nm Multimode Fiber Optic Cable for Short Haul

Property	Parameter	Description
Optical Fiber Product Name	850nm Multimode Fiber Optic Cable for Short Haul	Multimode optical fiber cable optimized for 850nm wavelength transmission in short-distance applications
Fiber Grade & ITU-T Classification	OM3 / OM4 (ITU-T G.651.1)	50/125μm laser-optimized multimode fiber compliant with ITU-T G.651.1 standard
Core & Cladding Diameter Range	Core: 50μm ±2.5μm; Cladding: 125μm ±1μm	Tight dimensional tolerance ensures consistent coupling efficiency and low splice loss
Attenuation Coefficient at 850nm	≤2.3 dB/km (OM3); ≤2.0 dB/km (OM4)	Primary operating wavelength for VCSEL-based short haul data center links
Attenuation Coefficient at 1310nm	≤0.4 dB/km	Secondary wavelength attenuation for dual-window multimode operation
Attenuation Coefficient at 1550nm	≤0.3 dB/km	Reference attenuation at 1550nm for extended wavelength compatibility verification
Macrobending Loss Performance	≤0.5 dB at R=15mm, 100 turns, 850nm	Low macrobend sensitivity suitable for tight routing in data center cable trays
Chromatic Dispersion Coefficient	≤3.5 ps/(nm·km) at 850nm	Minimal chromatic dispersion supports high-bandwidth multimode transmission
Effective Modal Bandwidth (EMB)	OM3: ≥2000 MHz·km; OM4: ≥4700 MHz·km at 850nm	High EMB enables 10G/40G/100G Ethernet over distances up to 300m (OM3) and 550m (OM4)
Batch Qualification Rate	≥99.5%	Each production batch undergoes 100% OTDR and attenuation testing before shipment
Manufacturing Environment Standards	ISO 9001:2015; IEC 60793-2-10	Produced in dust-controlled cleanroom environment meeting IEC fiber geometry standards
Core Raw Material Source	High-purity silica glass (SiO₂ ≥99.99%)	Germanium-doped silica core with fluorine-doped silica cladding for precise refractive index profile

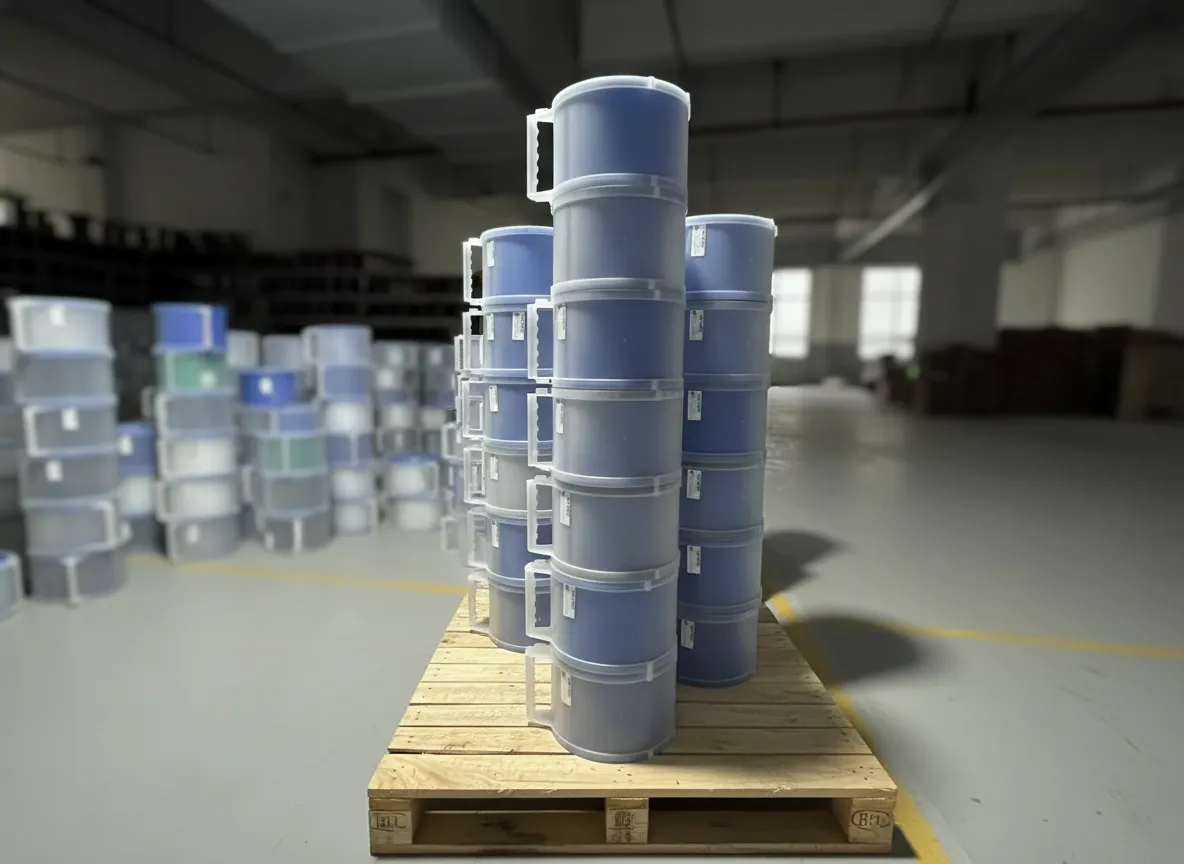

Packaging Specification	500m, 1000m, 2000m per reel; wooden or plastic drum	Standard reel packaging with moisture-proof wrapping; custom lengths available on request
Storage Conditions	Temperature: -20°C to +60°C; Humidity: 10%–85% RH (non-condensing)	Store in original packaging away from direct sunlight and corrosive chemicals
Valid Shelf Life	25 years under recommended storage conditions	Fiber coating and optical performance guaranteed for 25 years per IEC 60793-1-32
Application Scenarios	Data center interconnects, LAN backbone, SAN, 10G/40G/100G Ethernet, short haul ≤550m	Ideal for high-density server-to-switch links and intra-building fiber backbone installations
Compliance & Certification	IEC 60793-2-10, TIA-492AAAC (OM3), TIA-492AAAD (OM4), RoHS 2011/65/EU	Fully compliant with international multimode fiber standards and EU environmental directives
Minimum Order Quantity (MOQ)	1 reel (500m)	Single-reel orders accepted; volume pricing available for orders ≥50 reels
Monthly Supply Capacity	500,000 meters/month	Stable production capacity supports large-scale data center and telecom infrastructure projects

850nm Multimode Fiber Optic Cable for Short Haul

The 850nm multimode fiber optic cable for short haul has established itself as a cornerstone solution in modern enterprise networking, data center interconnects, and campus-wide communication infrastructures. Operating at the 850nm wavelength, this multimode optical fiber delivers exceptional bandwidth performance over distances typically ranging from a few meters up to 550 meters, making it the preferred choice for high-speed LAN environments, storage area networks (SANs), and intra-building backbone deployments. As data transmission demands continue to surge with the proliferation of cloud computing, AI-driven workloads, and high-density server farms, the 850nm short haul multimode fiber cable offers a cost-effective, high-performance alternative to single-mode solutions where distance constraints are not a limiting factor. Its compatibility with low-cost VCSEL (Vertical-Cavity Surface-Emitting Laser) transceivers further reduces total deployment costs, reinforcing its dominant market position across global telecom and enterprise sectors.

850nm multimode fiber optic cable for short haul supplier

What is 850nm Multimode Fiber Optic Cable for Short Haul?

The 850nm multimode fiber optic cable for short haul is an optical transmission medium designed to carry multiple light modes simultaneously at the 850 nanometer wavelength. Conforming to ITU-T G.651.1, TIA-492AAAD (OM3), and TIA-492AAAE (OM4/OM5) standards, this multimode fiber features a larger core diameter—typically 50µm or 62.5µm—enabling efficient coupling with VCSEL light sources and supporting data rates from 1Gbps up to 100Gbps across short-reach links in structured cabling systems.

850nm Multimode Fiber Optic Cable for Short Haul Manufacturing and Production Process

Production of 850nm short haul multimode fiber optic cable begins with Modified Chemical Vapor Deposition (MCVD) or Outside Vapor Deposition (OVD) preform fabrication in ISO Class 5 cleanroom environments. The fiber drawing process maintains precise core/cladding geometry tolerances, followed by UV-cured acrylate coating application. Each cable assembly undergoes rigorous OTDR testing, attenuation verification, and bandwidth measurement. Final products comply with RoHS, REACH, and UL certifications, ensuring consistent quality across every production batch.

850nm multimode fiber optic cable for short haul manufacturer

850nm Multimode Fiber Optic Cable for Short Haul Technical Specifications

Key technical parameters for this 850nm multimode short haul fiber cable include: core diameter 50µm (OM3/OM4) or 62.5µm (OM1/OM2); cladding diameter 125 ±1µm; numerical aperture 0.200 ±0.015 (50µm) / 0.275 ±0.015 (62.5µm); attenuation ≤2.3 dB/km at 850nm (OM3/OM4); minimum modal bandwidth 2000 MHz·km (OM3) and 4700 MHz·km (OM4); maximum transmission distance 300m at 10GbE and 550m at 1GbE; operating temperature -20°C to +70°C; jacket options include LSZH, PVC, and plenum-rated OFNP.

Get a Competitive Quote for 850nm Multimode Fiber Optic Cable for Short Haul

Whether you are sourcing 850nm multimode fiber optic cable for short haul deployments in bulk quantities or evaluating custom configurations for specific data center or campus projects, our team provides fast, competitive wholesale pricing with guaranteed lead times, full documentation packages, and end-to-end logistics support to destinations worldwide.

850nm multimode fiber optic cable for short haul wholesale

24/7 expert optical communication engineer support
Full ITU-T, ISO, RoHS compliance guarantee for all batches
Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
Complete technical data sheets and on-site deployment guidance included

Contact us today to get your free quote and full specification sheet within 24 hours!

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Ahmed K.

UAE

2025-02-01

Initial lead time issue resolved — product quality is good

We ordered 2,500 meters of OM3 50µm LSZH cable for a Dubai free zone office campus project. Initial delivery was delayed by 8 days beyond the confirmed lead time, which created scheduling pressure on our installation team. After raising the issue, the supplier's logistics team communicated proactively and expedited the remaining shipment. The cable itself tested correctly — attenuation ≤2.3 dB/km at 850nm and ITU-T G.651.1 compliant per batch test reports. The problem was acknowledged and resolved. We are willing to try again with a clear lead time commitment.

Rajesh M.

United States

2025-02-23

Solid OM4 performance at a fair wholesale price point

Procured 4,500 meters of OM4 50µm LSZH cable for intra-building backbone links in a Texas colocation facility. Attenuation tested well under 2.3 dB/km at 850nm and VCSEL coupling efficiency was consistent across all tested segments. Lead time was 20 days, slightly longer than quoted but within acceptable range for our project timeline. The wholesale pricing for this volume was fair compared to three other quotes we received. Technical spec sheets were accurate and matched actual test results. Would reorder.

Fiona C.

United Kingdom

2025-03-17

Good value OM3 for LAN rollouts, minor packaging feedback

Ordered 3,000 meters of OM3 62.5µm PVC-jacketed cable for a series of mid-size LAN upgrades across the Midlands. Optical performance was solid — attenuation within spec and bandwidth confirmed at 2000 MHz·km per TIA-492AAAD. Pricing was competitive for the volume. One minor point: two cable drums arrived with slightly damaged outer cardboard packaging, though the cable itself was undamaged. Supplier responded promptly and improved packaging on the subsequent delivery. Overall good value for structured cabling projects.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What types of multi-mode fiber do you supply?

A:We supply OM1, OM2, OM3, OM4 and OM5 multi-mode fiber cables and bulk fiber for different data transmission requirements.

Q: What is the difference between OM1, OM2, OM3, OM4 and OM5?

Q: What are the core and cladding diameters of multi-mode fiber?

Q: What applications are multi-mode fiber mainly used for?

Q: Do you offer indoor and outdoor multi-mode fiber cables?

Q: Can multi-mode fiber be mixed with single-mode fiber equipment?
