| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | Telecom Indoor Fiber Cable | Single-mode / multimode indoor optical fiber cable for telecommunications networks |
| Fiber Grade & ITU-T Classification | G.652D / G.657A1 / G.657A2 / OM3 / OM4 | Compliant with ITU-T G.652D for standard SMF; G.657A1/A2 for bend-insensitive; OM3/OM4 for multimode |
| Core & Cladding Diameter Range | Core: 8.2 μm (SMF) / 50 μm (MMF); Cladding: 125 ± 0.7 μm | Tight tolerance on cladding diameter ensures low splice loss and connector compatibility |
| Attenuation Coefficient at 1310nm | ≤ 0.35 dB/km (SMF G.652D) | Measured per IEC 60793-1-40; suitable for short to medium distance transmission |
| Attenuation Coefficient at 1550nm | ≤ 0.20 dB/km (SMF G.652D) | Low attenuation at 1550 nm enables long-haul and DWDM indoor backbone applications |
| Macrobending Loss Performance | ≤ 0.1 dB/turn at R=15 mm (G.657A1); ≤ 0.03 dB/turn at R=10 mm (G.657A2) | Enhanced bend tolerance for tight routing in conduits, risers, and FTTH drop installations |
| Chromatic Dispersion Coefficient | ≤ 18 ps/(nm·km) at 1550 nm; ≤ 3.5 ps/(nm·km) at 1310 nm | Meets ITU-T G.652D dispersion specification; zero-dispersion wavelength 1300–1324 nm |
| Batch Qualification Rate | ≥ 99.5% | Each production batch undergoes 100% OTDR screening and attenuation testing before shipment |

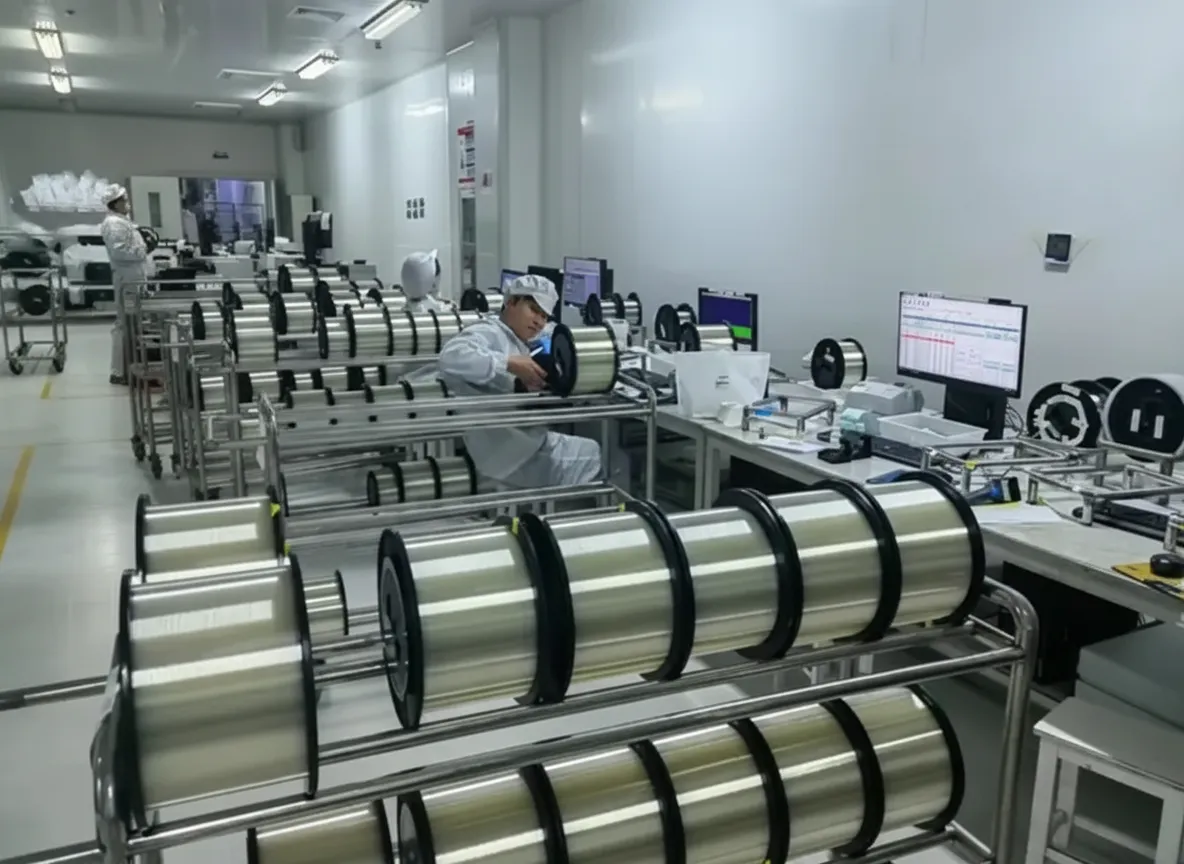

| Manufacturing Environment Standards | ISO 9001:2015 certified cleanroom production | Dust-controlled drawing and coating environment; temperature and humidity strictly monitored |
| Core Raw Material Source | High-purity silica preform (SiO₂ purity ≥ 99.99%) | Preforms sourced from qualified suppliers; MCVD / OVD / VAD process available |

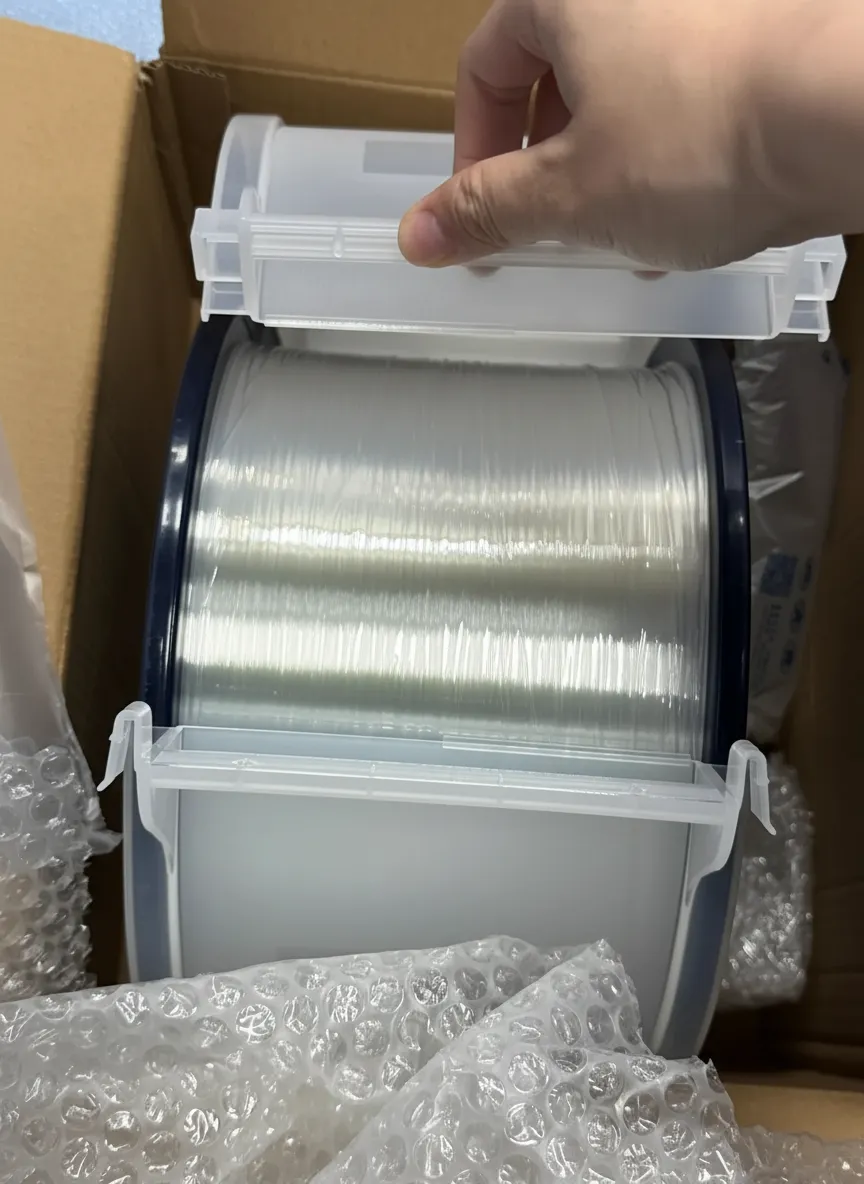

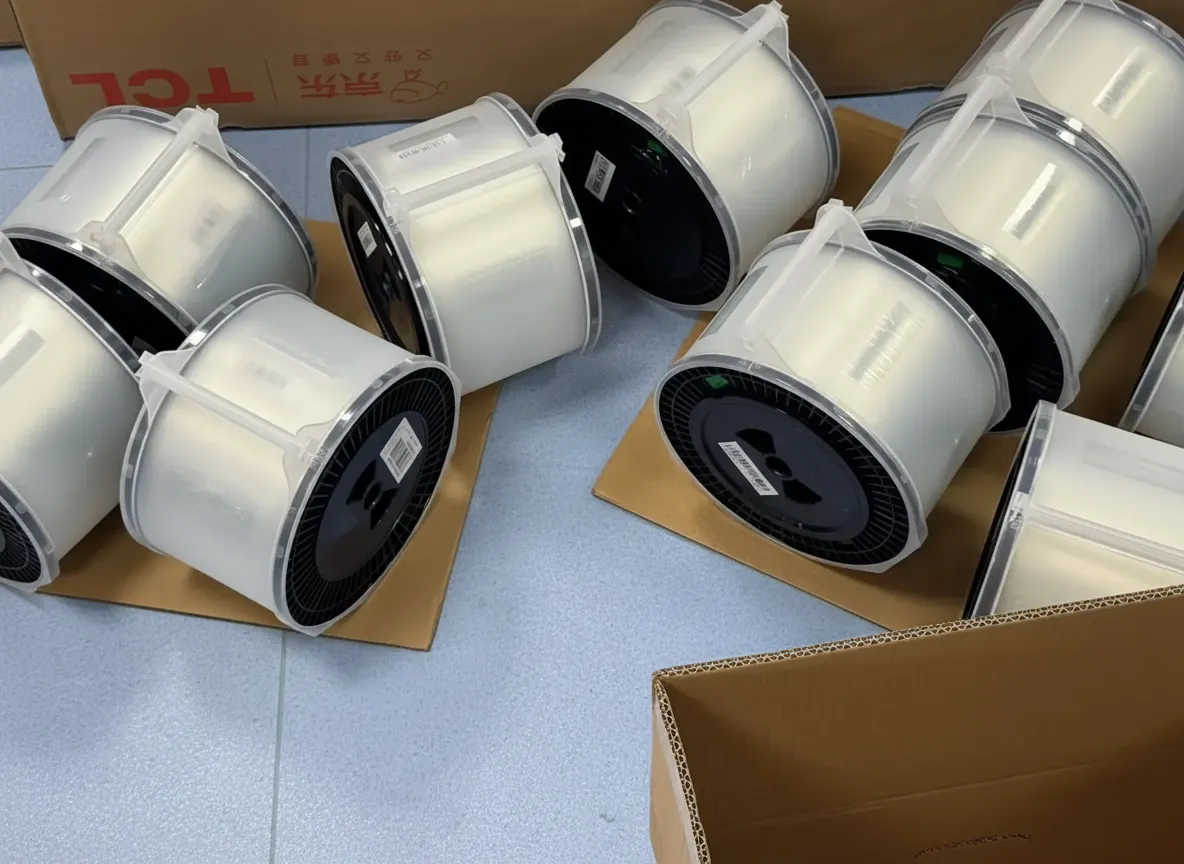

| Packaging Specification | 500 m / 1000 m / 2000 m per reel; wooden or plastic drum | Standard reel dimensions labeled; moisture-proof PE wrapping with desiccant inside |
| Storage Conditions | Temperature: -20°C to +60°C; Relative Humidity: ≤ 85% RH (non-condensing) | Store in dry, ventilated warehouse away from direct sunlight and corrosive substances |
| Valid Shelf Life | ≥ 20 years (installed); 2 years (sealed original packaging) | Flame-retardant LSZH jacket maintains mechanical and optical integrity under rated conditions |
| Application Scenarios | FTTH/FTTB drop cable, riser cable, patch cord backbone, MDU wiring, data center horizontal cabling | Suitable for indoor structured cabling, telecom equipment rooms, and last-mile fiber distribution |
| Compliance & Certification | IEC 60794-2, IEC 60332-1, RoHS 2.0, REACH, UL 1666 (Riser), LSZH IEC 60332-3-24 | Flame-retardant and low-smoke zero-halogen jacket meets international indoor safety requirements |
| Minimum Order Quantity (MOQ) | 10 km per fiber type per order | Custom lengths and reel configurations available for orders above MOQ threshold |
| Monthly Supply Capacity | 500,000 km/month (fiber); 200,000 km/month (cabled) | Large-scale production capacity supports OEM, telecom operators, and system integrators globally |
Initial documentation gap — resolved before installation began
Ordered 8,000 meters of 12-fiber G.657A2 LSZH cable for a UK commercial refurbishment. The shipment arrived on time and optical performance met IEC 60794 specs, but the initial package was missing the IEC 60332-3 flame-retardancy certificate required by our client's building control officer. I contacted support and received the full certified test report within 48 hours, well before installation commenced. The cable itself performed correctly — bend radius in tight conduit runs was well within the 10× diameter spec. Issue resolved; would consider reordering.
