Product details

Technical Specifications of Custom Pre Terminated Fiber Assemblies

Property	Parameter	Description
Product Name	Custom Pre Terminated Fiber Assemblies	Factory-terminated fiber optic cable assemblies built to customer-specified length, connector type, and configuration
Fiber Type	Single-mode (OS2) / Multimode (OM3, OM4, OM5)	ITU-T G.652D for SM; IEC 60793-2-10 for MM; supports both simplex and duplex configurations
Material Grade	Corning SMF-28 Ultra / OFS ClearCurve equivalent	Low-water-peak, bend-insensitive fiber; jacket material LSZH, PVC, or Plenum-rated (OFNP)
Standard Compliance	IEC 61754, TIA-568.3-D, IEC 61300	Connector geometry and performance per IEC 61754-4 (LC), IEC 61754-20 (MPO); insertion loss per IEC 61300-3-4
Connector Types	LC, SC, ST, FC, MPO/MTP, E2000	Available in UPC or APC polish; MPO supports 8, 12, 16, 24-fiber configurations
Insertion Loss	≤0.20 dB (SM UPC/APC); ≤0.30 dB (MM)	Measured per IEC 61300-3-4; MPO assemblies ≤0.35 dB per mated pair
Return Loss	≥55 dB (UPC); ≥65 dB (APC)	Per IEC 61300-3-6; critical for high-speed coherent and DWDM applications
Operating Wavelength	850 nm / 1310 nm / 1550 nm	OM3/OM4 optimized at 850 nm; OS2 optimized at 1310 nm and 1550 nm
Cable Length Range	0.5 m – 500 m (custom)	Standard increments available; custom lengths to ±0.1 m tolerance; longer runs available on request
Cable Outer Diameter	1.6 mm / 2.0 mm / 3.0 mm / 4.8 mm	Simplex, duplex, and breakout configurations; armored versions available for harsh environments
Operating Temperature	-20°C to +70°C (storage: -40°C to +85°C)	Per IEC 61300-2-22; extended temperature range available for industrial/outdoor deployments
Tensile Load Rating	≤220 N (short-term); ≤110 N (long-term)	Per IEC 60794-1-2 Method E1; armored assemblies rated up to 2700 N
Surface Finish / Polish	UPC: Ra ≤20 nm; APC: 8° angle, Ra ≤20 nm	End-face geometry verified per IEC 61300-3-26; 100% end-face inspection with interferometer
Application	Data centers, telecom, CATV, FTTx, MTP trunk systems	Suitable for 10G/40G/100G/400G networks, patch panels, pre-terminated trunk cabling systems
Certification	RoHS, REACH, UL Listed, CE, ISO 9001:2015	OFNR/OFNP ratings available; third-party test reports provided upon request
Packaging	Individual poly bag + reel or coil; bulk carton	Dust caps on all connectors; ESD-safe packaging for MPO; custom labeling and color-coding available
MOQ	1 piece (standard); 50 pieces (volume pricing)	No minimum for standard configurations; volume discounts apply for orders ≥50 pcs; OEM/ODM accepted

Custom Pre Terminated Fiber Assemblies - Factory Supplier

Custom pre terminated fiber assemblies are engineered fiber optic cable solutions that arrive fully prepared for immediate deployment, eliminating on-site splicing and connector installation time. As a factory-direct supplier, we manufacture these assemblies to exact project specifications, serving critical roles in data centers, telecommunications infrastructure, enterprise networks, and industrial automation systems. Each assembly undergoes rigorous end-face inspection and insertion loss testing, ensuring optical performance that meets or exceeds industry benchmarks. Our production facility operates under ISO 9001 quality management protocols, allowing us to deliver consistent, repeatable results across high-volume orders. Whether you require simplex, duplex, or multi-fiber trunk configurations, our engineering team works directly with clients to define fiber count, connector type, polarity, cable jacket rating, and overall assembly length — delivering a plug-and-play solution that accelerates installation schedules and reduces total project cost.

What is Custom Pre Terminated Fiber Assemblies?

Custom pre terminated fiber assemblies are factory-built fiber optic cable units fitted with pre-installed, factory-polished connectors at one or both ends. Unlike field-terminated alternatives, these assemblies are precision-manufactured under controlled conditions, achieving typical insertion loss values of ≤0.3 dB per mating and return loss ≥50 dB (UPC) or ≥60 dB (APC), ready for direct installation into patch panels, transceivers, or distribution frames.

custom pre terminated fiber assemblies supplier

Custom Pre Terminated Fiber Assemblies Manufacturing Process

Production begins with selecting premium grade optical fiber — single-mode OS2 (ITU-T G.652.D) or multimode OM3/OM4/OM5 — followed by precision cable cutting to customer-specified lengths with a tolerance of ±0.5%. Connectors are epoxy-bonded and machine-polished through a multi-stage lapping process. Every completed assembly is 100% tested on a calibrated optical loss test set (OLTS) per IEC 61300-3-4 standards before packaging and shipment.

Custom Pre Terminated Fiber Assemblies Technical Specifications

Our assemblies support a broad specification range to match diverse network requirements. Standard offerings include LC, SC, ST, FC, MPO/MTP connector interfaces in UPC or APC polish. Fiber types span OS1, OS2, OM1 through OM5. Operating wavelengths cover 850 nm, 1310 nm, and 1550 nm bands. Cable outer diameters range from 0.9 mm (simplex) to 7.0 mm (armored duplex). Minimum bend radius is 30 mm under load, and assemblies are rated for operating temperatures from -20°C to +70°C, with plenum (OFNP) and riser (OFNR) jacket options available.

Get a Competitive Quote for Custom Pre Terminated Fiber Assemblies

Partner with our factory team to source custom pre terminated fiber assemblies at mill-direct rates without compromising on precision or reliability. Submit your specifications today and receive a detailed technical proposal with cost-effective pricing within 24 hours.

custom pre terminated fiber assemblies manufacturer

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

custom pre terminated fiber assemblies factory

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Ahmed K.

UAE

2025-02-02

Initial labeling error resolved quickly — product quality is sound

First order of 120 OS2 LC/UPC duplex assemblies, 10-meter and 20-meter mixed lengths. We received approximately 15 units with reversed length labels — 10 m marked as 20 m. Raised the issue with support and received a corrected label pack with a re-inspection report within 48 hours. Optical performance on all units was within spec (IL ≤0.28 dB). The resolution was handled professionally and the technical team followed up after delivery. Willing to reorder given how the issue was managed.

Fiona L.

United Kingdom

2025-02-24

Competitive pricing on SC/APC bulk order, lead time slightly longer than quoted

Sourced 400 SC/APC OS2 simplex assemblies, 5-meter, for a FTTH distribution project. Unit pricing was the best we found across four quotes. Assembly quality checked out — return loss above 60 dB on all sampled units per IEC 61300-3-35. Lead time came in at 14 days vs. the 10-day estimate, which pushed our install schedule by a few days. Not a major issue, but worth noting for tight project timelines. Will order again with a buffer built in.

David H.

United States

2025-03-18

Good value on OM3 patch assemblies, minor documentation gap

Ordered 150 OM3 LC/UPC duplex assemblies, 2-meter, for an enterprise office LAN refresh. Optical performance was solid — insertion loss averaging 0.25 dB, within spec. Pricing was competitive for a mid-volume order. The only gap was that individual test reports were provided as a batch summary rather than per-unit certificates, which our QA team prefers. Supplier acknowledged this and offered per-unit reporting on future orders. Product itself is reliable and delivery hit the quoted 10-day window.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What is pre-terminated fiber cable?

A:Pre-terminated fiber cable is factory-assembled with connectors and pigtails already installed, ready for plug-and-play installation on site.

Q: What types of pre-terminated fiber do you supply?

Q: What fiber modes are available?

Q: What is the advantage of using pre-terminated fiber?

Q: Are your pre-terminated cables tested before delivery?

Q: Do pre-terminated cables support outdoor or aerial use?

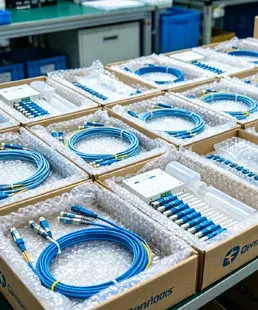

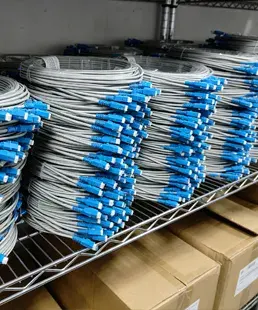

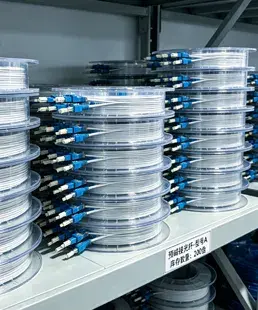

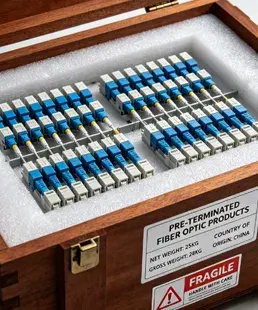

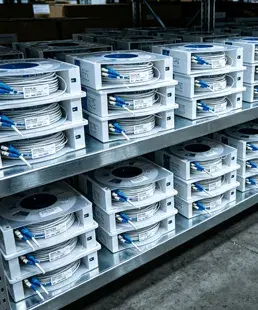

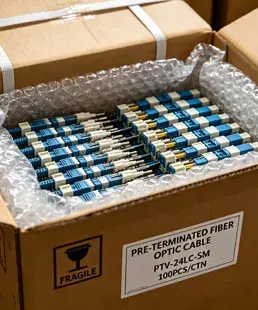

Product display
