Indoor Breakout Fiber Cable For High-Density Networks
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 kilometers
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Indoor Breakout Fiber Cable
| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | Indoor Breakout Fiber Cable | Multi-fiber tight-buffered breakout cable designed for indoor premises wiring and direct termination |
| Fiber Grade & ITU-T Classification | ITU-T G.652D / G.657A1 | Single-mode OS2 standard; bend-insensitive variant available for confined routing environments |
| Core & Cladding Diameter Range | Core: 9 µm / Cladding: 125 ± 1 µm | Standard SMF geometry; multimode OM3/OM4 (50/125 µm) options also available |
| Attenuation Coefficient at 1310 nm | ≤ 0.35 dB/km | Measured per IEC 60793-1-40; ensures low signal loss in short-haul indoor links |
| Attenuation Coefficient at 1550 nm | ≤ 0.20 dB/km | Compliant with ITU-T G.652D requirements; suitable for extended wavelength transmission |
| Macrobending Loss Performance | ≤ 0.10 dB at R = 15 mm (100 turns, 1550 nm) | Per IEC 60793-1-47; G.657A1 fiber maintains integrity under tight bend radii in cable trays |
| Chromatic Dispersion Coefficient | ≤ 18 ps/(nm·km) at 1550 nm | Zero-dispersion wavelength 1300–1324 nm; dispersion slope ≤ 0.092 ps/(nm²·km) |
| Batch Qualification Rate | ≥ 99.5% | Each production batch undergoes 100% OTDR screening and tensile proof testing at 100 kpsi |
| Manufacturing Environment Standards | ISO 9001:2015 / ISO 14001:2015 | Produced in temperature- and humidity-controlled cleanroom facilities with full traceability |
| Core Raw Material Source | High-purity SiO₂ preform (OVD/MCVD process) | Sourced from certified optical-grade silica suppliers; hydroxyl (OH⁻) content strictly controlled |
| Packaging Specification | Wooden reel or cardboard drum; 100 m / 200 m / 500 m / 1000 m per reel | Each reel labeled with fiber count, length, lot number, and test report; moisture-proof wrapping |
| Storage Conditions | Temperature: -20°C to +60°C; Relative Humidity: ≤ 85% RH (non-condensing) | Store indoors away from direct sunlight, chemicals, and mechanical stress; keep on original reel |
| Valid Shelf Life | ≥ 20 years (installed); 2 years (stored on reel) | Jacket material UV-stabilized LSZH/PVC; optical performance guaranteed within storage period |
| Application Scenarios | Data centers, LAN/WAN backbone, FTTH indoor drop, riser & plenum runs, patch panel connections | Suitable for direct connector termination without breakout kits; ideal for high-density indoor routing |
| Compliance & Certification | IEC 60794-2, RoHS 2011/65/EU, REACH, UL Listed (OFNR/OFNP), TIA-568 | LSZH jacket meets IEC 60332-3 flame retardancy; halogen-free for safe indoor deployment |
| Minimum Order Quantity (MOQ) | 500 m (single fiber count); 2,000 m (mixed configurations) | Custom fiber counts (2F–24F), jacket colors, and reel lengths accepted above MOQ threshold |
| Monthly Supply Capacity | 500,000 m / month | Scalable to 1,200,000 m/month with 30-day advance scheduling; OEM/ODM labeling supported |
Indoor Breakout Fiber Cable For High-Density Networks
Indoor breakout fiber cable has become a cornerstone solution for modern high-density network infrastructures, delivering unmatched reliability and flexibility across enterprise data centers, telecommunications facilities, and commercial building installations. As organizations continue to scale their connectivity demands, this specialized optical cable type offers a unique combination of individual fiber accessibility and robust mechanical protection, making it the preferred choice for structured cabling environments where direct termination without splice enclosures is essential. The breakout design — featuring individually jacketed sub-units within a common outer sheath — dramatically simplifies installation workflows, reduces deployment time, and lowers total cost of ownership. From server room patch panels to campus backbone links, indoor breakout fiber cable supports both single-mode and multimode transmission standards, enabling seamless integration with 10G, 40G, 100G, and beyond network architectures. Its compact profile and flame-retardant construction further ensure compliance with stringent indoor safety codes, cementing its role as an indispensable component in today's converged network ecosystems.
What is Indoor Breakout Fiber Cable?
Indoor breakout fiber cable is a multi-fiber optical cable in which each individual fiber strand is enclosed within its own tight-buffered sub-unit and protective jacket, all bundled together under a single outer sheath. This construction allows each fiber to be directly connectorized without additional fanout kits or breakout boxes, streamlining termination in patch panels, switches, and active equipment. Compliant with IEC 60794, TIA-568, and LSZH/OFNR/OFNP flame-rating standards, it is engineered specifically for indoor runs requiring both mechanical durability and easy individual fiber access.
Indoor Breakout Fiber Cable Manufacturing and Production Process

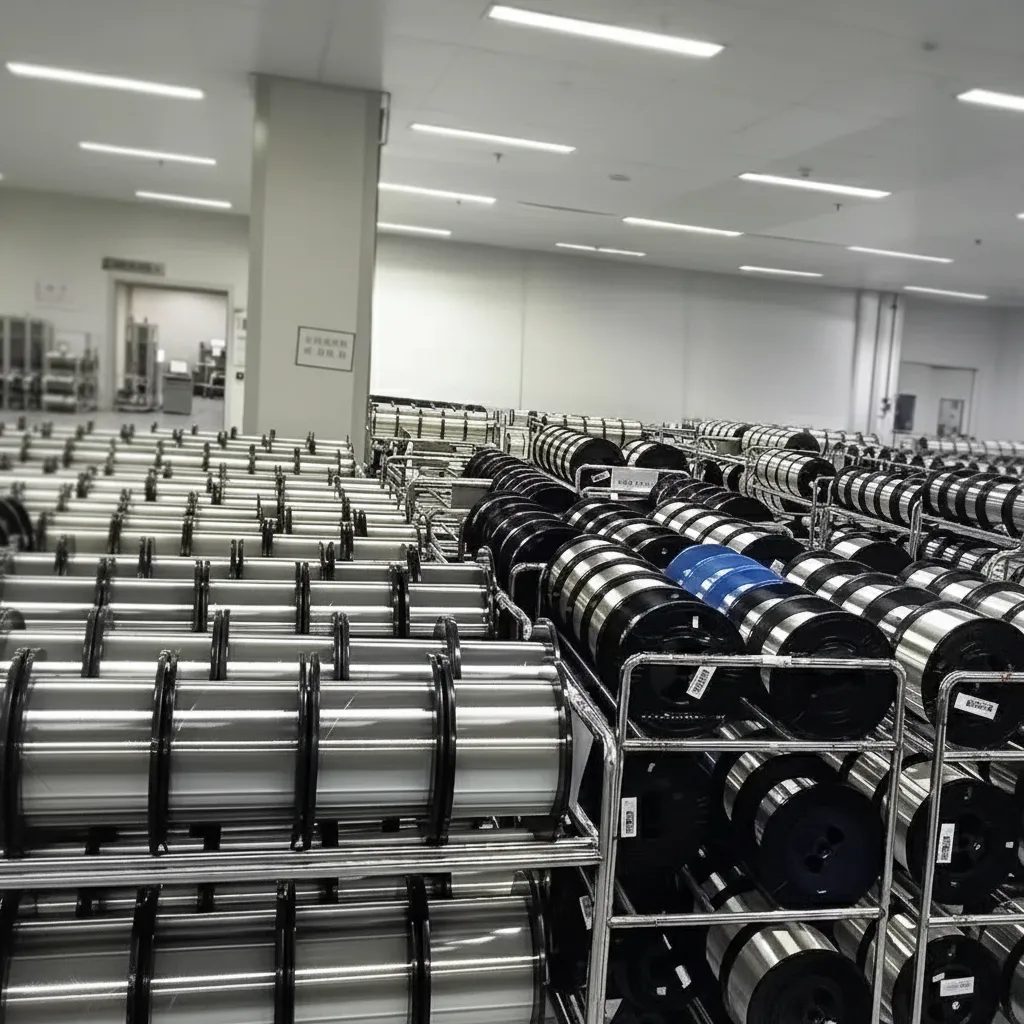

Production of indoor breakout fiber cable takes place in ISO 9001-certified clean-room facilities, beginning with precision drawing of ITU-T G.652D or OM3/OM4/OM5 compliant glass fibers. Each fiber receives a UV-cured acrylate coating followed by a tight-buffer thermoplastic layer. Sub-units are then stranded with aramid yarn strength members before being encased in a flame-retardant LSZH or OFNP outer jacket. Continuous online attenuation monitoring and 100% end-of-line OTDR testing guarantee batch-level performance consistency and full RoHS compliance throughout every production run.
Indoor Breakout Fiber Cable Technical Specifications
Standard configurations include 4F, 6F, 8F, 12F, 24F, and 48F counts with sub-unit outer diameters of 0.9 mm per fiber. Singlemode variants (ITU-T G.652D) deliver attenuation ≤0.35 dB/km at 1310 nm and ≤0.20 dB/km at 1550 nm. Multimode OM4 versions achieve bandwidth ≥4700 MHz·km (overfilled launch). Operating temperature ranges from -20°C to +70°C, with a minimum bend radius of 10× cable OD (long-term) and 20× OD (short-term). Tensile strength reaches 1000 N, and crush resistance is rated at 1000 N/100 mm, ensuring reliable performance in demanding indoor breakout cable routing environments.
Get a Competitive Quote for Indoor Breakout Fiber Cable
Partner with us for premium-grade indoor breakout fiber cable backed by verified certifications, flexible MOQ policies, and global logistics support. Whether you require small project quantities or large-scale bulk orders for data center rollouts, FTTH deployments, or enterprise LAN upgrades, our team delivers fast, competitive pricing with full documentation included.
- 24/7 expert optical communication engineer support
- Full ITU-T, ISO, RoHS compliance guarantee for all batches
- Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
- Complete technical data sheets and on-site deployment guidance included
Contact us today to get your free quote and full specification sheet within 24 hours!
