| Property | Parameter | Description |
|---|---|---|

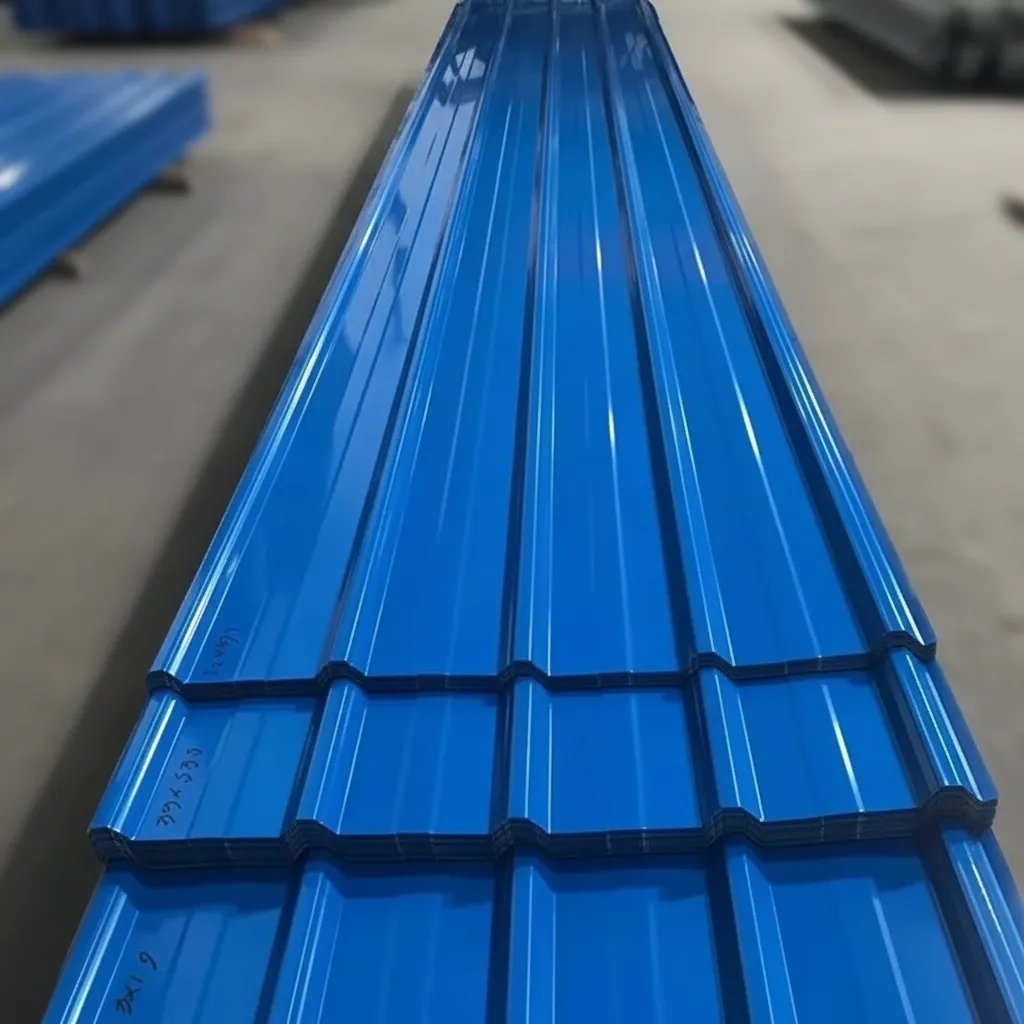

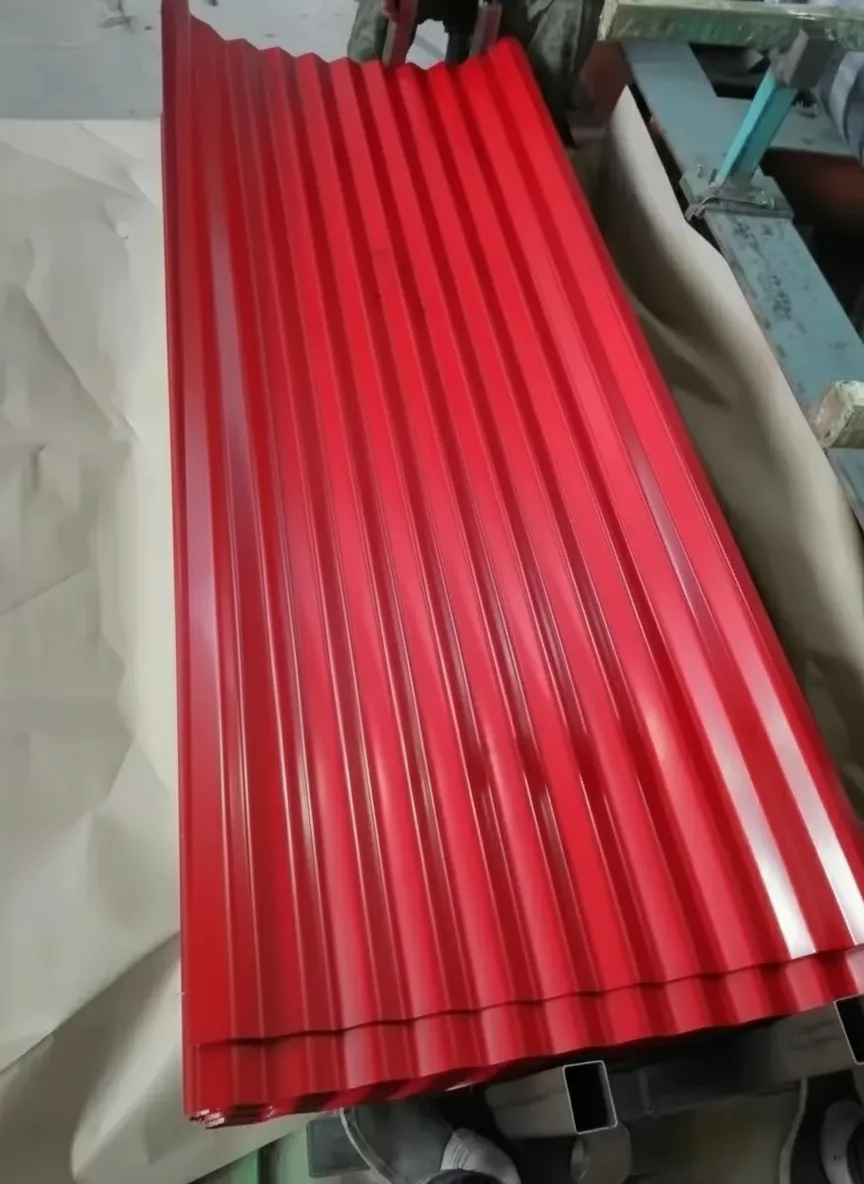

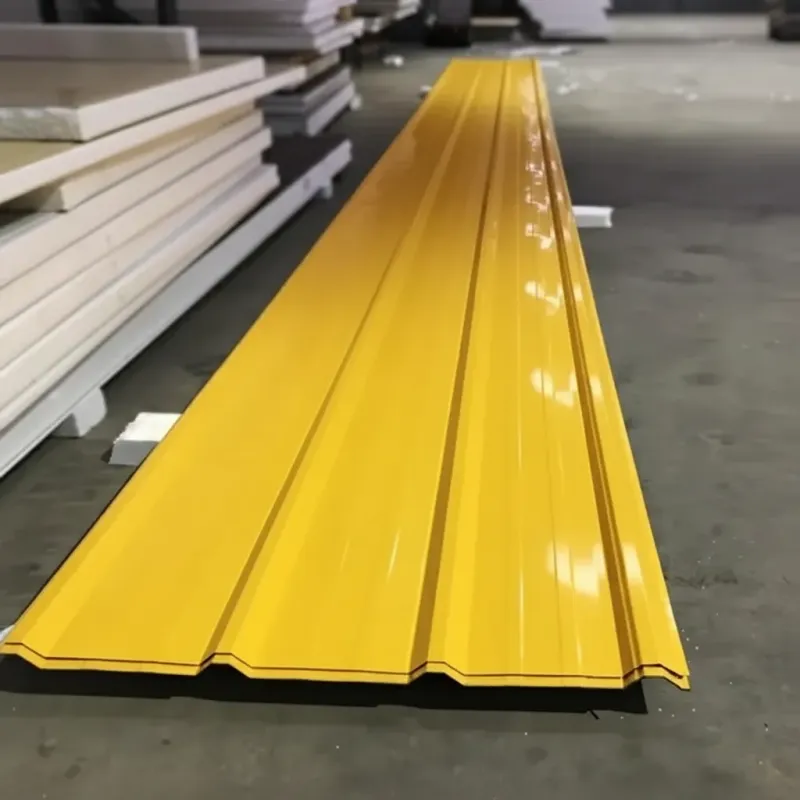

| Product Name | Prepainted Galvanized Steel Sheet (PPGI) | Cold-rolled galvanized steel coil/sheet with organic coating applied on surface |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / CS Type A/B/C | Equivalent grades: EN 10346 DX51D+Z, JIS G3302 SGCC, ASTM A653 CS |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | Meets international prepainted steel coil standards for structural and commercial use |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate ensuring good formability and coating adhesion |
| Zinc Coating Mass | Z60–Z275 (60–275 g/m²) | Hot-dip galvanized coating per EN 10346 / ASTM A653; both sides combined weight |
| Tensile Strength | 270–500 MPa | Varies by grade; DX51D+Z: ≥270 MPa per EN 10346; SGCC: ≥270 MPa per JIS G3302 |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; higher-strength grades up to 420 MPa available |
| Elongation | ≥22% (A80mm) | DX51D+Z: ≥22%; DX53D+Z: ≥30%; ensures good bending and forming performance |
| Thickness Range | 0.14–1.50 mm | Base metal thickness excluding coating; tolerances per EN 10143 / ASTM A924 |
| Width Range | 600–1,500 mm | Standard slit widths available; custom widths upon request |
| Coil Inner Diameter | 508 mm / 610 mm | Standard ID; coil weight typically 3–10 MT per coil |
| Paint Coating System | Top coat: 15–25 μm; Primer: 5–7 μm; Back coat: 5–15 μm | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP available |
| Surface Finish | Smooth, embossed, matte, high-gloss | RAL color customization available; pencil hardness ≥2H; T-bend ≤2T |
| Application | Roofing, wall cladding, home appliances, garage doors, sandwich panels, HVAC ducts | Widely used in construction, automotive interiors, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Mill test certificate (MTC) per EN 10204 3.1 provided with each shipment |
| Packaging | Eye-to-sky or eye-to-wall coil packaging | Waterproof paper + steel strip bundling; wooden pallet for sheets; seaworthy export packing |
| MOQ | 25 MT per order | Mixed specifications accepted; spot stock available for standard grades and colors |
Initial color batch variance flagged — resolved promptly with replacement coils
First order of 40 MT at 0.35 mm, Z80, PE topcoat in RAL 5015. On arrival, two coils showed ΔE readings of 1.4 against our reference chip — outside the ΔE ≤ 1.0 specification. We reported this with measurement data. The supplier acknowledged the variance, traced it to a coating line calibration issue, and shipped two replacement coils within 18 days at no additional cost. Remaining six coils were within spec. The resolution process was handled professionally and the replacement material passed our checks. Issue appears isolated; we are cautiously planning a follow-up order.
First order of 40 MT at 0.35 mm, Z80, PE topcoat in RAL 5015. On arrival, two coils showed ΔE readings of 1.4 against our reference chip — outside the ΔE ≤ 1.0 specification. We reported this with measurement data. The supplier acknowledged the variance, traced it to a coating line calibration issue, and shipped two replacement coils within 18 days at no additional cost. Remaining six coils were within spec. The resolution process was handled professionally and the replacement material passed our checks. Issue appears isolated; we are cautiously planning a follow-up order.
