| Property | Parameter | Description |
|---|---|---|

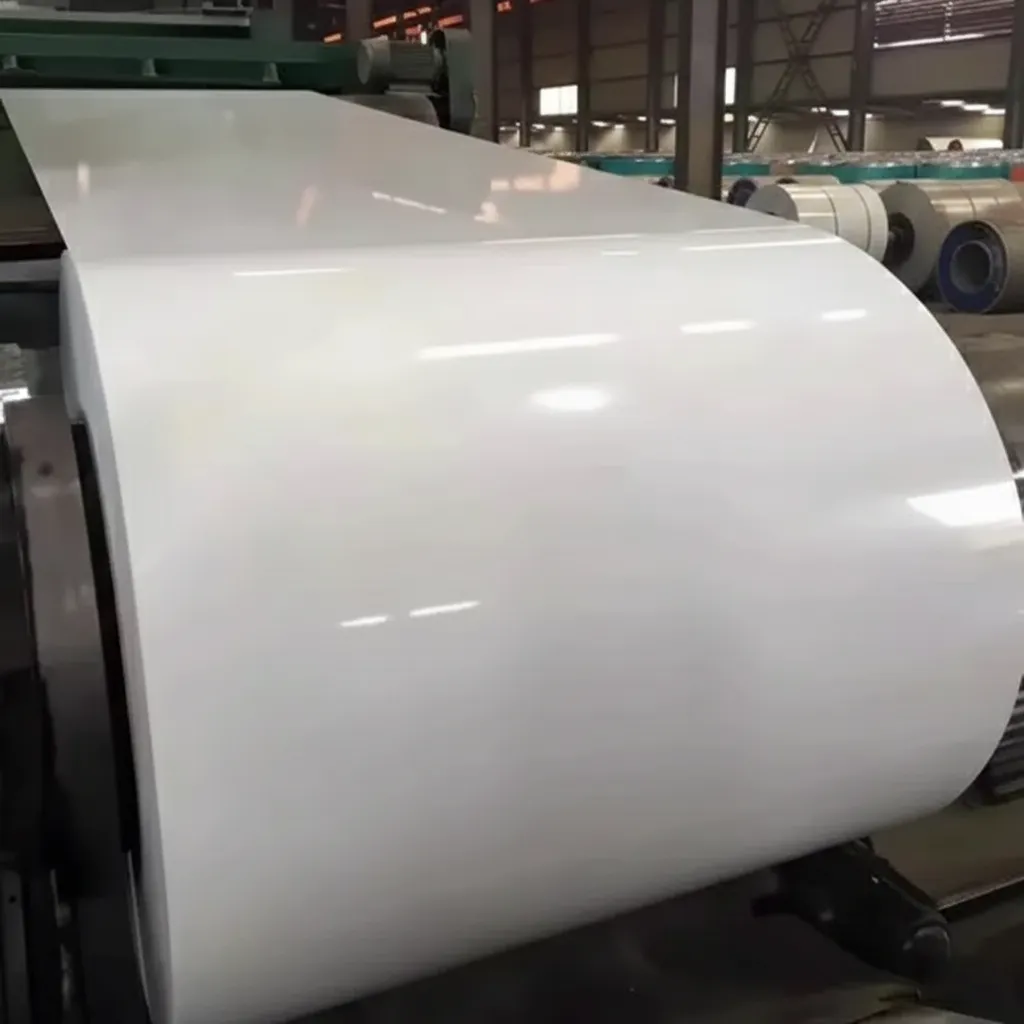

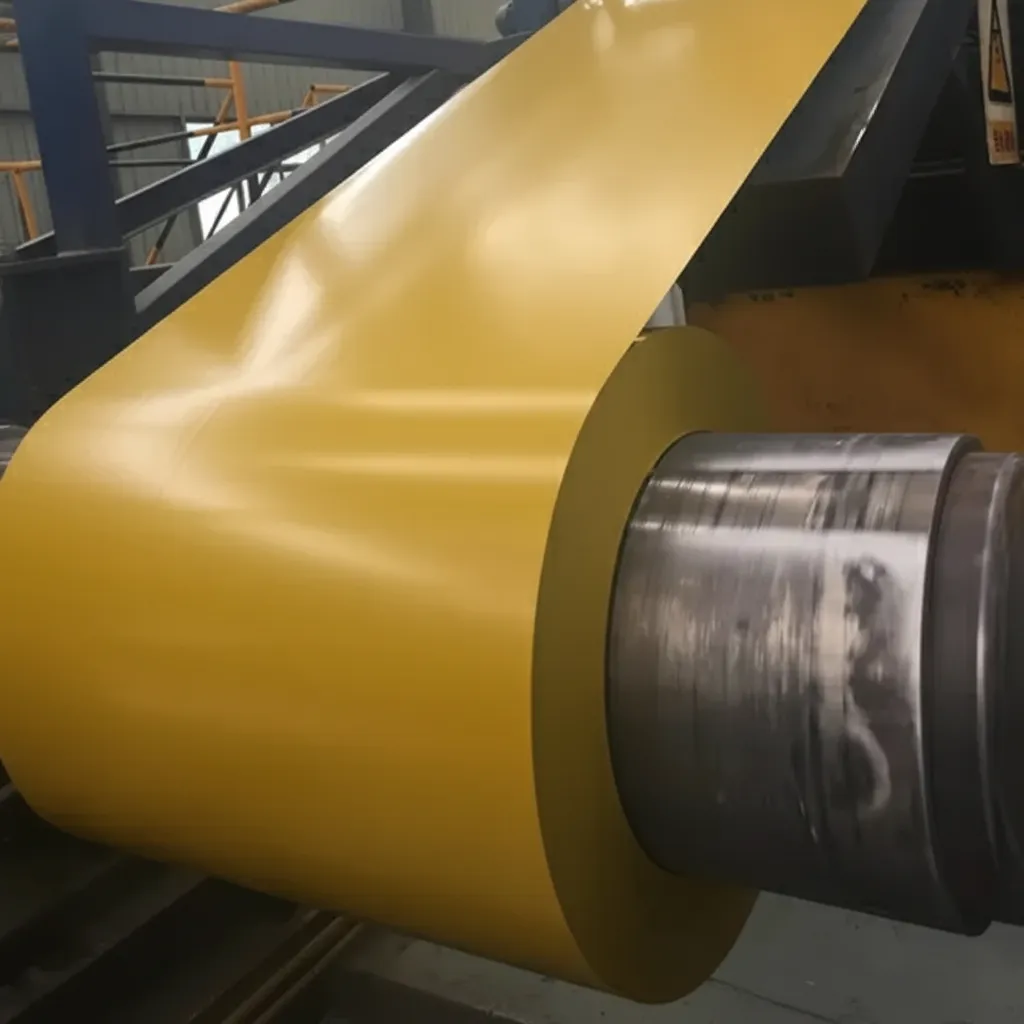

| Product Name | Glossy Color Coated Steel Coil | High-gloss pre-painted steel coil with polymer coating on galvanized or galvalume substrate |
| Material Grade | DX51D, DX52D, DX53D (EN); SGCC, SGCD (JIS); CS-B, FS-B (ASTM) | Equivalent grades: Q195, Q235, SPCC; substrate options include GI, GL, and EG |
| Standard Compliance | EN 10169, ASTM A755, JIS G3312, GB/T 12754 | Meets international pre-painted steel coil standards for building and industrial use |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal composition; substrate zinc coating: Z60–Z275 g/m²; AZ50–AZ150 for galvalume |
| Tensile Strength | 270–500 MPa | Varies by substrate grade; DX51D ≥270 MPa per EN 10346 |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; higher grades available for structural applications |
| Elongation | ≥16%–28% | DX53D achieves ≥28% elongation for deep drawing applications |
| Thickness Range | 0.14 mm – 1.50 mm | Base metal thickness; total thickness including coating typically +0.02–0.05 mm |
| Width Range | 600 mm – 1,500 mm | Custom slit widths available; standard widths: 914 mm, 1000 mm, 1219 mm, 1250 mm |
| Coil Weight | 3–10 MT per coil | Inner diameter: 508 mm or 610 mm; outer diameter up to 1,500 mm |
| Surface Finish | High Gloss (60°–85° gloss unit); PE, PVDF, SMP coating | Top coat: 15–25 μm; primer: 5–7 μm; back coat: 7–12 μm; RAL color system available |
| Coating Performance | Pencil Hardness ≥2H; T-bend ≤2T; Salt Spray ≥500 hrs | UV resistance, weather resistance, and anti-corrosion per EN 13523 test methods |
| Application | Roofing, wall cladding, home appliances, garage doors, signage, interior decoration | Widely used in construction, HVAC, automotive trim, and consumer electronics panels |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection available; mill test certificate (MTC) provided per EN 10204 3.1 |

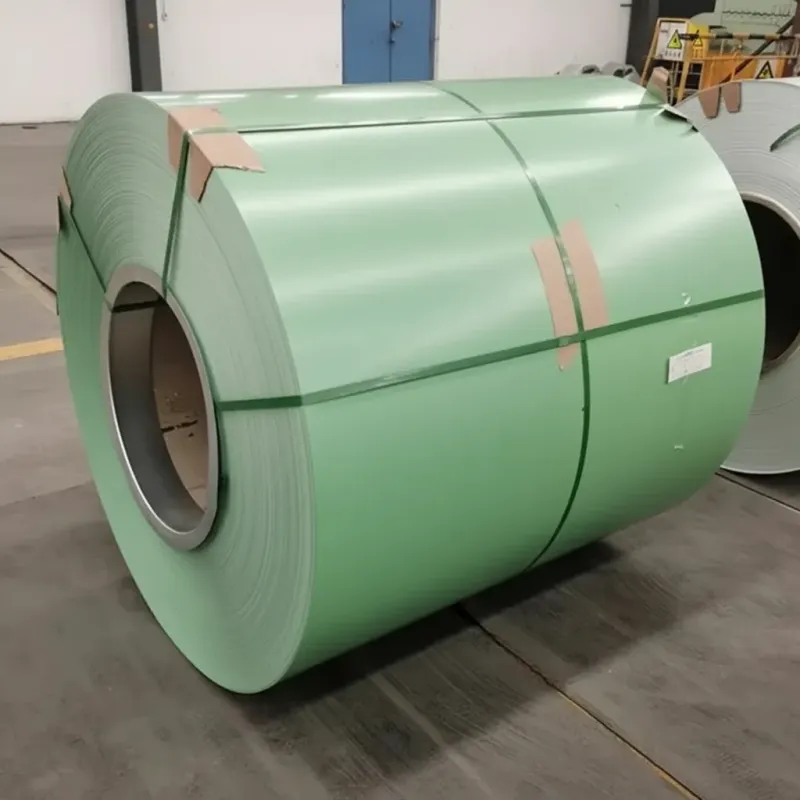

| Packaging | Eye-to-sky or eye-to-wall; waterproof paper + steel strip strapping | Moisture-proof inner wrapping; wooden pallet or steel cradle for export shipment |
| MOQ | 25 MT per order | Mixed colors and specifications accepted; sample coils available upon request |
Initial width tolerance issue — resolved promptly by supplier
Our first order of 10 MT, 0.40 mm GI Z120 slit to 820 mm width, arrived with three coils measuring 823–825 mm — outside the agreed ±1 mm slit tolerance. We raised the issue immediately. The supplier acknowledged the deviation within hours, provided a formal corrective action report, and arranged replacement coils shipped within 7 days at no extra cost. Subsequent coils were accurate. Product coating quality itself — gloss level, adhesion per ASTM D3359, and color consistency — was never in question. Supplier's after-sales response rebuilt our confidence and we have since placed a second order.
