Prepainted Steel Coil - Galvanized PPGI Cold Rolled Coated Steel Coil

Technical Specifications of Prepainted Steel Coil

Prepainted Steel Coil - Galvanized PPGI Cold Rolled Coated Steel Coil

Prepainted steel coil represents a premium category of pre-coated metal products that combines the structural integrity of galvanized steel with factory-applied organic coatings. This advanced material serves critical roles in architectural cladding, roofing systems, and appliance manufacturing where both corrosion resistance and aesthetic versatility are paramount. Engineered for contractors, fabricators, and OEM manufacturers, these coated steel coils deliver cost-effective solutions with exceptional durability against harsh environmental conditions while offering extensive color customization options.

What is Prepainted Steel Coil?

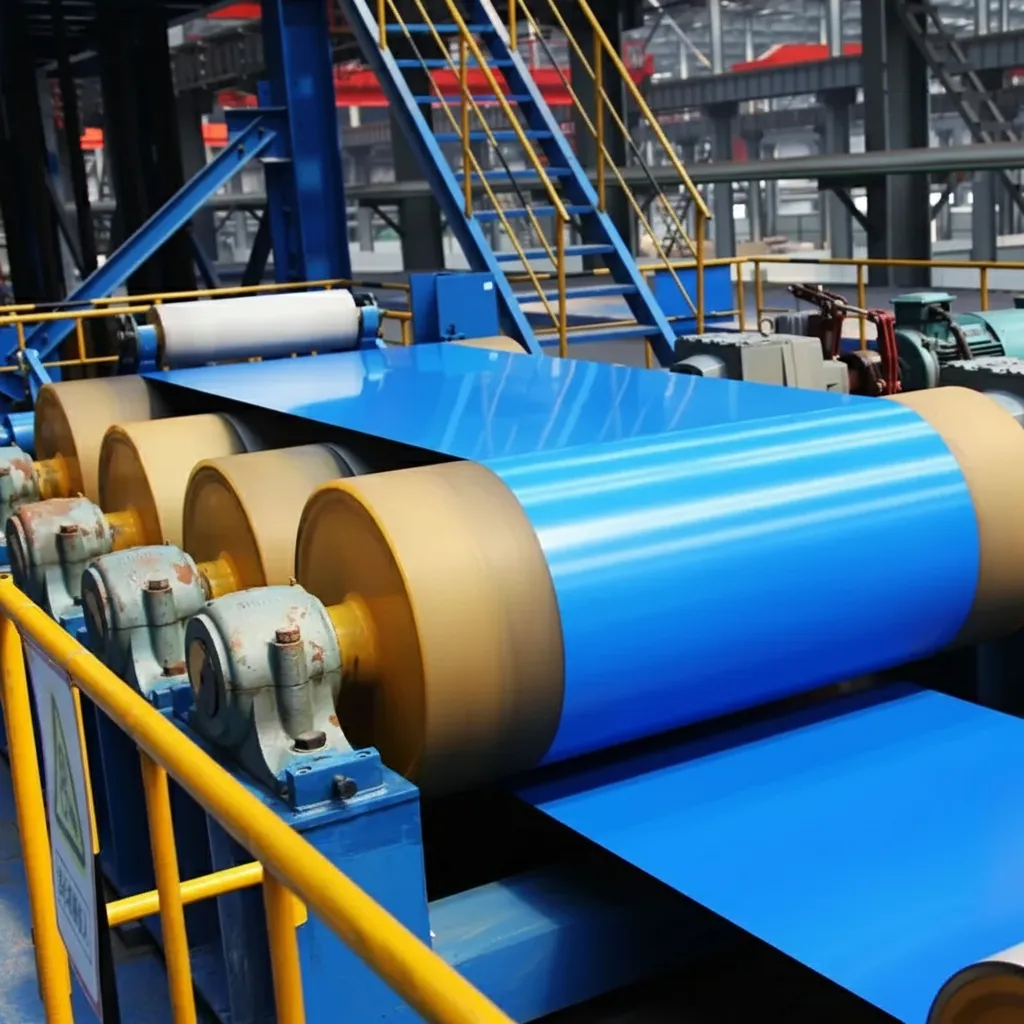

Prepainted steel coil is a continuously coated steel substrate that undergoes galvanization followed by multi-layer organic coating application through precision roller coating lines. The base material typically consists of cold-rolled steel with zinc coating weights ranging from 60-275 g/m² per ASTM A653/A653M, subsequently treated with chemical conversion coatings and finished with polyester, silicon-modified polyester (SMP), or polyvinylidene fluoride (PVDF) topcoats achieving film thicknesses of 15-25 micrometers.

Prepainted Steel Coil Technical Specifications

Standard PPGI coils are manufactured with thickness ranges of 0.13-1.5mm and widths extending from 600-1500mm according to JIS G3312 and EN 10169 requirements. The substrate exhibits yield strength of 280-550 MPa depending on grade selection, with zinc coating adhesion meeting minimum 1.0 kgf/cm per cross-cut test standards. Color stability is guaranteed through ΔE values below 2.0 after 2000 hours QUV-A exposure testing, while pencil hardness ratings consistently achieve 2H minimum performance levels.

Why Choose Our Prepainted Steel Coil Solutions

Our manufacturing facilities operate continuous galvanizing and coating lines capable of processing 450,000 metric tons annually with inline thickness gauging accuracy of ±0.01mm. We maintain ISO 9001:2015 and ISO 14001:2015 certifications while providing complete mill test certificates including chemical composition analysis per ASTM E1479 and mechanical property verification per ASTM A370. Factory-direct pricing structures eliminate intermediary margins, delivering value-driven rates with flexible MOQ arrangements starting from 25 metric tons per specification.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is established at 25 metric tons per color and specification combination, though we accommodate smaller trial orders of 10 tons for qualified projects requiring material validation. Mixed container loading is available for established accounts ordering multiple SKUs within single shipments.

Do you provide material test certificates?

Comprehensive mill test reports accompany every shipment, documenting chemical composition per ASTM E415 optical emission spectrometry, mechanical properties including tensile strength and elongation per ASTM A370, coating weight verification per ASTM A90, and coating thickness measurements per ASTM D7091. Third-party inspection arrangements through SGS or Bureau Veritas can be coordinated upon request.

What is the typical delivery time?

Standard color inventory items ship within 15-20 working days from deposit confirmation, while custom RAL or Pantone color matching extends lead times to 25-30 working days to accommodate coating formulation and quality verification procedures. Express production scheduling is available for urgent requirements with 10-12 day turnaround at premium rates.

Can you cut to custom sizes?

Our precision slitting capabilities accommodate custom width tolerances of ±2mm for widths between 600-1500mm, with longitudinal cutting available for panel lengths up to 12 meters. Blanking services for specific panel dimensions are provided through our partnered fabrication network with cutting tolerances maintained at ±3mm for lengths exceeding 3 meters.

Get a Competitive Quote for Prepainted Steel Coil

Request detailed technical specifications and mill-direct pricing for your prepainted steel coil requirements. Our engineering team provides rapid quotations within 24 hours, including material recommendations optimized for your application environment. Contact us today to discuss volume discounts, custom coating options, and delivery scheduling that aligns with your project timeline.
