| Property | Parameter | Description |
|---|---|---|

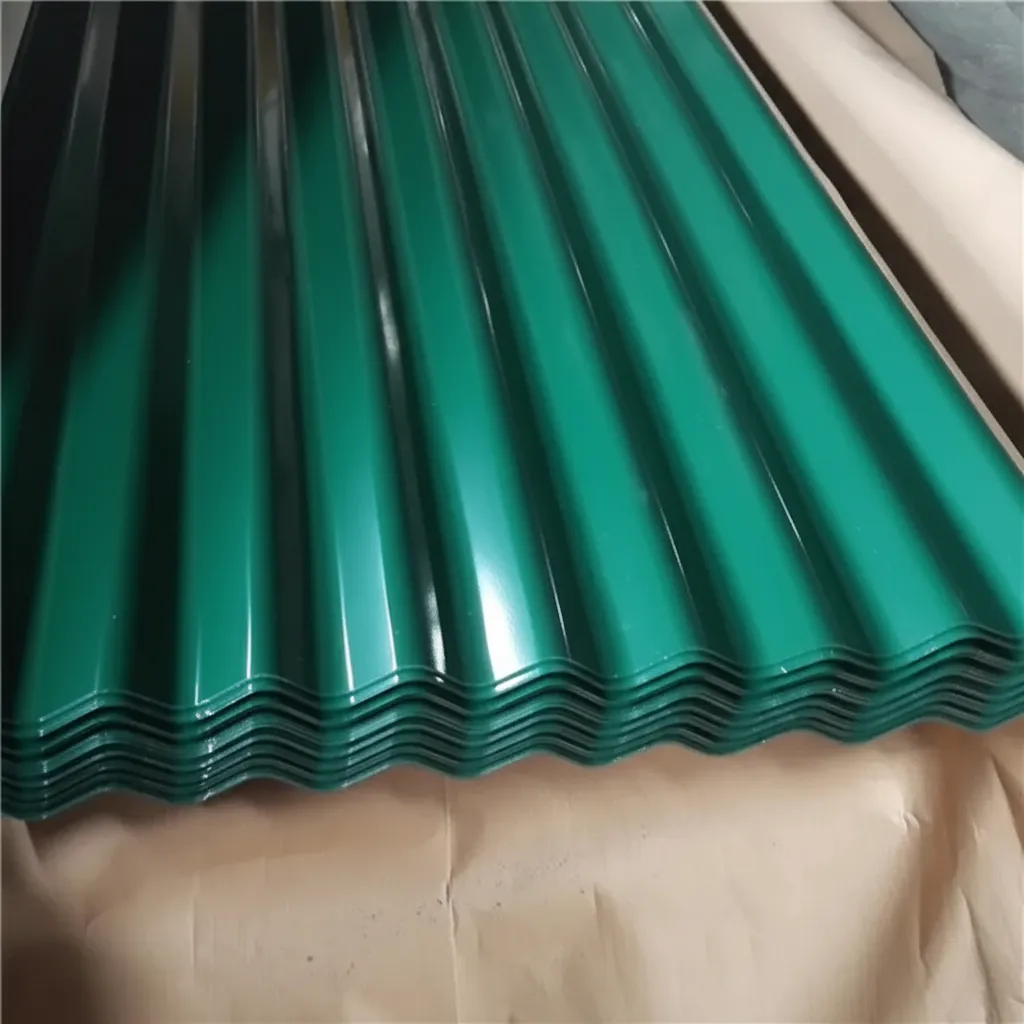

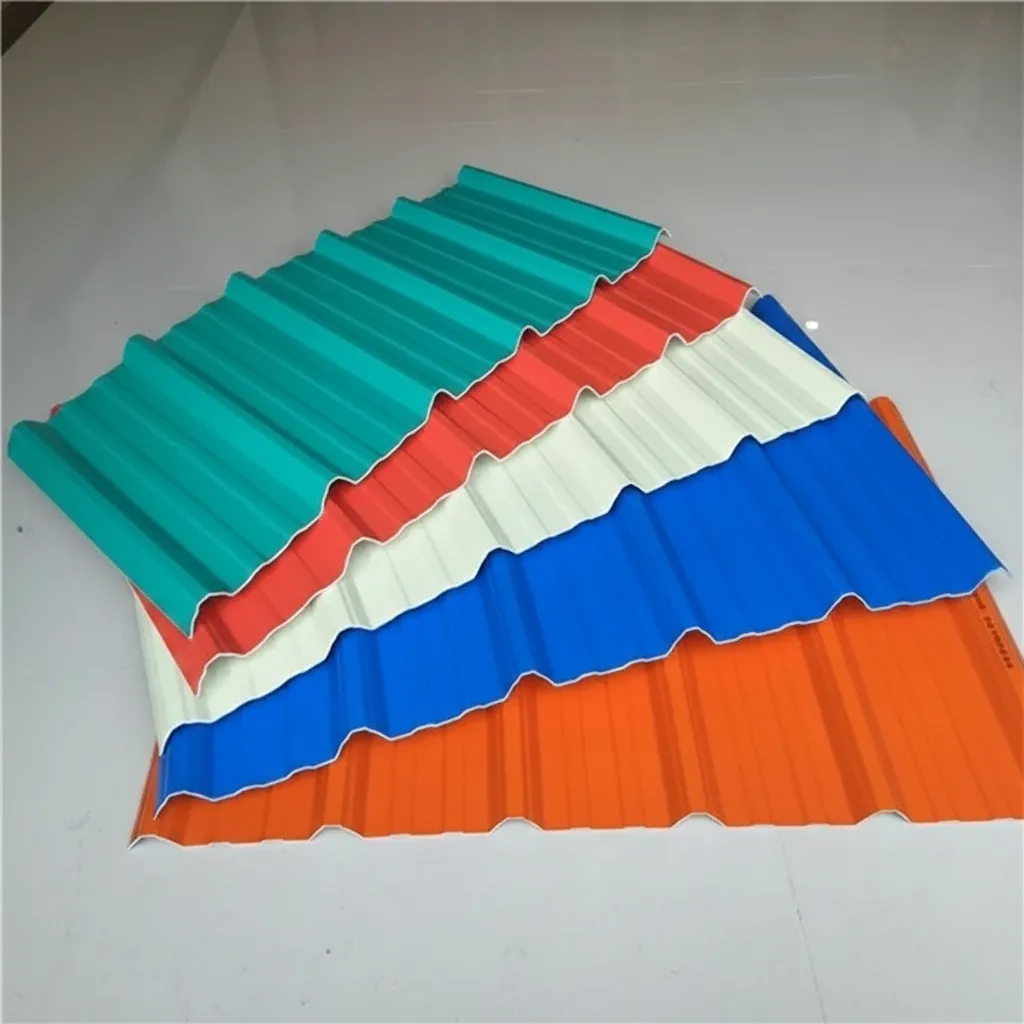

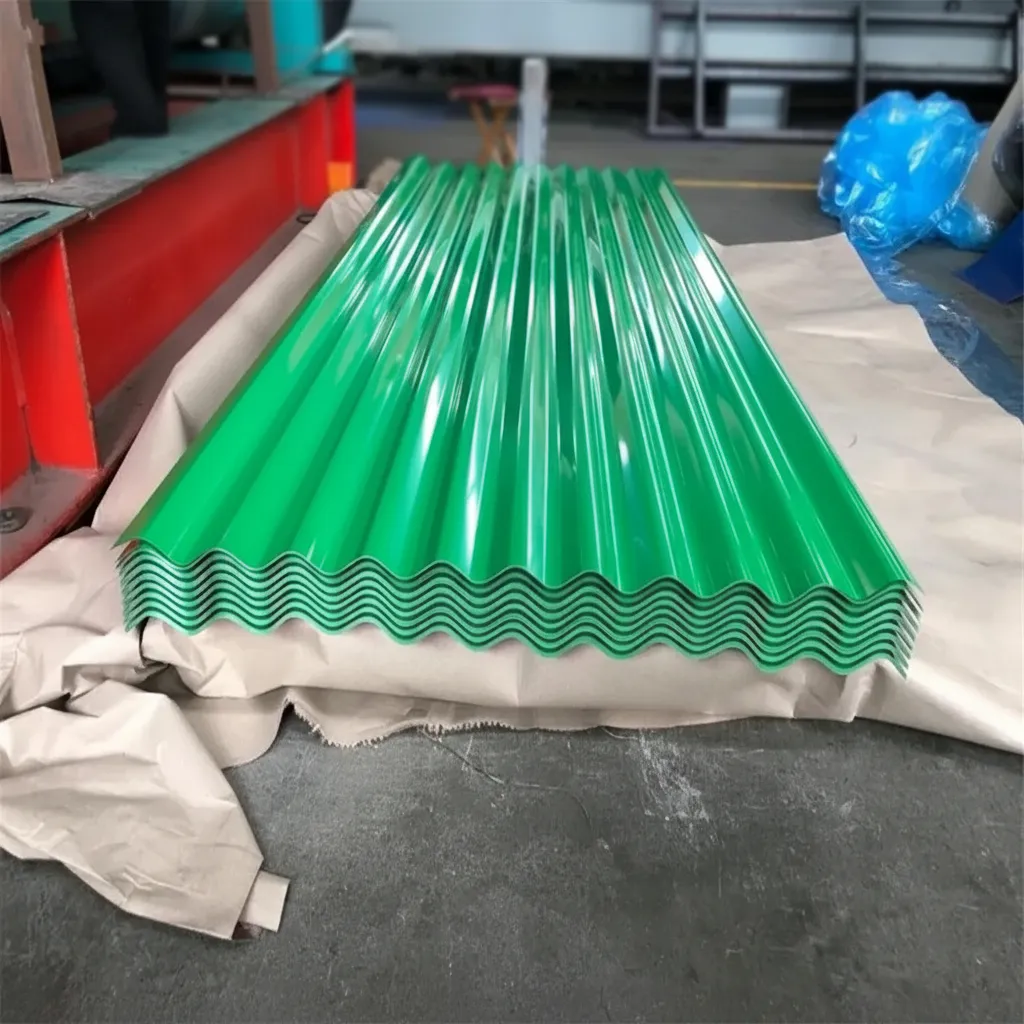

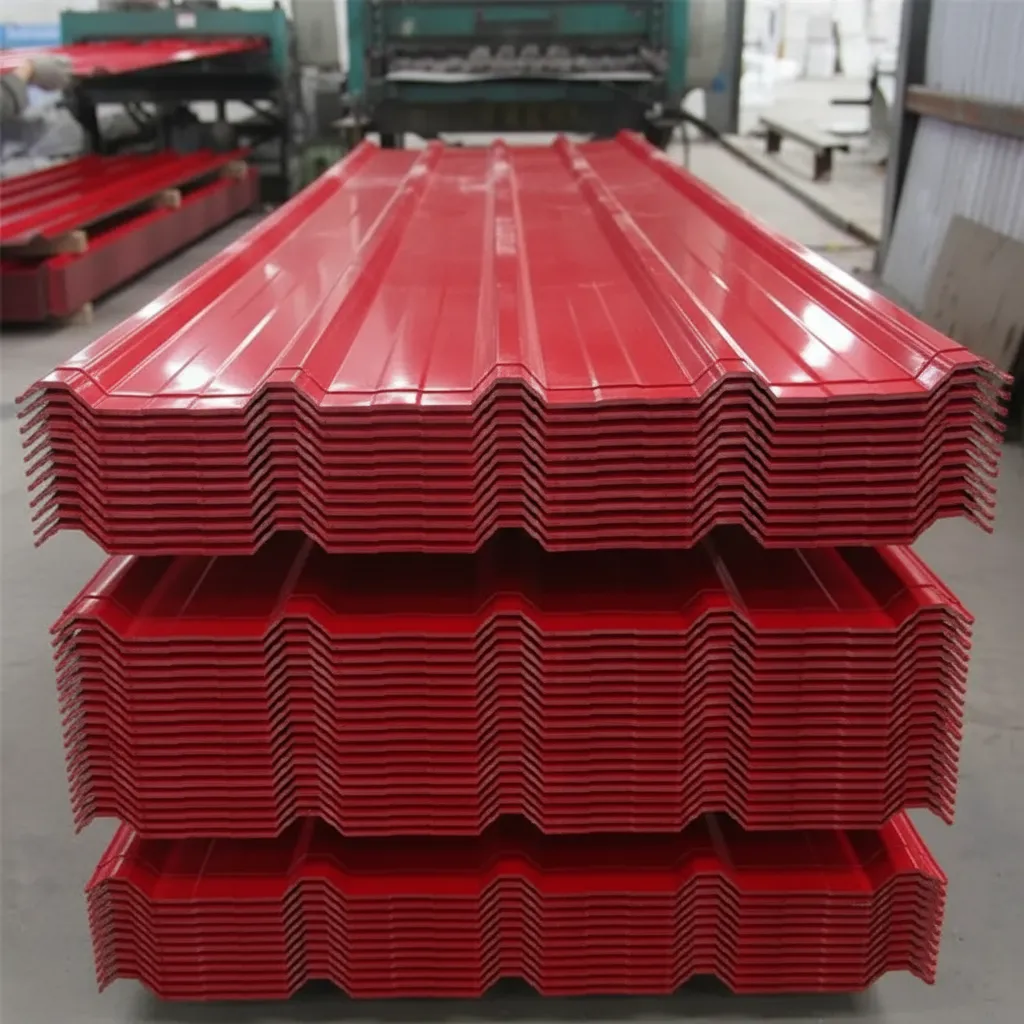

| Product Name | SMP Coated Color Coated Steel Sheet | Silicon Modified Polyester (SMP) pre-painted galvanized/galvalume steel sheet |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / G550, G300 | Equivalent to ASTM A755, EN 10169, JIS G3312 substrate grades |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition (Substrate) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Typical low-carbon steel substrate composition for forming and coating adhesion |
| Coating Type | Silicon Modified Polyester (SMP) | Enhanced UV resistance and heat resistance vs. standard polyester; silicone content 5–30% |
| Tensile Strength | 270–560 MPa | Per ASTM A755 / EN 10169; varies by substrate grade and temper |
| Yield Strength | 140–500 MPa | Minimum yield per applicable substrate standard; grade-dependent |
| Elongation | ≥ 16–30% | A80 elongation per EN 10169; higher elongation for deep-drawing grades |
| Base Metal Thickness | 0.20–1.50 mm | Total thickness including coating; substrate thickness tolerance per EN 10143 |
| Width | 600–1,500 mm | Standard coil width; custom slit widths available upon request |
| Coating Thickness | Top coat: 15–25 µm; Back coat: 5–15 µm | Dry film thickness (DFT); primer + finish coat system; measured per ASTM D1400 |
| Zinc / Zinc-Aluminum Coating | Z60–Z275 g/m² / AZ50–AZ150 g/m² | Hot-dip galvanized (GI) or Galvalume (GL) substrate per ASTM A653 / A792 |
| Surface Finish | Smooth, embossed, matte, high-gloss | RAL / custom color matching available; gloss level 10–80 GU (60° angle) |
| Pencil Hardness | ≥ 2H | Per ASTM D3363; SMP coating offers superior hardness vs. standard polyester |
| Application | Roofing, wall cladding, roller shutters, home appliances, HVAC panels | Suitable for outdoor architectural and industrial applications requiring UV durability |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection and quality management system certification available |

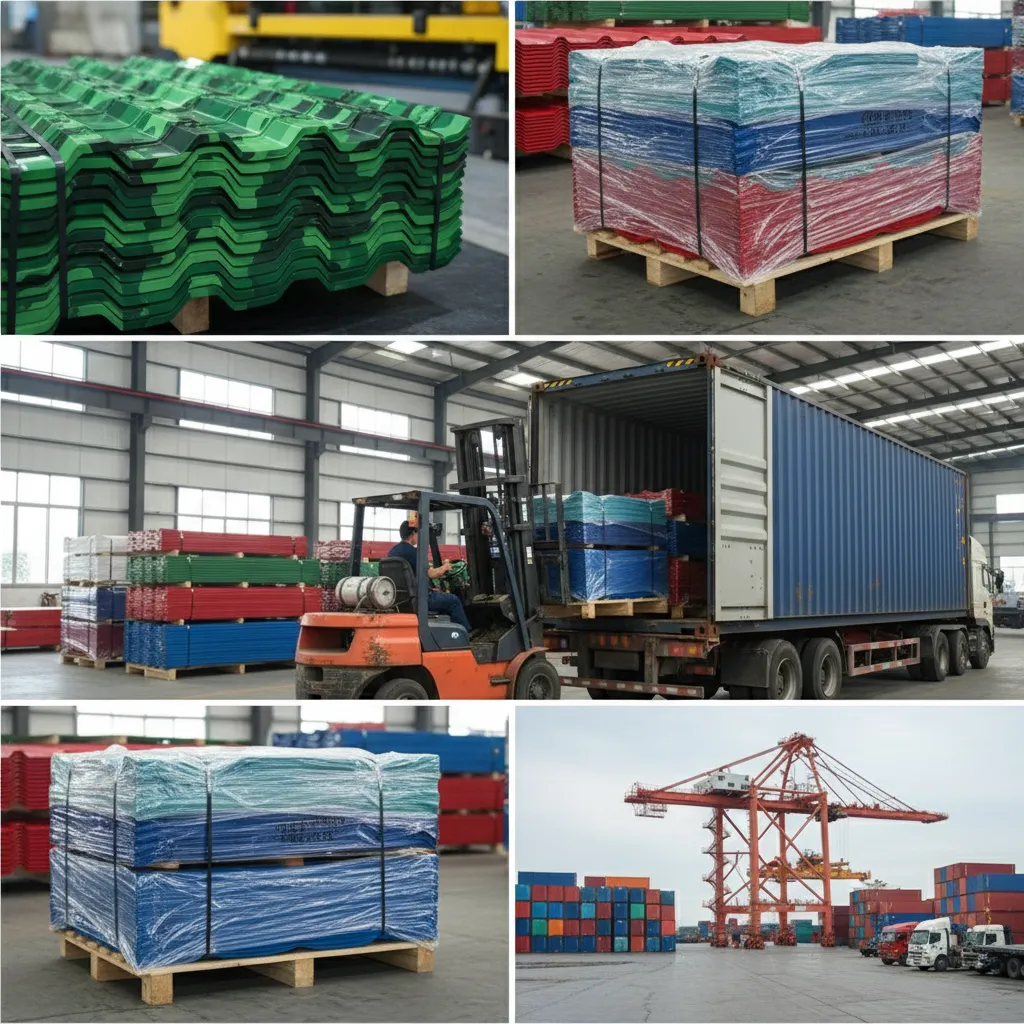

| Packaging | Coils on steel mandrel, eye-to-sky or eye-to-wall; sheets in wooden pallet bundles | Waterproof paper + steel strip strapping; inner diameter 508 mm or 610 mm |
| MOQ | 25 MT per order | Mixed colors and specifications accepted; lead time 15–30 days |
Initial color batch inconsistency — resolved professionally
Our first order of 20 MT of 0.50 mm SMP coated sheets in a custom green shade showed slight gloss variation between two coils — one measured 38 GU and the other 52 GU at 60° geometry per ASTM D523, against our agreed 40–50 GU target. We flagged this immediately. The supplier acknowledged the issue, provided a full root-cause analysis within 48 hours, and arranged a replacement coil at no additional cost within 15 days. Subsequent batches have been consistent at 44–47 GU. Appreciated the transparent handling — confidence restored for future orders.
