| Property | Parameter | Description |
|---|---|---|

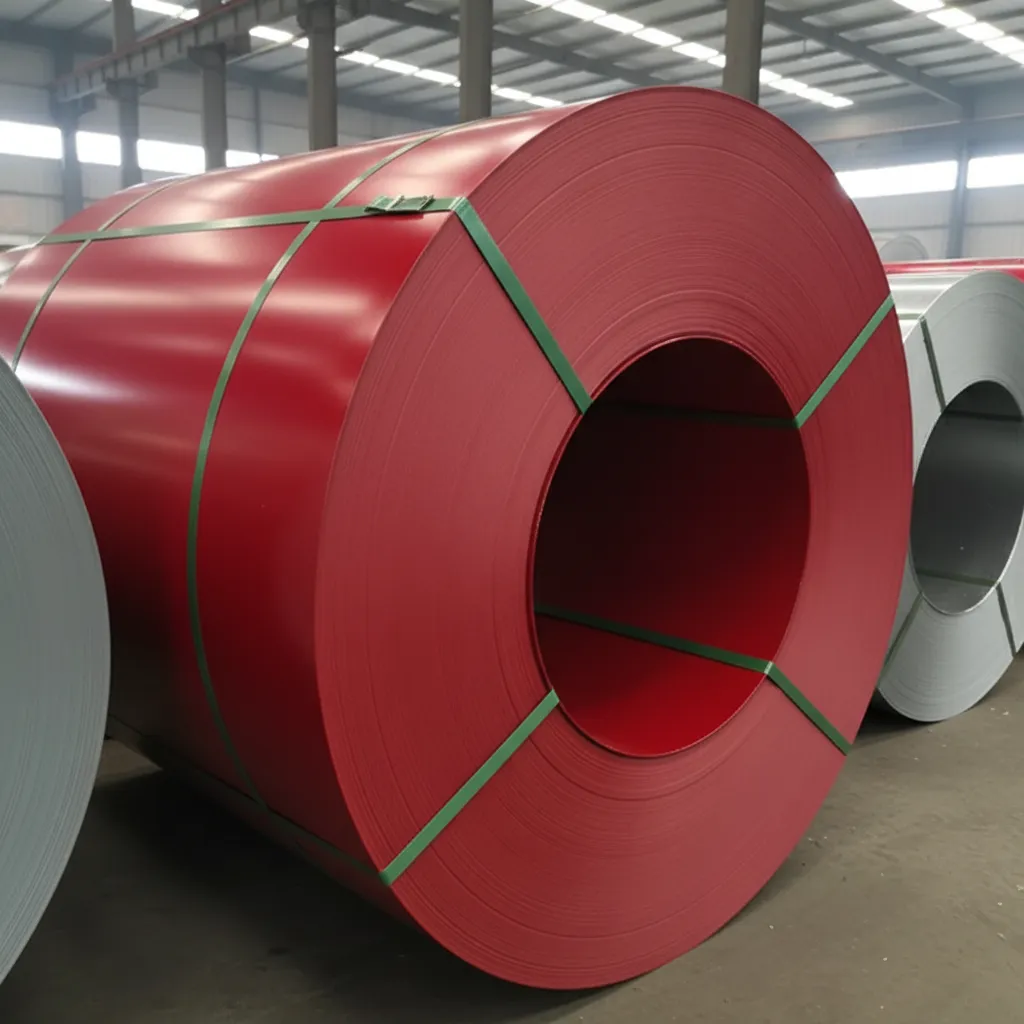

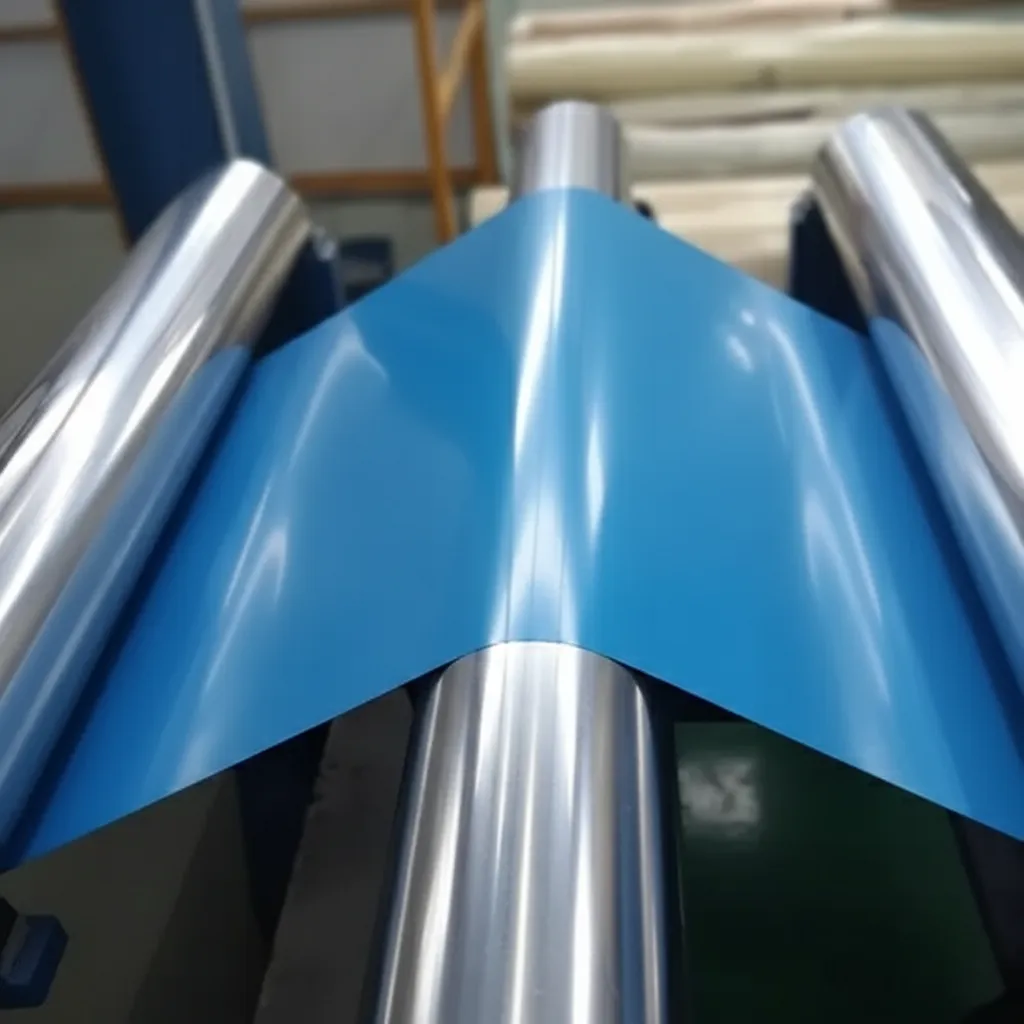

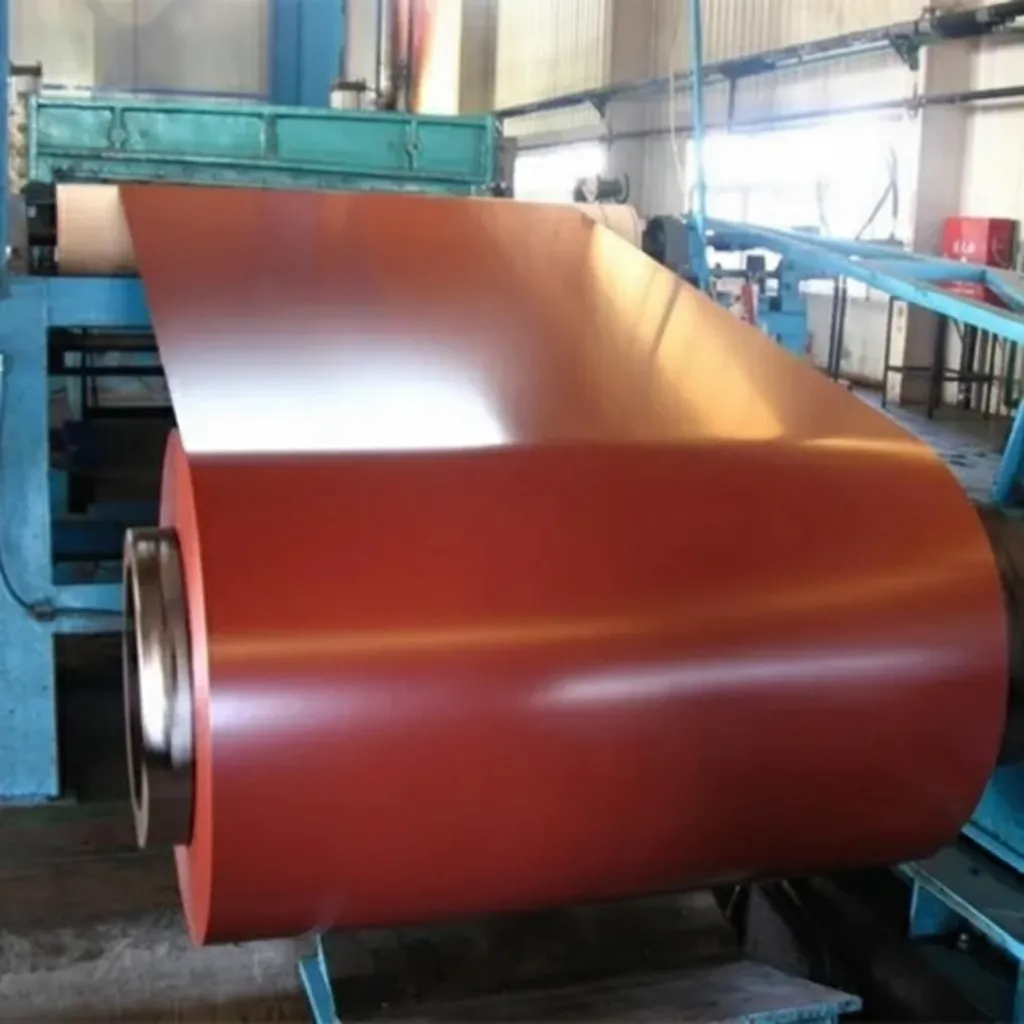

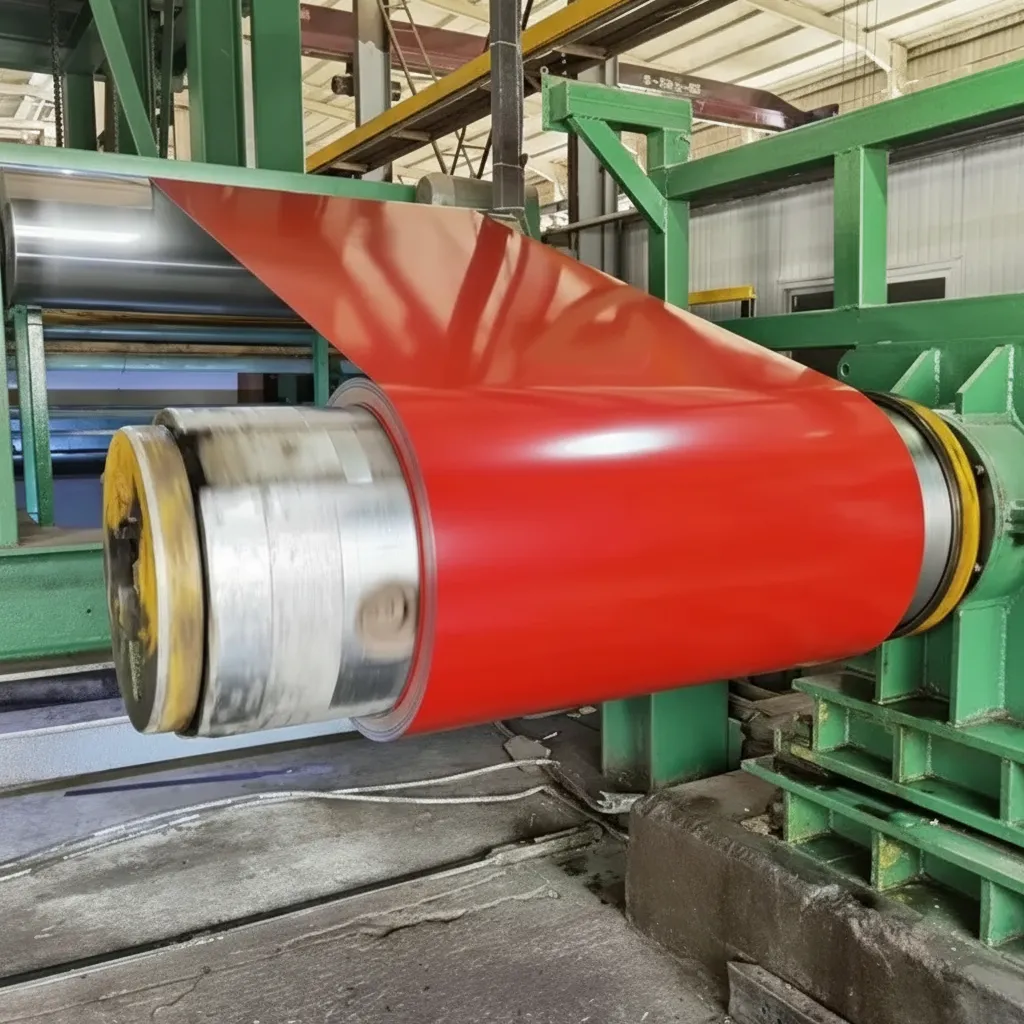

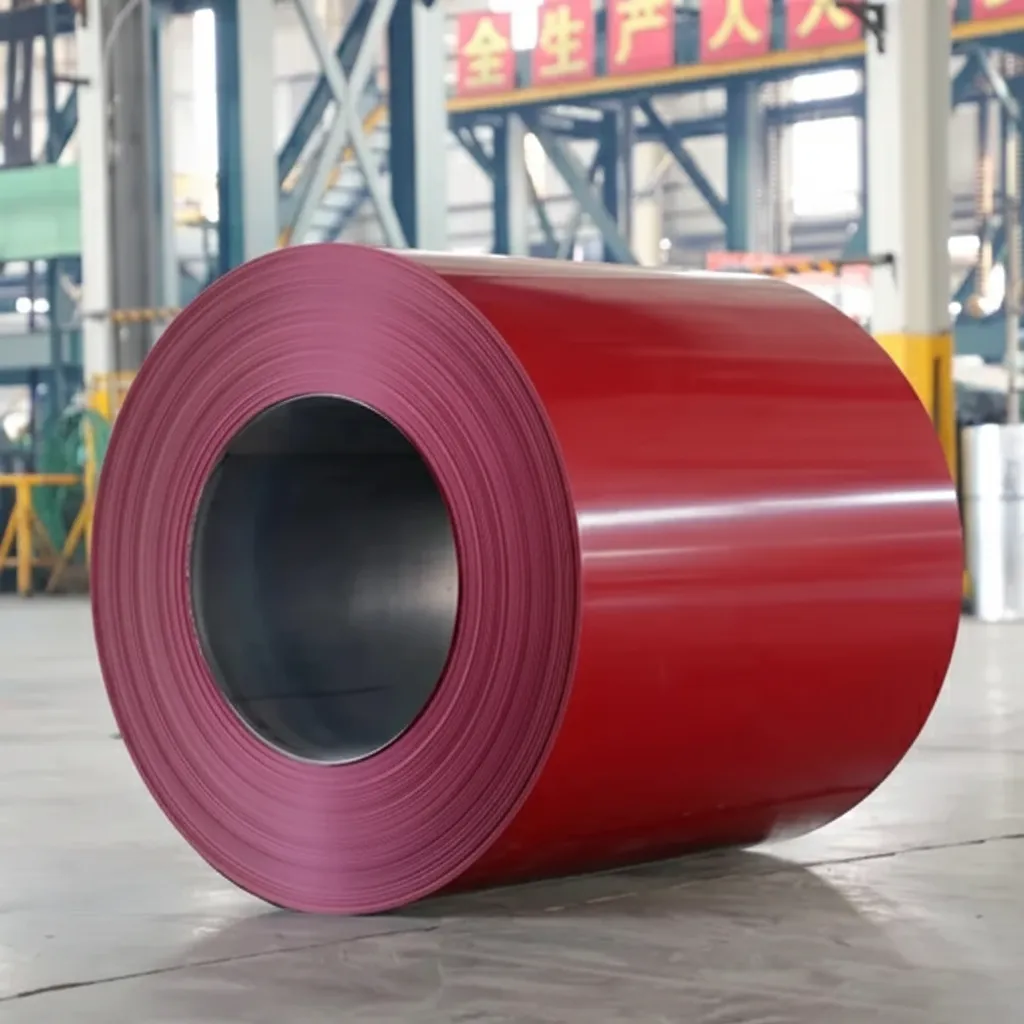

| Product Name | Zinc Alloy Color Coated Steel Coil | Pre-painted galvalume/zinc-alloy coated steel coil with polymer coating |
| Material Grade | TDC51D+AZ, TDC52D+AZ, TS280GD+AZ, TS350GD+AZ | Equivalent to ASTM A792 Grade 33/37/50, JIS G3321 SGLCC/SGLCD |
| Standard Compliance | ASTM A792 / EN 10346 / JIS G3321 / GB/T 14978 | Zinc-aluminum alloy coated substrate with color coating per EN 10169 |
| Chemical Composition (Coating) | Zn: 43.4–43.9%, Al: 55%, Si: 1.6% | Zinc-aluminum-silicon alloy coating (Galvalume® type, AZ150) |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.030%, S ≤ 0.025%, Si ≤ 0.50% | Low-carbon cold-rolled steel substrate for forming and bending |
| Tensile Strength | 280–550 MPa | Per ASTM A792 / EN 10346; varies by grade (e.g., TS350GD+AZ: ≥420 MPa) |
| Yield Strength | 220–420 MPa | Rp0.2; TS280GD+AZ ≥280 MPa, TS350GD+AZ ≥350 MPa per EN 10346 |
| Elongation | ≥16–22% | A80mm; TDC51D+AZ ≥22%, structural grades ≥16% per EN 10346 |
| Coating Mass | AZ50–AZ185 (50–185 g/m²) | Total both sides; AZ150 (150 g/m²) most common for roofing/cladding |
| Paint Coating System | Primer: 5–8 µm; Top coat: 15–25 µm; Back coat: 5–15 µm | Polyester (PE), PVDF, SMP, HDP; RAL/custom colors available |
| Thickness Range | 0.20–1.50 mm | Base metal thickness excluding coating; tolerance per EN 10143 |
| Width Range | 600–1,500 mm | Slit coil available; standard widths 914 mm, 1,000 mm, 1,219 mm, 1,250 mm |
| Coil Inner Diameter | 508 mm / 610 mm | Standard ID; coil weight 3–10 MT per coil |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | 60° gloss range 10–80 GU; anti-fingerprint and anti-scratch options available |

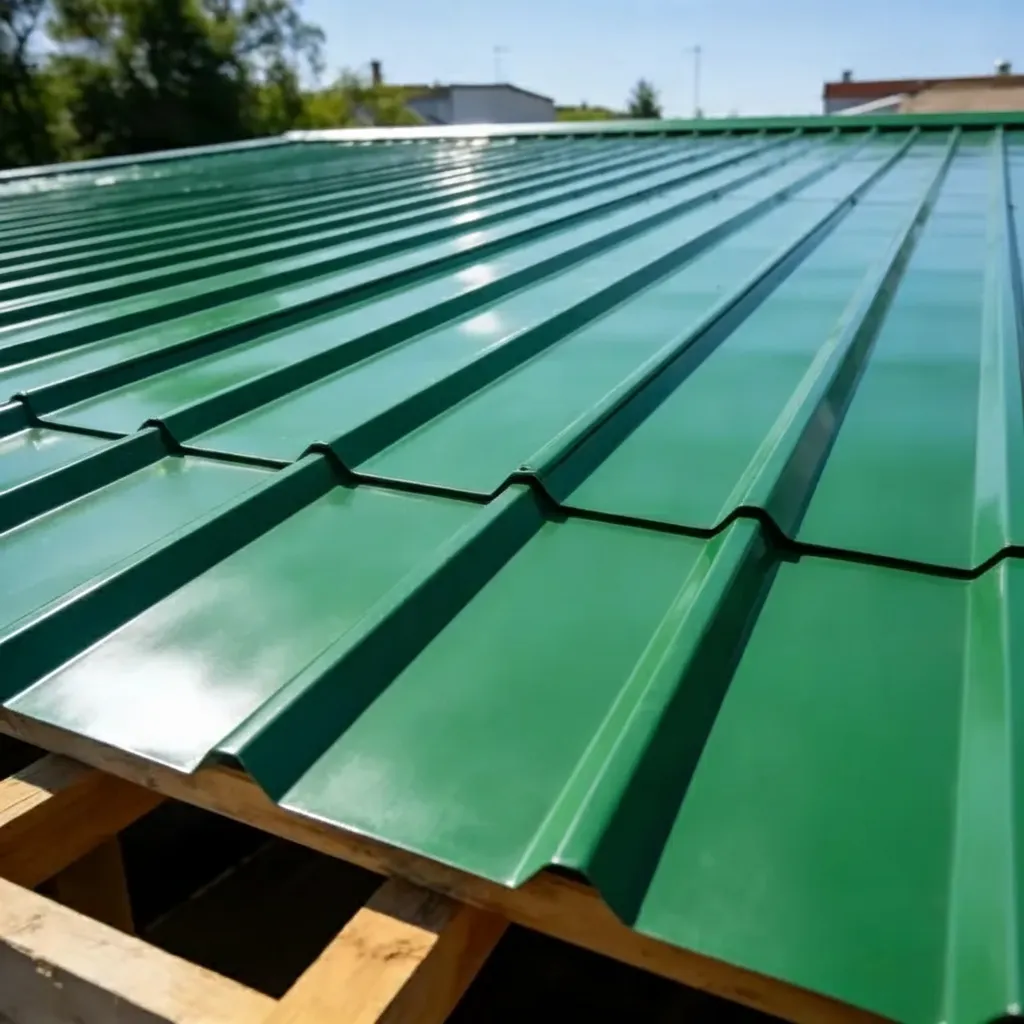

| Application | Roofing, wall cladding, garage doors, home appliances, HVAC ducts | Suitable for construction, automotive trim, and industrial panel fabrication |
| Certification | ISO 9001, CE Marking, SGS, RoHS | REACH compliant; lead-free coating available upon request |
| Packaging | Eye-to-sky or eye-to-wall on wooden/steel pallet | Waterproof paper + steel strip strapping; seaworthy export packing |
| MOQ | 25 MT per order | Mixed grades/colors accepted; sample coil (≥500 kg) available |
Initial documentation delay resolved — quality itself was fine
We ordered 30 MT of 0.50 mm HDP coated ZAM® coil for industrial wall panel fabrication. The steel quality met our requirements — 0T bend test passed, coating weight confirmed at AZ120 per ASTM A792, and surface finish was acceptable. However, the SGS inspection report was delayed by nearly a week past the agreed date, which held up our customs clearance. After escalating to the account manager, the issue was resolved and they expedited the documentation. They've since updated their process. Quality is genuinely good; just ensure documentation timelines are confirmed in writing upfront.
