Hot Dipped PPGI Color Coated Steel Sheet Supplier
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 ton
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Hot Dipped PPGI Color Coated Steel Sheet
| Property | Parameter | Description |
|---|---|---|
| Product Name | Hot Dipped PPGI Color Coated Steel Sheet | Pre-painted galvanized iron steel sheet with hot-dip zinc coating and polymer paint layer |
| Material Grade | DX51D+Z / SGCC / CS Type B | Equivalent to EN 10346 DX51D, JIS G3302 SGCC, ASTM A653 CS Type B |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Meets international standards for prepainted metallic coated steel flat products |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal chemistry per EN 10346 / ASTM A653 requirements |
| Zinc Coating Weight | Z60–Z275 (60–275 g/m²) | Hot-dip galvanized coating; both sides combined per ASTM A653 / EN 10346 |
| Paint Coating Type | PE / SMP / PVDF / HDP | Polyester (PE), Silicon Modified Polyester (SMP), Polyvinylidene Fluoride (PVDF), High Durability Polyester (HDP) |
| Paint Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–12 µm | Standard PPGI paint system; PVDF top coat up to 25 µm for enhanced weatherability |
| Tensile Strength | 270–500 MPa | Per EN 10346 / ASTM A653; varies by base metal grade (DX51D min. 270 MPa) |
| Yield Strength | 140–420 MPa | DX51D min. 140 MPa; higher grades (DX52D–DX54D) up to 420 MPa per EN 10346 |
| Elongation | ≥22% (A80mm) | Minimum elongation for DX51D grade per EN 10346; ensures formability |
| Thickness Range | 0.14–1.50 mm (base metal) | Total thickness including coating; common range 0.20–0.80 mm for roofing/cladding |
| Width Range | 600–1,500 mm | Standard coil width; slit-to-width available upon request |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color system available; 60° gloss value 10–85 GU; anti-fingerprint option available |

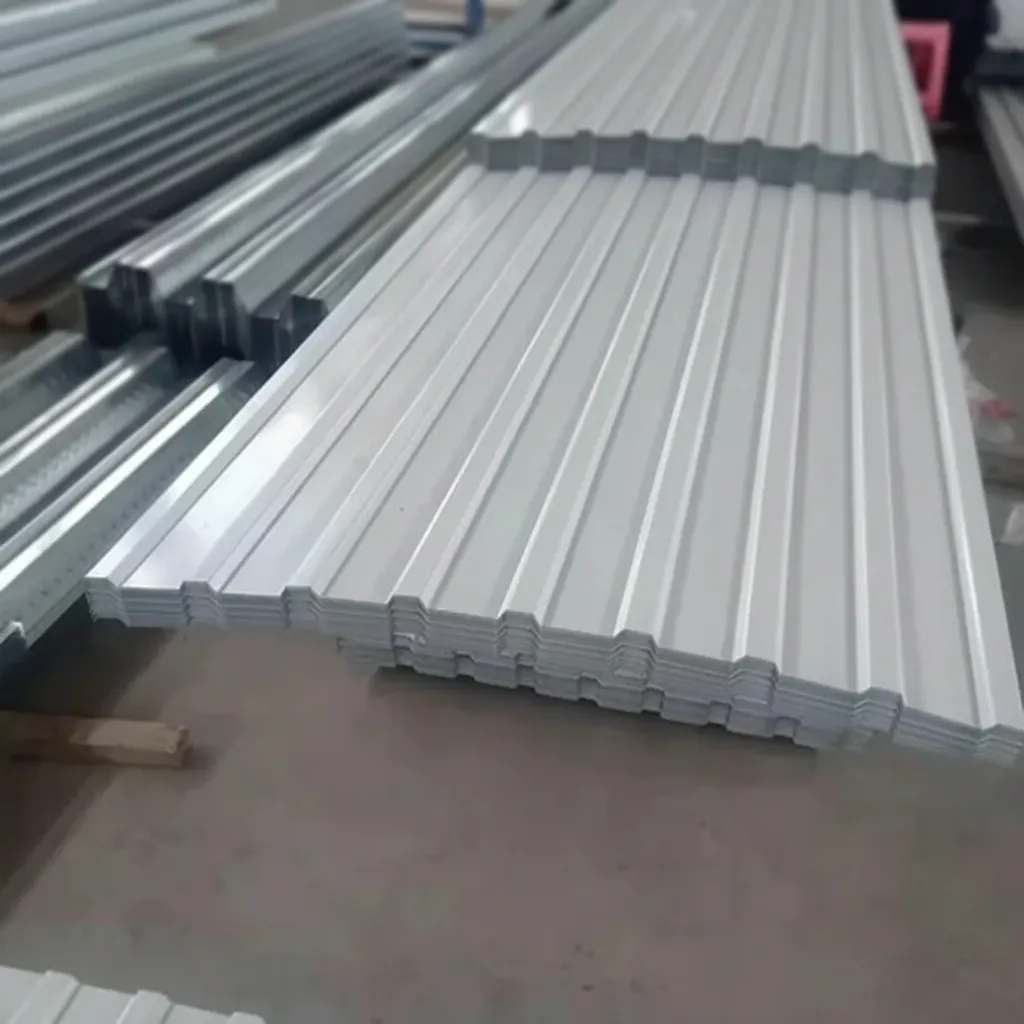

| Application | Roofing, wall cladding, home appliances, garage doors, sandwich panels, HVAC ducts | Widely used in construction, automotive interiors, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Quality management and product compliance certifications for global export markets |
| Packaging | Coil or sheet; eye-to-sky / eye-to-wall; waterproof paper + steel strip strapping | Export seaworthy packaging; coil weight typically 3–8 MT per coil |
| MOQ | 25 MT per order | Mixed colors and specifications accepted; customized orders negotiable |
Hot Dipped PPGI Color Coated Steel Sheet Supplier
Hot dipped PPGI color coated steel sheet stands as one of the most versatile and performance-driven materials in modern construction, manufacturing, and industrial applications. As a leading supplier, we provide mill-direct access to premium grade PPGI coils and sheets engineered for long-term durability and aesthetic consistency. This product combines a hot-dip galvanized substrate with a high-adhesion polymer paint coating, delivering outstanding anti-corrosion properties even in harsh outdoor environments. Whether you are sourcing material for roofing panels, wall cladding, home appliances, or automotive components, hot dipped PPGI color coated steel sheet serves critical roles across diverse sectors. Our product range covers a broad spectrum of RAL and custom colors, surface textures, and coating thicknesses, ensuring precise alignment with your project specifications and regional building standards. With consistent supply capacity and strict quality control at every production stage, we are committed to being your most reliable long-term partner for color coated steel solutions.
What is Hot Dipped PPGI Color Coated Steel Sheet?
Hot dipped PPGI (Pre-Painted Galvanized Iron) color coated steel sheet is a cold-rolled steel base that undergoes hot-dip galvanizing — typically with a zinc coating mass of 60–275 g/m² — followed by chemical treatment, primer application, and a topcoat of polyester, PVDF, or SMP resin. The result is a structurally robust, corrosion-resistant panel available in virtually unlimited color options, combining functional performance with superior visual appeal for both interior and exterior end uses.
Hot Dipped PPGI Color Coated Steel Sheet Manufacturing Process
Production begins with cold-rolled steel coils that are continuously hot-dip galvanized in a molten zinc bath maintained at approximately 450°C, forming a metallurgically bonded zinc-iron alloy layer. The galvanized substrate then passes through a chemical passivation stage before entering a continuous coil coating line, where primer (5–10 µm) and topcoat (15–25 µm) layers are applied via precision roll coaters and cured in high-temperature ovens at 230–260°C peak metal temperature, ensuring optimal paint adhesion and film integrity.
Hot Dipped PPGI Color Coated Steel Sheet Technical Specifications
Our hot dipped PPGI color coated steel sheet is produced to meet ASTM A755, EN 10169, and JIS G3312 standards. Key parameters include: base steel thickness of 0.14–1.20 mm, total coil width of 600–1,250 mm, zinc coating weight of Z60–Z275 (60–275 g/m²), topcoat dry film thickness of 15–25 µm, pencil hardness of H–2H, and T-bend flexibility of 0T–2T. Salt spray resistance exceeds 500 hours per ASTM B117, and tensile strength ranges from 270 to 550 MPa depending on the steel grade selected.
Get a Competitive Quote for Hot Dipped PPGI Color Coated Steel Sheet
Ready to source premium hot dipped PPGI color coated steel sheet at mill-direct rates? Our team of technical specialists is available to help you select the optimal coating system, color, and specification for your application. Submit your requirements today and receive a detailed, transparent quotation within 24 hours.
- 24/7 customer support available
- Free samples for quality evaluation
- Competitive pricing for bulk orders
- Professional technical consultation
Contact us today to get your free quote within 24 hours!
