Photonic Crystal Fiber Supplier - Mill Direct Factory
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 kilometers
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Photonic Crystal Fiber Supplier
| Property | Parameter | Description |
|---|---|---|
| Product Name | Photonic Crystal Fiber (PCF) | Also known as microstructured optical fiber or holey fiber |
| Material Grade | Fused Silica (SiO₂) / Fluoride Glass / Chalcogenide | Equivalent to Corning SMF-28 grade; high-purity optical-grade silica |
| Standard Compliance | IEC 60793-2, ITU-T G.652, ASTM F2181 | Compliant with international optical fiber standards for geometry and performance |
| Chemical Composition | SiO₂ ≥99.99%, GeO₂ dopant (optional), F dopant (optional) | Ultra-low OH content (<1 ppm) for low-loss transmission; dopant-free core available |
| Tensile Strength | ≥100 kpsi (690 MPa) | Per IEC 60793-1-31 proof test; standard coating ensures mechanical reliability |
| Yield Strength | N/A (brittle material) | Fiber fracture stress ≥3.5 GPa for bare silica; governed by flaw distribution |
| Elongation | Bend Radius ≥5 mm (single-mode PCF) | Low bend loss design; endlessly single-mode variants tolerate tight bends |
| Core Diameter | 2 µm – 50 µm | Customizable solid or hollow core; pitch (Λ) range 1–10 µm |
| Cladding Diameter | 80 µm – 200 µm (standard 125 µm) | Air-hole diameter (d) / pitch (Λ) ratio: 0.2–0.9 adjustable |
| Fiber Length | 1 m – 1000 m per spool | Custom cut lengths available; continuous draw lengths up to 5 km |
| Attenuation | <0.2 dB/km @ 1550 nm (solid core); <1 dB/km @ 1064 nm | Hollow-core PCF: <3.5 dB/km; nonlinear PCF optimized for supercontinuum generation |
| Surface Finish | Acrylate / Polyimide / Bare (uncoated) | Standard 245 µm acrylate coating; polyimide for high-temp up to 300°C |
| Application | Supercontinuum generation, fiber lasers, sensing, telecom, medical imaging | Suitable for nonlinear optics, dispersion management, gas sensing, and quantum optics |
| Certification | ISO 9001:2015, RoHS Compliant, CE Marked | Third-party tested; REACH compliant; traceable batch documentation provided |

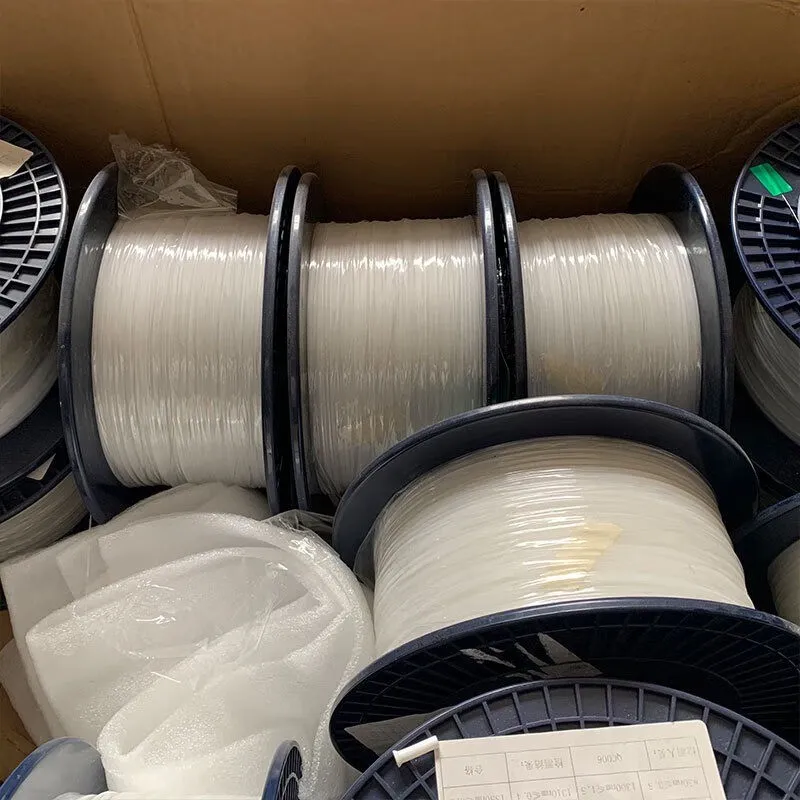

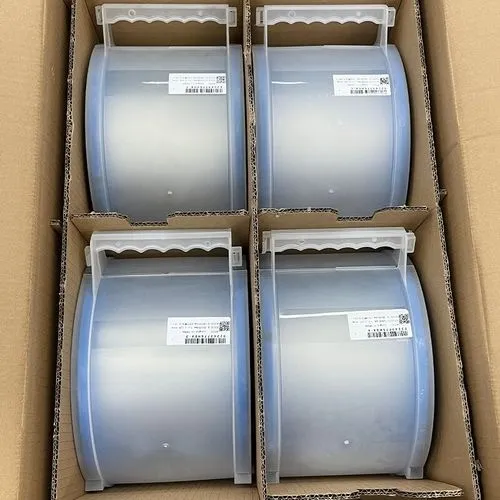

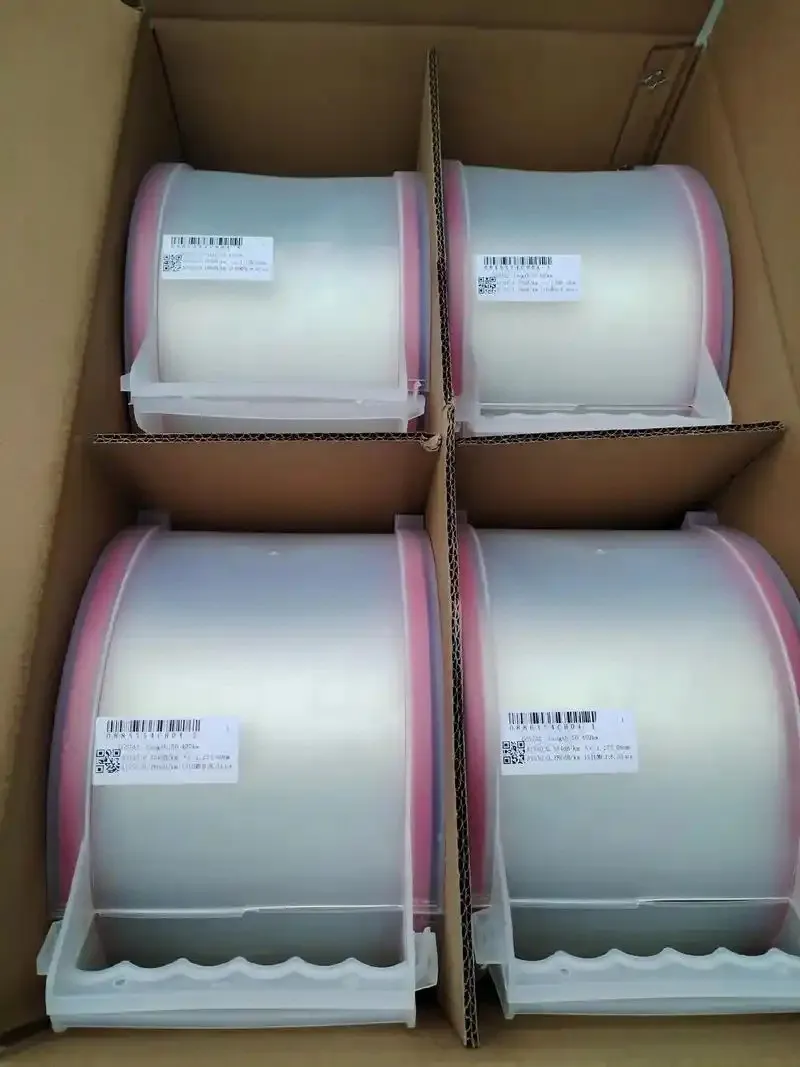

| Packaging | Plastic spool with foam-lined box; nitrogen-purged option for bare fiber | Anti-static packaging; end-caps sealed; custom labeling available |
| MOQ | 1 meter (standard types); 50 meters (custom design) | OEM/ODM orders accepted; volume pricing available for ≥100 m orders |
Photonic Crystal Fiber Supplier - Mill Direct Factory
As a leading Photonic Crystal Fiber Supplier with mill-direct factory capabilities, we deliver precision-engineered optical fiber solutions to research institutions, telecommunications companies, and industrial manufacturers worldwide. Photonic crystal fiber (PCF) represents one of the most advanced developments in modern fiber optics, offering performance characteristics that conventional step-index fibers simply cannot match. Our vertically integrated manufacturing facility enables us to maintain rigorous quality control at every stage of production, from preform fabrication to final fiber drawing, ensuring that each product meets the exacting demands of cutting-edge applications. Whether your project requires single-mode propagation, endlessly single-mode behavior, or specialized dispersion management, our engineering team works directly with clients to develop customized fiber configurations. With over a decade of experience in specialty optical fiber manufacturing, we have built a reputation for technical excellence, consistent product quality, and responsive customer service that supports both prototype development and large-scale commercial supply.
What is Photonic Crystal Fiber?
Photonic crystal fiber is a class of specialty optical fiber characterized by a microstructured cross-section featuring an array of air holes running along the entire length of the fiber. These precisely arranged air-hole lattices surround a solid or hollow core, guiding light through modified total internal reflection or photonic bandgap effects. PCF achieves unique optical properties including supercontinuum generation, zero-dispersion wavelength tunability, and high nonlinearity coefficients exceeding 70 W⁻¹km⁻¹, making it indispensable in ultrafast laser systems, sensing platforms, and biomedical imaging devices.
Photonic Crystal Fiber Manufacturing Process
Our photonic crystal fiber manufacturing process begins with the stacking of high-purity fused silica capillaries and rods into a precisely designed preform assembly, achieving air-fill fractions between 10% and 90% depending on specification. The stacked preform undergoes consolidation before being drawn in a computer-controlled fiber drawing tower at temperatures exceeding 1,900°C. Real-time diameter monitoring systems maintain outer diameter tolerances within ±0.5 µm throughout the draw process. A UV-curable acrylate coating is applied inline to protect the fiber's mechanical integrity, yielding a final coated diameter of 245 µm ± 5 µm.
Photonic Crystal Fiber Technical Specifications
Our standard photonic crystal fiber product range covers core diameters from 2 µm to 35 µm, with pitch values (Λ) spanning 1.5 µm to 15 µm and air-hole-to-pitch ratios (d/Λ) configurable from 0.2 to 0.9. Attenuation at 1,064 nm measures as low as 2.0 dB/km for large-mode-area variants. Nonlinear coefficient (γ) values range from 2 W⁻¹km⁻¹ to 95 W⁻¹km⁻¹ depending on core geometry. Operating wavelength windows extend from 400 nm to 2,400 nm, with zero-dispersion wavelengths customizable across the 700 nm to 1,550 nm range. All fibers comply with IEC 60793 measurement standards and are supplied with full characterization data sheets.
Get a Competitive Quote for Photonic Crystal Fiber
Partner with a trusted photonic crystal fiber supplier that combines mill-direct pricing with world-class technical expertise. Contact our engineering team today to discuss your specific requirements, request material data sheets, or initiate a custom fiber development project — we respond to all inquiries within 24 hours.
- 24/7 customer support available
- Free samples for quality evaluation
- Competitive pricing for bulk orders
- Professional technical consultation
Contact us today to get your free quote within 24 hours!
