Communication Multi-Mode Fiber For Industrial Supply
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 kilometers
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Communication Multi-Mode Fiber
| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | Communication Multi-Mode Fiber | Graded-index multimode optical fiber designed for high-speed data and communication networks |
| Fiber Grade & ITU-T Classification | OM3 / OM4 / OM5 (ITU-T G.651.1) | Laser-optimized multimode fiber compliant with ITU-T G.651.1 and IEC 60793-2-10 standards |
| Core & Cladding Diameter Range | Core: 50 μm or 62.5 μm; Cladding: 125 ± 1 μm | Standard 50/125 μm and 62.5/125 μm configurations available for various bandwidth requirements |
| Attenuation Coefficient at 850 nm | ≤ 2.3 dB/km (OM3/OM4); ≤ 3.5 dB/km (62.5/125) | Low attenuation at 850 nm window ensures minimal signal loss over short to medium distances |
| Attenuation Coefficient at 1300 nm | ≤ 0.6 dB/km | Reduced attenuation at 1300 nm window supports dual-window multimode transmission applications |
| Macrobending Loss Performance | ≤ 0.5 dB (100 turns, R = 75 mm, 850 nm) | Excellent macrobend resistance suitable for tight routing in data centers and building installations |
| Chromatic Dispersion Coefficient | ≤ 3.5 ps/(nm·km) at 1300 nm | Low chromatic dispersion supports high-bandwidth transmission with minimal pulse broadening |
| Effective Modal Bandwidth (EMB) | OM3: ≥ 2000 MHz·km; OM4: ≥ 4700 MHz·km at 850 nm | High EMB enables 10G/40G/100G Ethernet transmission over extended distances |
| Batch Qualification Rate | ≥ 99.5% | Strict process control ensures consistent optical and geometric parameters across production batches |
| Manufacturing Environment Standards | ISO Class 5 (Class 100) Cleanroom; PCVD / OVD process | Produced in controlled cleanroom environments using precision chemical vapor deposition technology |
| Core Raw Material Source | High-purity SiO₂ preform (germanium-doped core) | Optical-grade silica preform with GeO₂ dopant for precise refractive index grading |

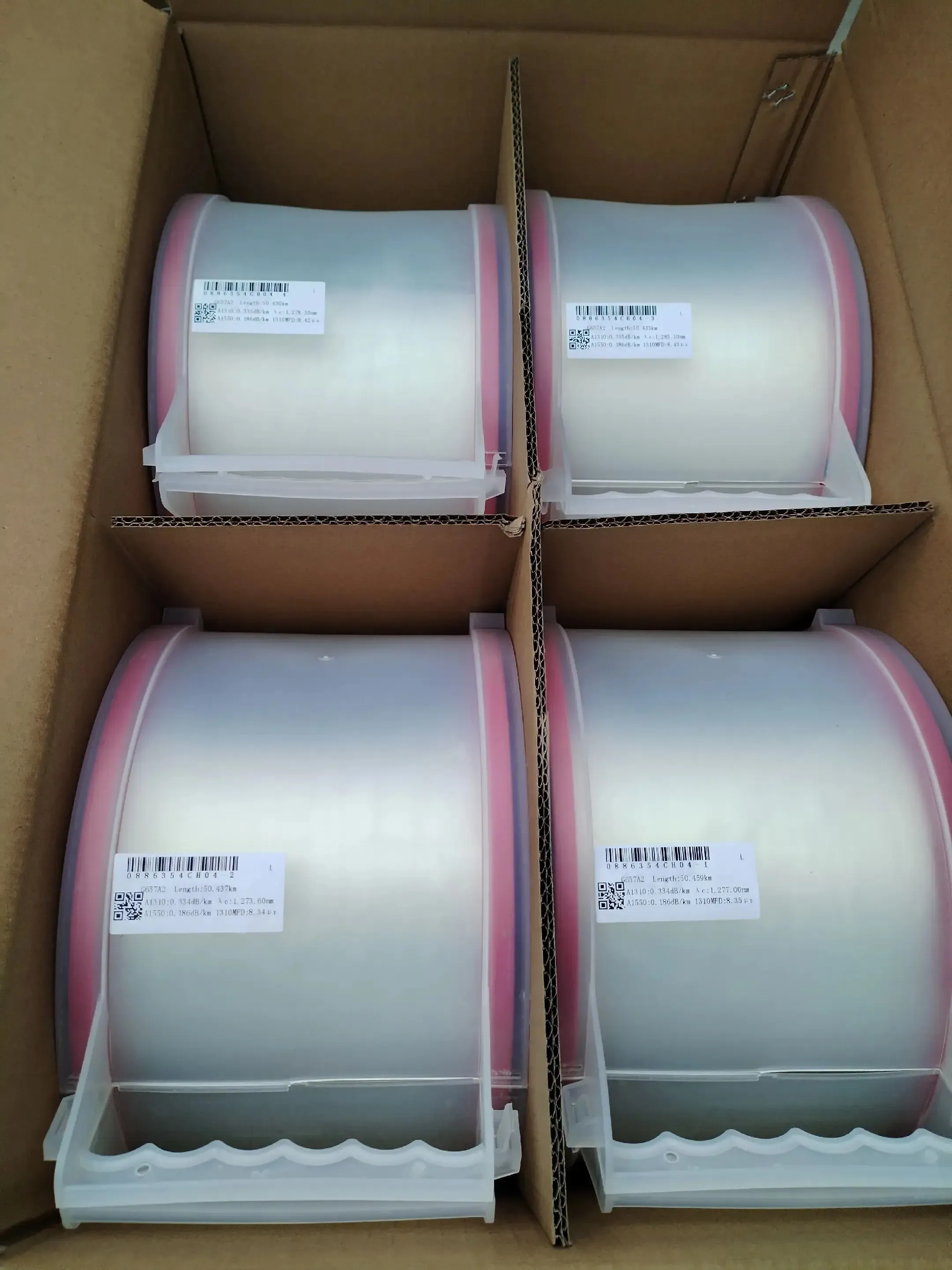

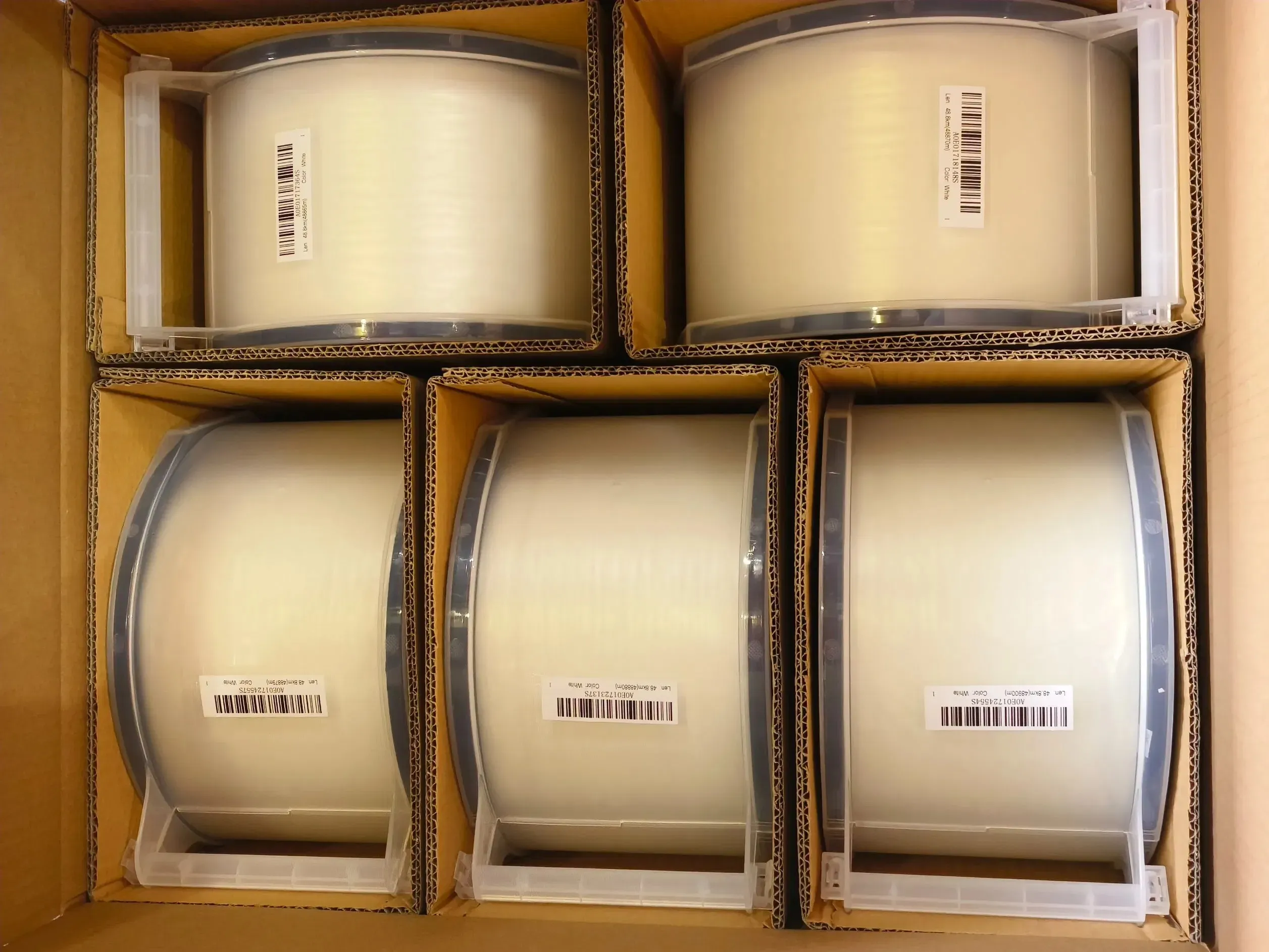

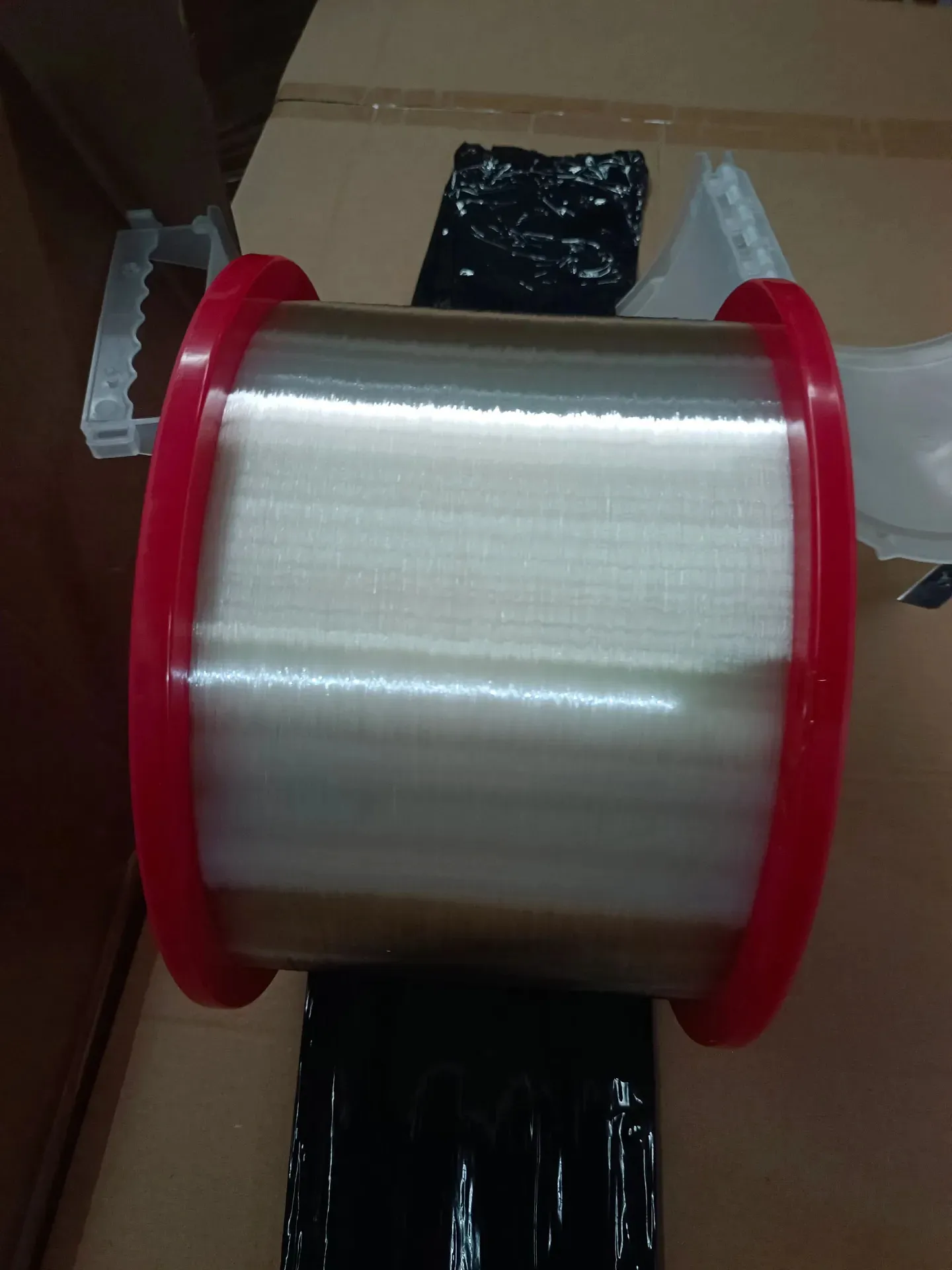

| Packaging Specification | Standard reel: 500 m / 1000 m / 2000 m / 5000 m per spool | Wound on plastic or wooden spools with protective wrapping; custom lengths available upon request |
| Storage Conditions | Temperature: -40°C to +70°C; Humidity: 5%–95% RH (non-condensing) | Store in original packaging away from direct sunlight, chemicals, and mechanical stress |
| Valid Shelf Life | ≥ 20 years (under recommended storage conditions) | Long-term optical stability guaranteed when stored and handled per manufacturer guidelines |
| Application Scenarios | Data centers, LAN/SAN networks, FTTB, campus networks, industrial automation | Ideal for 10GbE, 40GbE, 100GbE short-reach links and high-density fiber distribution systems |
| Compliance & Certification | IEC 60793-2-10, TIA-492AAAC/D, RoHS, UL Listed, ISO 9001:2015 | Fully compliant with international optical fiber standards and environmental regulations |
| Minimum Order Quantity (MOQ) | 5,000 m (single specification) | MOQ applies per fiber type and diameter; mixed specifications available for larger orders |
| Monthly Supply Capacity | ≥ 500,000 m / month | Large-scale production capability supports OEM, project procurement, and distributor supply chains |
Communication Multi-Mode Fiber For Industrial Supply
Communication multi-mode fiber stands as one of the most widely deployed optical transmission media in modern industrial and enterprise networking environments, delivering high-bandwidth, short-to-medium distance connectivity across data centers, factory automation systems, campus networks, and FTTH infrastructure. As global demand for faster, more reliable internal network links continues to surge, multimode optical fiber has become an indispensable backbone solution for telecom operators, industrial integrators, and enterprise IT departments alike. Its ability to support simultaneous transmission of multiple light modes through a larger core diameter makes it the preferred choice for cost-effective, high-speed local area network deployments, structured cabling projects, and intra-building fiber distribution systems where both performance and total cost of ownership are critical decision factors in procurement and large-scale industrial supply chains.
What is Communication Multi-Mode Fiber?
Communication multi-mode fiber is an optical fiber type characterized by a larger core diameter—typically 50 µm or 62.5 µm—that allows multiple light modes to propagate simultaneously through the waveguide. Governed by international standards including ITU-T G.651.1, IEC 60793-2-10, and TIA-492AAAD (OM1–OM5 classifications), multimode fiber is engineered for high-bandwidth, short-reach applications up to 550 meters, making it ideal for structured cabling, data center interconnects, and industrial Ethernet backbone deployments.
Communication Multi-Mode Fiber Manufacturing and Production Process
Our communication multi-mode fiber is manufactured in ISO 9001-certified cleanroom facilities using advanced Modified Chemical Vapor Deposition (MCVD) and Outside Vapor Deposition (OVD) processes to achieve precise refractive index profiles. Each fiber preform undergoes rigorous draw-tower tension control, coating application, and dimensional verification. Finished fiber reels are subjected to full-spectrum attenuation testing, bandwidth measurement, and geometry inspection in compliance with IEC 60793 and RoHS directives before shipment approval.
Communication Multi-Mode Fiber Technical Specifications
Our multimode optical fiber delivers industry-leading performance across all OM classifications. Core/cladding diameter: 50/125 µm (OM3/OM4/OM5) or 62.5/125 µm (OM1/OM2). Attenuation: ≤3.0 dB/km at 850 nm, ≤1.0 dB/km at 1300 nm. Effective Modal Bandwidth (EMB): ≥4700 MHz·km (OM5), ≥4700 MHz·km (OM4), ≥2000 MHz·km (OM3). Numerical aperture: 0.200 ± 0.015. Operating temperature range: −60°C to +85°C. Coating diameter: 245 ± 10 µm. Compatible with 10G, 25G, 40G, and 100G transmission standards.
Get a Competitive Quote for Communication Multi-Mode Fiber
Partner with a trusted industrial supplier for your communication multi-mode fiber procurement needs. We offer flexible MOQ policies, DDP and FOB shipping options to global destinations, full ITU-T and RoHS compliance documentation, and dedicated account management for telecom operators, system integrators, and data center developers. Bulk orders receive priority production scheduling and exclusive wholesale pricing.
- 24/7 expert optical communication engineer support
- Full ITU-T, ISO, RoHS compliance guarantee for all batches
- Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
- Complete technical data sheets and on-site deployment guidance included
Contact us today to get your free quote and full specification sheet within 24 hours!
