| Property | Parameter | Description |
|---|---|---|

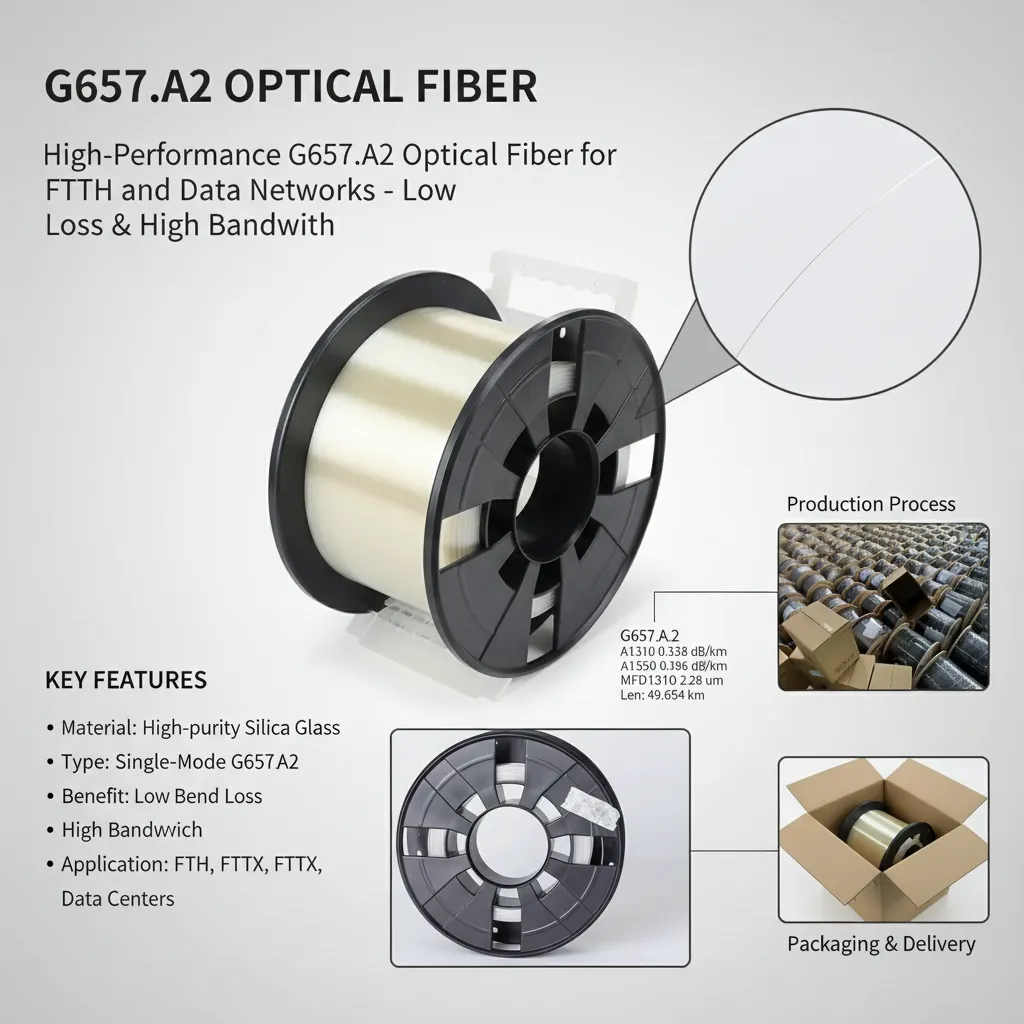

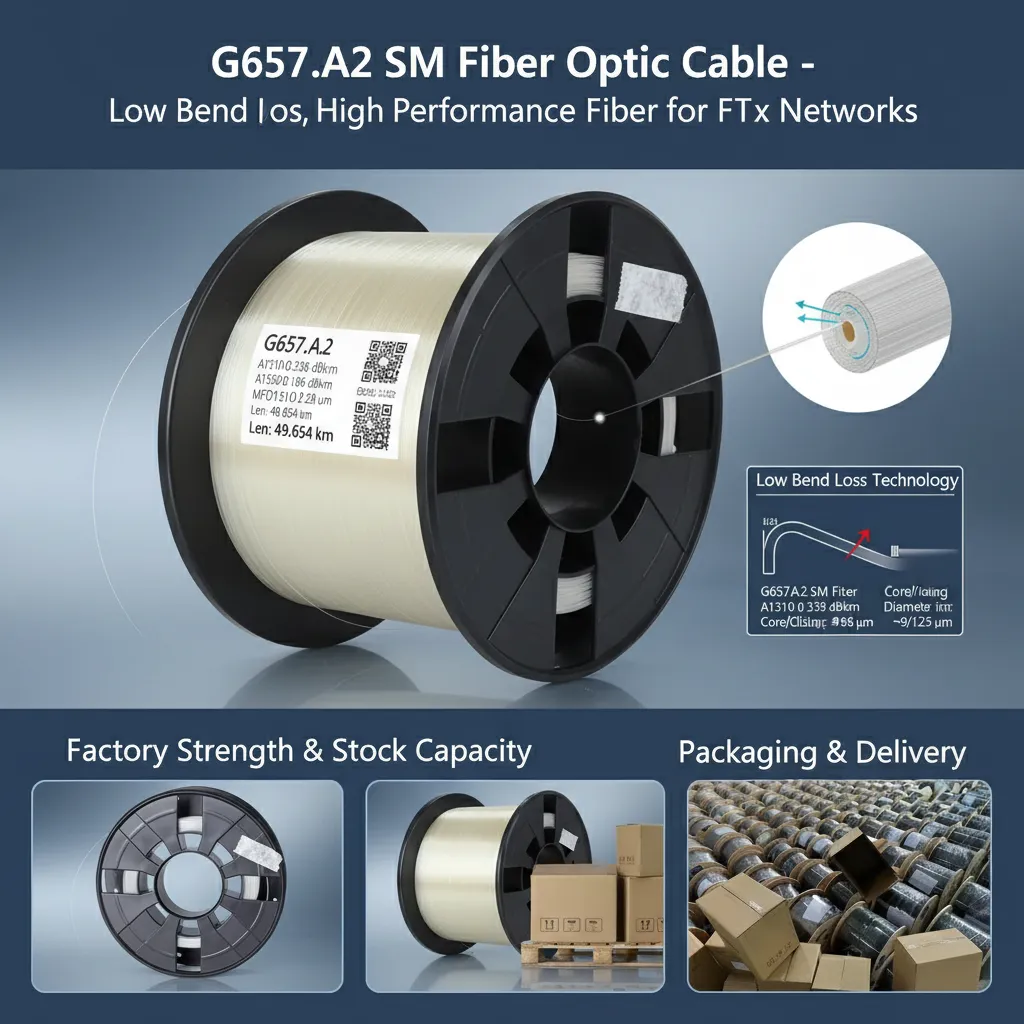

| Optical Fiber Product Name | Indoor Fiber for LAN Network | Tight-buffered indoor optical fiber designed for local area network (LAN) structured cabling |
| Fiber Grade & ITU-T Classification | ITU-T G.652D / G.657A1 / G.657A2 | Single-mode fiber compliant with ITU-T standards; bend-insensitive grades available for indoor routing |
| Core & Cladding Diameter Range | Core: 8.2 µm / 50 µm / 62.5 µm; Cladding: 125 ± 1 µm | SM core 8.2 µm for G.652D/G.657; OM3/OM4 multimode 50 µm; OM1 multimode 62.5 µm |
| Attenuation Coefficient at 1310 nm | ≤ 0.35 dB/km | Measured per IEC 60793-1-40; applicable to single-mode indoor LAN fiber |
| Attenuation Coefficient at 1550 nm | ≤ 0.20 dB/km | Low-loss transmission at 1550 nm window; suitable for extended LAN backbone links |
| Macrobending Loss Performance | ≤ 0.1 dB (R = 15 mm, 10 turns) @ 1550 nm | G.657A2 grade achieves ≤ 0.03 dB at R = 7.5 mm; optimized for tight indoor routing and patch panels |
| Chromatic Dispersion Coefficient | ≤ 18 ps/(nm·km) @ 1550 nm | Zero-dispersion wavelength 1300–1324 nm; dispersion slope ≤ 0.092 ps/(nm²·km) |
| Batch Qualification Rate | ≥ 99.5% | Full-reel OTDR testing per IEC 61280-4-1; each reel issued with test report and traceability certificate |
| Manufacturing Environment Standards | ISO 9001:2015 / ISO 14001:2015 | Produced in dust-controlled cleanroom environment; automated drawing tower with real-time diameter monitoring |
| Core Raw Material Source | High-purity SiO₂ preform (OVD/MCVD process) | Preform manufactured from ultra-pure silica; OH⁻ ion content controlled to minimize water-peak attenuation |

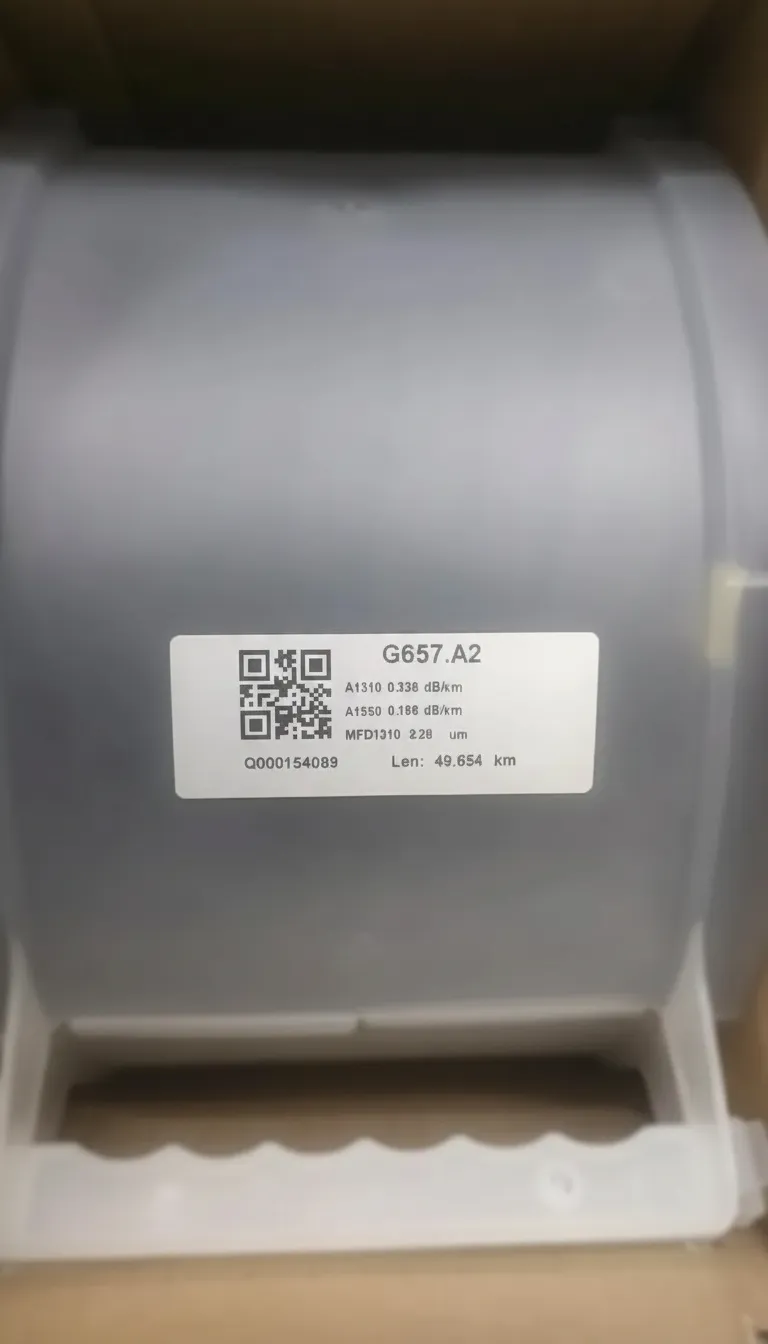

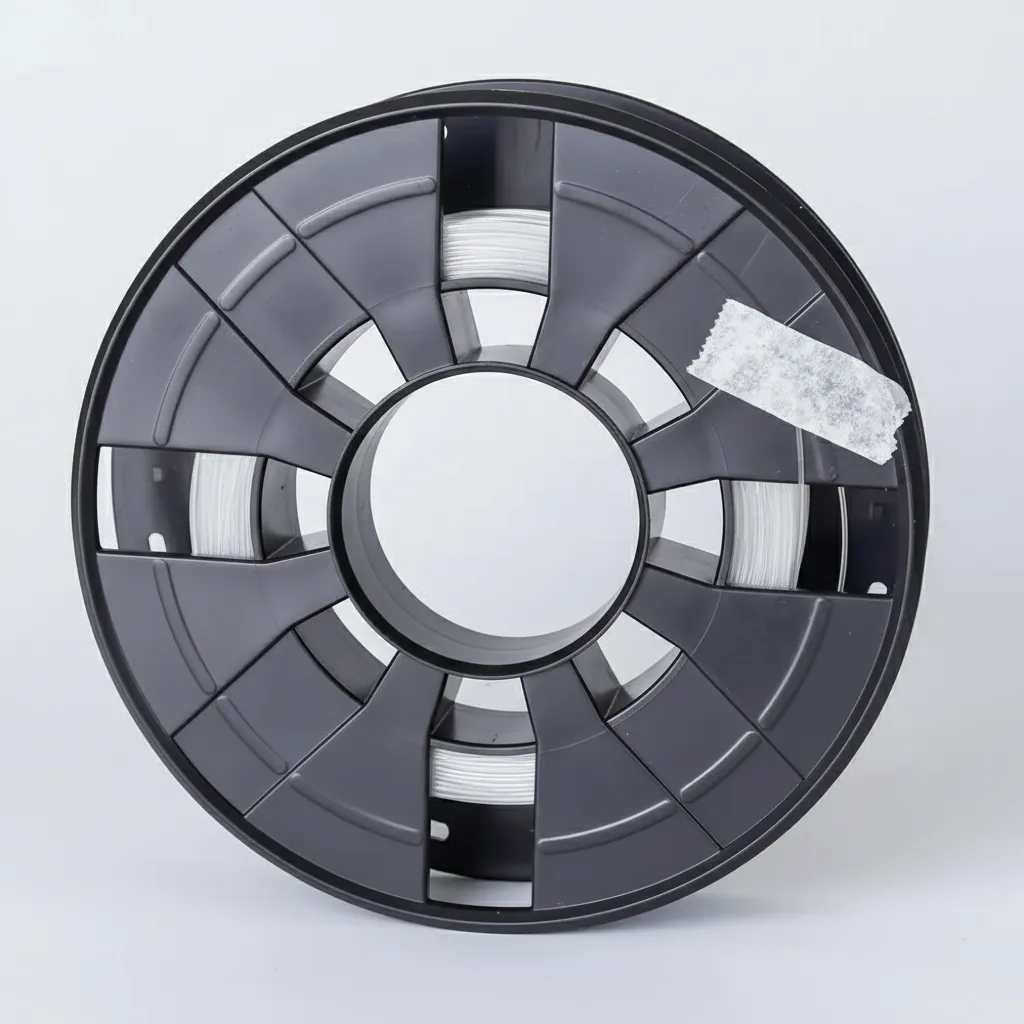

| Packaging Specification | 500 m / 1,000 m / 2,000 m per reel; wooden or plastic bobbin | Each reel individually labeled with fiber type, length, attenuation, and production batch number |
| Storage Conditions | Temperature: -20 °C to +60 °C; Humidity: 10%–85% RH (non-condensing) | Store in original packaging away from direct sunlight and corrosive chemicals; keep reels upright |
| Valid Shelf Life | 25 years (installed); 5 years (uninstalled, sealed packaging) | Coating integrity maintained under recommended storage; re-inspection recommended after 5 years if unused |
| Application Scenarios | LAN horizontal cabling, data center patch cords, FTTH indoor drop, riser & plenum runs | Suitable for IEEE 802.3 Gigabit/10G Ethernet; compatible with LC, SC, ST, and MPO connector systems |
| Compliance & Certification | IEC 60793-2-50, IEC 60794-2, RoHS 2011/65/EU, REACH, UL Listed (OFNR/OFNP) | Flame-retardant jacket meets UL 1666 riser and UL 910 plenum ratings; halogen-free LSZH option available |
| Minimum Order Quantity (MOQ) | 10 reels (single fiber type) | Mixed fiber type orders accepted with MOQ of 5 reels per type; sample reels available upon request |
| Monthly Supply Capacity | 500,000 km/month | Supported by multiple drawing towers; lead time 7–15 business days for standard orders; OEM accepted |
Product quality good, initial shipment had a documentation gap — now resolved
We ordered 12,000 meters of 24F OM4 LSZH riser-rated cable for a healthcare campus network. The fiber itself tested well — bandwidth and attenuation met ISO/IEC 11801 OM4 specs. However, the initial shipment was missing the IEC 60332-1 flame test certificates required by our client's compliance team, which delayed installation by four days. After escalating to the supplier's technical team, the full certificate package was emailed within 12 hours and hard copies followed by courier. The issue has been completely resolved and the supplier updated their standard documentation checklist. We would consider ordering again with this confirmed.
