| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | Premium Multimode Optical Fiber | High-performance multimode fiber designed for short-distance, high-bandwidth data transmission applications |
| Fiber Grade & ITU-T Classification | OM3 / OM4 / OM5 (ITU-T G.651.1) | Laser-optimized 50/125 µm graded-index multimode fiber compliant with IEC 60793-2-10 |
| Core & Cladding Diameter Range | Core: 50 µm ± 2.5 µm; Cladding: 125 µm ± 1 µm | Precision-controlled geometry ensures consistent modal bandwidth and low splice loss |
| Attenuation Coefficient at 850 nm | ≤ 2.3 dB/km (OM3/OM4); ≤ 2.5 dB/km (OM5) | Measured per IEC 60793-1-40; optimized for VCSEL-based transmission systems |
| Attenuation Coefficient at 1300 nm | ≤ 0.6 dB/km | Low attenuation at 1300 nm supports LED and VCSEL dual-window operation |
| Macrobending Loss Performance | ≤ 0.5 dB at 1 turn, 75 mm diameter mandrel (850 nm) | Tested per IEC 60793-1-47; suitable for tight-routing installation environments |
| Chromatic Dispersion Coefficient | ≤ 3.5 ps/(nm·km) at 850 nm | Graded-index profile minimizes modal and chromatic dispersion for high-speed links |
| Effective Modal Bandwidth (EMB) | OM3: ≥ 2000 MHz·km; OM4: ≥ 4700 MHz·km; OM5: ≥ 28000 MHz·km at 850 nm | Laser-optimized EMB supports 10G/40G/100G/400G Ethernet transmission distances |
| Batch Qualification Rate | ≥ 99.5% | Each production batch undergoes 100% end-face inspection and OTDR screening before shipment |
| Manufacturing Environment Standards | ISO Class 7 (ISO 14644-1) Cleanroom; PCVD / OVD deposition process | Controlled cleanroom manufacturing eliminates contamination-induced attenuation anomalies |
| Core Raw Material Source | Ultra-high-purity SiO₂ preform with GeO₂ dopant; OH⁻ content < 1 ppb | Premium-grade silica preform sourced from certified suppliers; traceable material certificates provided |

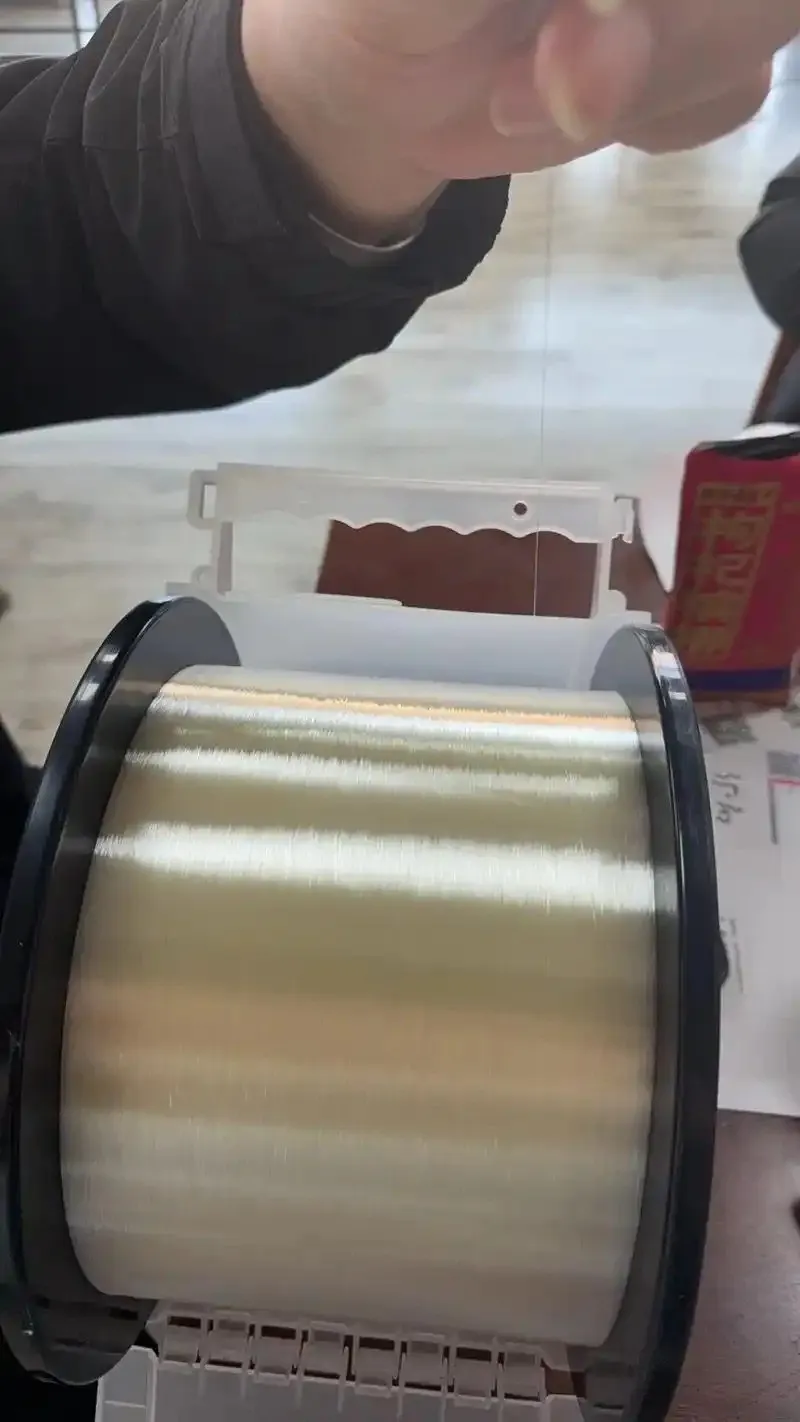

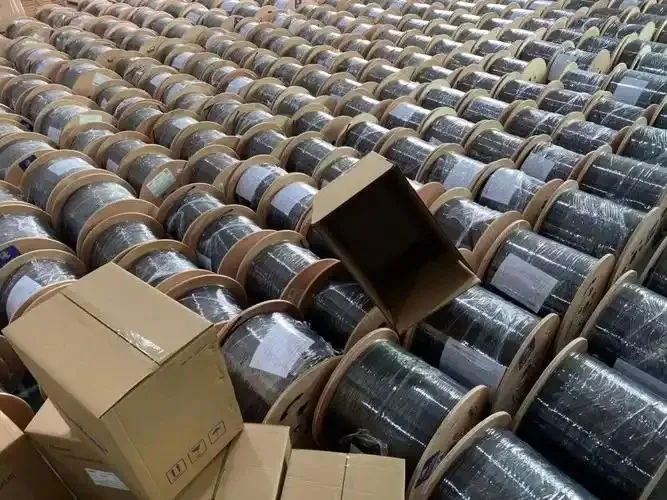

| Packaging Specification | Standard reel: 500 m / 1000 m / 2000 m / 5000 m per spool; wooden or plastic drum | Anti-static film wrapping with desiccant; reel labeled with OTDR trace and test report QR code |
| Storage Conditions | Temperature: -40 °C to +70 °C; Relative Humidity: 10%–85% (non-condensing) | Store away from direct sunlight and corrosive chemicals; keep reel upright to prevent deformation |
| Valid Shelf Life | 25 years under recommended storage conditions | Hermetically sealed primary coating maintains fiber mechanical strength and optical integrity |
| Application Scenarios | Data center interconnects, LAN/SAN backbone, 5G fronthaul, campus networks, medical imaging systems | Supports 10GbE up to 300 m (OM3), 550 m (OM4); 400GbE up to 150 m (OM5) per IEEE 802.3 |
| Compliance & Certification | IEC 60793-2-10, ITU-T G.651.1, TIA-492AAAD (OM4), RoHS 2011/65/EU, REACH SVHC compliant | Third-party test reports available; UL recognized component listing upon request |
| Minimum Order Quantity (MOQ) | 10 km per fiber type/grade | Custom reel lengths and jacket colors available for OEM orders above 50 km |
| Monthly Supply Capacity | 500,000 km/month | Dual production lines with automated drawing towers ensure stable large-volume delivery schedules |
Initial reel labeling inconsistency — resolved promptly, fiber quality fine
Ordered 35 reels of OM4 50µm for a 400G-ready data center pre-cabling project. The fiber itself tested correctly — attenuation and EMB met IEC 60793-2-10 specs without issue. However, four reels arrived with batch traceability labels that didn't match the packing list, which flagged during our incoming QA check and required us to pause installation. We contacted support and received corrected documentation within 24 hours, plus a written explanation of the labeling error in their production process. Problem was fully resolved and didn't affect our project timeline materially. Quality of the fiber is not in question — just tighten up the labeling process.
