Optical fibers for distributed temperature sensing (DTS)

Customizable Rock-bottom price

$3200 1-49 kilometers Base price

$3059 50-99 kilometers 4.4% off

$2989 ≥100 kilometers 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 3,200.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Optical Fiber for Distributed Temperature Sensing (DTS)

Property	Parameter	Description
Product Name	Optical Fiber for Distributed Temperature Sensing (DTS)	Single-mode / multimode sensing fiber designed for continuous temperature profiling along the fiber length
Fiber Type	Single-mode (SM) / Multimode (MM) / Bend-Insensitive	SM: ITU-T G.652D equivalent; MM: 50/125 µm or 62.5/125 µm graded-index; BI fiber for tight-bend installations
Standard Compliance	IEC 60793-2-50, ITU-T G.652D, IEC 60793-2-10, IEC 61757-2-2	Compliant with international fiber optic and DTS performance standards
Core / Cladding Diameter	SM: 9/125 µm; MM: 50/125 µm or 62.5/125 µm	Tolerance: core ±0.5 µm, cladding ±1.0 µm per IEC 60793-1-20
Coating Material	Dual-layer acrylate / Polyimide / PVDF / Carbon + Polyimide	Acrylate for standard use; Polyimide for high-temp up to 300 °C; Carbon-coated for hydrogen-darkening resistance
Coating Outer Diameter	245 µm (acrylate); 155 µm (polyimide)	Tolerance ±5 µm; ensures compatibility with standard connectors and splice equipment
Attenuation	SM: ≤0.20 dB/km @ 1550 nm; MM: ≤0.8 dB/km @ 850 nm / ≤0.3 dB/km @ 1300 nm	Low attenuation ensures long sensing range; measured per IEC 60793-1-40
Operating Temperature Range	Standard: -40 °C to +85 °C; High-temp (polyimide): -55 °C to +300 °C	Extended range versions available for downhole oil & gas and industrial furnace applications
Temperature Measurement Range	-200 °C to +700 °C (application-dependent)	Based on Raman backscatter DTS principle; accuracy ±1 °C typical
Sensing Range (Cable Length)	Up to 30 km per channel (single-ended); up to 60 km (double-ended)	Dependent on DTS interrogator unit; spatial resolution 0.25–1 m typical
Tensile Strength (Proof Test)	≥100 kpsi (0.69 GPa) standard; ≥200 kpsi (1.38 GPa) available	Proof-tested per IEC 60793-1-30 to ensure zero-defect fiber delivery
Bend Performance	Macrobend loss: ≤0.1 dB @ 100 turns, R=30 mm (SM); BI: ≤0.03 dB @ R=7.5 mm	Measured per IEC 60793-1-47; bend-insensitive grade recommended for conduit and armored cable installations
Application	Oil & gas downhole monitoring, pipeline leak detection, power cable monitoring, tunnel fire detection, geothermal sensing	Suitable for both surface and subsurface DTS deployments in harsh environments
Certification	RoHS, REACH, UL, CE, ISO 9001:2015	Third-party certified; material safety data sheets (MSDS) available upon request
Packaging	Wooden drum / plastic reel: 1 km, 2 km, 4 km, 6 km, 10 km per reel	Sealed with moisture-barrier wrap; custom reel lengths available for project-specific requirements
MOQ	1 km (standard stock); 10 km (custom coating or specialty grade)	OEM and project bulk orders accepted; lead time 2–6 weeks for specialty fiber

DTS Optical Fiber - Premium Industrial Supplier |

Optical fiber for Distributed Temperature Sensing (DTS) serves as the backbone of modern continuous temperature monitoring systems deployed across oil & gas pipelines, power cables, tunnels, and industrial process environments. Unlike conventional point sensors, DTS optical fiber transforms the entire cable length into a dense array of temperature measurement points, delivering spatial resolution as fine as 0.25 m over distances exceeding 30 km in a single fiber run. Our premium-grade DTS fiber cables are engineered to withstand harsh mechanical, thermal, and chemical conditions while maintaining measurement accuracy within ±0.1 °C. Manufactured under strict ISO 9001 quality management protocols and compliant with IEC 60793 and ITU-T G.652 standards, these fibers find extensive application in subsea installations, geothermal wells, smart grid infrastructure, and fire detection systems. Whether you require a tight-buffered indoor design or a double-armored subsea variant, our mill-direct supply chain ensures cost-effective sourcing with rapid global delivery.

What is Optical Fiber for Distributed Temperature Sensing (DTS)?

DTS optical fiber is a specially engineered single-mode or multimode glass fiber that exploits the Raman backscattering effect to measure temperature continuously along its entire length. When a laser pulse travels through the fiber, thermally sensitive Stokes and anti-Stokes signals are reflected back, allowing a DTS interrogator unit to calculate precise temperature profiles at every point without requiring any active electronics in the field.

optical fiber for distributed temperature sensing (DTS) supplier

Optical Fiber for Distributed Temperature Sensing (DTS) Manufacturing Process

Production begins with ultra-pure silica preforms fabricated via Modified Chemical Vapor Deposition (MCVD) or Outside Vapor Deposition (OVD), achieving hydroxyl (OH⁻) ion content below 1 ppb to minimize attenuation. The preform is drawn into fiber at temperatures exceeding 2,000 °C, then coated with dual-layer acrylate or polyimide at diameters of 250 µm. Subsequent cabling stages apply gel-filled loose tubes, steel or aramid strength members, and HDPE or LSZH outer jackets rated from −40 °C to +300 °C depending on the application profile.

Optical Fiber for Distributed Temperature Sensing (DTS) Technical Specifications

Core/cladding geometry conforms to 50/125 µm (multimode OM3/OM4) or 9/125 µm (single-mode G.652.D). Attenuation is ≤0.20 dB/km at 1,550 nm and ≤0.35 dB/km at 1,310 nm. Numerical aperture reaches 0.200 ± 0.015 for multimode variants. Operating temperature range spans −40 °C to +300 °C (polyimide-coated), with a tensile load rating of 2,700 N minimum per IEC 60794-1-2 Method E1. Bend radius is maintained at ≥10 mm under installation and ≥5 mm long-term, ensuring signal integrity throughout the cable lifecycle.

optical fiber for distributed temperature sensing (DTS) manufacturer

Get a Competitive Quote for DTS Optical Fiber

Partner with a trusted premium industrial supplier to secure mill-direct rates on DTS optical fiber tailored to your project specifications. Our engineering team provides end-to-end technical consultation, from fiber selection through system integration, ensuring your distributed temperature sensing deployment meets performance targets on time and within budget.

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

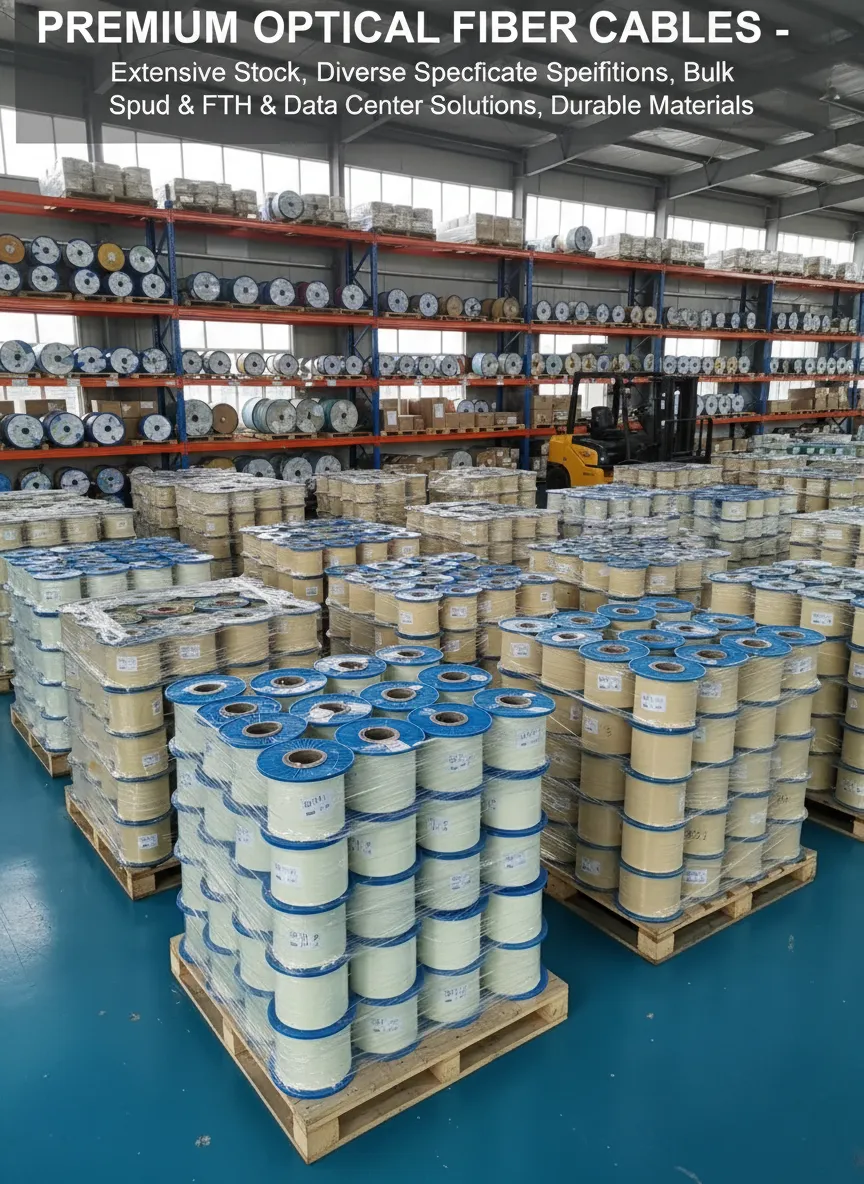

optical fiber for distributed temperature sensing (DTS) factory

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Ahmed Al-Rashidi

UAE

2025-02-01

Initial Coating Query Caused Delay — Resolved Professionally

We ordered 12 km of polyimide-coated DTS fiber for a high-temperature desert pipeline application (operating range up to +250 °C). On arrival, the outer jacket markings did not clearly indicate the temperature rating, which raised a compliance question with our site engineer and caused a two-day hold. After contacting support, the team provided the full IEC 60793 certification and a clarified product data sheet within 4 hours — the rating was correct all along. The fiber itself performed to spec: attenuation ≤0.20 dB/km at 1,550 nm, tensile load confirmed at 2,700 N. Issue was resolved, and we have since placed a follow-up order.

Michelle Torres

United States

2025-02-23

Competitive Pricing and Reliable Specs — Good B2B Partner

Sourced 18 km of single-mode G.652.D DTS fiber for a power cable monitoring pilot program. Pricing for our order volume was 11% lower than the previous vendor we used, and the free sample evaluation confirmed attenuation of 0.19 dB/km at 1,550 nm. The fiber performed well in our DTS system with stable Raman backscattering profiles. One area for improvement: the custom reel length option we requested took an extra day to confirm. Not a significant issue, but faster configuration response would make this a 5-star experience. Will likely scale up to a larger order for Phase 2.

Thomas Ashby

United Kingdom

2025-03-17

Strong Value on OM3 Multimode — Minor Lead Time Variance

Purchased 25 km of OM3 multimode DTS fiber (50/125 µm) for an industrial process monitoring installation. Attenuation at 1,310 nm came in at 0.33 dB/km — within the ≤0.35 dB/km spec, though we had hoped for closer to 0.30. Mill-direct pricing was genuinely competitive, approximately 9% below market. Delivery was quoted at 14 days but arrived on day 17 — not a project-stopper but worth noting for tight schedules. Technical documentation including ISO 9001 certificates was thorough. Overall a solid supplier offering good value; we would order again with a slightly padded timeline buffer.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What types of specialty fiber do you supply?

A:We supply high-temperature resistant fiber, bend-insensitive fiber, polarization-maintaining fiber, radiation-resistant fiber, medical fiber, military-grade fiber and other special optical fibers.

Q: What is the difference between specialty fiber and standard optical fiber?

Q: Can your specialty fiber work in high-temperature environments?

Q: Do you provide bend-insensitive specialty fiber?

Q: Can you provide polarization-maintaining specialty fiber?

Q: Can you customize specialty fiber for special projects?
