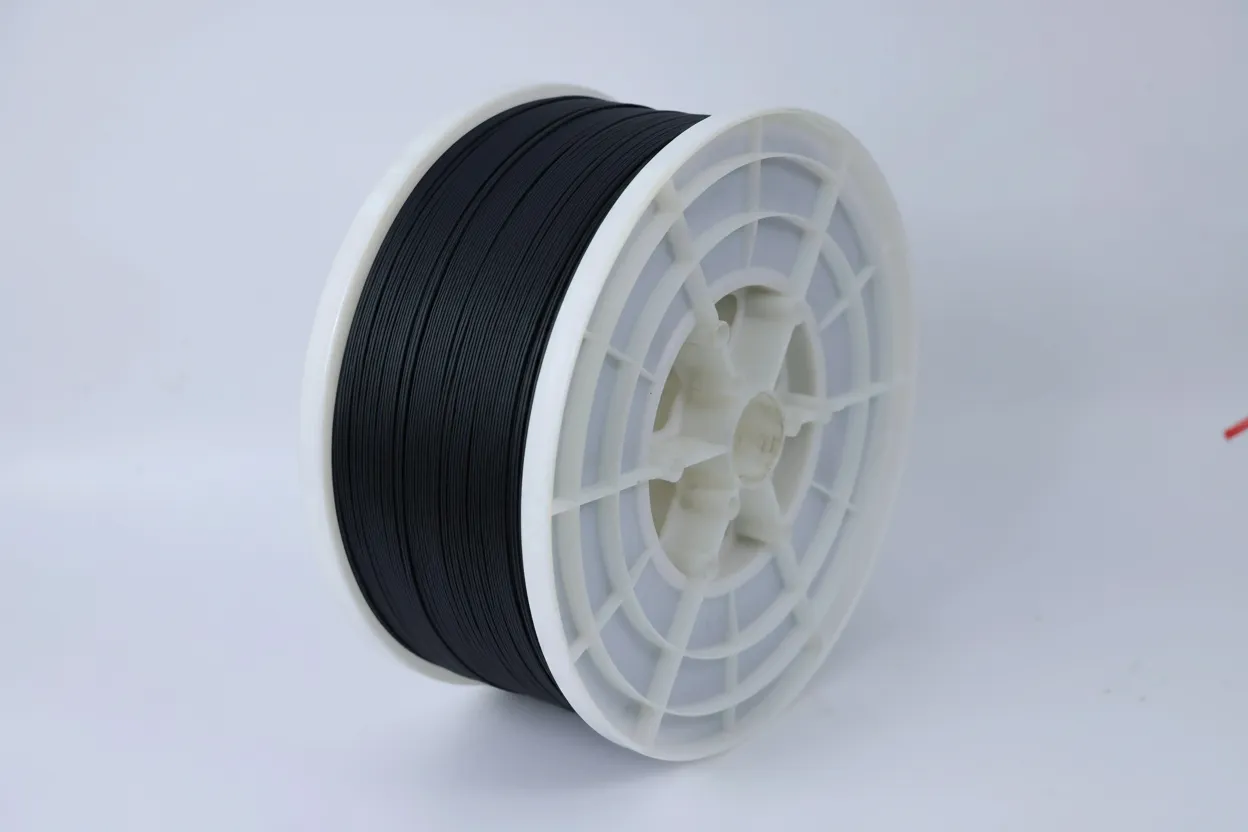

Small Radius Bend Fiber Optic Cable - Mill Direct

Anxun optical fiber Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$412 1-49 kilometers Base price

$394 50-99 kilometers 4.4% off

$385 ≥100 kilometers 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 412.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Small Radius Bend Fiber Optic Cable

Property	Parameter	Description
Product Name	Small Radius Bend Fiber Optic Cable	Bend-insensitive fiber optic cable designed for tight routing and confined spaces
Fiber Type	G.657.A1 / G.657.A2 / G.657.B3	ITU-T compliant bend-insensitive single-mode fiber; G.657.B3 supports minimum bend radius of 5 mm
Standard Compliance	ITU-T G.657, IEC 60793-2-50, IEC 60794-1	Meets international standards for bend-insensitive optical fiber and cable performance
Minimum Bend Radius	5 mm – 15 mm (operational)	G.657.A1: 10 mm; G.657.A2: 7.5 mm; G.657.B3: 5 mm at specified attenuation limits
Attenuation	≤ 0.4 dB/km @ 1310 nm; ≤ 0.3 dB/km @ 1550 nm	Per ITU-T G.657; bend-induced attenuation minimized at tight radii
Macrobend Loss	≤ 0.1 dB (G.657.A2) / ≤ 0.03 dB (G.657.B3) @ 1550 nm, 1 turn, 15 mm radius	Significantly lower than standard G.652.D fiber under equivalent bend conditions
Core / Cladding Diameter	9 µm / 125 µm	Standard single-mode geometry; compatible with G.652.D fiber for splicing and connectivity
Coating Diameter	245 µm ± 5 µm	Dual-layer UV-cured acrylate coating for mechanical protection and handling ease
Cable Outer Diameter	1.6 mm – 6.0 mm (simplex/duplex/bundle)	Available in micro-cable, drop cable, and distribution cable configurations
Jacket Material	LSZH / PVC / HDPE	Low Smoke Zero Halogen (LSZH) preferred for indoor; HDPE for outdoor applications
Tensile Strength	≥ 100 N (short-term); ≥ 60 N (long-term)	Per IEC 60794-1-2 Method E1; aramid yarn or FRP strength members used
Operating Temperature	-20°C to +70°C (indoor); -40°C to +70°C (outdoor)	Extended range available for harsh environment deployments
Application	FTTH/FTTB drop wiring, in-building riser, MDU, data center, conduit routing	Ideal for tight-space installations where conventional cable would exceed bend limits
Certification	UL, RoHS, REACH, CE, ISO 9001	Compliance documentation available upon request; UL listing for applicable jacket types

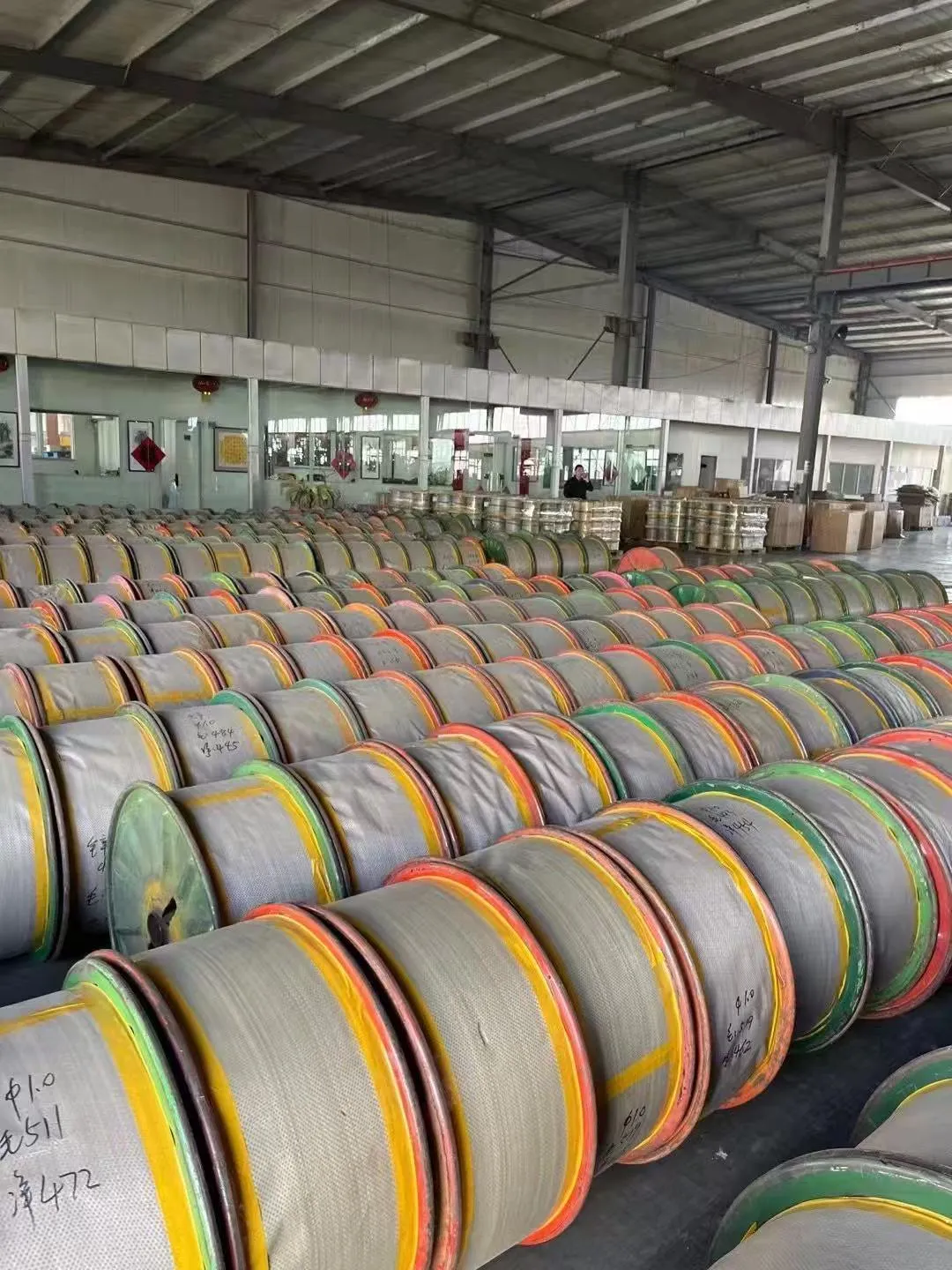

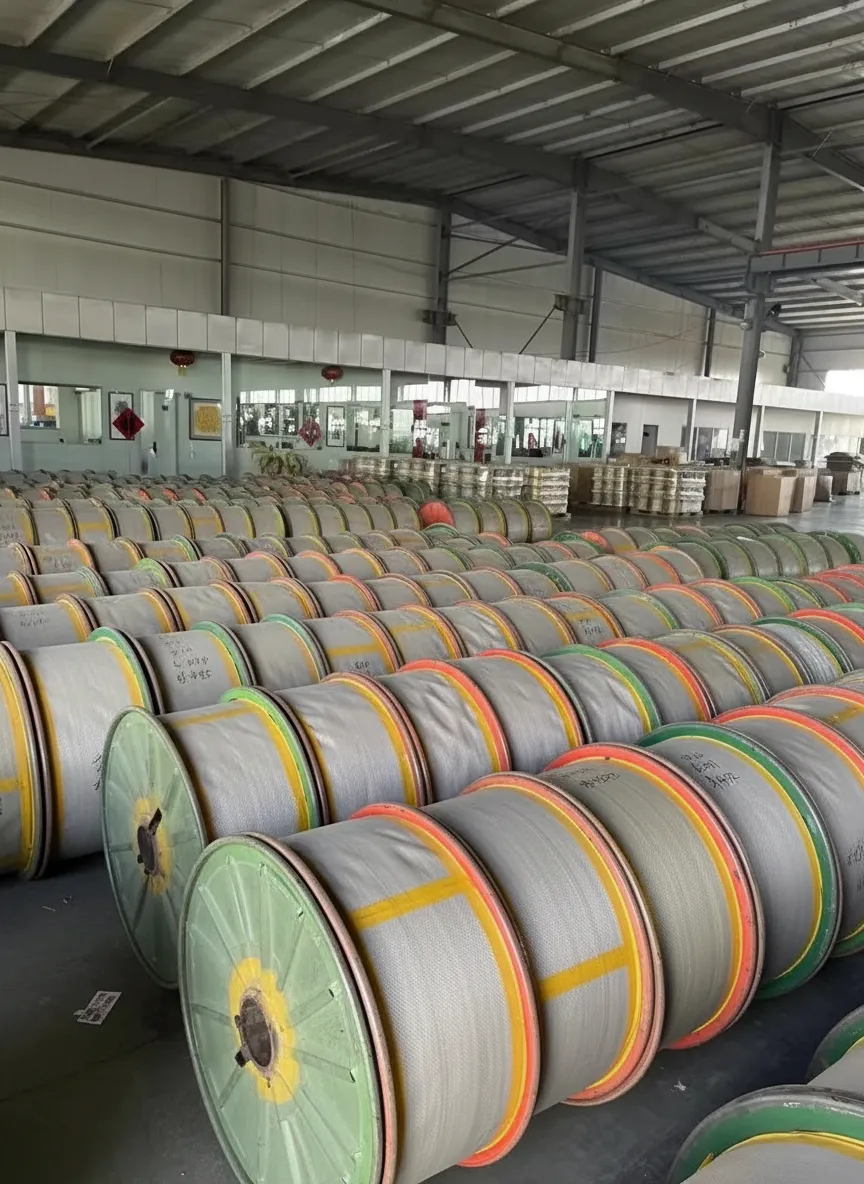

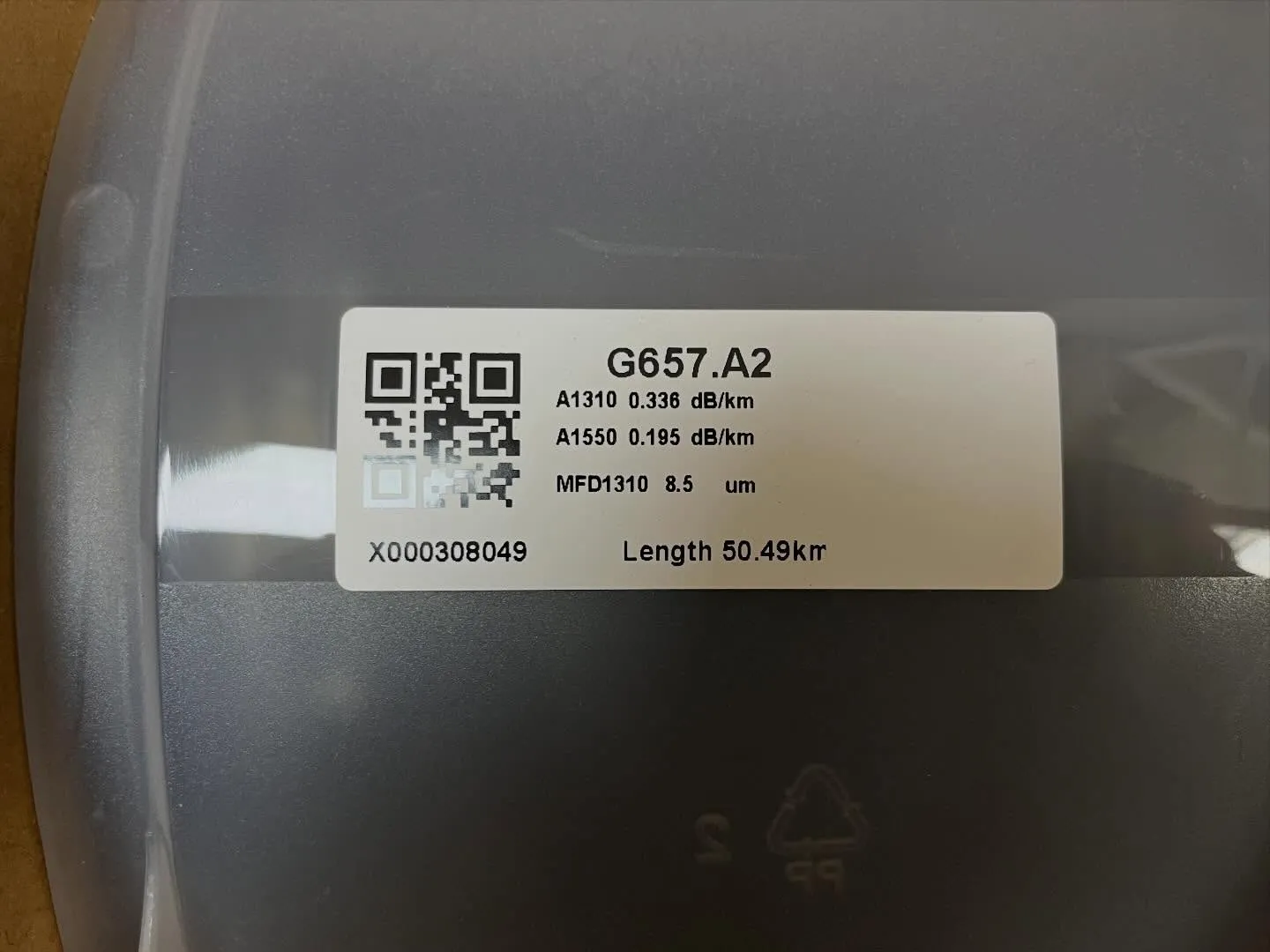

Packaging	Wooden drum / plastic reel: 500 m, 1000 m, 2000 m standard lengths	Custom lengths and reels available; drum labeled with OTDR test data
MOQ	500 m per specification	OEM and custom configurations negotiable for volume orders

Small Radius Bend Fiber Optic Cable - Mill Direct

Our small radius bend fiber optic cable is engineered for demanding installations where tight routing paths, confined spaces, and sharp corners are unavoidable. As a mill-direct manufacturer, we supply high-performance bend-insensitive fiber optic cables to telecom operators, data center integrators, FTTH contractors, and enterprise network builders worldwide. The growing global demand for high-density, space-efficient cabling solutions has made small radius bend fiber optic cable an essential component in modern infrastructure deployments. Whether you are designing a large-scale data center, upgrading a residential broadband network, or managing complex in-building distribution systems, our cables deliver consistent optical performance even at bending radii as tight as 5mm. With full control over the manufacturing process from fiber drawing to final jacketing, we ensure every reel meets international standards while offering competitive mill-direct pricing, rapid lead times, and flexible order quantities to support projects of any scale.

What is Small Radius Bend Fiber Optic Cable?

Small radius bend fiber optic cable, also known as bend-insensitive or low-bend-loss fiber optic cable, is a specialized optical fiber cable designed to maintain signal integrity when routed around tight corners or through narrow conduits. Unlike conventional single-mode or multimode cables, these cables utilize advanced trench-assisted or nanostructured fiber designs compliant with ITU-T G.657 or OM3/OM4 standards. They are widely used in FTTH drop installations, plenum spaces, riser shafts, patch panels, and any environment where conventional cables would suffer unacceptable signal attenuation due to bending stress.

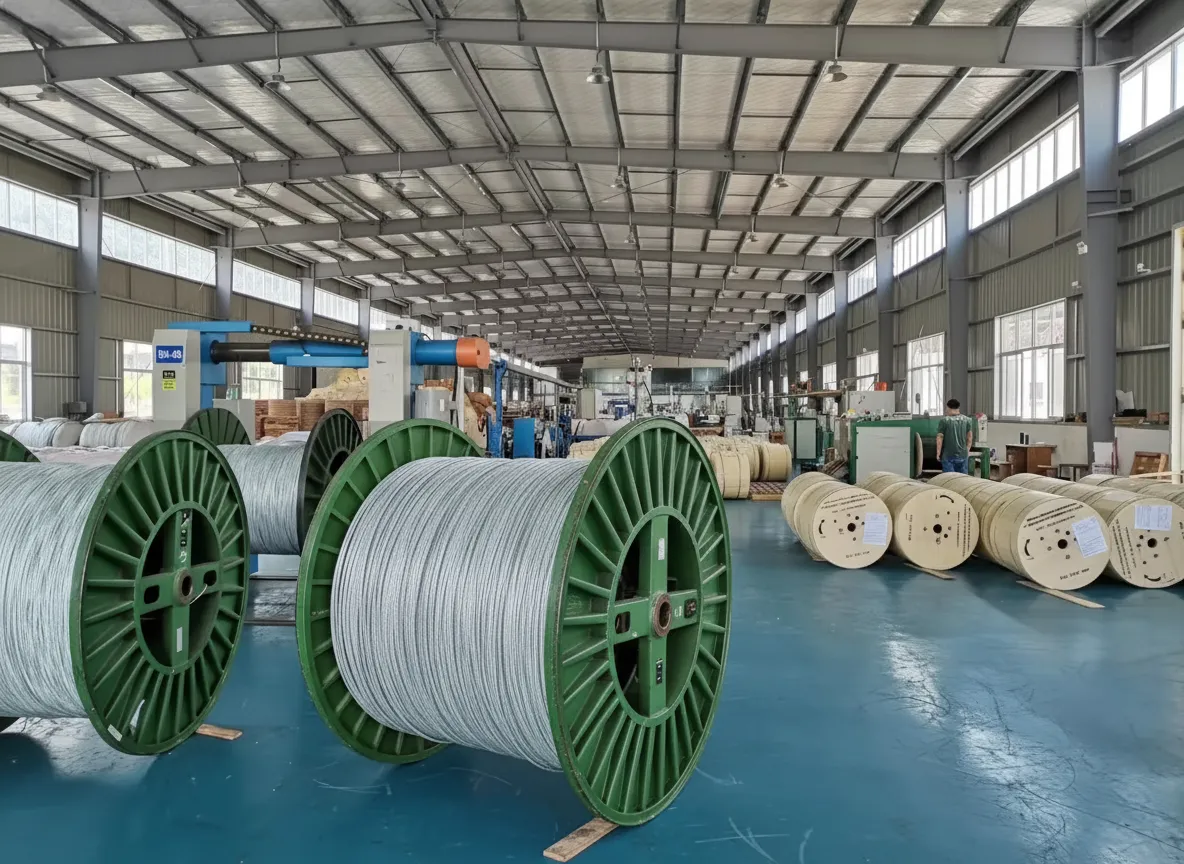

Small Radius Bend Fiber Optic Cable Supply & Manufacturing Process

Our mill-direct supply chain begins with precision fiber drawing using premium-grade preforms, followed by coating, cabling, and jacketing processes conducted in ISO-certified cleanroom environments. Each production batch undergoes strict quality controls including OTDR testing, attenuation measurement, and bend performance verification. Cables are assembled with UV-resistant, flame-retardant jacket materials (LSZH, PVC, or plenum-rated options) and wound onto standardized reels. Our vertically integrated manufacturing allows us to fulfill custom orders for jacket color, length, connector type, and armoring with lead times as short as 7–15 business days.

small radius bend fiber optic cable supplier

Small Radius Bend Fiber Optic Cable Technical Specifications

Our small radius bend fiber optic cables are available in single-mode (G.657A1/A2/B2/B3) and multimode (OM3/OM4/OM5) variants. Key performance parameters include:

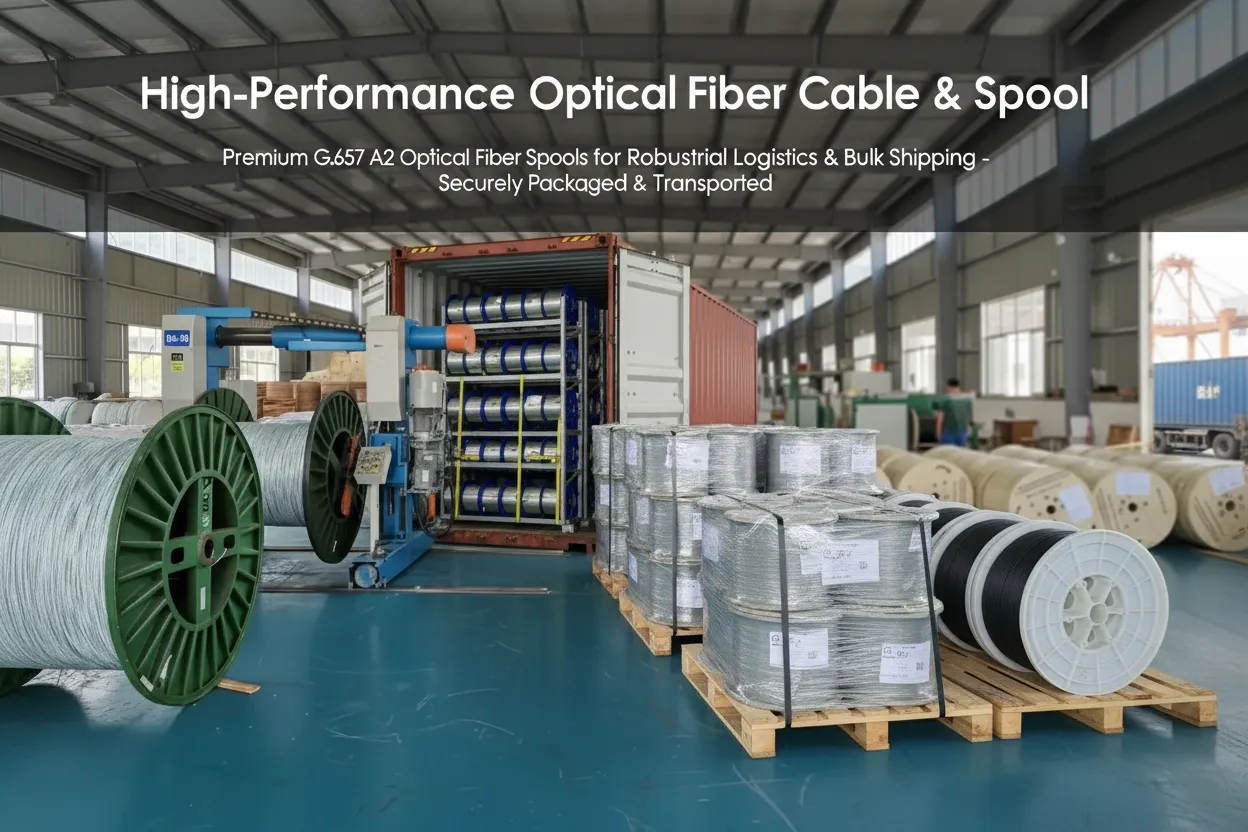

small radius bend fiber optic cable manufacturer

Minimum bend radius: 5mm (G.657B3) to 15mm (G.657A1) during installation
Attenuation at 1310nm/1550nm: ≤0.35dB/km / ≤0.20dB/km
Macrobend loss at 15mm radius (1550nm): ≤0.03dB/turn
Operating temperature range: -40°C to +70°C
Fiber count options: 1, 2, 4, 6, 8, 12, 24, 48, 96 fibers
Jacket material: LSZH / PVC / OFNP plenum-rated
Cable diameter: 2.0mm – 12.0mm depending on fiber count and armoring
Tensile strength: 300N – 2700N (standard to armored versions)
Compliance: ITU-T G.657, IEC 60793, TIA-568, RoHS

Get a Competitive Quote for Small Radius Bend Fiber Optic Cable

Partner with our mill-direct team to access premium small radius bend fiber optic cable at factory pricing. We support bulk orders, project-specific custom configurations, and OEM private-label requirements with consistent quality assurance, fast dispatch, and global logistics support. Whether you need a single reel for evaluation or a full project supply, we are ready to respond within 24 hours.

24/7 customer support available
Free samples for quality evaluation
Bulk supply with stable mill-direct inventory
Expert guidance on cable selection, installation, and compliance
Custom jacket colors, lengths, and connector terminations available
Global shipping with full documentation (test reports, certifications)

Contact us today to get your free quote within 24 hours!

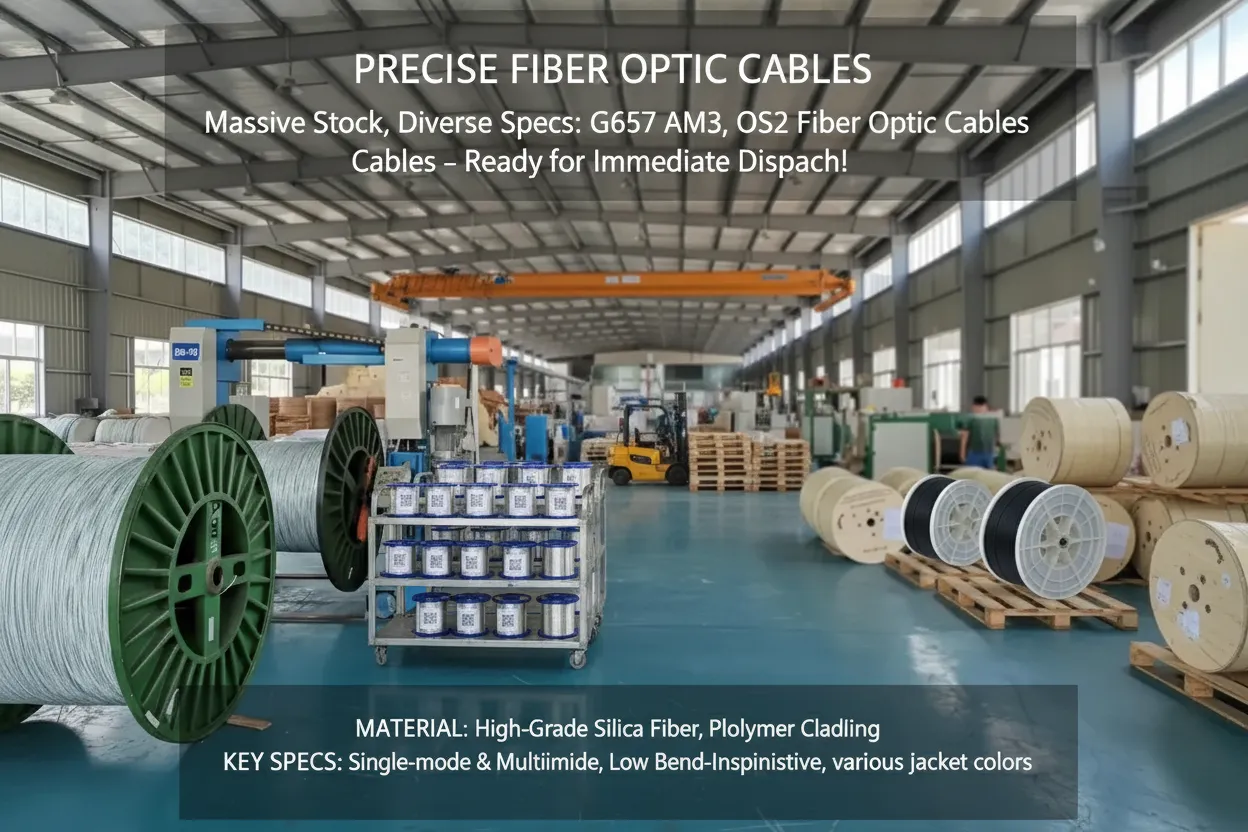

small radius bend fiber optic cable wholesale

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Omar A.

UAE

2025-02-01

Cable quality fine, initial shipment had documentation gap

We ordered 12-fiber G.657B3 LSZH cables rated for 5mm minimum bend radius for a confined-space installation in Dubai. The cable itself performed well — macrobend loss was within spec and the 2.8mm diameter worked perfectly in our conduit. However, the initial shipment was missing IEC 60793 test certificates, which we needed for client handover. After contacting support, the full documentation was emailed within 24 hours and hard copies followed with the next delivery. Issue resolved, but worth noting for compliance-sensitive projects. Quality of the cable itself was not in question.

Fiona M.

Australia

2025-02-22

Competitive pricing on G.657A2, minor labeling issue resolved

Ordered 8-fiber G.657A2 LSZH cables for a regional broadband expansion project. Optical performance was solid — attenuation at 1310nm measured 0.34dB/km, compliant with ITU-T G.657 spec. Mill-direct pricing was about 15% below local distributor quotes for a 120-reel order. One reel arrived with mismatched jacket color labeling versus the packing list. Support team resolved it quickly with a replacement reel shipped within 3 days. Would order again — just worth double-checking packing documentation on larger orders.

David K.

United States

2025-03-16

Good value on OM4 multimode for data center patching

Purchased 24-fiber OM4 bend-insensitive cables for patch panel upgrades in two data centers. Performance meets TIA-568 OM4 standards and bend loss at tight routing points was noticeably better than our previous brand. Pricing at mill-direct level made the switch worthwhile for a 300-reel order. Lead time was 15 business days, slightly longer than quoted, but the logistics team kept us updated. Would rate 5 stars if delivery estimate accuracy improves. Overall strong value proposition for multimode deployments.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What is bend-insensitive fiber?

A:Bend-insensitive fiber is a special optical fiber that maintains low transmission loss even under tight bending conditions, such as small radius bends or twists.

Q: What is the biggest advantage of bend-insensitive fiber?

Q: Can bend-insensitive fiber be used in FTTH projects?

Q: What bending radius can your bend-insensitive fiber withstand?

Q: Does bend-insensitive fiber support long-distance transmission?

Q: What is the operating temperature range of your fiber?
