Outdoor Fiber Optic Cable for FTTH - Factory Price

Anxun optical fiber Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$850 1-49 kilometers Base price

$813 50-99 kilometers 4.4% off

$794 ≥100 kilometers 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 850.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Outdoor Fiber Optic Cable for FTTH

Property	Parameter	Description
Product Name	Outdoor Fiber Optic Cable for FTTH	Single-mode/multimode outdoor fiber optic cable designed for fiber-to-the-home network deployment
Fiber Type	G.652D / G.657A1 / G.657A2 / OM3 / OM4	ITU-T G.652D standard single-mode fiber; G.657A2 bend-insensitive fiber for FTTH drop applications
Standard Compliance	ITU-T G.652D, G.657A2, IEC 60794-1, IEC 60794-3, TIA-568-C.3	Compliant with international telecom and fiber optic cable standards for outdoor use
Fiber Count	2, 4, 6, 8, 12, 24, 48, 96, 144 cores	Available in various fiber counts to meet different network capacity requirements
Attenuation	≤0.35 dB/km @ 1310 nm; ≤0.20 dB/km @ 1550 nm	Per ITU-T G.652D specification; low attenuation ensures long-distance signal transmission

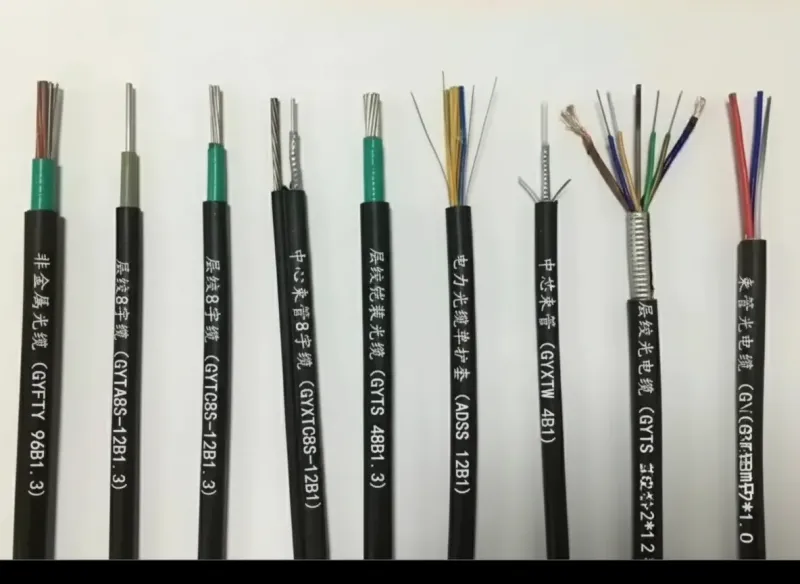

Cable Structure	Loose tube / Tight buffer / ADSS / Figure-8 / Armored	Stranded loose tube with central strength member; optional steel wire armoring or HDPE outer sheath
Outer Sheath Material	HDPE (High-Density Polyethylene) / LSZH	UV-resistant HDPE for direct burial and aerial; LSZH available for low-smoke zero-halogen requirements
Tensile Strength	≥1000 N (short-term); ≥400 N (long-term)	Per IEC 60794-1-2 Method E1; steel or FRP central strength member provides mechanical protection
Crush Resistance	≥1000 N/100 mm (short-term); ≥300 N/100 mm (long-term)	Per IEC 60794-1-2 Method E3; armored versions offer enhanced crush resistance up to 3000 N/100 mm
Operating Temperature	-40°C to +70°C	Suitable for extreme outdoor environments; storage temperature range -40°C to +70°C
Bend Radius	≥10× cable OD (long-term); ≥20× cable OD (short-term)	G.657A2 fiber supports bend radius as low as 7.5 mm with ≤0.1 dB additional attenuation
Cable Outer Diameter	5.0 mm – 22.0 mm (varies by fiber count and structure)	Compact design for easy installation in conduit, direct burial, or aerial deployment
Application	FTTH/FTTB/FTTC/FTTx last-mile access networks	Aerial, direct burial, duct installation; suitable for telecom operators, ISPs, and enterprise networks
Certification	CE, RoHS, ISO 9001:2015, UL, TÜV	Internationally certified for quality, safety, and environmental compliance
Packaging	Wooden drum / Plastic reel; 1000 m, 2000 m, 4000 m per reel	Standard wooden drum packaging; custom reel lengths available upon request
MOQ	1 km	Minimum order quantity 1 km; bulk pricing available for orders ≥10 km

Outdoor Fiber Optic Cable for FTTH - Factory Price

Outdoor fiber optic cable for FTTH serves as the essential backbone of modern broadband infrastructure, enabling high-speed internet delivery directly to residential and commercial endpoints. Designed to withstand the harshest environmental conditions — including UV radiation, moisture ingress, extreme temperature fluctuations from -40°C to +70°C, and mechanical stress — these cables ensure uninterrupted signal transmission across last-mile networks. As global FTTH deployments accelerate, demand for reliable, cost-effective outdoor fiber solutions continues to surge. Whether you are a telecom operator expanding your fiber-to-the-home network, a contractor sourcing drop cables for aerial or direct-burial installations, or a distributor seeking factory-direct pricing, our outdoor fiber optic cables deliver the performance, durability, and compliance your projects demand. With ITU-T G.652D and G.657A2 certified options, our product range covers ADSS, GYTA, GYXTW, and GJYXFCH cable types to match every deployment scenario.

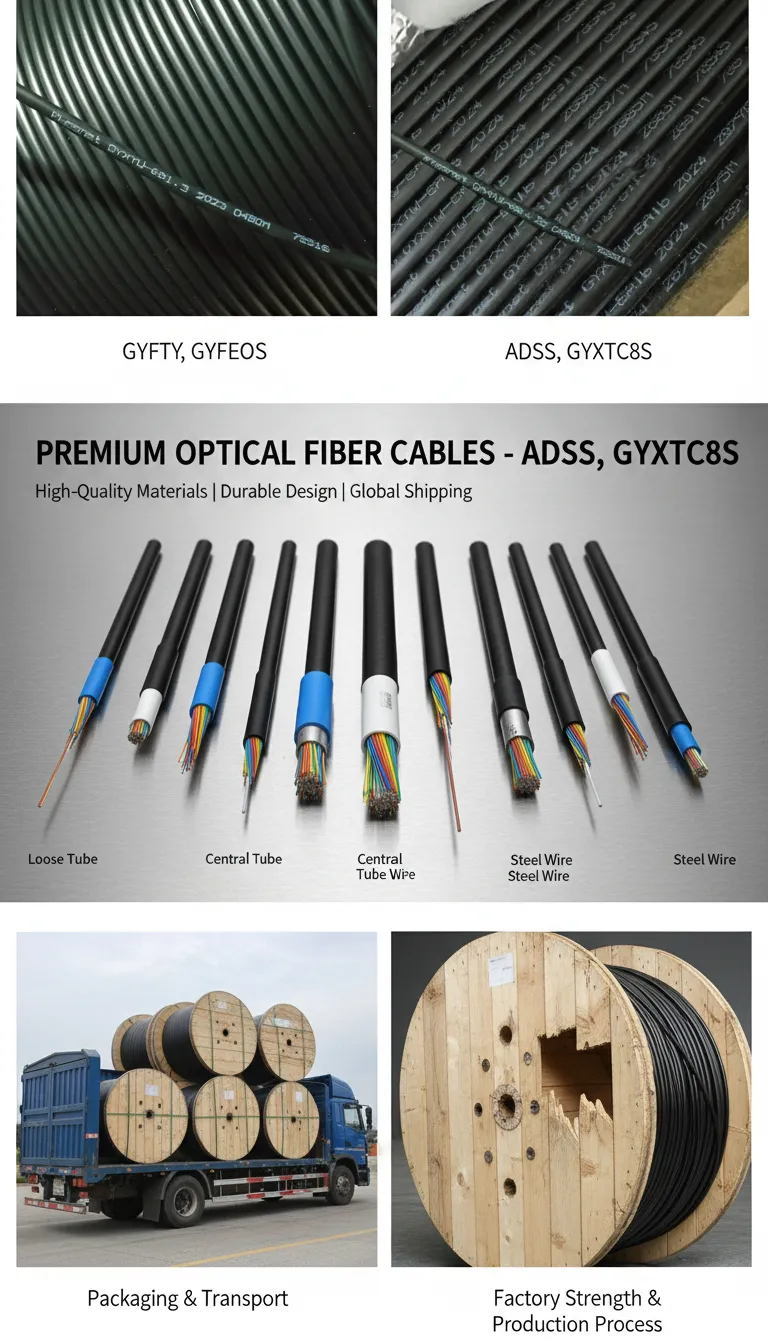

outdoor fiber optic cable for FTTH supplier

What is Outdoor Fiber Optic Cable for FTTH?

Outdoor fiber optic cable for FTTH is a ruggedized optical transmission medium engineered specifically for last-mile fiber-to-the-home deployments in exposed outdoor environments. Constructed with single-mode or multimode glass fiber cores, reinforced with aramid yarn or fiberglass strength members, and protected by UV-resistant polyethylene (PE) or low-smoke zero-halogen (LSZH) jackets, these cables deliver attenuation as low as 0.18 dB/km at 1550 nm while maintaining structural integrity under tensile loads up to 2,700 N.

Outdoor Fiber Optic Cable for FTTH Manufacturing Process

Production begins with precision optical fiber drawing from ultra-pure silica preforms, achieving core diameter tolerances of ±0.2 µm. Individual fibers receive secondary coating with UV-cured acrylate resin before being stranded into loose-tube or tight-buffer configurations. Strength members — typically 900 MPa-grade aramid yarn or dielectric FRP rods — are applied through SZ stranding. A continuous extrusion process applies the high-density polyethylene outer jacket at controlled wall thickness of 1.5–3.0 mm, followed by laser diameter gauging and spark testing to ensure 100% jacket integrity before spooling.

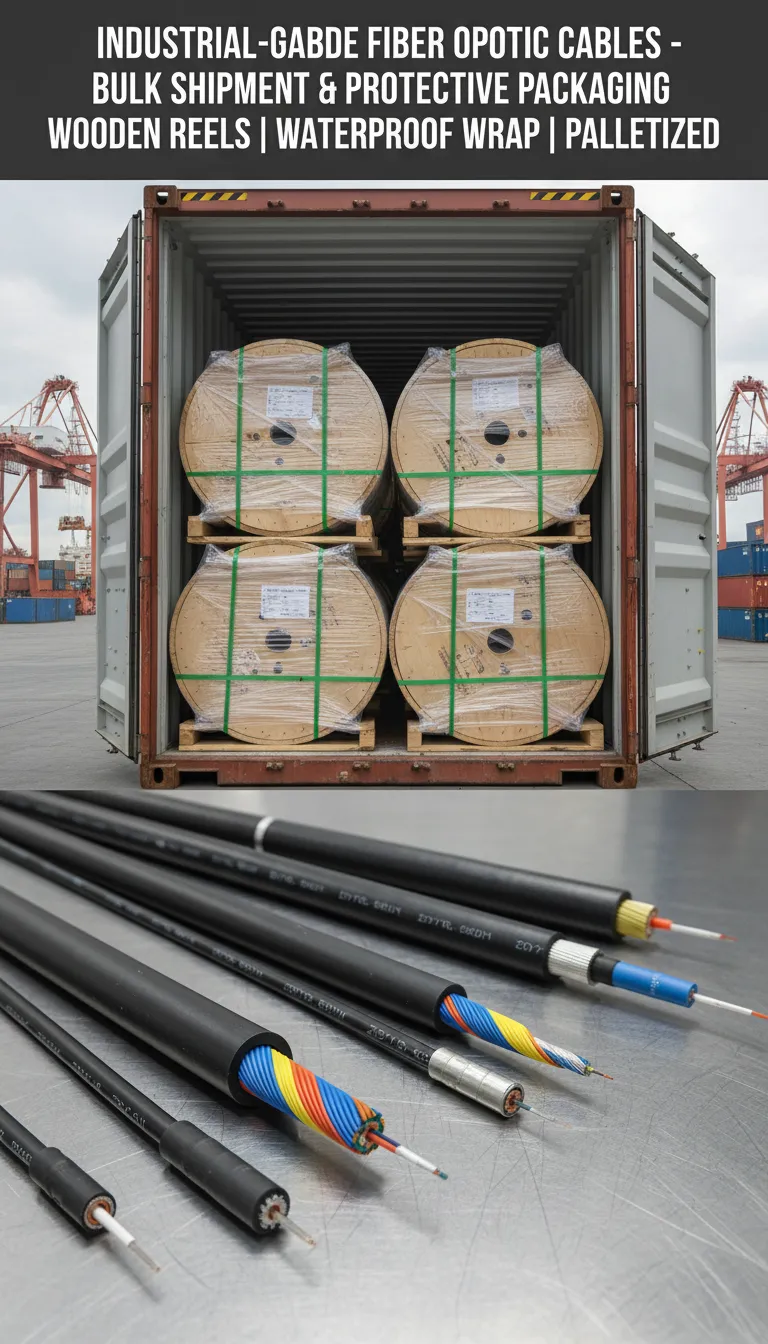

outdoor fiber optic cable for FTTH manufacturer

Outdoor Fiber Optic Cable for FTTH Technical Specifications

Our outdoor fiber optic cables for FTTH deployments are available in fiber counts from 2 to 288 cores, with the following key parameters:

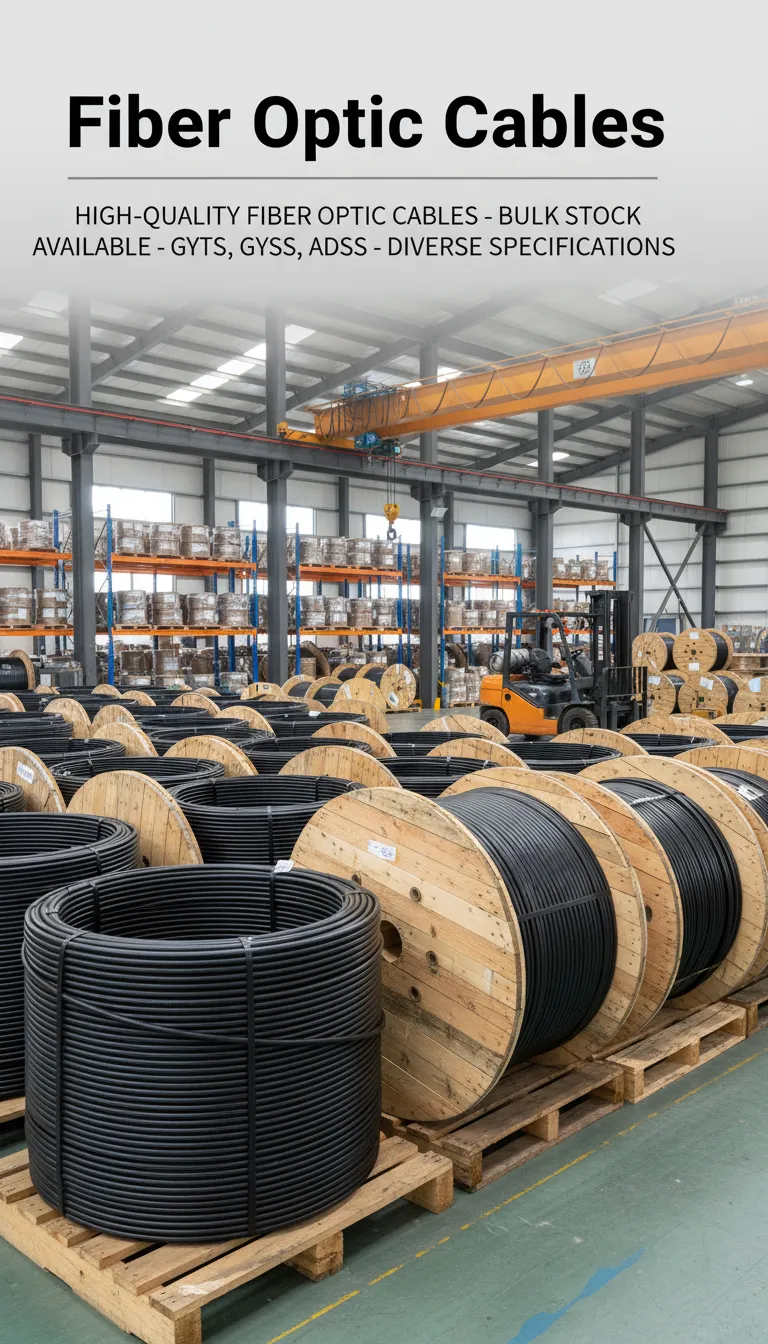

outdoor fiber optic cable for FTTH wholesale

Fiber Type: ITU-T G.652D (SMF-28), G.657A1/A2 bend-insensitive
Attenuation: ≤0.20 dB/km @ 1310 nm; ≤0.18 dB/km @ 1550 nm
Operating Temperature: -40°C to +70°C (storage: -40°C to +80°C)
Tensile Strength (short-term): Up to 2,700 N per IEC 60794-1-2
Minimum Bend Radius: 10× cable diameter (static); 20× (dynamic)
Jacket Material: HDPE / LSZH, UV-stabilized, thickness ≥1.5 mm
Armor Options: Corrugated steel tape (CST), aluminum polyethylene laminate (APL), or unarmored
Compliance: IEC 60794-1, IEC 60794-3, ITU-T G.652D, RoHS, CE

Get a Competitive Quote for Outdoor Fiber Optic Cable for FTTH

Partner with a verified factory supplier to secure mill-direct rates on outdoor fiber optic cable for FTTH projects of any scale. We offer rapid sampling, flexible MOQ policies, and full technical documentation to streamline your procurement and deployment timelines.

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Rachel W.

United States

2025-02-02

Initial labeling issue resolved quickly — cable quality itself is good

We ordered 15,000 meters of G.652D GYXTW 6-core cable for a direct-burial FTTH pilot in Florida. The cable's optical performance was fine — attenuation within spec at both 1310 nm and 1550 nm. However, two reels arrived with reel footage labels that didn't match the packing list, which caused a delay in our site inventory check. I reported this and the supplier responded within 4 hours, sent corrected documentation by email the same day, and offered partial compensation on the next order. Issue resolved satisfactorily. Quality of the cable itself is not in question.

Thomas B.

United Kingdom

2025-02-24

Competitive factory pricing on ADSS cable — good performance-to-cost ratio

Sourced 60 km of ADSS 24-core cable for aerial FTTH deployment in the East Midlands. Factory-direct pricing came in 18% below our previous distributor quotes for equivalent IEC 60794-3 compliant product. Tensile strength performance (tested to 2,700 N) met our network operator's specifications. Delivery took 24 days, which was slightly longer than quoted but still within project tolerance. Full technical datasheet and CE documentation provided without request. Would rate 5 stars if lead time communication had been more proactive mid-shipment.

Omar A.

UAE

2025-03-18

Good value GYTA cable — minor MOQ flexibility would help smaller projects

Ordered 40 km of GYTA 48-core G.652D armored cable for a commercial FTTH project in Abu Dhabi. Cable quality is solid — attenuation at 1550 nm measured 0.18 dB/km, and the aluminum polyethylene laminate armor held up well in our conduit installations. Pricing was competitive at the volume we ordered. Only reason for 4 stars is that MOQ thresholds made it slightly difficult to trial a second cable type for a smaller parallel project. Overall a reliable factory partner and we'll continue ordering for larger scopes.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What types of outdoor fiber optic cables do you supply?

A:We supply aerial, direct buried, duct, armored, non-armored and ADSS all-dielectric outdoor fiber cables.

Q: What is the difference between armored and non-armored outdoor fiber cable?

Q: Can your outdoor fiber cables be used directly buried underground?

Q: What fiber types are available for outdoor cables?

Q: What is the operating temperature range of outdoor fiber cable?

Q: Do your outdoor fiber cables have waterproof performance?
