High Bandwidth Multi-Mode Fiber For Data Centers

Anxun optical fiber Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$285 1-49 kilometers Base price

$273 50-99 kilometers 4.2% off

$266 ≥100 kilometers 6.7% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 285.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of High Bandwidth Multi-Mode Fiber

Property	Parameter	Description
Optical Fiber Product Name	High Bandwidth Multi-Mode Fiber	Premium-grade multimode optical fiber engineered for high-speed, short-distance data transmission
Fiber Grade & ITU-T Classification	OM3 / OM4 / OM5 (ITU-T G.651.1)	Laser-optimized multimode fiber compliant with IEC 60793-2-10 Type A1a standards
Core & Cladding Diameter Range	Core: 50 μm / 62.5 μm; Cladding: 125 ± 1 μm	Tight tolerance on core/cladding concentricity ≤ 0.5 μm for low splice loss
Attenuation Coefficient at 850 nm	≤ 2.3 dB/km (OM3/OM4); ≤ 2.5 dB/km (OM5)	Measured per IEC 60793-1-40; optimized for VCSEL-based transmission systems
Attenuation Coefficient at 1300 nm	≤ 0.6 dB/km	Low attenuation at 1300 nm window supports extended reach multimode links
Effective Modal Bandwidth (EMB)	OM3: ≥ 2000 MHz·km; OM4: ≥ 4700 MHz·km; OM5: ≥ 4700 MHz·km @ 850 nm	Laser-optimized bandwidth enabling 10G/40G/100G/400G Ethernet over standard distances
Overfilled Launch Bandwidth (OFL)	≥ 1500 MHz·km @ 850 nm; ≥ 500 MHz·km @ 1300 nm	Supports legacy LED-based systems and ensures backward compatibility
Macrobending Loss Performance	≤ 0.5 dB per 100 turns @ radius 37.5 mm (850 nm)	Tested per IEC 60793-1-47; suitable for tight-bend installation environments
Chromatic Dispersion Coefficient	≤ 105 ps/(nm·km) @ 850 nm	Low dispersion profile supports high-speed serial and parallel optical interconnects
Numerical Aperture (NA)	0.200 ± 0.015 (50 μm core)	Optimized NA reduces differential mode delay and improves bandwidth performance
Batch Qualification Rate	≥ 99.5%	Each production batch undergoes 100% end-to-end optical parameter screening before shipment
Manufacturing Environment Standards	ISO Class 7 Cleanroom (ISO 14644-1); PCVD / OVD deposition process	Controlled cleanroom manufacturing ensures consistent refractive index profile and low defect rate
Core Raw Material Source	High-purity SiO₂ preform (OH⁻ content < 1 ppb)	Ultra-pure silica preform sourced from certified suppliers; traceable material certification provided

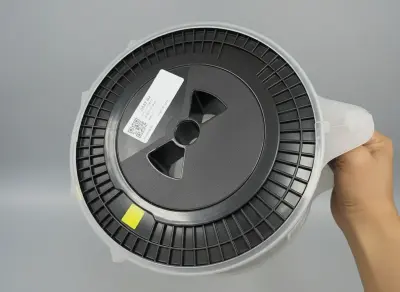

Packaging Specification	Wooden reel: 1 km / 2 km / 4 km per reel; carton box with moisture-proof inner lining	Standard EIA-455 reel dimensions; custom reel lengths available upon request
Storage Conditions	Temperature: -40°C to +70°C; Relative Humidity: ≤ 85% RH (non-condensing)	Store away from direct sunlight and corrosive chemicals; keep reel upright to prevent deformation
Valid Shelf Life	≥ 20 years under recommended storage conditions	Fiber coating and optical properties remain stable within specified environmental limits
Application Scenarios	Data center interconnects, LAN backbone, 5G fronthaul, HPC clusters, campus networks	Supports 10GbE / 40GbE / 100GbE / 400GbE over distances up to 400 m (OM4) per IEEE 802.3
Compliance & Certification	IEC 60793-2-10, ITU-T G.651.1, TIA-492AAAC (OM3) / TIA-492AAAD (OM4), RoHS 2011/65/EU	Full third-party test reports available; CE and UL listing upon request for specific markets
Minimum Order Quantity (MOQ)	10 km per fiber type/specification	Mixed-specification orders accepted; sample reels (1 km) available for qualification testing
Monthly Supply Capacity	500,000 km / month	Stable production capacity with safety stock maintained; lead time 2–4 weeks for standard orders

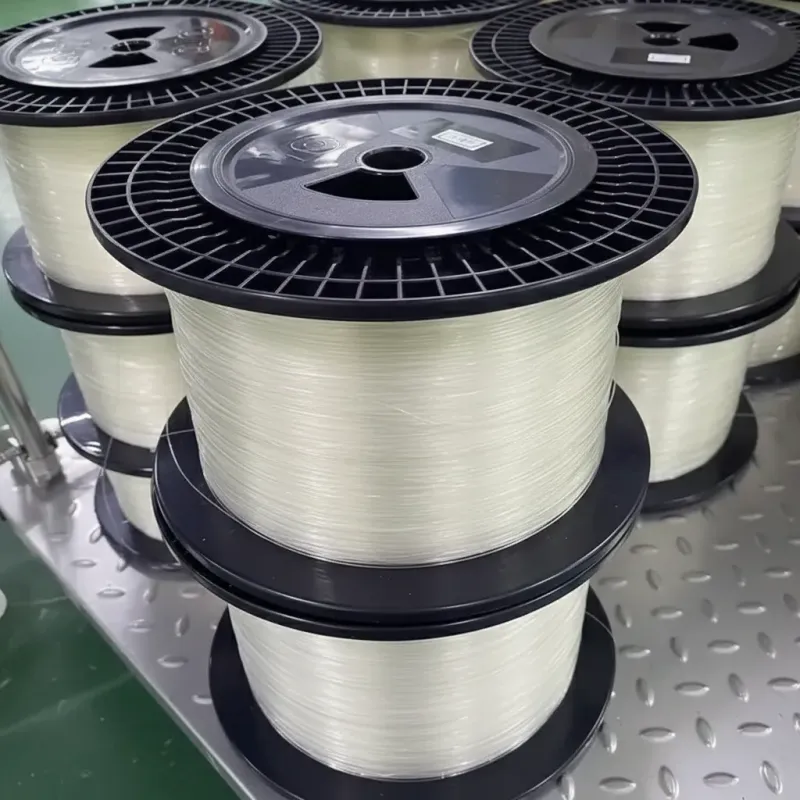

High Bandwidth Multi-Mode Fiber For Data Centers

High bandwidth multi-mode fiber has become the backbone of modern data center infrastructure, enabling ultra-fast, high-capacity optical transmission across short to medium distances. As global data traffic continues to surge driven by cloud computing, AI workloads, and enterprise digitalization, multimode fiber solutions are increasingly critical for achieving low-latency, high-throughput connectivity within hyperscale and enterprise data centers. With proven support for 10G, 25G, 40G, 100G, and 400G Ethernet applications, high bandwidth multi-mode fiber delivers the performance density and cost efficiency that network operators demand. Its compatibility with VCSEL-based transceivers further reduces total system cost while maintaining exceptional signal integrity across structured cabling environments, making it the preferred choice for intra-building backbone links, storage area networks, and high-performance computing clusters worldwide.

What is High Bandwidth Multi-Mode Fiber?

High bandwidth multi-mode fiber is an optical fiber type engineered with a larger core diameter—typically 50 µm or 62.5 µm—designed to carry multiple light modes simultaneously over short distances. Standardized under IEC 60793 and ITU-T G.651.1, modern OM3, OM4, and OM5 multimode fiber grades feature laser-optimized profiles that dramatically reduce modal dispersion, supporting effective modal bandwidth (EMB) values from 2000 MHz·km up to 28000 MHz·km for wideband applications.

High bandwidth multi-mode fiber supplier

High Bandwidth Multi-Mode Fiber Manufacturing and Production Process

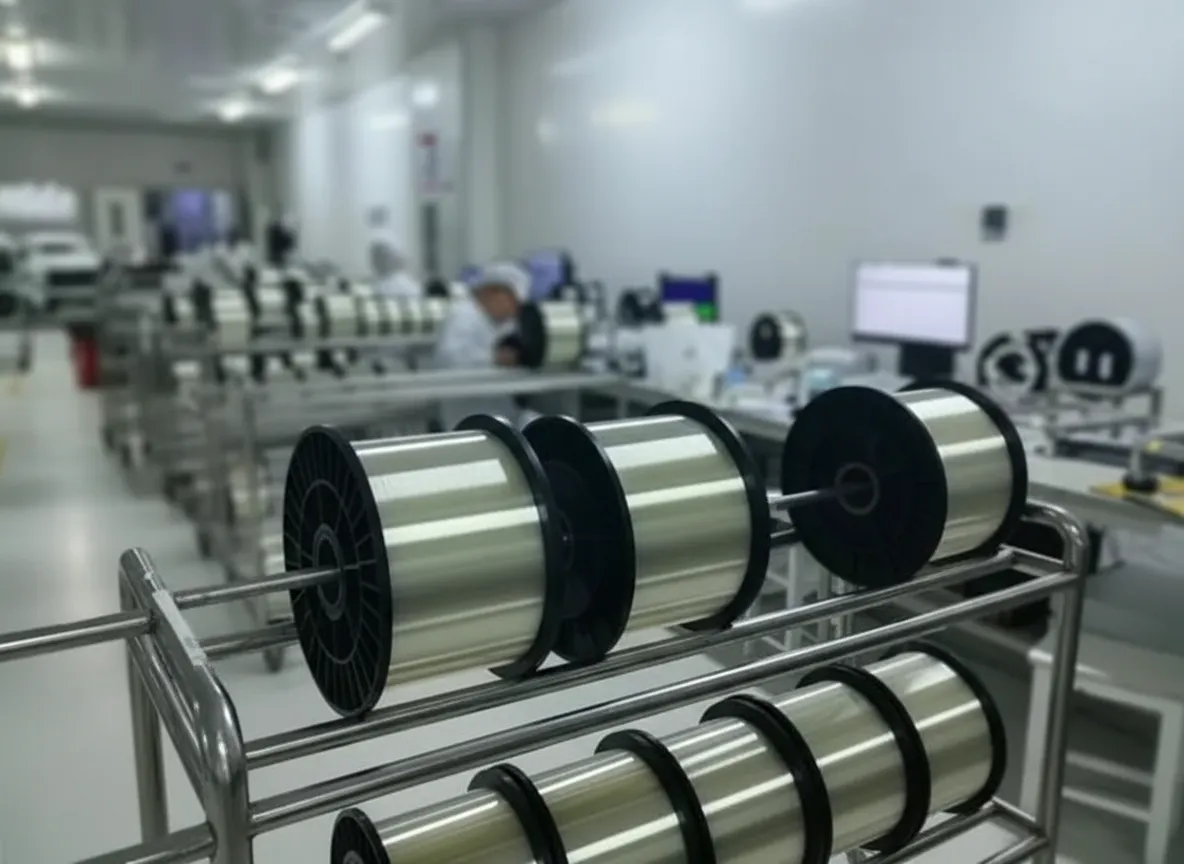

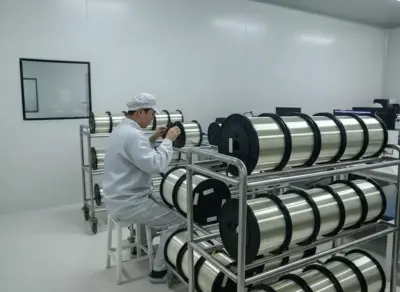

Production of high bandwidth multimode fiber begins with precision Modified Chemical Vapor Deposition (MCVD) or Outside Vapor Deposition (OVD) processes to form a graded-index preform with tightly controlled refractive index profiles. Fiber drawing is performed in ISO-certified cleanroom facilities under strict tension and temperature controls. Every reel undergoes 100% optical parameter testing including attenuation, bandwidth, and geometry verification, ensuring full compliance with IEC, TIA-492, and RoHS standards before shipment.

High bandwidth multi-mode fiber manufacturer

High Bandwidth Multi-Mode Fiber Technical Specifications

Key technical parameters for our high bandwidth multi-mode fiber product range include: core diameter of 50 µm ± 2.5 µm (OM3/OM4/OM5), numerical aperture of 0.200 ± 0.015, maximum attenuation of 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm, overfilled launch bandwidth ≥1500 MHz·km at 850 nm, effective modal bandwidth (EMB) ≥4700 MHz·km (OM4) and ≥28000 MHz·km (OM5 wideband), operating temperature range −60°C to +85°C, and cladding diameter 125 µm ± 1 µm.

Get a Competitive Quote for High Bandwidth Multi-Mode Fiber

Whether you are sourcing high bandwidth multi-mode fiber for a hyperscale data center build-out, FTTH backbone upgrade, or enterprise campus network, our team offers flexible bulk pricing, rapid global logistics, and full certification documentation to streamline your procurement process. Reach out now for a tailored solution.

24/7 expert optical communication engineer support
Full ITU-T, ISO, RoHS compliance guarantee for all batches
Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
Complete technical data sheets and on-site deployment guidance included

Contact us today to get your free quote and full specification sheet within 24 hours!

High bandwidth multi-mode fiber wholesale

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

David K.

United States

2025-02-01

Initial batch had labeling discrepancy — resolved quickly by supplier

Ordered 10,000 meters of OM4 multimode fiber for a high-performance computing cluster installation in Texas. On receipt, we noticed reel labels listed OFL bandwidth as ≥1200 MHz·km rather than the ≥1500 MHz·km specified in the product datasheet and our purchase order. Flagged this immediately to the support team. They responded within 4 hours, confirmed it was a print error on that label batch, provided corrected documentation, and optical test reports confirming actual performance exceeded ≥1500 MHz·km per TIA-492 requirements. Issue was fully resolved within 48 hours. Fiber performance itself was fine; communication was responsive.

Rachel M.

Australia

2025-02-23

Competitive OM4 pricing for data center fit-out, delivery was acceptable

Sourced 22,000 meters of OM4 fiber for a data center fit-out project in Sydney. The per-meter cost at bulk volume was around 15% lower than local distributors for equivalent IEC 60793-compliant OM4 grade. Bandwidth and attenuation specs verified on arrival. Delivery took 24 days door-to-door from order confirmation, which was within the quoted window but slightly longer than we hoped given project scheduling. Full certification documentation was complete and well-organized. Would consider this supplier again for future projects where lead time flexibility allows.

Stefan H.

Germany

2025-03-17

Good value OM3 fiber for enterprise campus — minor packaging feedback

Ordered 15,000 meters of OM3 multimode fiber for an enterprise campus network upgrade in Frankfurt. Optical parameters — attenuation ≤3.0 dB/km at 850nm and OFL bandwidth ≥1500 MHz·km — were confirmed by our acceptance tests against TIA-492AAAC. Pricing was noticeably more competitive than our previous European supplier for equivalent spec. One minor point: two reels had slightly loose outer drum packaging on arrival, though fiber integrity was unaffected. Raised with the team and they acknowledged it promptly. Overall good value; would order again with that packaging note addressed.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What types of multi-mode fiber do you supply?

A:We supply OM1, OM2, OM3, OM4 and OM5 multi-mode fiber cables and bulk fiber for different data transmission requirements.

Q: What is the difference between OM1, OM2, OM3, OM4 and OM5?

Q: What are the core and cladding diameters of multi-mode fiber?

Q: What applications are multi-mode fiber mainly used for?

Q: Do you offer indoor and outdoor multi-mode fiber cables?

Q: Can multi-mode fiber be mixed with single-mode fiber equipment?

Product display

Anxun Optical Fiber Co., Ltd. is a technology-driven enterprise specializing in the research, development, and manufacturing of high-quality optical fiber products and communication solutions. With a strong focus on innovation and precision engineering, the company provides a wide range of products, including fiber optic cables, connectivity components, and customized network solutions for telecommunications, data centers, and industrial applications.

Committed to international standards and strict quality control, Anxun ensures reliable performance and long-term durability in all its products. The company continuously invests in advanced production equipment and technical expertise to meet the evolving demands of global communication infrastructure. Guided by a customer-centric approach, Anxun Optical Fiber Co., Ltd. strives to deliver efficient, cost-effective, and sustainable solutions, building long-term partnerships with clients worldwide.
