Direct Burial Outdoor Fiber Cable Supplier & Factory
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 kilometers
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Direct Burial Outdoor Fiber
| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | Direct Burial Outdoor Fiber | Armored outdoor fiber optic cable designed for direct underground burial without conduit |
| Fiber Grade & ITU-T Classification | ITU-T G.652D / G.657A1 | Single-mode OS2 grade fiber, compliant with ITU-T G.652D standard for low water peak performance |
| Core & Cladding Diameter Range | Core: 9 µm / Cladding: 125 ± 0.7 µm | Standard single-mode core with tight cladding tolerance for consistent splice and connector performance |
| Attenuation Coefficient at 1310nm | ≤ 0.35 dB/km | Maximum attenuation at 1310 nm wavelength under standard test conditions per IEC 60793-1-40 |
| Attenuation Coefficient at 1550nm | ≤ 0.20 dB/km | Maximum attenuation at 1550 nm wavelength, optimized for long-haul and DWDM transmission |
| Macrobending Loss Performance | ≤ 0.10 dB at R=30 mm (100 turns, 1550 nm) | Low macrobend sensitivity suitable for installation in tight routing paths and burial environments |
| Chromatic Dispersion Coefficient | ≤ 18 ps/(nm·km) at 1550 nm | Dispersion value within ITU-T G.652D limits, supporting high-speed data transmission up to 10 Gbps |
| Batch Qualification Rate | ≥ 99.5% | Per-batch optical and mechanical parameter pass rate verified by full-reel OTDR and tensile testing |
| Manufacturing Environment Standards | ISO 9001:2015 / IEC 60794-1 | Produced in dust-controlled facilities meeting ISO cleanroom requirements and IEC cable construction standards |
| Core Raw Material Source | High-purity SiO₂ preform (OVD/MCVD process) | Optical-grade silica preform sourced from certified suppliers; free from OH-ion contamination |
| Packaging Specification | Wooden drum / 1000 m, 2000 m, 4000 m per reel | Moisture-resistant wooden drums with sealed end caps; reel dimensions labeled per IEC 60794-1-1 |
| Storage Conditions | Temperature: -20°C to +60°C; Humidity: ≤ 85% RH | Store in dry, shaded warehouse away from direct sunlight, chemicals, and mechanical stress |
| Valid Shelf Life | 25 years (installed) / 2 years (uninstalled, sealed) | Designed service life of 25 years when buried per installation guidelines; 2-year shelf life on sealed reels |
| Application Scenarios | Direct underground burial, campus networks, rural broadband, utility corridors | Suitable for FTTx, municipal infrastructure, oil & gas field networks, and inter-building backbone links |
| Compliance & Certification | ITU-T G.652D, IEC 60794-1, RoHS 2011/65/EU, UL Listed | Fully compliant with international fiber and cable standards; RoHS-compliant jacket materials |
| Minimum Order Quantity (MOQ) | 2,000 m (1 reel) | Minimum purchase of one standard reel; custom reel lengths available for orders ≥ 10,000 m |
| Monthly Supply Capacity | 500,000 m / month | Standard production capacity; surge capacity up to 800,000 m/month with 30-day advance scheduling |
Direct Burial Outdoor Fiber Cable Supplier & Factory
Direct burial outdoor fiber cable stands as one of the most essential infrastructure components in modern telecommunications, enabling reliable underground connectivity across municipal networks, campus backbones, utility corridors, and long-haul broadband deployments. Engineered specifically for direct-in-ground installation without the need for conduit, this rugged outdoor fiber solution delivers exceptional performance in the harshest soil and environmental conditions. As global demand for high-speed broadband, smart city infrastructure, and fiber-to-the-home (FTTH) networks continues to accelerate, direct burial outdoor fiber has become the preferred choice for network engineers and contractors seeking cost-effective, durable, and low-maintenance underground cabling. Our factory supplies premium-grade direct burial fiber cables to telecom operators, ISPs, government agencies, and EPC contractors worldwide, combining advanced manufacturing capabilities with strict quality control to ensure every reel meets international performance benchmarks.
What is Direct Burial Outdoor Fiber?
Direct burial outdoor fiber cable is a specialized underground optical fiber cable designed to be installed directly into soil, sand, or trench environments without requiring protective conduit. It features armored construction — typically with corrugated steel tape (CST) or gel-filled loose tube designs — that provides mechanical crush resistance, moisture protection, and rodent deterrence. Compliant with ITU-T G.652D and G.657A standards, these cables are built to withstand UV exposure, temperature extremes, and soil movement over decades of service life.
Direct Burial Outdoor Fiber Manufacturing and Production Process

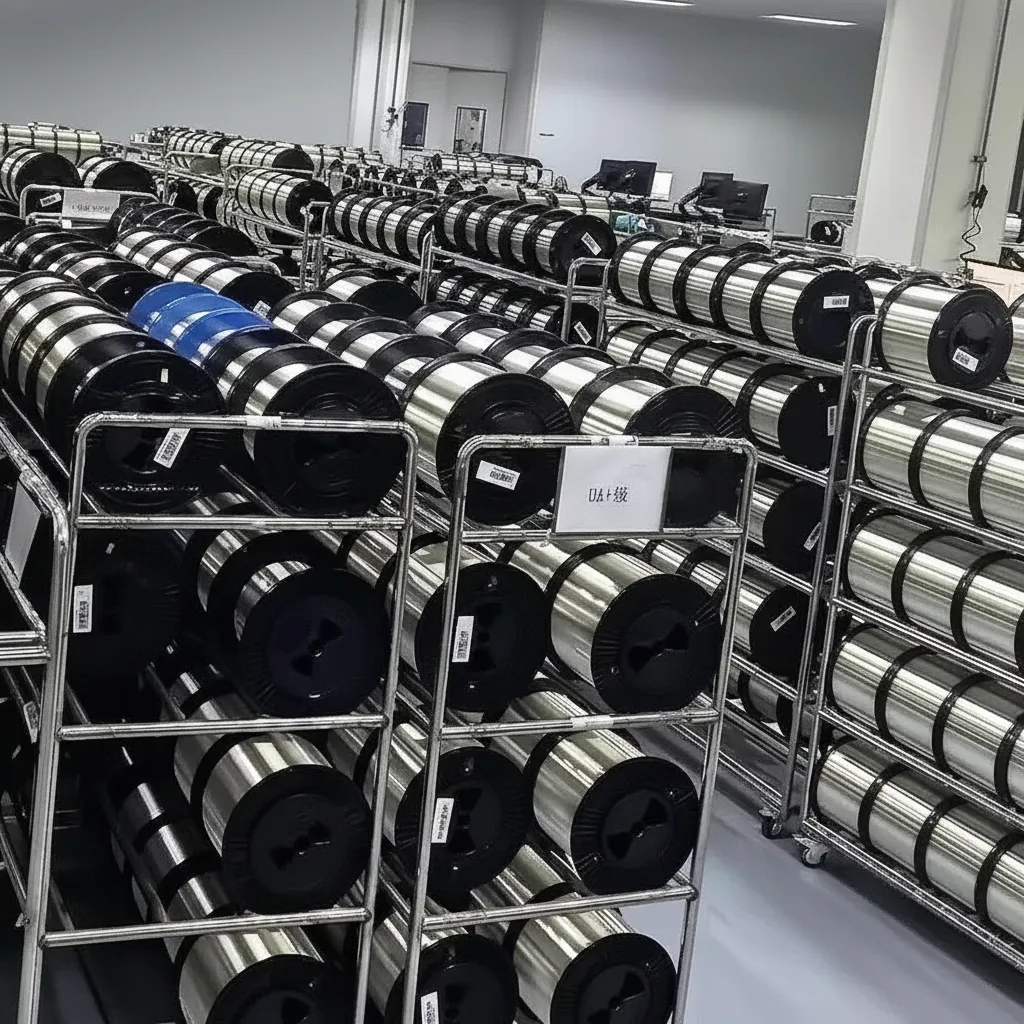

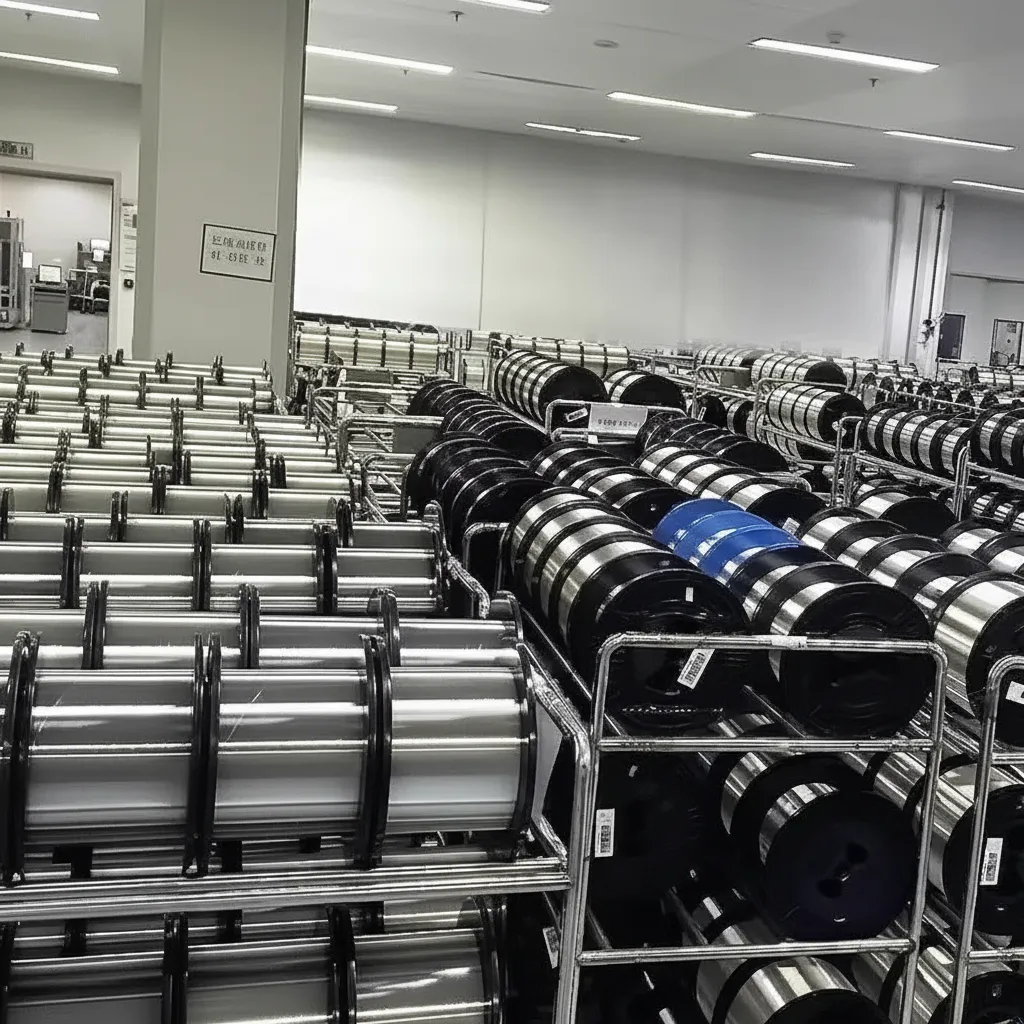

Our direct burial outdoor fiber cables are manufactured in ISO 9001-certified production facilities equipped with precision fiber drawing towers, SZ stranding lines, and automated gel-filling systems. The production process begins with ITU-T compliant single-mode or multimode fiber, followed by loose tube formation, water-blocking gel injection, corrugated steel armor application, and UV-resistant polyethylene (PE) jacket extrusion. Each production batch undergoes 100% attenuation testing, tensile load verification, and crush resistance inspection prior to shipment, ensuring full RoHS and IEC 60794 compliance.
Direct Burial Outdoor Fiber Technical Specifications
Our direct burial outdoor fiber cables are available in configurations from 2 to 288 fiber counts, supporting single-mode (G.652D, G.657A1/A2) and OM3/OM4 multimode options. Key parameters include: attenuation ≤0.20 dB/km at 1550 nm, tensile strength up to 2,700 N, crush resistance ≥3,000 N/100 mm, operating temperature range −40°C to +70°C, minimum bend radius 20× cable diameter, and standard PE jacket thickness of 2.0–3.5 mm. Cable outer diameters range from 10 mm to 22 mm depending on fiber count and armor configuration.
Get a Competitive Quote for Direct Burial Outdoor Fiber
Source your direct burial outdoor fiber cable directly from our factory and benefit from competitive wholesale pricing, flexible MOQ policies, and fast global shipping via sea, air, or express freight. We support OEM labeling, custom fiber counts, and project-specific packaging for large-scale telecom, FTTH, and utility deployments. Request your quote today and receive a full technical specification sheet within 24 hours.
- 24/7 expert optical communication engineer support
- Full ITU-T, ISO, RoHS compliance guarantee for all batches
- Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
- Complete technical data sheets and on-site deployment guidance included
Contact us today to get your free quote and full specification sheet within 24 hours!
