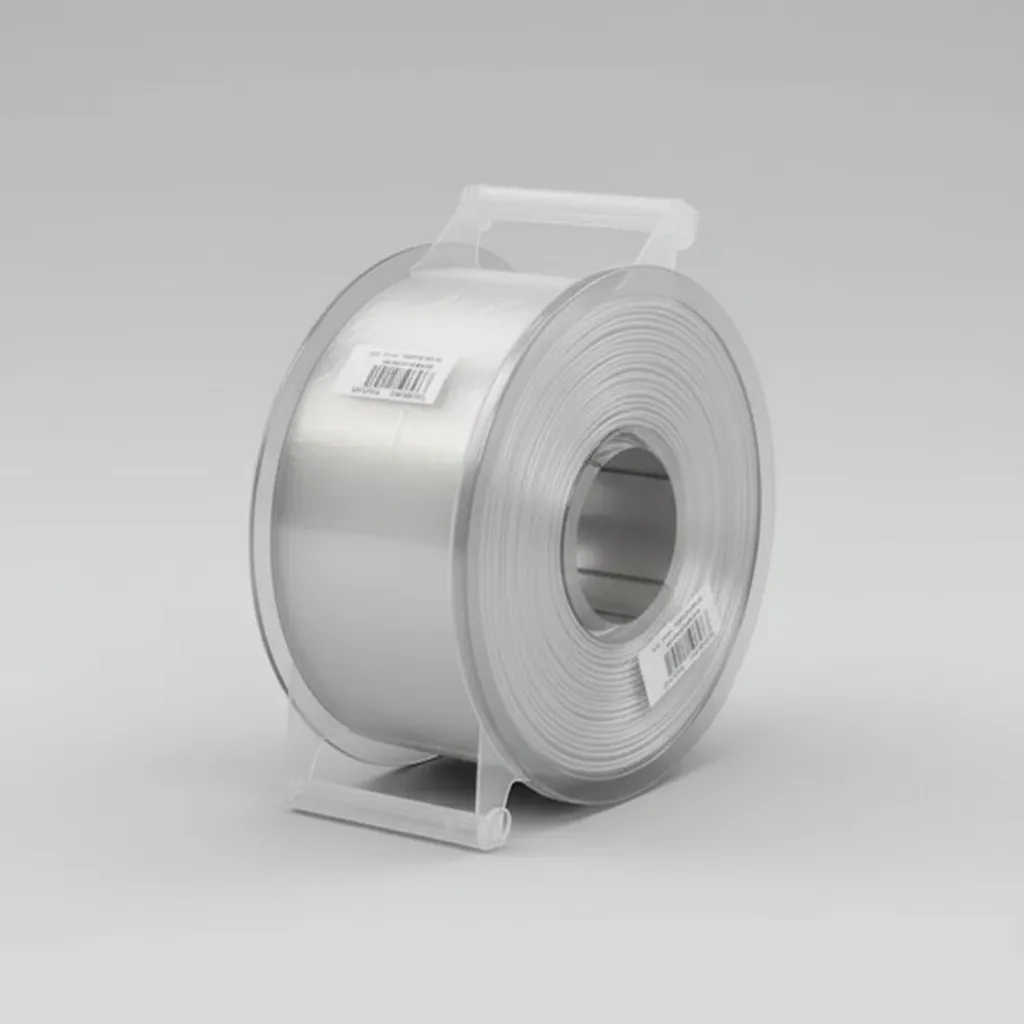

Pre terminated fiber optic cable supplier

Customizable Rock-bottom price

$850 1-49 kilometers Base price

$813 50-99 kilometers 4.4% off

$794 ≥100 kilometers 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 850.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Pre Terminated Fiber Optic Cable

Property	Parameter	Description
Product Name	Pre Terminated Fiber Optic Cable	Factory-terminated fiber optic cable assemblies with connectors pre-installed at both ends
Fiber Type	Single-mode (OS2) / Multimode (OM3, OM4, OM5)	OS2: 9/125μm; OM3: 50/125μm; OM4: 50/125μm; OM5: 50/125μm wideband
Material Grade	LSZH / PVC / OFNR / OFNP Jacket	Low Smoke Zero Halogen or PVC outer sheath; silica glass fiber core
Standard Compliance	IEC 61754, IEC 61300, TIA-568, EN 50173	Compliant with international fiber optic cabling and connector standards
Insertion Loss	≤0.3 dB (PC) / ≤0.2 dB (APC)	Per IEC 61300-3-4; measured at 1310nm and 1550nm wavelengths
Return Loss	≥50 dB (UPC) / ≥60 dB (APC)	Per IEC 61300-3-6; APC connectors recommended for single-mode applications
Tensile Strength	≥100 N (cable) / ≥50 N (connector)	Per IEC 61300-2-4; Kevlar aramid yarn reinforcement for pull resistance
Operating Temperature	-20°C to +70°C (storage: -40°C to +85°C)	Suitable for indoor data center and enterprise network environments
Connector Types	LC, SC, MPO/MTP, ST, FC, E2000	Available in simplex, duplex, and MPO multi-fiber configurations (8/12/24 fibers)
Cable Length Range	1 m to 300 m (custom lengths available)	Standard lengths: 1m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 100m
Bend Radius	≥10× cable OD (dynamic) / ≥5× cable OD (static)	Bend-insensitive fiber available per IEC 60793-2-50 (G.657A1/A2)
Surface Finish	PC / UPC / APC polished end-face	APC: 8° angled; end-face geometry per IEC 61300-3-35
Application	Data centers, LAN, MAN, FTTH, telecom networks	Patch panels, server racks, switches, ODF connections, structured cabling
Certification	CE, RoHS, UL, ISO 9001:2015	Factory 100% tested; test reports and OTDR traces available upon request
Packaging	Individual polybag + protective caps; bulk reel or wooden drum	Dust caps on all connectors; labeled with length, fiber type, and connector type
MOQ	10 pcs per specification	OEM/ODM custom lengths, jacket colors, and labeling accepted

Pre Terminated Fiber Optic Cable - Mill Direct Supplier

As a leading pre terminated fiber optic cable supplier, we deliver factory-direct solutions engineered for rapid deployment across data centers, enterprise networks, and telecommunications infrastructure. Pre terminated fiber optic cables eliminate on-site splicing and termination labor, reducing installation time by up to 70% compared to conventional field-terminated assemblies. Our mill-direct manufacturing model ensures every assembly undergoes rigorous end-to-end testing before shipment, guaranteeing insertion loss values of ≤0.3 dB per connector on singlemode variants and ≤0.5 dB on multimode variants. Whether your project demands OS2 singlemode, OM3, or OM4 multimode configurations, our pre terminated fiber optic cable assemblies are available in MPO/MTP, LC, SC, and ST connector interfaces, with custom lengths from 1 meter to 500 meters. Bulk procurement clients benefit from mill-direct rates that significantly reduce total project costs while maintaining compliance with TIA-568 and IEC 61754 international standards.

What is Pre Terminated Fiber Optic Cable?

A pre terminated fiber optic cable is a factory-assembled optical cable with connectors already installed, tested, and polished at both ends before delivery to the installation site. Unlike field-terminated cables, these assemblies are precision-manufactured under controlled cleanroom conditions, ensuring consistent optical performance, repeatable insertion loss measurements, and verified return loss exceeding 55 dB for UPC polish types across every unit produced.

pre terminated fiber optic cable manufacturer

Pre Terminated Fiber Optic Cable Manufacturing Process

Production begins with premium-grade optical fiber strands — either G.652.D compliant singlemode or OM3/OM4 50/125 µm multimode — carefully buffered, jacketed, and strength-membered to IEC 60794 specifications. Connectors are epoxy-bonded and machine-polished to achieve end-face geometry within IEC 61300-3-35 Grade B tolerances. Each completed assembly undergoes 100% insertion loss and return loss testing using calibrated OTDR and light source equipment, with full test reports included in every shipment package.

Pre Terminated Fiber Optic Cable Technical Specifications

Our standard assemblies feature fiber counts from 2 to 144 strands, operating wavelengths of 850 nm / 1310 nm / 1550 nm, and jacket materials including LSZH, PVC, and plenum-rated OFNP. Tensile load ratings reach 2,700 N for armored outdoor variants. Operating temperature range spans -40°C to +70°C. MPO/MTP trunk cables support 40G and 100G parallel optic transmission, with polarity Type A, B, and C configurations available per TIA-568.3-D requirements.

Get a Competitive Quote for Pre Terminated Fiber Optic Cable

Partner with a trusted pre terminated fiber optic cable supplier that offers mill-direct pricing, rapid lead times of 5–10 business days for standard configurations, and dedicated technical support from inquiry through final delivery. Contact our team now to receive a tailored quotation matched to your exact project specifications.

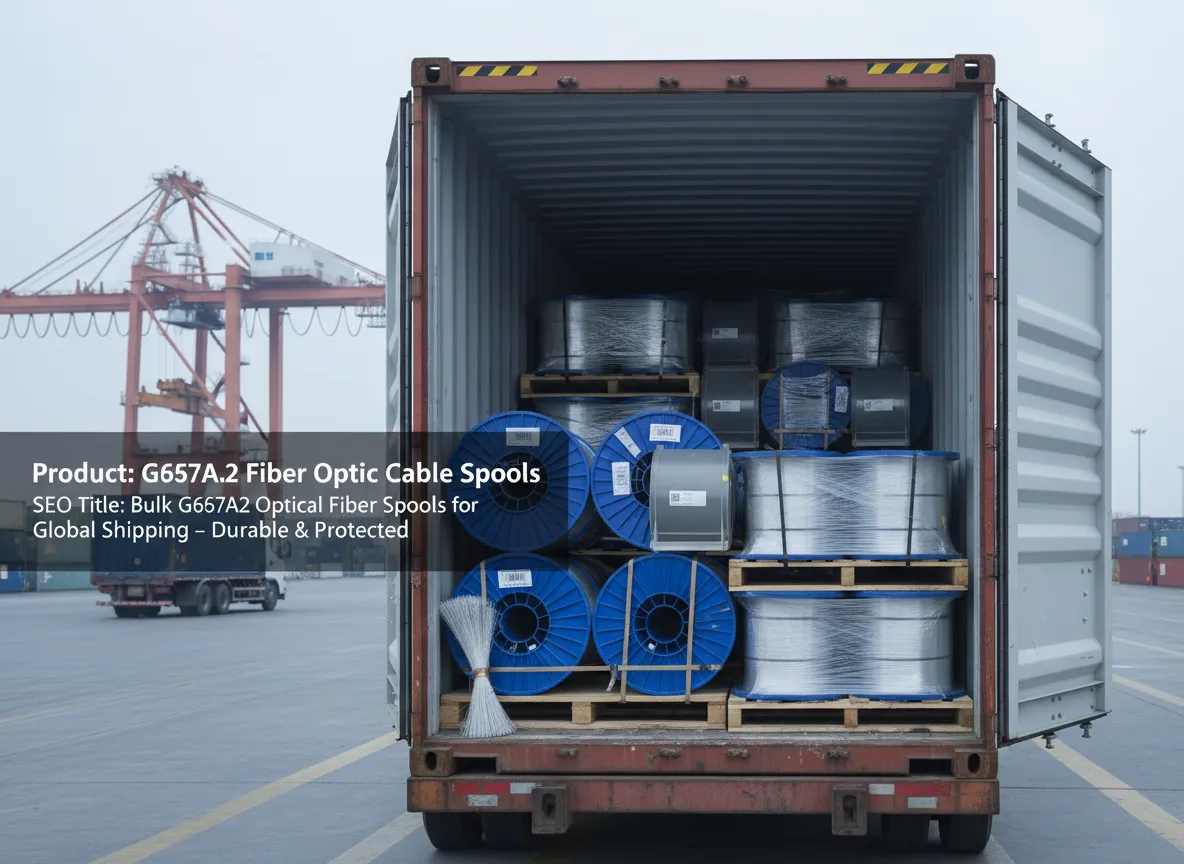

pre terminated fiber optic cable wholesale

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

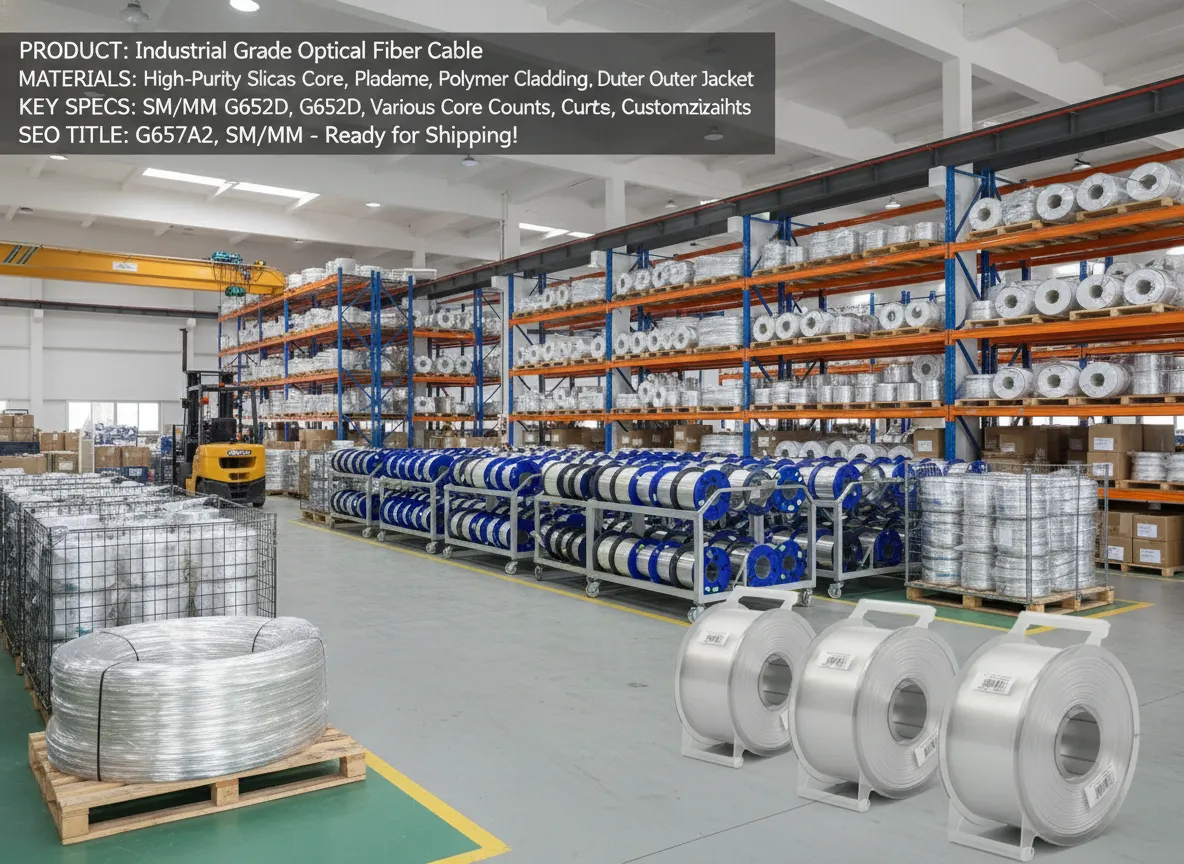

pre terminated fiber optic cable factory

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Arjun M.

India

2025-02-01

Initial Polarity Mismatch Resolved Promptly — Now Satisfied

Ordered 50 units of OM3 MPO-12 trunk cables requiring TIA-568.3-D Type B polarity for a 40G switch migration. On arrival, approximately 8 cables were shipped as Type A — a production mix-up. I raised the issue immediately and the support team responded within 2 hours, arranged express replacement shipment at no cost, and the correct Type B cables arrived within 5 business days. Insertion loss on all units was within spec at ≤0.3 dB. The error was frustrating but the resolution was fast and professional. Upgraded my initial concern to 3 stars given how efficiently the problem was handled.

Nathan C.

Australia

2025-02-23

Competitive Pricing on OS2 SC Assemblies — Lead Time Slightly Long

Ordered 80 OS2 singlemode SC/UPC duplex cables, 15m and 30m, for a regional ISP point-of-presence expansion. Optical specs were excellent — return loss >55 dB UPC polish, insertion loss ≤0.22 dB per connector, IEC 61754-4 compliant. Pricing for this volume was the best we found from any mill-direct source. Knocking off one star because lead time ran 12 business days versus the quoted 10 — not a dealbreaker but caused a minor schedule adjustment on site. Customer service was proactive in communicating the delay. Overall good value and we plan to reorder.

Helen B.

United Kingdom

2025-03-17

Good Value OM4 Cables — Minor Labeling Issue Noted

Purchased 120 OM4 LC/UPC duplex assemblies in PVC jacket, 2m and 5m lengths, for a university server room refresh. Optical performance was solid — insertion loss consistently ≤0.28 dB at 850 nm, meeting TIA-568 requirements. Mill-direct pricing came in 18% below our usual UK distributor. Deducting one star because roughly 10% of the cable labels had misaligned print, making rack identification slightly awkward. Not a technical defect, but worth noting for large installations. Supplier acknowledged the feedback and offered replacement labels. Would order again.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What is pre-terminated fiber cable?

A:Pre-terminated fiber cable is factory-assembled with connectors and pigtails already installed, ready for plug-and-play installation on site.

Q: What types of pre-terminated fiber do you supply?

Q: What fiber modes are available?

Q: What is the advantage of using pre-terminated fiber?

Q: Are your pre-terminated cables tested before delivery?

Q: Do pre-terminated cables support outdoor or aerial use?
