| Property | Parameter | Description |
|---|---|---|

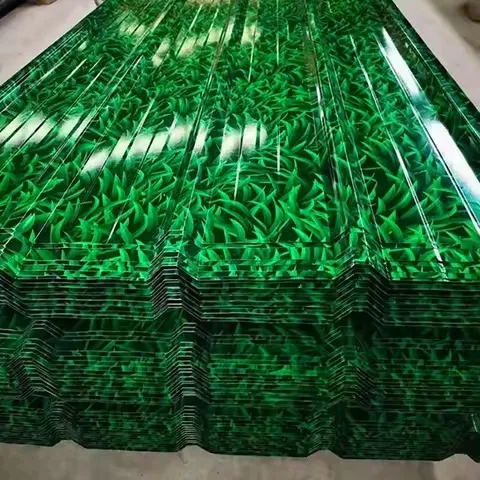

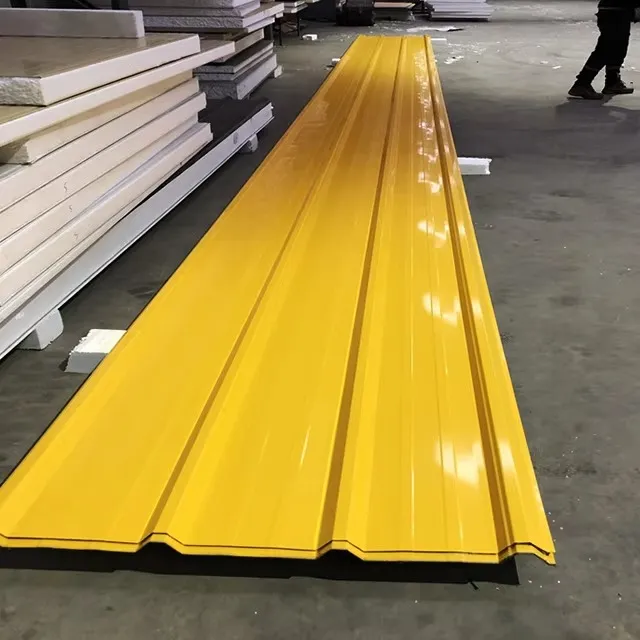

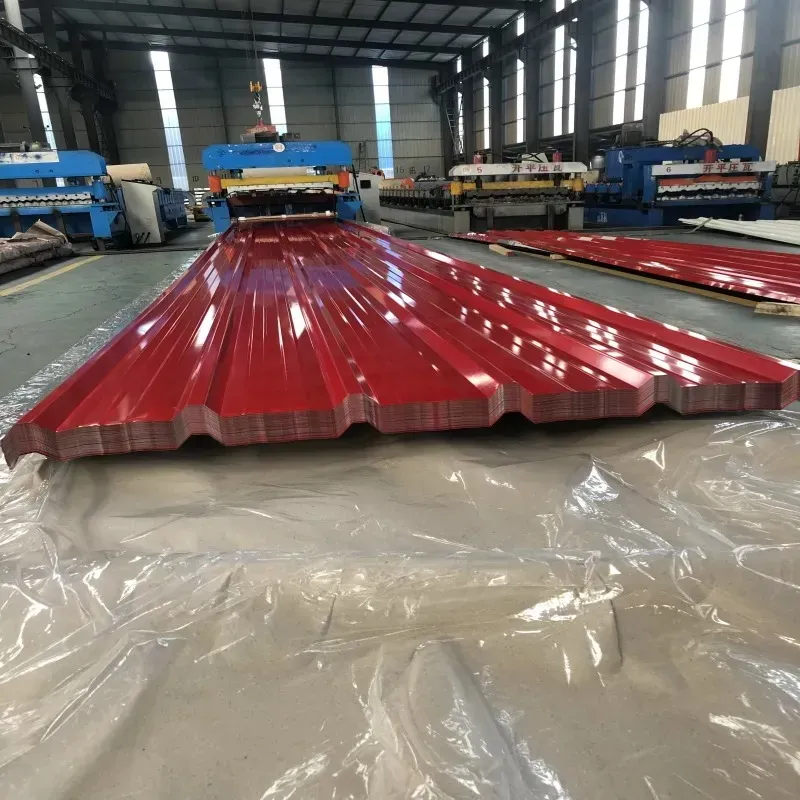

| Product Name | Waterproof Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with waterproof coating |
| Material Grade | DX51D, DX52D, SGCC, G550 | Equivalent to ASTM A653, EN 10346, JIS G3302 base metal grades |
| Standard Compliance | ASTM A755, EN 10169, GB/T 12754 | Covers prepainted metallic coated steel sheet for building applications |
| Chemical Composition | C≤0.12%, Mn≤0.60%, P≤0.10%, S≤0.045%, Si≤0.50% | Base steel composition; zinc or zinc-aluminum alloy coating applied for corrosion resistance |
| Tensile Strength | 270–560 MPa | Varies by grade; DX51D min. 270 MPa, G550 min. 550 MPa per AS 1397 |
| Yield Strength | 140–550 MPa | DX51D min. 140 MPa; high-strength grades up to 550 MPa |
| Elongation | ≥12%–22% | Measured at gauge length A80; varies by grade and thickness |
| Thickness Range | 0.12–1.50 mm (base metal) | Total thickness including coating; common: 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm |
| Width Range | 600–1,250 mm | Standard coil widths; custom slit widths available upon request |
| Length | Coil or 1,000–12,000 mm sheets | Cut-to-length sheets or full coils; coil weight typically 3–10 MT |
| Coating Type | Zinc (Z60–Z275 g/m²), Galvalume (AZ50–AZ150 g/m²) | Hot-dip zinc or 55% Al-Zn alloy coating for enhanced waterproof performance |
| Paint Coating | Top coat 15–25 μm; primer 5–7 μm; back coat 7–15 μm | Polyester (PE), PVDF, SMP, or HDP; PVDF offers superior UV and weather resistance |
| Surface Finish | Smooth, embossed, matte, or high-gloss | RAL color system available; custom colors upon request; no spangle or regular spangle |
| Application | Roofing, wall cladding, warehouses, cold storage, prefab buildings | Widely used in construction, agriculture, industrial facilities requiring waterproof performance |
| Certification | ISO 9001, SGS, BV, CE | Third-party inspection available; mill test certificate (MTC) provided per EN 10204 3.1 |

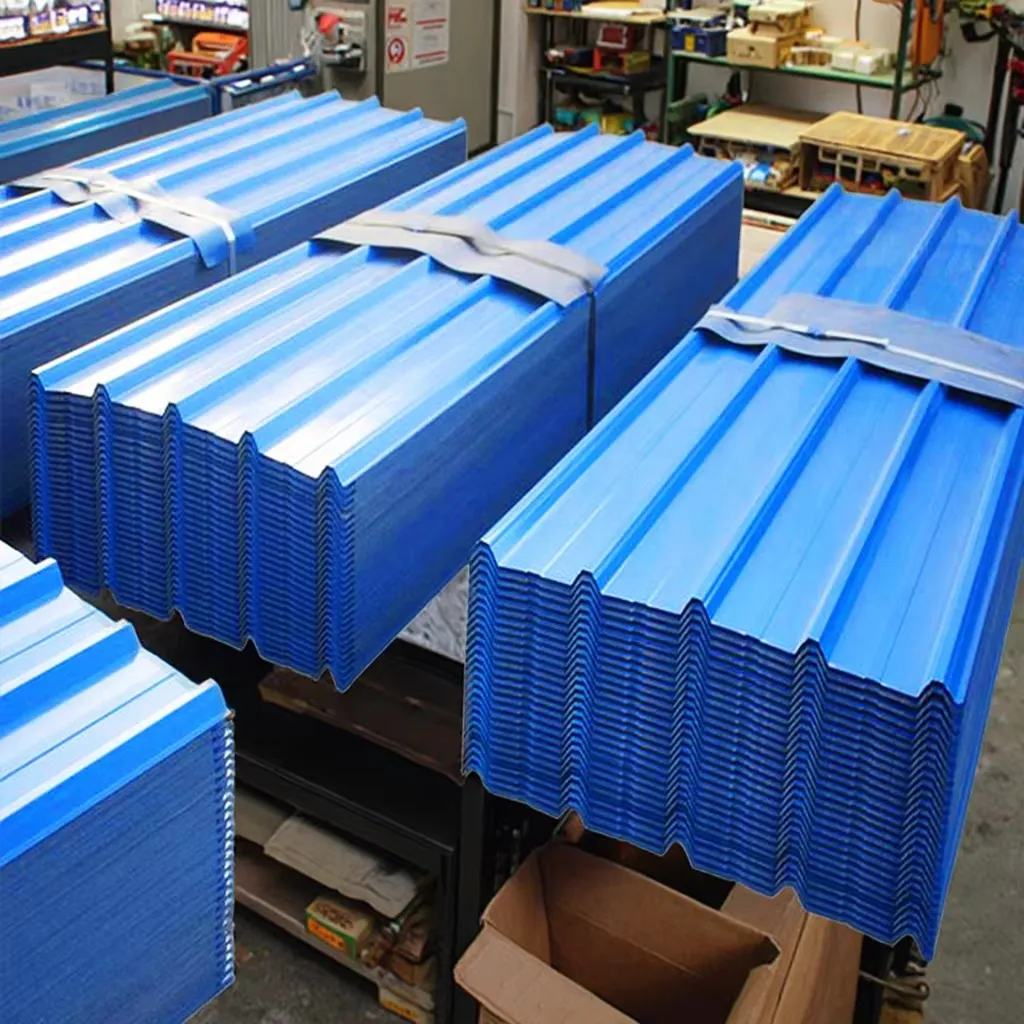

| Packaging | Coils: eye-to-sky or eye-to-wall with waterproof paper and steel strip | Sheets: bundled with wooden pallet; seaworthy export packaging standard |
| MOQ | 5 MT per color/specification | Mixed container orders accepted; standard 20 ft container loads 20–25 MT |
Initial coil width tolerance issue — fully resolved by supplier
Our first order of 40 tons of 0.35 mm PE-coated galvanized sheet (Z120, 1,200 mm wide) arrived with three coils measuring 1,185–1,190 mm — outside our ±5 mm tolerance per ASTM A755. We flagged this immediately. The supplier acknowledged the slitting variance, issued a credit note for the affected coils within 48 hours, and sent replacement coils at no additional freight cost. Subsequent delivery was within tolerance. Product coating quality was fine throughout — 500+ hour salt-spray and pencil hardness 2H both confirmed. Appreciate the fast resolution; will trial a second order to see if consistency holds.
Our first order of 40 tons of 0.35 mm PE-coated galvanized sheet (Z120, 1,200 mm wide) arrived with three coils measuring 1,185–1,190 mm — outside our ±5 mm tolerance per ASTM A755. We flagged this immediately. The supplier acknowledged the slitting variance, issued a credit note for the affected coils within 48 hours, and sent replacement coils at no additional freight cost. Subsequent delivery was within tolerance. Product coating quality was fine throughout — 500+ hour salt-spray and pencil hardness 2H both confirmed. Appreciate the fast resolution; will trial a second order to see if consistency holds.
