Embossed Color Coated Steel For Durable Building Panels

Technical Specifications of Embossed Color Coated Steel

Embossed Color Coated Steel

Embossed Color Coated Steel combines a formed surface pattern with a pre-painted steel coating for buyers sourcing durable, visually distinctive panels for construction and industrial projects. It is commonly purchased by building-material distributors, roofing and wall-panel manufacturers, modular building companies, warehouse contractors, and OEM fabricators. The embossed finish can add texture, help mask minor handling marks, and create a differentiated architectural appearance, while the metallic substrate and organic coating system provide a specification-based solution for exterior or interior use. Buyers can configure the product according to substrate type, coating system, profile, thickness, width, color, surface pattern, packaging, and project requirements.

Product Overview: Embossed Color Coated Steel

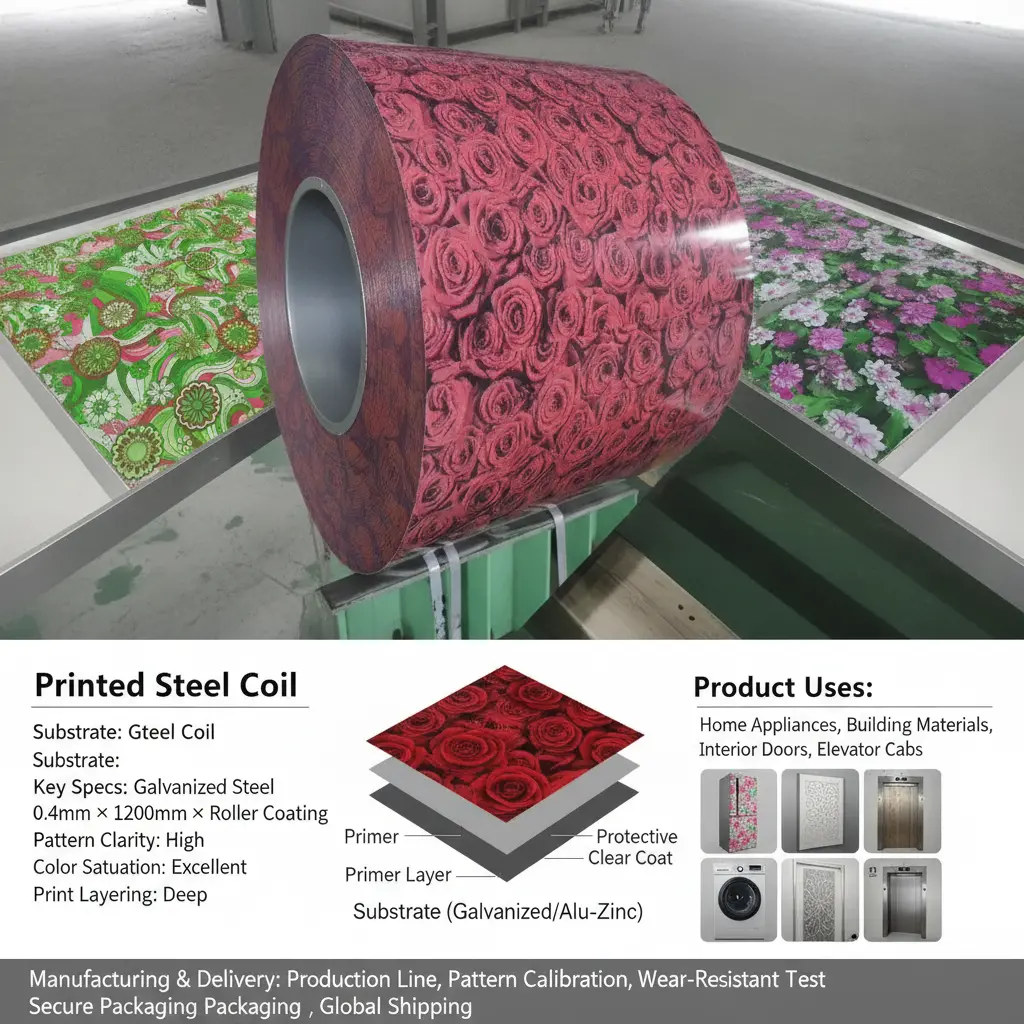

Embossed Color Coated Steel is steel sheet or coil that has been manufactured with a textured or patterned surface and then protected with a factory-applied organic coating system. Depending on the production route, embossing may be applied to the steel substrate, metallic-coated sheet, or finished coated sheet. The exact sequence should be confirmed with the supplier because it can affect surface appearance, coating integrity, flatness, and forming behavior.

The product normally consists of several functional layers:

• Steel substrate: The base steel provides structural strength and dimensional stability.
• Metallic coating: Galvanized zinc or aluminum-zinc coating may be selected to improve corrosion resistance, subject to the applicable specification.
• Chemical pretreatment: Pretreatment supports coating adhesion and corrosion performance.
• Primer and topcoat: The organic coating provides color, appearance, and additional environmental protection.
• Embossed surface: A controlled pattern creates visual texture and may support specific design or functional requirements.

Typical coating families may include polyester, modified polyester, silicon-modified polyester, polyurethane, or other systems selected for the intended exposure and forming conditions. The suitable option depends on weathering requirements, color retention, fabrication method, cleaning conditions, and project design life. For related substrate options, buyers may also review [[INTERNAL_LINK]] and [[INTERNAL_LINK]].

Specifications & Standards

Embossed Color Coated Steel should be specified by measurable characteristics rather than appearance alone. The purchase specification should identify the steel grade, metallic coating type and mass, organic coating system, nominal thickness, width, embossing pattern, color, tolerances, surface condition, testing requirements, and packaging method.

Commonly referenced international standards include:

• ASTM A755/A755M: Steel sheet with metallic coating by the hot-dip process and prepainted by the coil-coating process for exterior applications.
• ASTM A653/A653M: Steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process, where galvanized substrate requirements apply.
• ASTM A792/A792M: Steel sheet, 55% aluminum-zinc alloy-coated by the hot-dip process, where an aluminum-zinc substrate is selected.
• EN 10169: Continuously organic coated steel flat products, including performance considerations for coating systems.
• EN 10346: Continuously hot-dip coated steel flat products, including metallic coating designations and delivery requirements.
• JIS G3322: Prepainted hot-dip coated steel sheet and coil requirements in the Japanese Industrial Standards system.
• GB/T 12754: Color-coated steel sheet and strip requirements under the Chinese national standard system.

The applicable standard should be agreed before ordering. A supplier may offer production according to one standard, an equivalent customer specification, or a project-specific technical data sheet. Equivalence should not be assumed without reviewing the grade, coating designation, test method, and acceptance criteria.

For chemical composition and mechanical properties, the values should come from the selected steel grade and the governing standard. A mill test certificate should identify the heat or coil, applicable standard, grade, nominal dimensions, coating information, and test results where required. Do not use a generic chemistry or tensile-property table across different grades, because the limits vary by standard and product designation. Buyers needing formal documentation can request [[INTERNAL_LINK]] and a sample inspection checklist before production.

Applications

Embossed Color Coated Steel is suitable for projects where surface appearance, repeatable panel production, and defined corrosion protection are important. The final application should match the coating system and substrate to the actual environment.

• Architectural wall and façade panels: Embossed textures can provide a patterned appearance for commercial, retail, industrial, and public buildings.

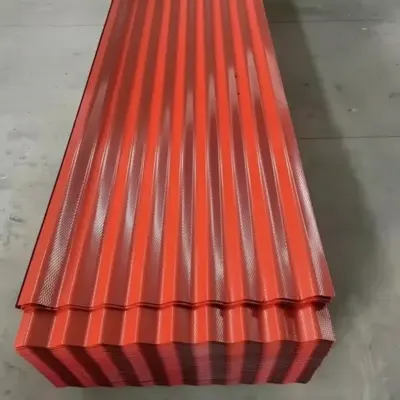

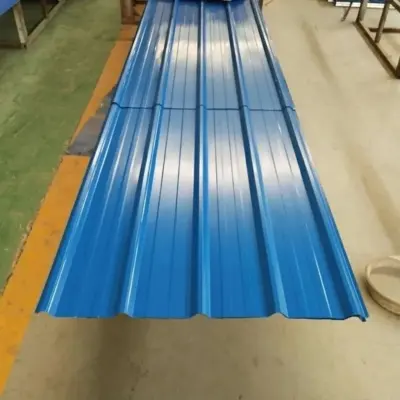

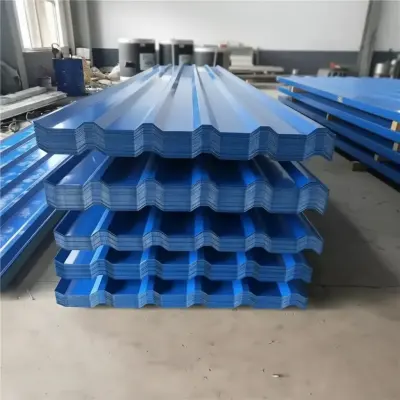

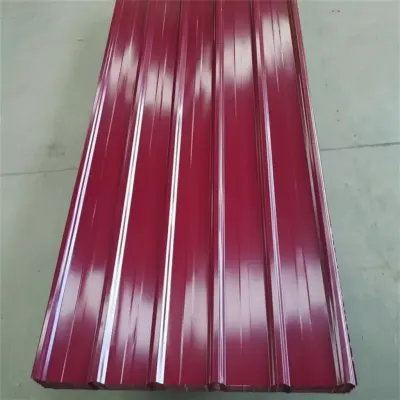

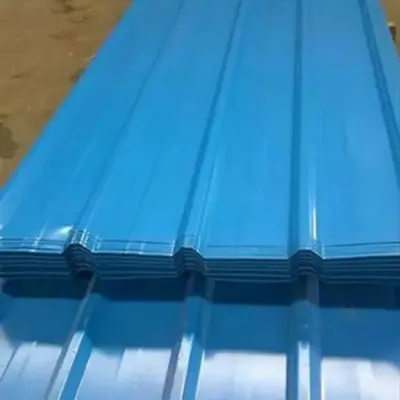

• Roofing and siding systems: The material can be processed into profiled sheets or panels when the selected grade and coating are compatible with roll forming.
• Modular and prefabricated buildings: Coil or cut sheet may be used for exterior panels, partitions, and enclosure components.
• Industrial and agricultural buildings: Warehouses, workshops, equipment shelters, and other structures may use coated embossed panels for cladding or interior surfaces.
• OEM and fabricated components: Manufacturers can use the sheet for doors, enclosures, decorative panels, partitions, and formed components subject to tooling and design validation.

For applications with continuous immersion, severe chemical exposure, high-temperature service, or demanding fire-performance requirements, the buyer should request project-specific technical confirmation rather than relying only on a color-coated steel designation. Related products such as [[INTERNAL_LINK]] may be more suitable for particular building systems.

How to Choose / Buying Guide

1. Confirm the end-use environment

Start with the building location and exposure conditions. Coastal, industrial, humid, polluted, or high-UV environments may require a different metallic coating and organic coating system than a protected indoor application. The supplier should evaluate the intended use against the relevant standard and technical data sheet.

2. Select the substrate and forming grade

Embossing and subsequent roll forming can influence flatness, elongation, springback, and surface appearance. Provide the planned process, minimum bend requirements, panel geometry, and tooling information. If the sheet will be deeply formed, a grade selected only for appearance may not be sufficient.

3. Define the appearance precisely

Color should be identified through an agreed color reference, physical sample, or approved master panel. Also define gloss, embossing pattern, embossing direction, surface side, protective film requirements, and acceptable variation between production lots. A digital color image alone is not a reliable final approval reference.

4. Request complete certification

Ask for a certificate of analysis or mill test certificate, coating information, dimensional inspection data, and any agreed coating-performance test reports. Confirm whether the documentation covers the substrate, metallic coating, organic coating, and embossing requirements. If the project requires third-party inspection, define the inspection point before production begins. Buyers can also compare [[INTERNAL_LINK]] for documentation requirements.

5. Clarify MOQ, lead time, and shipment terms

Minimum order quantity depends on the mill, color, embossing tooling, width, thickness, and whether the order is coil or cut sheet. It should be confirmed in the quotation rather than assumed. Lead time may include material allocation, tooling preparation, production, inspection, packing, and shipment. Request the proposed Incoterm, loading condition, package dimensions, gross weight, and document list so the landed cost can be evaluated accurately.

6. Review packaging and handling

Embossed and pre-painted surfaces can be vulnerable to scratching, edge damage, and moisture entrapment during transport. Agree on coil or sheet orientation, separators, wrapping, labeling, lifting points, and storage instructions. The packaging should support the route and handling method, especially for long-distance ocean transportation.

Frequently Asked Questions

Q: What is the difference between Embossed Color Coated Steel and ordinary prepainted steel?

A: Embossed Color Coated Steel has a controlled textured surface in addition to the metallic substrate and organic coating system. Ordinary prepainted steel may have a smooth or lightly textured surface. The embossed pattern must be specified because it can affect appearance, forming, thickness measurement, and handling.

Q: Can Embossed Color Coated Steel be roll formed?

A: It can be roll formed when the selected grade, coating system, embossing pattern, thickness, and tooling are compatible. Buyers should provide the forming profile and bend requirements so the supplier can confirm suitability and recommend a trial where necessary.

Q: Which standards can be used for this product?

A: Common references include ASTM A755/A755M, ASTM A653/A653M, ASTM A792/A792M, EN 10169, EN 10346, JIS G3322, and GB/T 12754. The correct standard depends on the substrate, coating system, destination market, and project specification.

Q: Can the product be supplied with a mill test certificate?

A: Certification can normally be requested as part of the purchase specification. Confirm the required certificate format, traceability information, test scope, and whether third-party inspection is needed before placing the order.

Q: What is the minimum order quantity?

A: MOQ is not universal. It may vary according to width, thickness, color, embossing pattern, coating specification, production schedule, and whether custom tooling is required. Request a project-specific quotation for an accurate MOQ and price basis.

Q: How long is the delivery time?

A: Lead time depends on material availability, technical confirmation, tooling, production capacity, inspection, packaging, and shipping arrangements. The supplier should provide a schedule after confirming all specifications and the agreed delivery term.

Q: What payment methods are available?

A: Payment terms are agreed between the buyer and supplier and may depend on order value, customer history, destination, and trade terms. The quotation should clearly state the payment method, deposit requirement if any, balance timing, banking details, and conditions for releasing shipping documents.

Send your required standard, substrate, thickness, width, embossing pattern, color, coating system, quantity, destination, and target delivery date to request a tailored quotation for Embossed Color Coated Steel. Our team can help compare feasible specifications, documentation, packaging, and shipment options for your project.
