| Property | Parameter | Description |
|---|---|---|

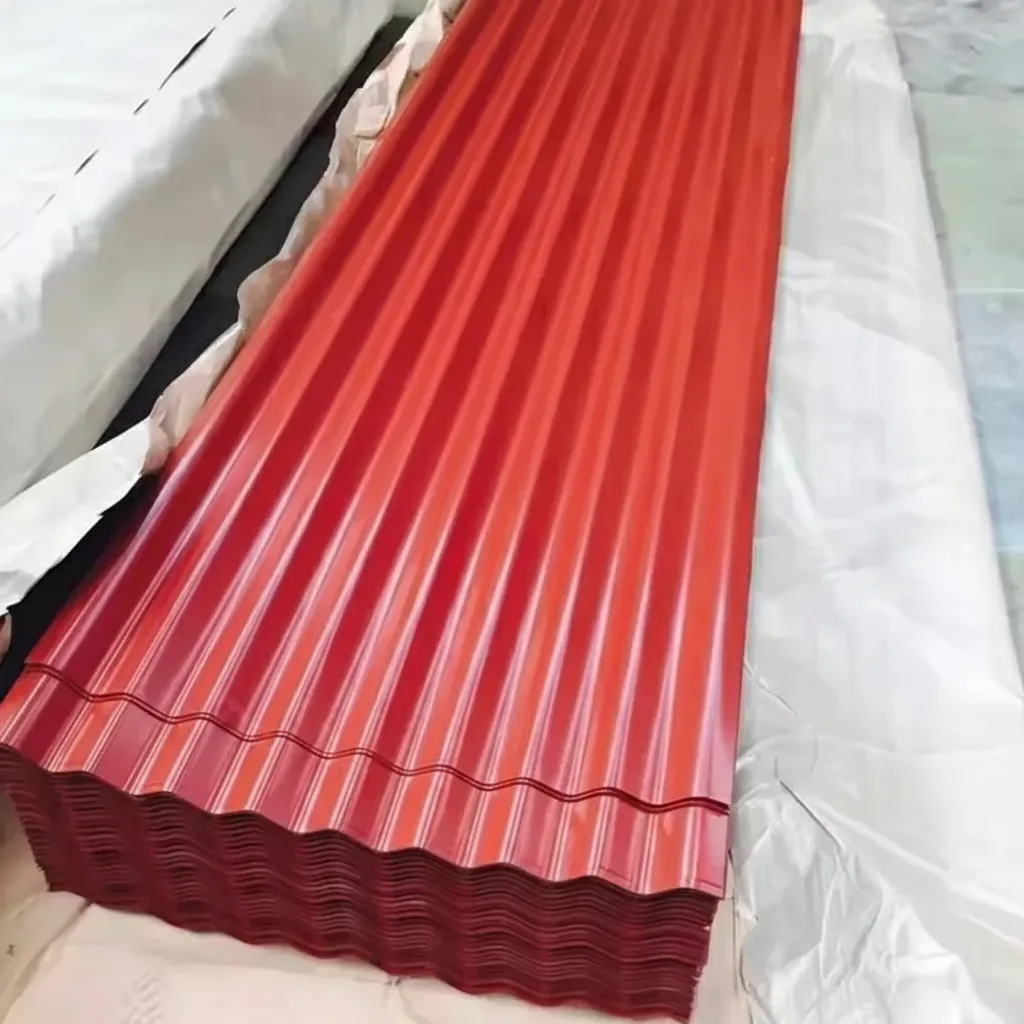

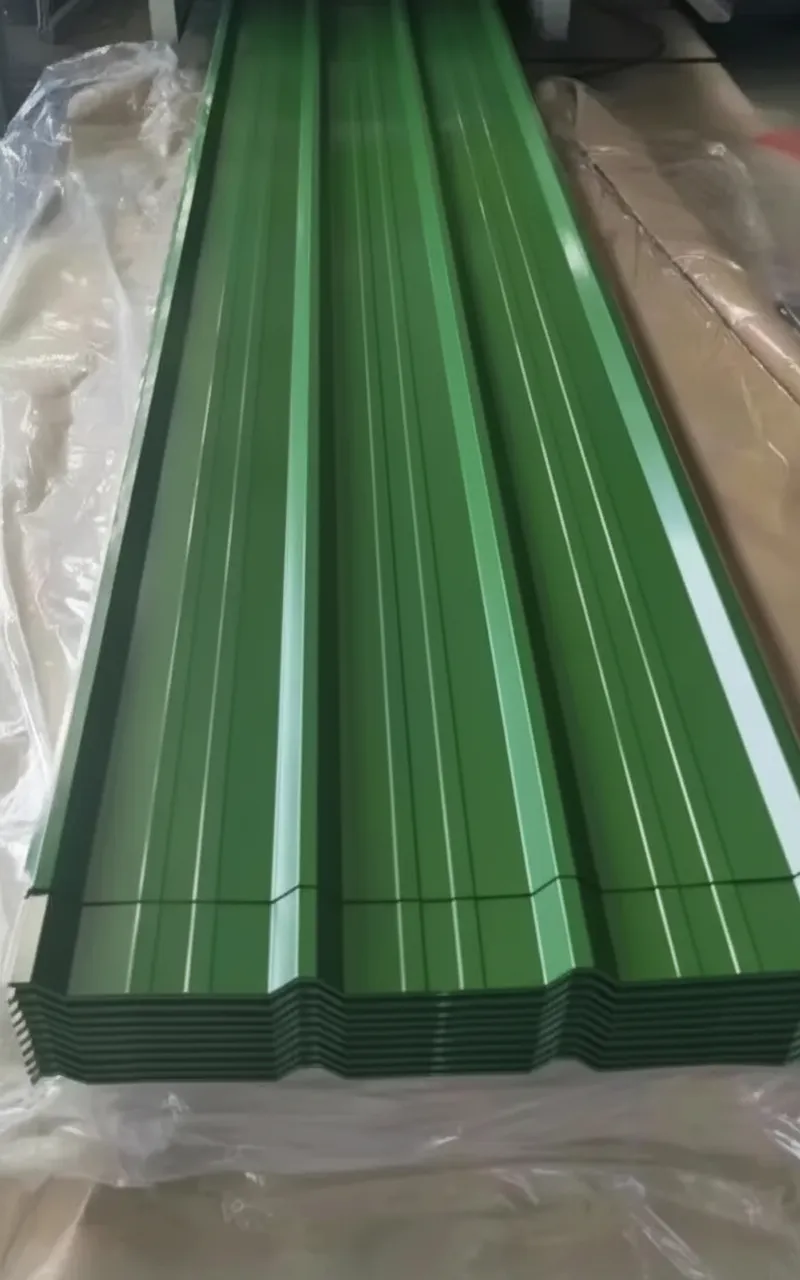

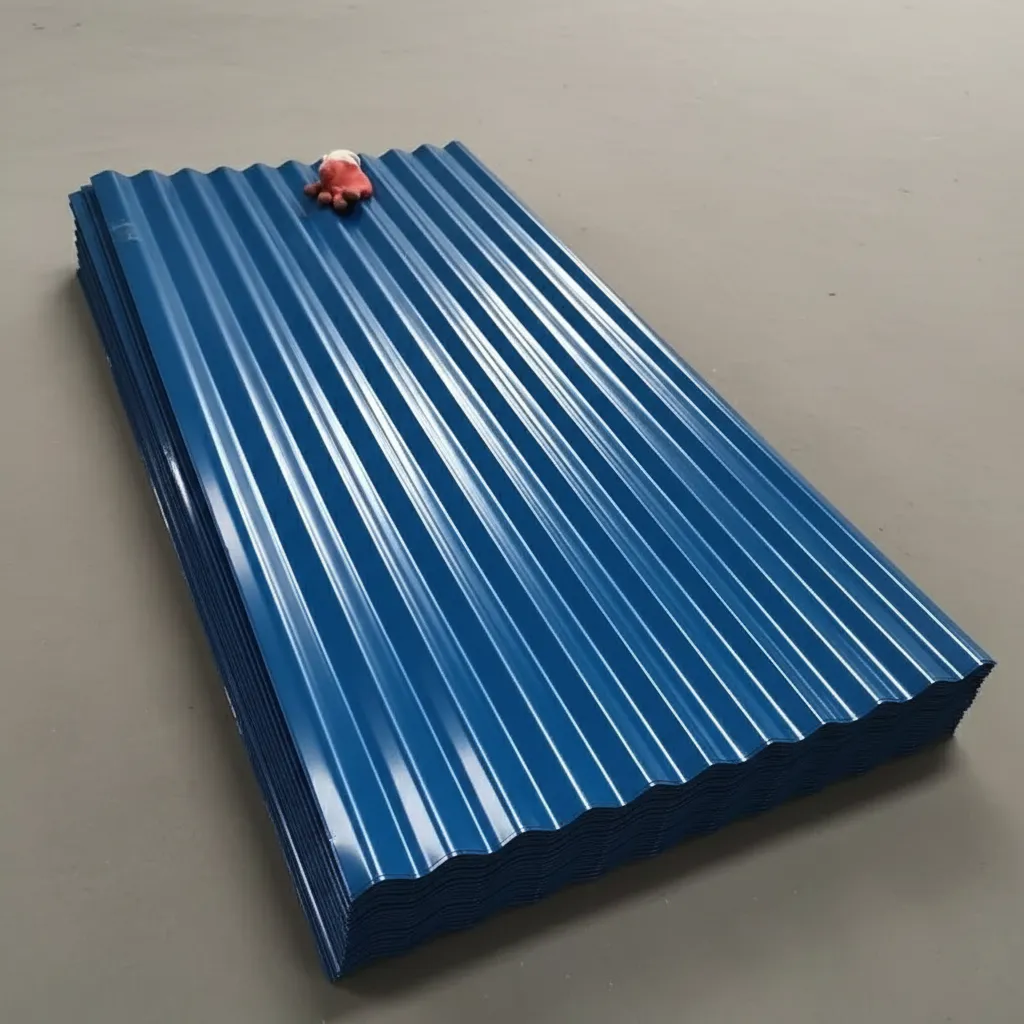

| Product Name | Heat Reflective Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with high solar reflectance coating |
| Material Grade | DX51D, DX52D, S280GD, S350GD | Equivalent to ASTM A755M, JIS G3312, EN 10169 substrate grades |
| Standard Compliance | ASTM A755M, EN 10169, JIS G3312, GB/T 12754 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base steel chemistry per EN 10169 / GB/T 12754 requirements |
| Tensile Strength | 270–550 MPa | Varies by substrate grade; S350GD achieves up to 550 MPa per EN 10346 |
| Yield Strength | 220–420 MPa | Minimum yield strength per corresponding substrate grade specification |
| Elongation | ≥16–22% | Longitudinal elongation at fracture per EN 10169 / ASTM A755M |
| Solar Reflectance (SRI) | TSR ≥ 70% (cool roof grade) | Total Solar Reflectance measured per ASTM E903; reduces surface temperature by 15–25°C |
| Coating System | PVDF, SMP, HDP, PE (polyester) | Top coat 20–25 µm; primer 5–7 µm; back coat 7–12 µm; IR-reflective pigment technology |
| Zinc/Zinc-Alloy Coating | Z100–Z275 g/m², AZ100–AZ150 g/m² | Hot-dip galvanized (GI) or galvalume (GL/Zn-Al-Mg) base for corrosion resistance |
| Thickness Range | 0.30–1.50 mm (base metal) | Total thickness including coating; custom thickness available on request |
| Width Range | 600–1,250 mm | Slit coil or sheet width; tolerance ±2 mm per EN 10169 |
| Length / Coil Weight | Sheets: 1,000–6,000 mm; Coils: 3–8 MT | Cut-to-length sheets or full coils; inner diameter 508/610 mm |
| Surface Finish | Smooth, embossed, matte, high-gloss | RAL/custom color matching; gloss level 10–80 GU (60° geometry) |
| Application | Roofing, wall cladding, industrial buildings, warehouses, cold storage | Ideal for energy-efficient construction in high-solar-radiation climates |
| Certification | ISO 9001, CE Marking, ENERGY STAR (cool roof), SGS/BV inspection | Third-party test reports for solar reflectance and coating adhesion available |

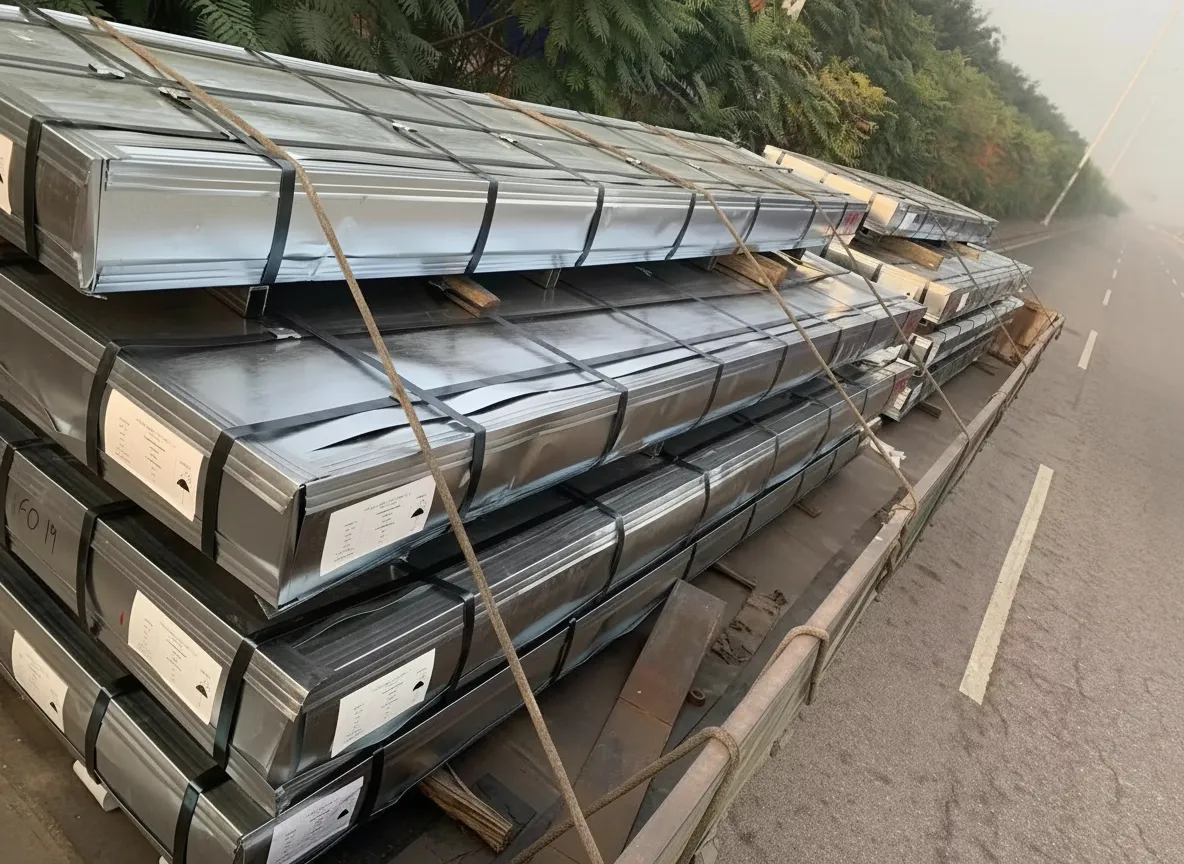

| Packaging | Coils: steel-banded with waterproof paper; Sheets: wooden pallet + stretch film | Export seaworthy packaging; moisture-proof inner wrapping standard |
| MOQ | 25 MT per order (mixed specifications accepted) | Sample orders negotiable; lead time 15–25 days after order confirmation |
Initial Coating Thickness Issue — Resolved Promptly
Our first order of 20 tons of 0.40mm polyester reflective sheet showed dry film thickness averaging 13μm on one coil rather than the specified 15–25μm range. We reported this with measurement data and the supplier responded within 24 hours, issued a replacement coil at no charge, and provided a revised QC checklist for future production runs. The replacement coil measured 18μm consistently. Solar Reflectance on all other coils met ≥0.65 per ASTM E1980. The issue resolution was professional. We have since placed a follow-up order and quality has been consistent.
