| Property | Parameter | Description |
|---|---|---|

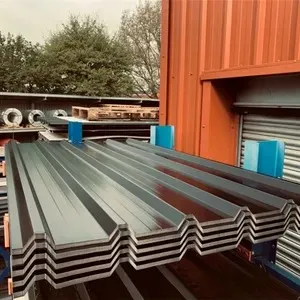

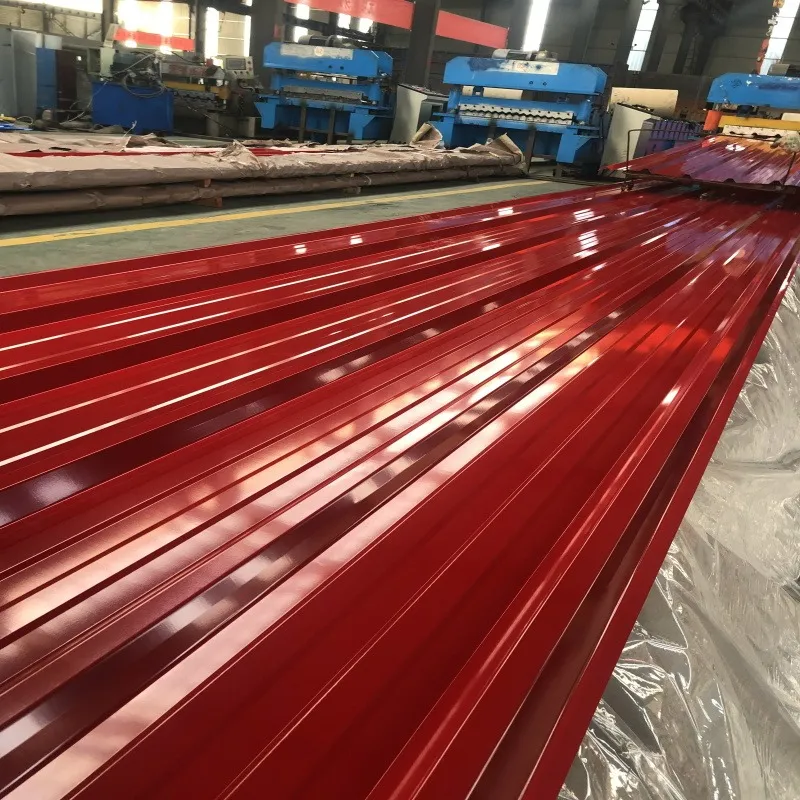

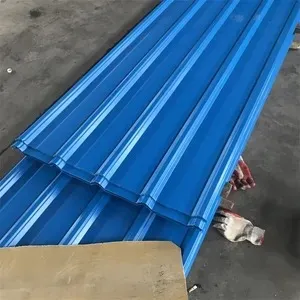

| Product Name | Color Steel Sheet | Factory wholesale pre-painted galvanized/galvalume steel sheet with color coating |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD | Equivalent to ASTM A653, EN 10346, JIS G3302 substrate grades |
| Standard Compliance | GB/T 12754, EN 10169, ASTM A755/A755M, JIS G3312 | International standards for continuously organic-coated flat-rolled steel |
| Chemical Composition (Substrate) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Base metal chemistry for DX51D/SGCC grade cold-rolled galvanized substrate |
| Coating Type | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat options; PVDF offers superior UV resistance and 20+ year durability |
| Zinc Coating Mass | Z60–Z275 (g/m²) / AZ50–AZ150 (Galvalume) | Hot-dip zinc or zinc-aluminum alloy coating per EN 10346 / ASTM A653 |
| Tensile Strength | 270–500 MPa | Per GB/T 12754 and EN 10169; varies by substrate grade and temper |
| Yield Strength | 140–420 MPa | Rp0.2; DX51D min. 140 MPa, higher grades up to 420 MPa |
| Elongation | ≥ 16–36% | A80 elongation; DX53D ≥ 36% for deep drawing applications |
| Thickness Range | 0.14 mm – 1.50 mm | Total thickness including coating; base metal 0.12–1.40 mm |
| Width Range | 600 mm – 1,250 mm | Standard coil widths; custom slit widths available upon request |
| Surface Finish | Smooth, Embossed, Matte, High Gloss | Top coat gloss range 10–90 GU (60° angle); RAL color customization available |
| Paint Thickness | Top coat: 15–25 μm; Primer: 5–7 μm; Back coat: 7–12 μm | Dry film thickness per EN 13523-1; ensures corrosion and weather resistance |
| Application | Roofing, wall cladding, sandwich panels, home appliances, garage doors, warehouses | Widely used in construction, industrial buildings, and household appliance manufacturing |
| Certification | ISO 9001:2015, CE Marking, SGS, BV | Quality management and product conformity certifications for export markets |
| Packaging | Steel coil on wooden/steel pallet, eye-to-sky or eye-to-wall; waterproof paper + steel strip | Export-standard packaging to prevent moisture and mechanical damage during transit |
| MOQ | 25 MT per order (coil); 5 MT for cut-to-length sheets | Factory direct wholesale pricing available for orders ≥ 25 MT; mixed colors accepted |
Coating thickness was slightly off on first batch — resolved promptly
Initial order of 30 tonnes of 0.45 mm PE-coated sheet, Z150, for commercial wall cladding in Melbourne. Our QC team measured top-coat thickness at 13–14 µm on several coils, below the 15 µm minimum stated in the spec and ASTM A755. We raised this immediately. The supplier acknowledged the variance, provided a formal corrective action report within 48 hours, and arranged replacement coils at no additional cost. The replacement batch measured 18–20 µm consistently. Communication throughout was professional. Issue was resolved satisfactorily — rating reflects the initial shortfall, not the final outcome.
