| Property | Parameter | Description |
|---|---|---|

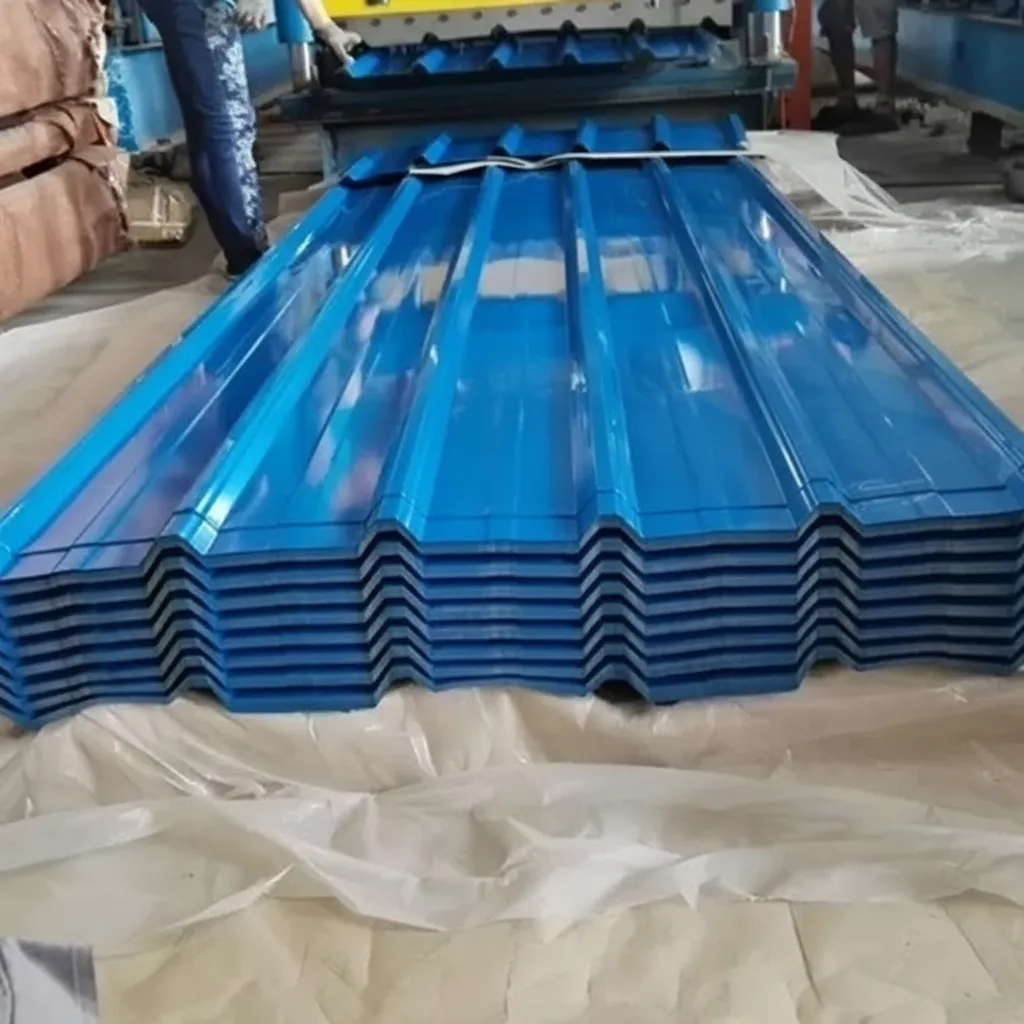

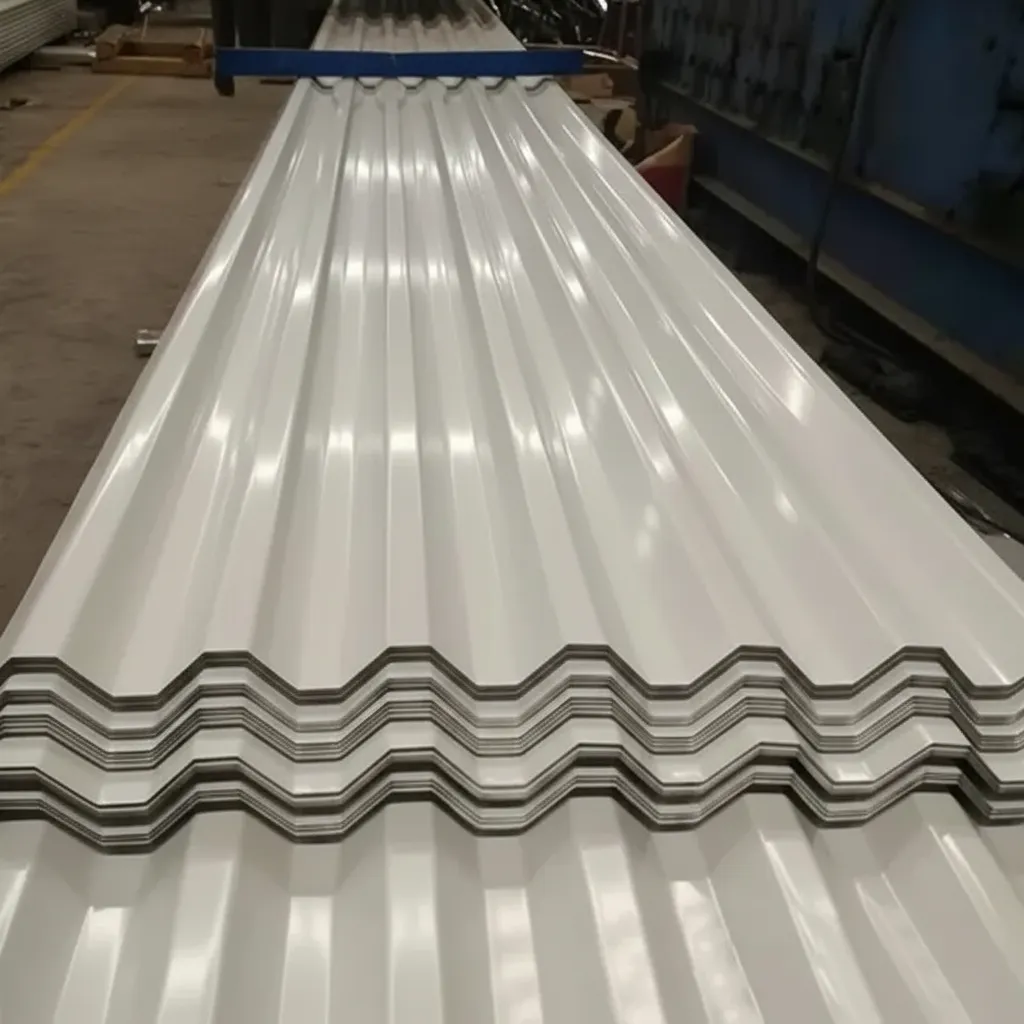

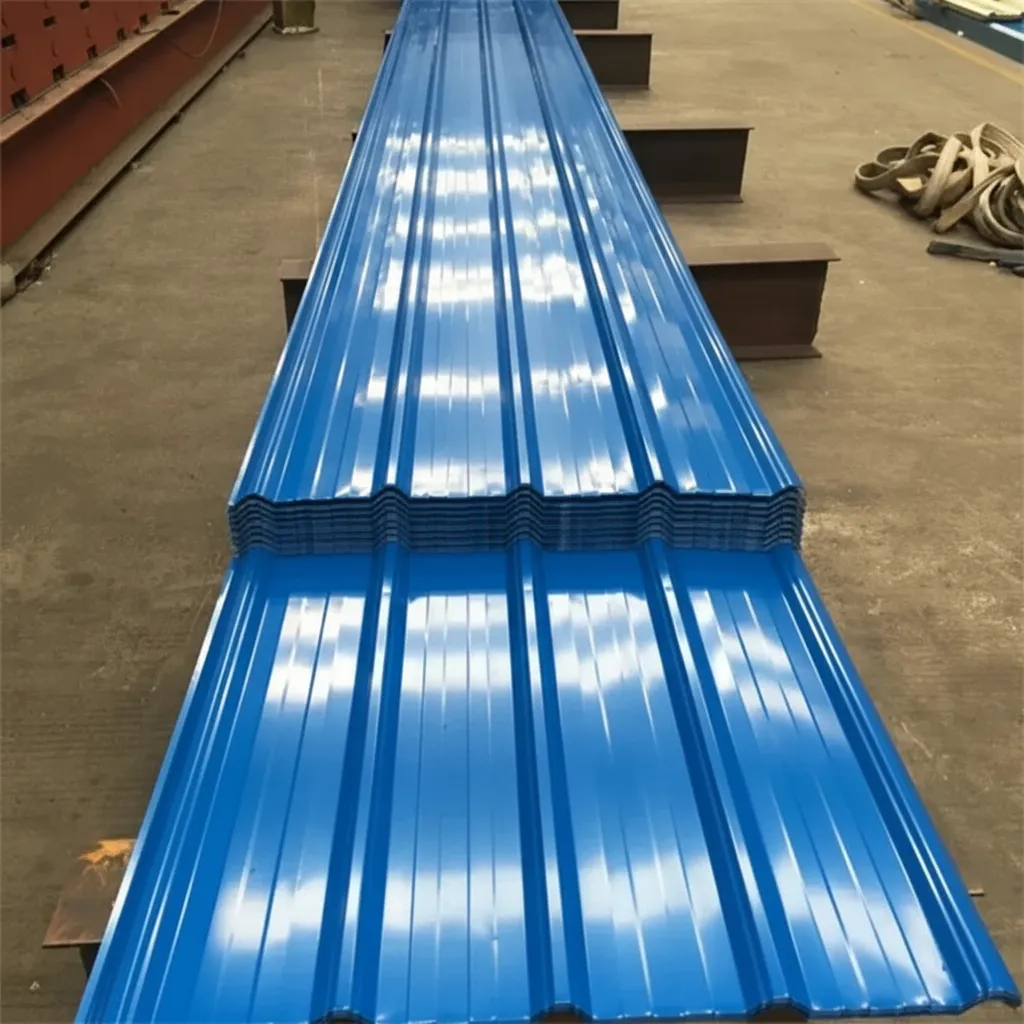

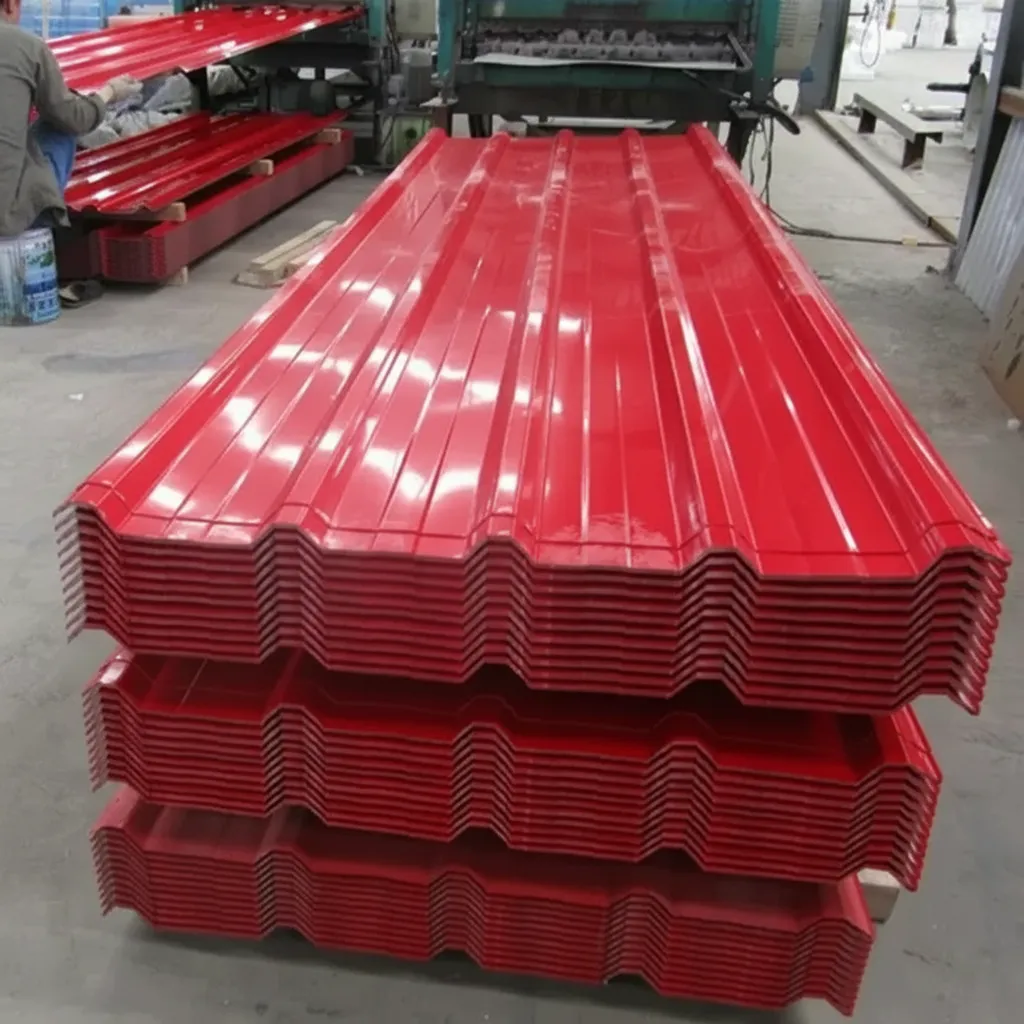

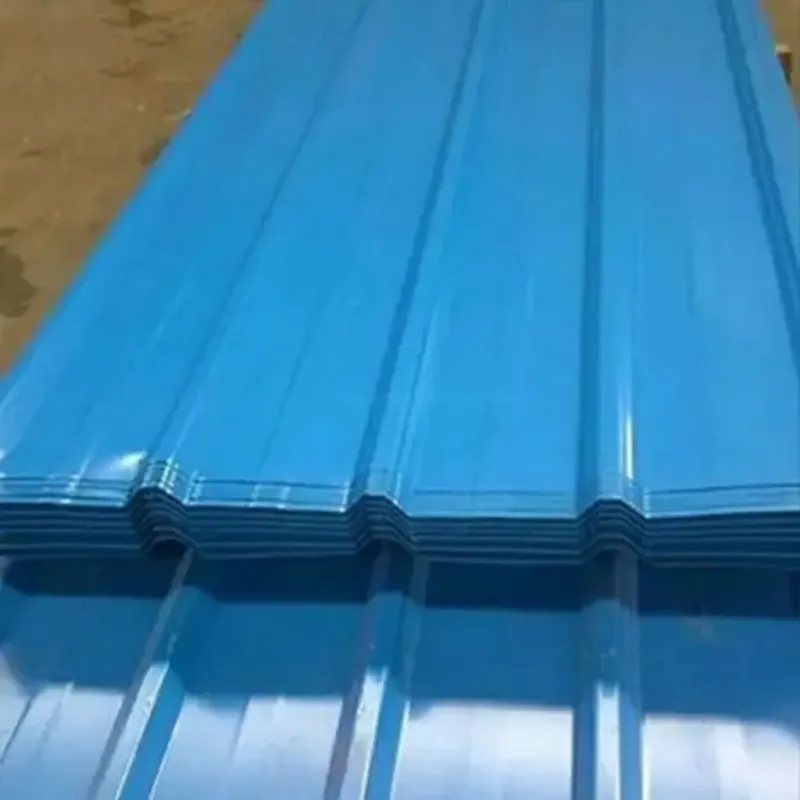

| Product Name | Corrugated Steel Roofing Sheets | Profiled steel sheets with wave/corrugated pattern for construction roofing and cladding applications |
| Material Grade | S280GD / S350GD (EN); ASTM A653 SS Grade 33/50; Q235B / Q345B (GB) | Hot-dip galvanized or Galvalume structural steel; international equivalents: DX51D+Z, SGCC, SGHC |
| Standard Compliance | EN 10346, ASTM A653/A792, JIS G3302, GB/T 2518 | Meets international standards for continuous hot-dip coated steel flat products for cold forming |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel chemistry ensuring good formability, weldability, and corrosion resistance after coating |
| Tensile Strength | 270–560 MPa (EN 10346); ≥310 MPa (ASTM A653 SS Gr.33) | Minimum tensile strength varies by grade; higher grades available for heavy-load structural roofing |
| Yield Strength | ≥280 MPa (S280GD); ≥350 MPa (S350GD); ≥230 MPa (ASTM Gr.33) | Adequate yield strength ensures structural integrity under wind, snow, and live loads |
| Elongation | ≥16% (A80, EN 10346); ≥20% (GB/T 2518) | Sufficient ductility for roll-forming and site bending without cracking |
| Sheet Thickness | 0.3 mm – 1.2 mm (base metal); BMT or TCT specified | Common construction thicknesses: 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm; BMT excludes coating layer |
| Sheet Width | Effective cover width: 760 mm, 820 mm, 900 mm, 1000 mm; coil width up to 1250 mm | Effective (net) cover width after corrugation forming; total width wider than effective coverage |
| Sheet Length | 1000 mm – 12000 mm (custom cut-to-length) | Standard lengths: 1.8 m, 2.4 m, 3.0 m, 6.0 m; custom lengths available per project requirement |
| Corrugation Profile | Wave pitch: 76 mm / 32 mm depth (standard); also 18/76, 25/76 profiles available | Profile geometry affects load-bearing capacity, water drainage, and aesthetic appearance |
| Surface Finish / Coating | Galvanized Z60–Z275 g/m²; Galvalume AZ50–AZ150 g/m²; Pre-painted PVDF / PE top coat | Zinc or Zn-Al-Mg coating provides corrosion protection; PPGI/PPGL with color coating for aesthetics |
| Application | Industrial buildings, warehouses, agricultural sheds, residential roofing, wall cladding | Suitable for new construction and renovation; compatible with steel frame, timber, and concrete structures |
| Certification | ISO 9001:2015, CE Marking (EN 1090), SGS, BV, TÜV | Third-party inspection and quality management certification available; mill test certificate (MTC) provided |
| Packaging | Bundles of 10–50 sheets; wrapped in waterproof kraft paper and steel strapping | Palletized or loose bundle; export seaworthy packaging available; labeling per buyer specification |
| MOQ | 5 metric tons per order (standard); 1 metric ton for sample orders | MOQ may vary by thickness, coating type, and color; mixed specifications accepted for full container loads |
Initial Documentation Gap — Resolved Promptly, Product Quality Fine
Ordered 20 tons of 0.5mm Z275 corrugated sheets for a logistics facility in Dubai. The product itself met specifications and coating adhesion was confirmed via our local lab against EN 10346. However, the initial shipment arrived without the full set of mill test certificates we had specified in the purchase order, which held up our client's approval process for about four days. After escalating to the account manager, the complete documentation was emailed within 24 hours and a hard copy followed with the next shipment. Issue was resolved professionally. Suggest the team strengthen their pre-shipment document checklist. Would consider ordering again.
