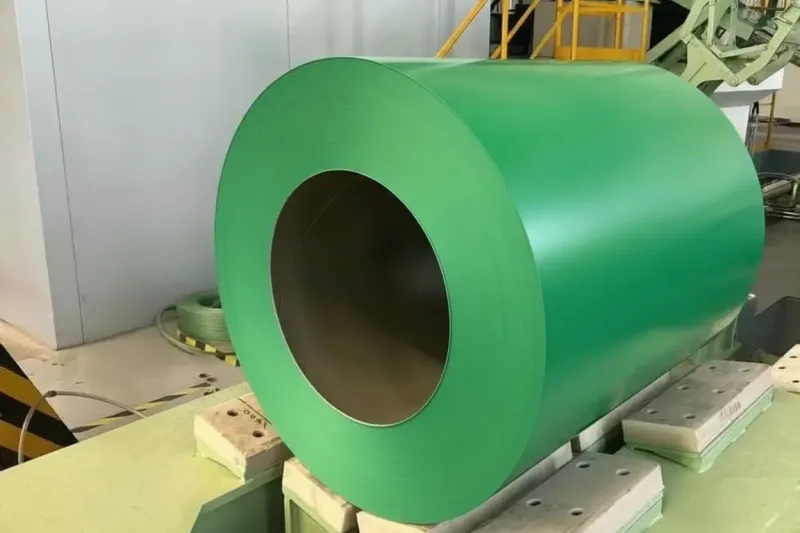

Prepainted Roofing Coil

彩图镀锌

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

Ask for price

Price validity: subject to market conditions

Quantity

Minimum order quantity: 1 ton

Shipping total: To be negotiated

Subtotal of goods US$ 0.00

Start order request

Payment and delivery

Product details

Item	Specification
Product Name	Prepainted Roofing Coil
Base Metal	Galvanized steel (GI) or galvalume steel (GL)
Steel Grade	Commercial quality, structural quality, or high-strength steel according to project requirements
Thickness	0.20–1.20 mm
Width	600–1,250 mm, customizable
Coil Inner Diameter	508 mm or 610 mm
Coil Weight	3–8 metric tons, customizable
Coating Type	PE, SMP, HDP, or PVDF coating
Top Paint Thickness	10–35 μm
Back Paint Thickness	5–25 μm
Surface Finish	Gloss, matte, embossed, or textured
Color	RAL colors or customized color matching
Coating Adhesion	T-bend performance according to coating system and applicable standard
Corrosion Resistance	Suitable for roofing, wall cladding, agricultural buildings, warehouses, and industrial applications
Applicable Standards	ASTM A755/A755M, ASTM A792/A792M, EN 10169, JIS G 3312, or equivalent standards
Processing	Roll forming, profiling, cutting, bending, and roofing sheet production
Packaging	Export-standard seaworthy packaging with waterproof paper, protective steel sheets, and steel straps
