| Property | Parameter | Description |
|---|---|---|

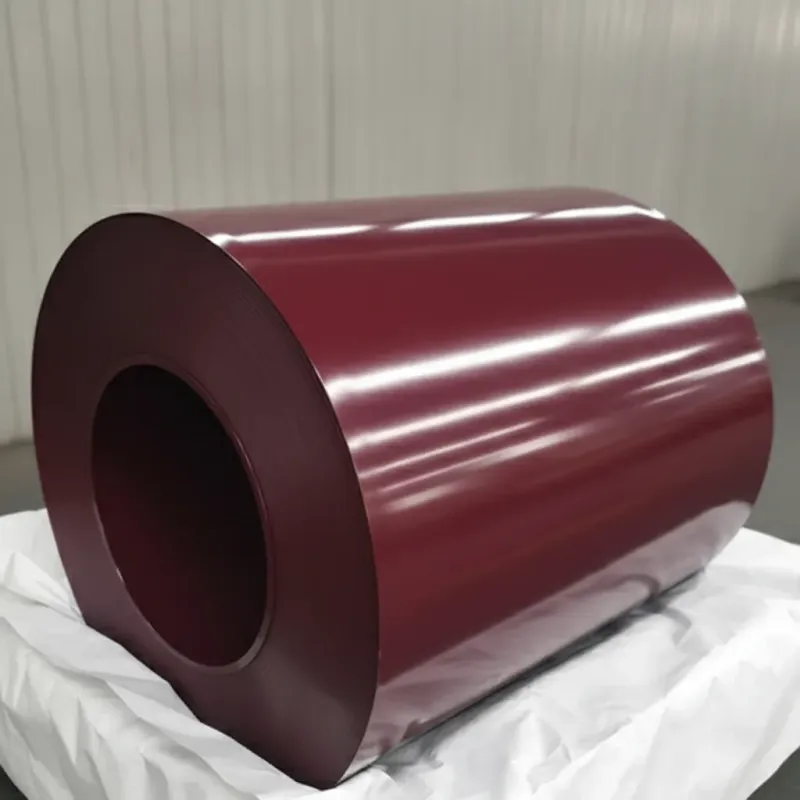

| Product Name | Prepainted Steel Coil (PPGI/PPGL) | Color-coated galvanized or galvalume steel coil |
| Base Metal | Cold Rolled Steel / Galvanized Steel / Galvalume Steel | Multiple substrate options available |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | Meets major international standards |
| Zinc Coating Weight | 40-275 g/m² | Hot-dip galvanized coating per ASTM A653 |
| Top Paint Type | PE, SMP, HDP, PVDF | Polyester, silicone modified polyester, high durability polyester, fluorocarbon |
| Top Coat Thickness | 15-25 μm | Front side paint film thickness |
| Back Coat Thickness | 5-15 μm | Reverse side protective coating |
| Primer Thickness | 5-8 μm | Epoxy or polyester primer layer |
| Tensile Strength | 270-550 MPa | Varies by base metal grade (CQ, DQ, HSS) |
| Yield Strength | 205-380 MPa | Minimum yield strength per substrate grade |
| Elongation | ≥18% | Ductility for forming applications |
| Thickness Range | 0.12 - 1.5 mm | Total thickness including coatings |
| Width Range | 600 - 1500 mm | Standard and custom widths available |
| Coil Weight | 3 - 8 tons | Standard coil weight per roll |
| Pencil Hardness | ≥2H (PVDF), ≥H (PE/SMP) | Surface scratch resistance per ASTM D3363 |
| Color Options | RAL color chart, custom colors | Over 200 standard RAL colors available |
| Application | Roofing, wall cladding, sandwich panels, appliances | Construction, industrial, and home appliance sectors |
| Certification | ISO 9001, SGS, EN 10204 3.1 | Quality and material test certifications provided |
| Packaging | Eye-to-sky, waterproof paper, steel strip | Standard seaworthy export packaging |
| MOQ | 25 tons | Minimum order quantity per color |
Acceptable PPGI Quality with Initial Documentation Delay Resolved
Ordered 30 MT of PE-coated PPGI, 0.5mm thickness, 1,000mm width, RAL 9003 white for light industrial wall panel production in Ontario. Coating quality itself was acceptable—film thickness at 17–18 μm and cross-cut adhesion at Grade 1, within tolerance for our application. The issue was that the EN 10204 Type 3.1 mill test certificate was not included with the initial shipping documents, which held up our customs broker for 4 days. After escalating to the technical sales contact, the certified MTC was issued and transmitted within 24 hours, resolving the clearance. Production lead time of 17 working days was as quoted. Pricing was competitive. Supplier acknowledged the documentation oversight and confirmed a checklist update for future orders. Willing to reorder given the responsive follow-up, but documentation process needs to be more reliable upfront.
