PPGL Steel Coil Manufacturer | Custom RAL Colors & Factory Price

PPGL Steel Coil is a prepainted flat steel product manufactured from aluminum-zinc alloy-coated substrate and finished with one or more protective organic coating layers. It is designed for overseas distributors, roofing manufacturers, building-material importers, appliance producers, and roll-forming companies that need corrosion resistance, consistent appearance, and efficient downstream processing. Compared with post-painting fabricated parts, factory-coated PPGL helps shorten production steps and improve surface consistency. Buyers can specify dimensions, substrate grade, metallic coating mass, paint system, gloss, and RAL color according to the intended environment and forming process, subject to technical confirmation before production.

PPGL Steel Coil Product Overview

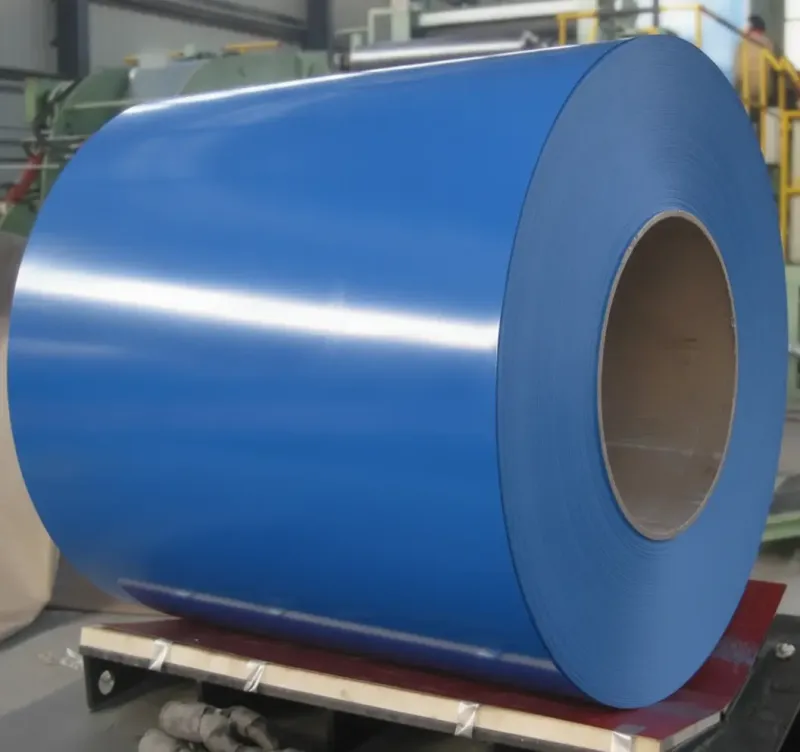

PPGL Steel Coil means prepainted galvalume steel coil. The base material is cold-rolled steel that receives a hot-dip aluminum-zinc alloy coating before primer and finish paint are applied in a continuous coil-coating line. This structure combines the mechanical properties of steel, the barrier protection of the metallic coating, and the appearance and additional protection provided by the organic paint film.

The metallic layer commonly associated with galvalume products contains approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. Aluminum provides long-term barrier protection, zinc contributes sacrificial protection at exposed areas, and silicon helps control the alloy reaction during coating. Actual compliance must be assessed against the specified product standard and the mill inspection documentation rather than appearance alone.

A typical PPGL coating system includes surface pretreatment, primer, and a topcoat on the exposed side. The reverse side may use a backing coat selected for handling, bonding, or corrosion-protection requirements. Common paint families include polyester, silicone-modified polyester, polyurethane, and polyvinylidene fluoride. Paint selection should be based on UV exposure, humidity, industrial pollution, expected service life, forming severity, and project warranty conditions. Related coating options can be compared through [[INTERNAL_LINK]].

Custom RAL colors can be discussed for architectural and industrial orders. However, a RAL number alone does not fully define a coated surface. Procurement documents should also state gloss range, surface texture, color tolerance, coating thickness, and whether acceptance will be based on a color card, approved sample, or instrument reading. Metallic, wrinkled, matte, and printed finishes may require separate samples and minimum production quantities.

• Continuous coil-coated surface suitable for efficient roll forming and profiling
• Aluminum-zinc alloy metallic layer beneath the organic coating
• Color, gloss, paint chemistry, and film thickness selectable by application
• Supply forms suitable for roofing sheets, panels, trim, and fabricated components
• Protective packaging configurations available for export shipment, subject to contract

PPGL Steel Coil Specifications & Standards

PPGL Steel Coil specifications should be written as a complete technical package. Thickness and width alone are insufficient because substrate grade, metallic coating mass, paint system, color tolerance, and mechanical properties directly affect processing and field performance. The final values must be confirmed in the purchase contract, production specification, and inspection certificate.

The principal international references used for this product category include the following standards. The applicable edition and exact grade should be stated in the order because standards are periodically revised:

Mechanical requirements are grade-dependent and should not be assumed from the product name. For example, a commercial-quality forming grade and a structural grade can have different yield strength, tensile strength, and elongation requirements even when their dimensions and colors are identical.

Additional coating tests may reference ASTM D3359 for tape adhesion, ASTM D523 for specular gloss, ASTM D2244 for instrumental color differences, or relevant EN 13523 test methods for coil-coated metals. ASTM B117 may be used as a salt-spray test method, but exposure hours should not be treated as a direct prediction of outdoor service life. Buyers can review further inspection guidance at [[INTERNAL_LINK]].

PPGL Steel Coil Applications

PPGL Steel Coil is primarily selected where a fabricated steel component requires both a finished appearance and protection from the intended environment. Suitability depends on the substrate grade, coating system, design details, local climate, and maintenance practices.

Roofing and Wall Cladding

Roofing-sheet and cladding manufacturers use PPGL material for corrugated sheets, trapezoidal profiles, standing-seam systems, and external wall panels. The selected coating must tolerate profiling without cracking or peeling. For coastal, humid, high-UV, or industrial locations, the exposure category should be reviewed before confirming the paint system. Roofing profiles and complementary products are available through [[INTERNAL_LINK]].

Insulated Sandwich Panels

Panel manufacturers use prepainted coils as external and internal facings for insulated building panels. Buyers should verify surface adhesion compatibility with the selected foam or bonding system. The outer face and inner face may require different colors, gloss levels, paint properties, or backing coats.

Light-Gauge Building Components

PPGL Steel Coil can be roll formed into flashing, gutters, ridge caps, fascia, ceiling components, shutters, and other light-gauge construction parts. Tight bending and deep profiling require adequate substrate ductility and paint flexibility. Fabrication trials are recommended when a new profile or coating combination is introduced.

Appliance and Equipment Housings

Selected PPGL products may be used for appliance panels, cabinets, enclosures, and equipment housings where appearance and repeatable processing are important. The purchaser should define scratch resistance, stain resistance, color tolerance, and forming requirements according to the actual manufacturing process. Other flat-steel options can be compared at [[INTERNAL_LINK]].

Interior Architectural Products

Ceiling systems, partition panels, decorative liners, doors, and interior trim may use prepainted material with smooth, matte, textured, or patterned surfaces. For indoor applications, color consistency and cleanability may be more important than severe weather resistance, so the specification should reflect the real service conditions.

How to Choose PPGL Steel Coil: Buying Guide

Procurement managers should begin with the finished component, not with color alone. A clear inquiry allows the manufacturer to assess technical feasibility, calculate material consumption, and provide a comparable quotation. The following points reduce specification gaps and disputes.

1. Define the Substrate and Forming Process

State whether the coil will be corrugated, roll formed, bent, stamped, laminated, or cut into flat panels. Specify the required base-steel grade under ASTM, EN, JIS, or GB/T. Structural applications require verified strength, while complex profiles may prioritize elongation and bend performance. A sample drawing or profile section is useful for technical review.

2. Specify Dimensions and Tolerances

Provide nominal thickness, width, edge condition, coil inside diameter, and preferred coil-weight range. Clarify the thickness convention because some contracts refer to base-metal thickness while others refer to coated thickness. Also confirm whether slit-edge burr and telescoping limits are important for automated production lines. See the dimensional ordering checklist at [[INTERNAL_LINK]].

3. Match the Coating System to the Environment

Identify whether the finished product will be installed indoors, inland, on the coast, in a high-UV region, or near an industrial atmosphere. Metallic coating mass, primer, topcoat chemistry, film thickness, and reverse coating should then be selected as a system. Request written confirmation rather than relying on a generic label such as “outdoor grade.”

4. Control Color and Appearance

State the RAL reference, but also request a physical sample when color matching is critical. Different paint batches, gloss levels, textures, instruments, and light sources can affect perceived color. For projects requiring multiple shipments, discuss batch planning and retention of an approved master sample. Protective film requirements should also be stated because film type and removal timing depend on fabrication and storage conditions.

5. Verify Documents and Inspection Scope

Ask which documents will be supplied, such as a mill test certificate, coating test report, commercial invoice, packing list, certificate of origin, or third-party inspection report. Document availability varies by order, market, and certification scheme, so it must be agreed before contract confirmation. Buyers requiring independent inspection should define the inspection agency, sampling plan, acceptance criteria, and responsibility for costs. More information on steel inspection documents is provided at [[INTERNAL_LINK]].

6. Confirm MOQ and Production Lead Time

Minimum order quantity is influenced by substrate availability, width, thickness, paint type, RAL color, and production scheduling. Standard specifications may have lower commercial thresholds than uncommon colors or narrow widths. Ask for the MOQ per specification and per color rather than only the total shipment quantity. Lead time should be reconfirmed after technical approval, sample approval, payment arrangements, and production-slot allocation.

7. Plan Export Logistics

Provide the destination, expected shipment method, discharge conditions, and preferred Incoterms rule. Coil weight and dimensions must suit warehouse cranes, forklifts, decoilers, containers, and local road limits. Export packing should account for moisture, handling, and transit duration. The contract should identify package labels, coil orientation, gross and net weight declarations, and any fumigation or material restrictions applicable to packaging. Refer to [[INTERNAL_LINK]] for general steel-coil handling practices.

PPGL Steel Coil Frequently Asked Questions

Q: What is the difference between PPGL Steel Coil and PPGI?

A: PPGL uses an aluminum-zinc alloy-coated steel substrate, while PPGI uses a zinc-coated galvanized steel substrate. Their behavior can differ at cut edges, formed areas, and under different exposure conditions. The correct choice depends on environment, design, metallic coating designation, paint system, and fabrication method rather than the product abbreviation alone.

Q: Can PPGL Steel Coil be supplied in custom RAL colors?

A: Custom RAL colors can generally be evaluated during quotation. The buyer should provide the exact RAL reference, gloss level, surface finish, coating system, and acceptable color tolerance. For appearance-sensitive projects, an approved physical color sample should be used. MOQ and lead time may vary for nonstandard colors and special paint systems.

Q: Which international standards apply to PPGL Steel Coil?

A: Common references include ASTM A755/A755M with ASTM A792/A792M, EN 10169 with EN 10346, JIS G 3322 with JIS G 3321, and GB/T 12754 with GB/T 14978. The buyer must specify the required standard, edition, substrate grade, coating designation, and acceptance criteria in the purchase order.

Q: What is the minimum order quantity for PPGL Steel Coil?

A: MOQ depends on the combination of thickness, width, substrate grade, metallic coating, paint system, finish, and color. A standard specification may be easier to schedule than a unique RAL color or specialty coating. Send the complete specification and required quantity so the supplier can confirm an order-specific MOQ without assumptions.

Q: What certificates and inspection documents are available?

A: Documentation may include a mill test certificate, dimensional inspection results, coating information, packing list, certificate of origin, and other contractually agreed records. Third-party inspection can also be discussed. Required certificates must be identified before ordering because not every document or market-specific approval is automatically included.

Q: How long is the production lead time?

A: Lead time depends on raw-material availability, color approval, coating-line scheduling, order volume, inspection requirements, and shipping arrangements. Production timing should be counted from the agreed commercial trigger, such as deposit receipt or letter-of-credit acceptance, and only after the technical specification has been approved.

Q: Which payment methods can be accepted for an export order?

A: Payment terms are negotiated according to order value, destination, buyer credit review, and transaction history. Common international trade arrangements may include telegraphic transfer or letter of credit, but the exact method, bank charges, deposit ratio, document requirements, and balance-payment trigger must be confirmed in the sales contract.

Q: How should PPGL coils be stored after delivery?

A: Coils should be kept in a dry, ventilated area and protected from rain, condensation, corrosive chemicals, and direct ground contact. Packaging should be inspected promptly after arrival. Wet coils should not remain sealed because trapped moisture can damage the surface. Use suitable lifting equipment and avoid chains or handling methods that can dent edges or scratch the painted face.

Q: Can PPGL Steel Coil be used in coastal environments?

A: It may be suitable when the metallic coating, pretreatment, primer, topcoat, film thickness, component design, and maintenance plan are selected for the actual coastal exposure. Distance from the sea alone is not enough to determine suitability. Salt deposition, humidity, wind direction, cut-edge exposure, roof pitch, and drainage details should also be reviewed.

Q: What information is needed for an accurate factory quotation?

A: Provide the applicable standard, substrate grade, nominal thickness, width, metallic coating designation, top and back paint systems, dry-film thickness, RAL color, gloss, coil inside diameter, coil-weight preference, order quantity, destination, packaging needs, inspection requirements, and requested Incoterms rule. A complete inquiry makes technical and commercial comparisons more reliable.

Send your PPGL Steel Coil specification, required RAL color, order quantity, end-use details, and destination to request a technical review and factory quotation. Our export team will confirm feasible dimensions, applicable standards, coating options, MOQ, production schedule, documentation, and shipping terms for your project. Use [[INTERNAL_LINK]] to submit your inquiry and receive an order-specific proposal.
