High Speed Indoor Fiber Cable For Fast Data Transfer
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 kilometers
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of High Speed Indoor Fiber
| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | High Speed Indoor Fiber | High-performance indoor optical fiber designed for high-speed data transmission in building and premises networks |
| Fiber Grade & ITU-T Classification | ITU-T G.657.A2 / G.652.D | Bend-insensitive single-mode fiber compliant with ITU-T G.657.A2, backward compatible with G.652.D |
| Core & Cladding Diameter Range | Core: 8.2 ± 0.4 µm; Cladding: 125.0 ± 0.7 µm | Standard SMF geometry ensuring compatibility with industry-standard connectors and splicing equipment |
| Attenuation Coefficient at 1310nm | ≤ 0.35 dB/km | Low attenuation at 1310 nm wavelength window for short to medium indoor link performance |
| Attenuation Coefficient at 1550nm | ≤ 0.20 dB/km | Ultra-low attenuation at 1550 nm wavelength window supporting high-speed transmission over indoor runs |
| Macrobending Loss Performance | ≤ 0.1 dB at R=15 mm (1550 nm); ≤ 0.5 dB at R=10 mm (1550 nm) | Excellent macrobend resistance per IEC 60793-2-50, ideal for tight routing in indoor conduits and trays |
| Chromatic Dispersion Coefficient | ≤ 18 ps/(nm·km) at 1550 nm; Zero Dispersion Wavelength: 1300–1324 nm | Low chromatic dispersion ensuring signal integrity for 10G/25G/100G indoor transmission systems |
| Batch Qualification Rate | ≥ 99.5% | Strict batch-level optical and geometric parameter testing with full traceability documentation |
| Manufacturing Environment Standards | ISO 9001:2015; Class 1000 Cleanroom Production | Manufactured under controlled cleanroom conditions to ensure consistent fiber geometry and coating quality |
| Core Raw Material Source | High-purity synthetic SiO₂ preform (OVD/MCVD process) | Optical-grade silica preform produced via Outside Vapor Deposition ensuring low OH⁻ content and minimal impurities |

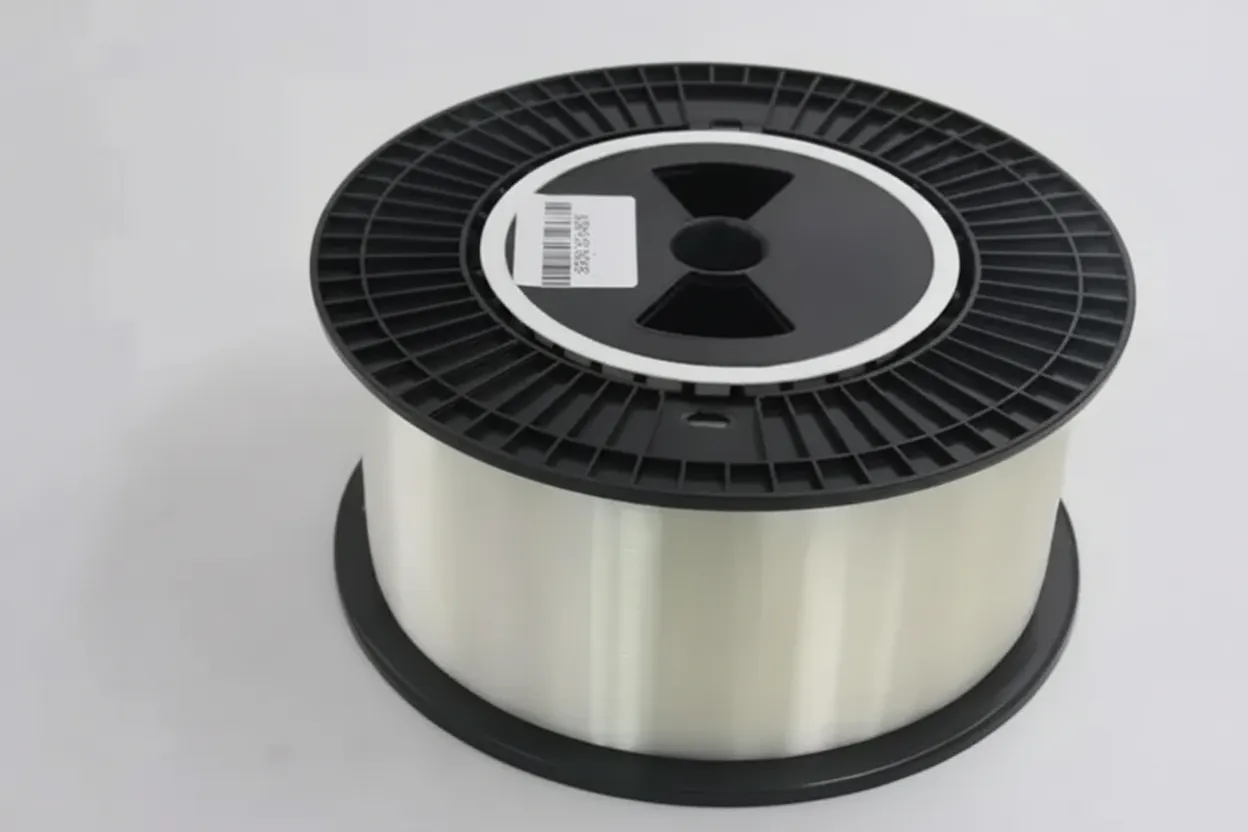

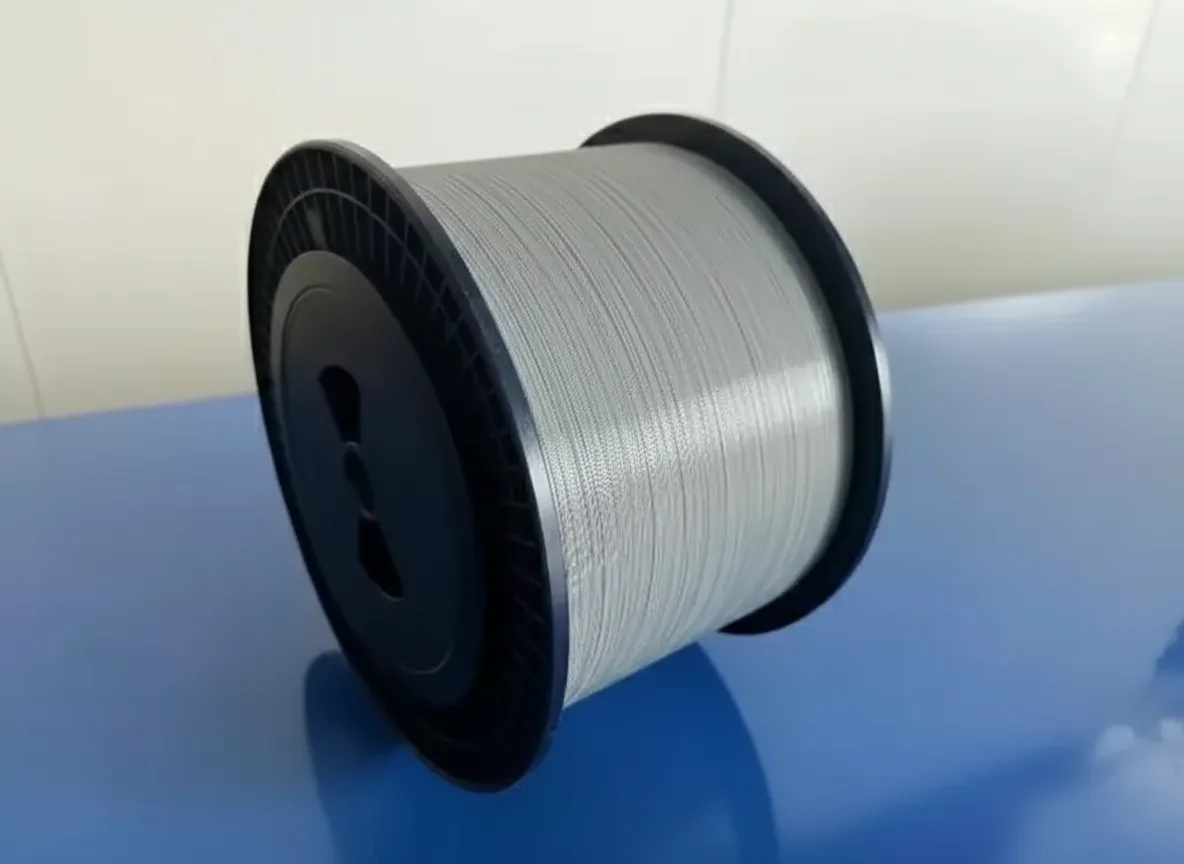

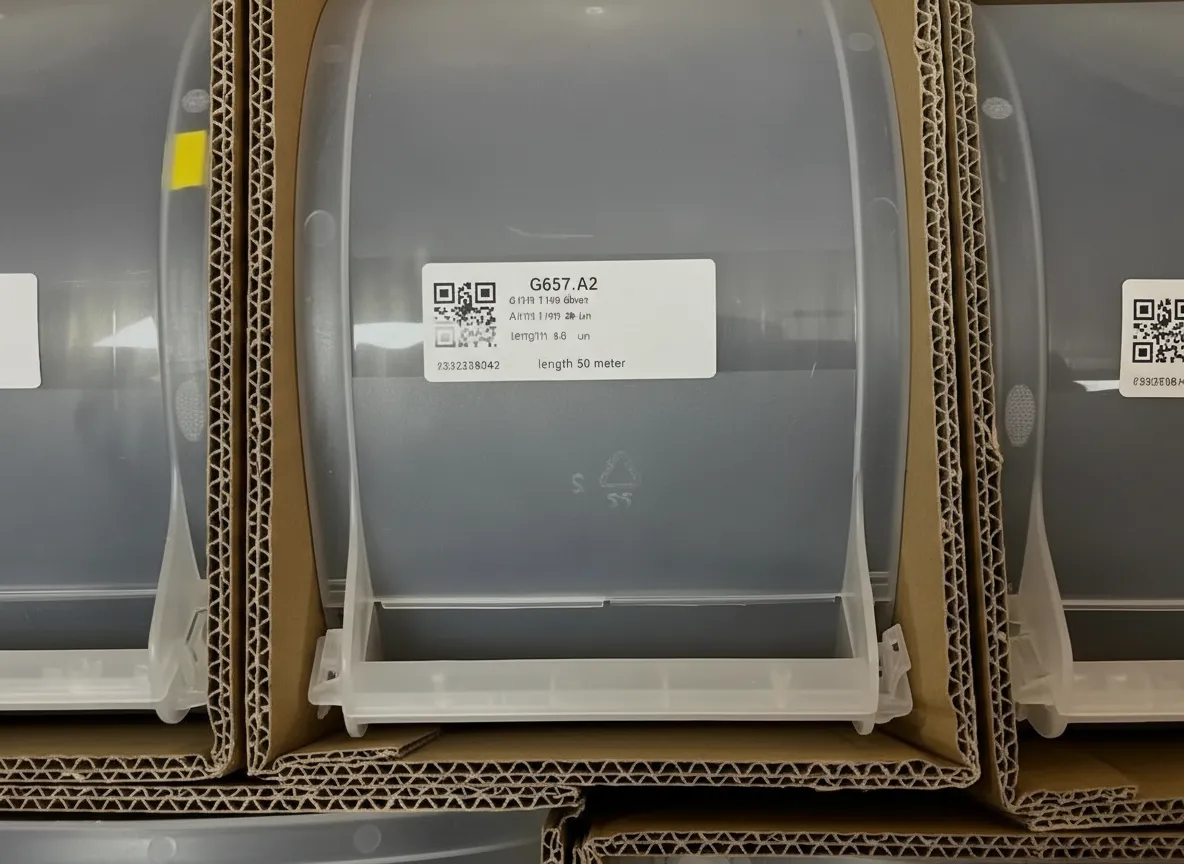

| Packaging Specification | Reel: 500 m / 1000 m / 2000 m per spool; Spool diameter: 280 mm or 355 mm | Wound on standard plastic or wooden spools with protective wrapping; custom lengths available on request |
| Storage Conditions | Temperature: -20°C to +60°C; Relative Humidity: ≤ 85% RH (non-condensing) | Store in original sealed packaging away from direct sunlight, chemicals, and mechanical stress |
| Valid Shelf Life | ≥ 20 years (under recommended storage conditions) | Dual UV-cured acrylate coating system ensures long-term mechanical and optical stability |
| Application Scenarios | FTTH/FTTB drop cables, in-building LAN, data center horizontal cabling, FTTA, MDU wiring | Optimized for tight-space indoor routing including risers, plenum spaces, and patch panel installations |
| Compliance & Certification | IEC 60793-2-50; ITU-T G.657.A2; RoHS 2011/65/EU; REACH compliant; UL Listed (optional) | Meets international optical fiber standards and environmental compliance requirements for global market access |
| Minimum Order Quantity (MOQ) | 10 km per order | Flexible MOQ policy available for qualified distributors and project-based procurement |
| Monthly Supply Capacity | 500,000 km/month | Large-scale production capacity with stable supply chain to support major indoor network deployment projects |
High Speed Indoor Fiber Cable For Fast Data Transfer
High speed indoor fiber cable has become the backbone of modern enterprise networking, data center infrastructure, and intelligent building connectivity solutions worldwide. As organizations demand faster, more reliable data transmission across office floors, server rooms, and commercial facilities, high speed indoor fiber delivers the bandwidth capacity and signal integrity that copper-based cabling simply cannot match. With the explosive growth of cloud computing, 4K video streaming, IoT deployments, and real-time data analytics, indoor fiber optic cable has emerged as the preferred choice for IT managers, system integrators, and telecom operators seeking future-proof communication infrastructure. Its compact design, low attenuation characteristics, and immunity to electromagnetic interference make it ideal for dense indoor environments where performance consistency is non-negotiable. From horizontal runs in corporate campuses to vertical risers in high-rise buildings, this advanced optical cable supports the full spectrum of high-bandwidth indoor applications with unmatched efficiency and long-term reliability.
What is High Speed Indoor Fiber Cable?
High speed indoor fiber cable is a specialized optical fiber cable engineered specifically for internal building installations, offering tight-buffered or loose-tube fiber cores protected by flame-retardant jackets compliant with LSZH, OFNR, or OFNP standards. Designed to meet ITU-T G.652D and G.657A2 specifications, these cables support single-mode and multimode configurations, enabling gigabit to terabit-level data transmission across short to medium indoor distances with minimal signal loss.
High Speed Indoor Fiber Cable Manufacturing and Production Process

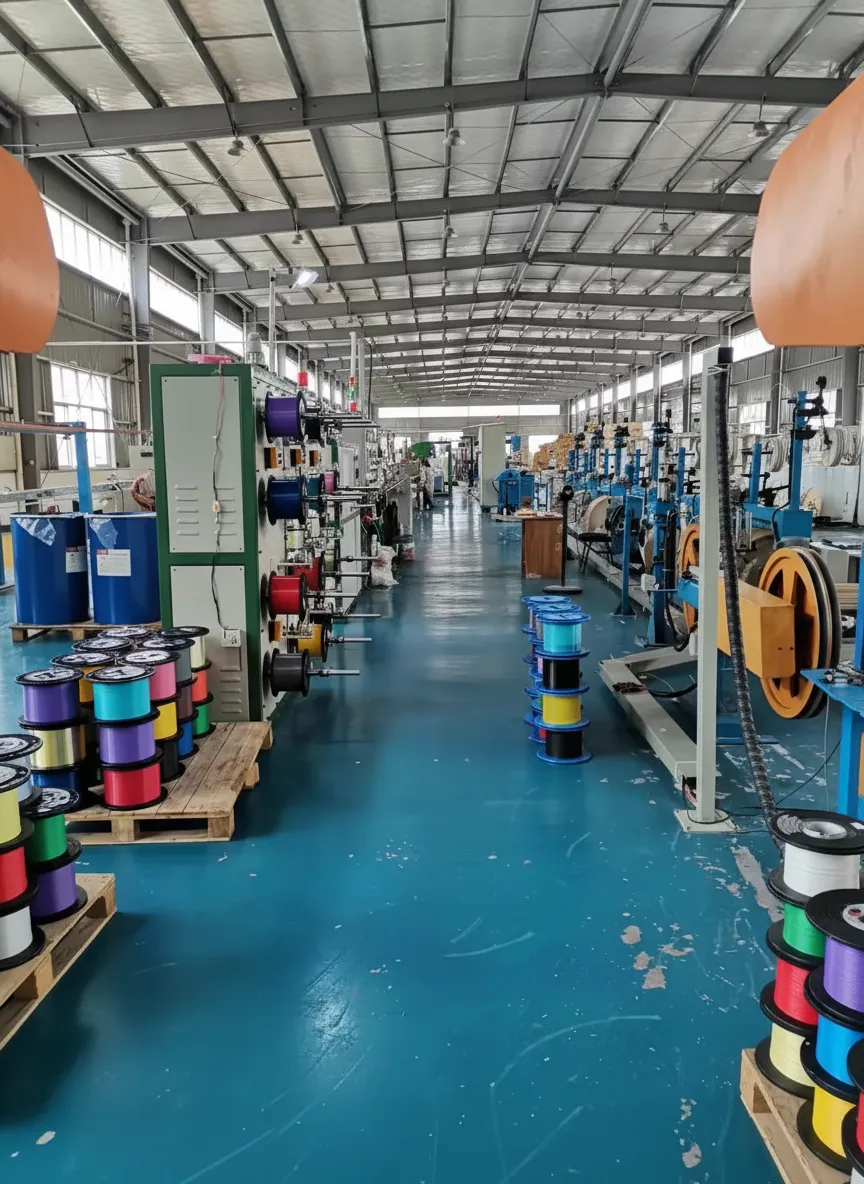

Manufactured in ISO 9001-certified facilities, high speed indoor fiber cable production begins with precision optical fiber drawing from ultra-pure silica preforms under cleanroom conditions. Each fiber undergoes UV-cured acrylate coating application, followed by tight buffering or stranding processes. Flame-retardant LSZH or PVC jacketing is then extruded under strict tension control. Every production batch is subjected to 100% optical attenuation testing, tensile strength verification, and RoHS compliance screening before shipment.
High Speed Indoor Fiber Cable Technical Specifications
Key technical parameters for high speed indoor fiber cable include: attenuation ≤0.20 dB/km at 1550 nm (single-mode) and ≤3.0 dB/km at 850 nm (OM4 multimode); bandwidth up to 4700 MHz·km (OM4); operating temperature range -20°C to +70°C; minimum bend radius 10× cable diameter; tensile load up to 600 N; crush resistance up to 2000 N/100 mm; available in 2 to 144 fiber counts with duplex, distribution, and breakout configurations.
Get a Competitive Quote for High Speed Indoor Fiber
Ready to upgrade your network infrastructure with premium high speed indoor fiber cable? We offer flexible wholesale pricing, rapid global logistics, and full documentation support for FTTH, enterprise LAN, and data center deployments. Request your customized bulk order quote today and receive certified product samples within 5 business days.
- 24/7 expert optical communication engineer support
- Full ITU-T, ISO, RoHS compliance guarantee for all batches
- Exclusive wholesale discounts for bulk telecom, FTTH and data center orders
- Complete technical data sheets and on-site deployment guidance included
Contact us today to get your free quote and full specification sheet within 24 hours!
