| Property | Parameter | Description |
|---|---|---|
| Product Name | Pre Terminated Fiber Cable | Factory-terminated fiber optic cable assemblies with connectors pre-installed at both ends |
| Fiber Type | Single-mode (OS2) / Multimode (OM3, OM4, OM5) | OS2: 9/125μm; OM3: 50/125μm; OM4: 50/125μm; OM5: 50/125μm wideband |
| Material Grade | LSZH / PVC / Plenum (OFNP) Jacket | Low Smoke Zero Halogen or PVC outer sheath; aramid yarn strength members; silica glass fiber core |
| Standard Compliance | IEC 61754, IEC 61300, TIA-568, EN 50173 | Connector geometry per IEC 61754-20 (LC), IEC 61754-4 (SC); insertion loss per IEC 61300-3-4 |
| Connector Types | LC, SC, MPO/MTP, ST, FC | LC duplex, SC duplex, MPO-12/24 for high-density applications; APC or UPC polish available |
| Insertion Loss | ≤0.3 dB (UPC) / ≤0.2 dB (APC) | Measured per IEC 61300-3-4; typical value ≤0.1 dB for premium grade assemblies |
| Return Loss | ≥50 dB (UPC) / ≥60 dB (APC) | Per IEC 61300-3-6; APC connectors recommended for single-mode long-haul applications |
| Cable Length Range | 1 m – 300 m (custom lengths available) | Standard lengths: 1m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m; custom up to 300m per order |
| Fiber Count | 1 – 144 fibers | Simplex, duplex, 8F, 12F, 24F, 48F, 72F, 96F, 144F configurations; MPO trunk cables available |
| Operating Temperature | -20°C to +70°C (storage: -40°C to +85°C) | Compliant with IEC 60794-1-2 environmental test methods |
| Tensile Strength | ≥100 N (patch cord) / ≥1000 N (trunk cable) | Per IEC 60794-1-2 Method E1; aramid yarn reinforcement provides mechanical protection |
| Bend Radius | ≥10× cable OD (dynamic) / ≥5× cable OD (static) | Minimum bend radius per IEC 60794-1-2; bend-insensitive fiber available (IEC 60793-2-50 B6) |
| Surface Finish | PC / UPC / APC end-face polish | End-face geometry inspected per IEC 61300-3-35; 100% tested before shipment |
| Application | Data centers, LAN, MAN, FTTH, telecom, enterprise networks | Suitable for 10G/40G/100G/400G structured cabling; MPO used in high-density data center deployments |
| Certification | RoHS, CE, UL, ISO 9001:2015 | UL Listed (OFNR/OFNP); CE marking per EU directives; RoHS 2011/65/EU compliant |

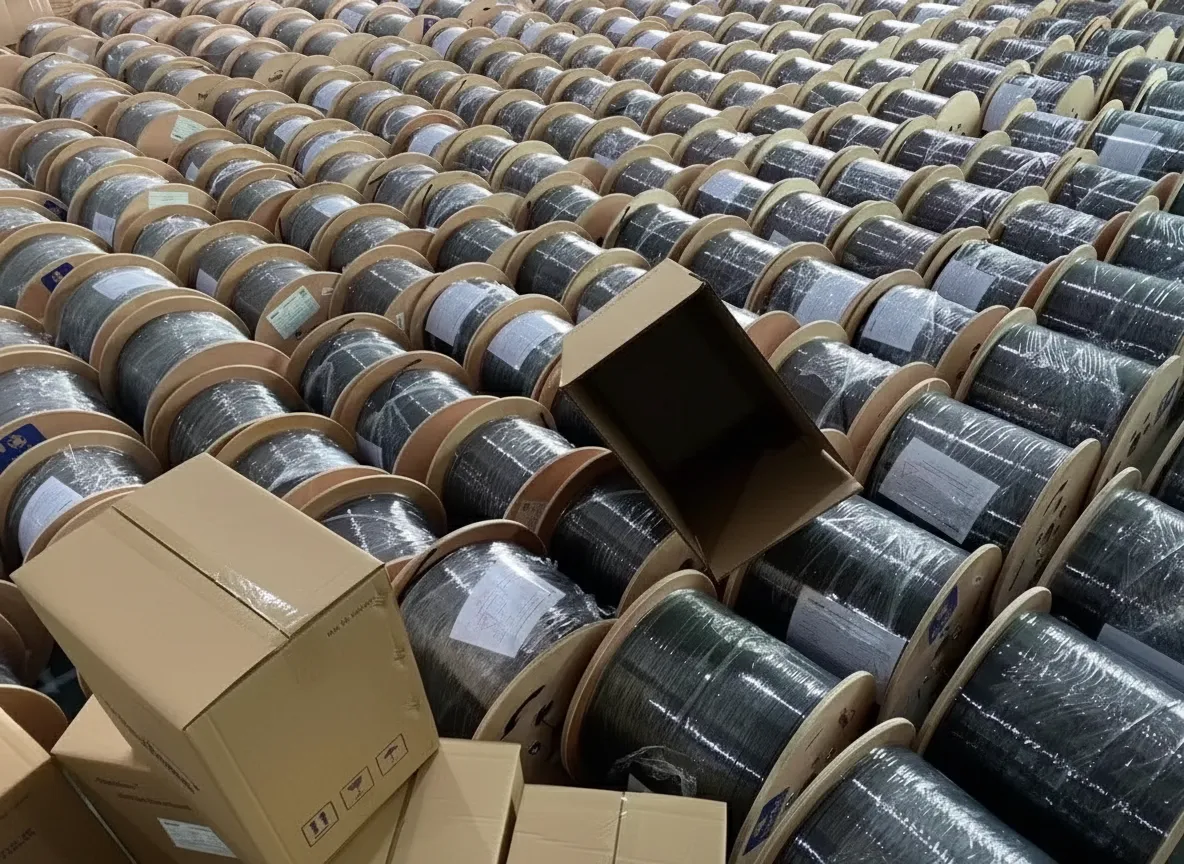

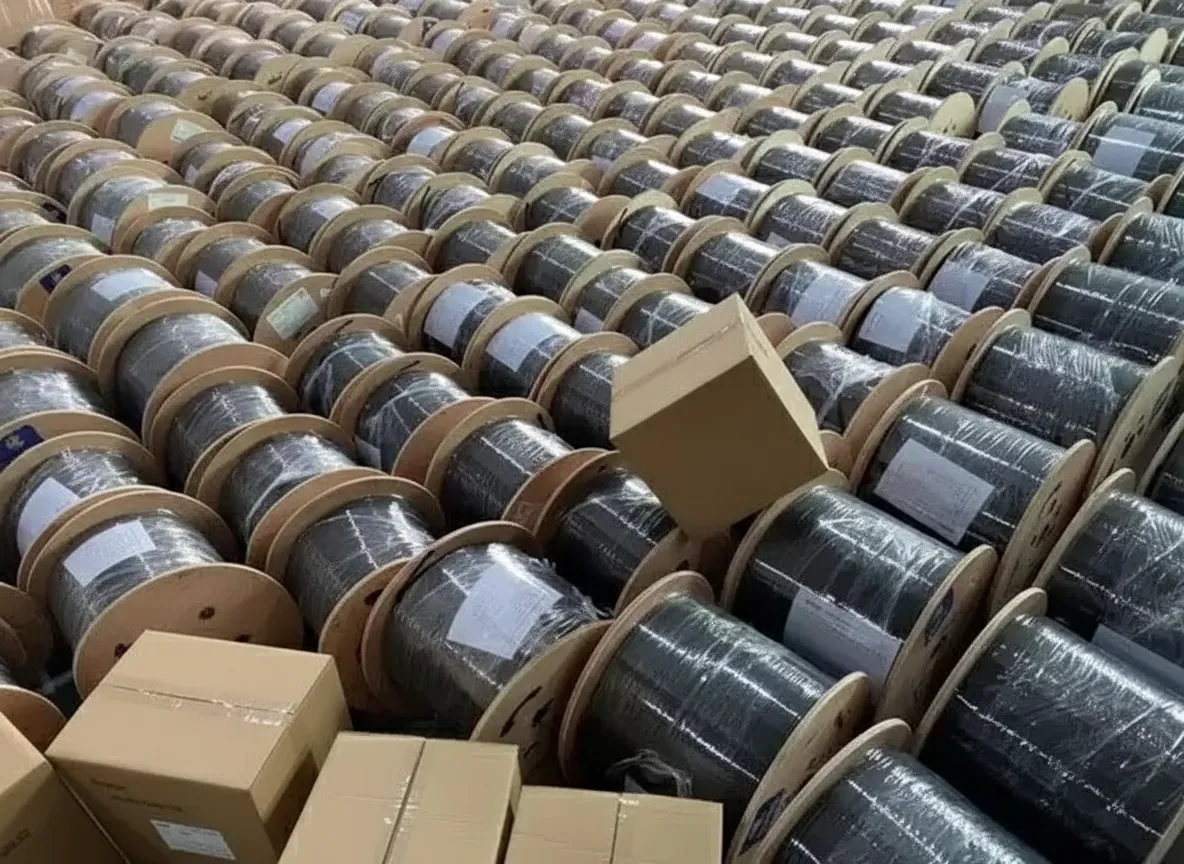

| Packaging | Individual poly bag + carton box / wooden reel for bulk | Each assembly individually labeled with length, fiber type, and connector type; bulk orders on reels |
| MOQ | 10 pcs per SKU (OEM orders: 100 pcs) | Sample orders accepted; OEM/ODM custom labeling and packaging available for B2B buyers |
Initial batch had labeling inconsistency — resolved promptly
Ordered 800 units of OM3 LC duplex assemblies for a university campus network expansion. The fiber performance was fine — insertion loss ≤0.3 dB confirmed on our end — but roughly 12% of the first shipment had length labels that did not match the actual cut lengths within the stated ±0.5% tolerance, which caused sorting delays on site. I raised the issue and the support team responded within a few hours, shipped replacement labeled units within 5 days, and updated their QC checklist for our account. The second delivery was accurate throughout. Issue is resolved and we continued the project without further disruption.
