| Property | Parameter | Description |
|---|---|---|
| Product Name | Outdoor Fiber Optic Cable | Weather-resistant fiber optic cable designed for external/outdoor installations |
| Cable Type | GYTS / GYTA / GYXTW / ADSS | Stranded loose tube, central tube, and all-dielectric self-supporting types available |
| Standard Compliance | IEC 60794-1 / ITU-T G.652D / ANSI/TIA-568 / GB/T 7424 | Meets international standards for optical fiber cable performance and testing |
| Fiber Type | Single-mode (G.652D, G.657A) / Multimode (OM3, OM4) | Single-mode for long-distance; multimode for short-distance high-bandwidth applications |
| Fiber Count | 2 – 288 cores | Available in 2, 4, 6, 12, 24, 48, 96, 144, 288 fiber configurations |
| Attenuation | ≤0.35 dB/km @ 1310 nm; ≤0.20 dB/km @ 1550 nm | Per ITU-T G.652D single-mode fiber specification |
| Tensile Strength | Short-term: 2700 N; Long-term: 800 N | Per IEC 60794-1-2 Method E1; reinforced with steel wire or FRP strength member |
| Crush Resistance | Short-term: 3000 N/100 mm; Long-term: 1000 N/100 mm | Per IEC 60794-1-2 Method E3; suitable for direct burial and duct installation |
| Operating Temperature | -40°C to +70°C | Storage and installation range; PE jacket provides UV and moisture resistance |
| Outer Jacket Material | HDPE (High-Density Polyethylene) / LSZH | UV-stabilized HDPE for outdoor durability; LSZH option for low-smoke environments |
| Armor Type | Corrugated Steel Tape (CST) / Steel Wire / Aluminum Tape | Provides rodent resistance and mechanical protection for direct burial applications |
| Cable Outer Diameter | 8.0 mm – 22.0 mm (varies by fiber count and type) | Compact design for easy installation in conduit, aerial, or direct burial scenarios |
| Bend Radius | Minimum: 20× cable OD (installation); 10× cable OD (long-term) | Per IEC 60794-1-2 Method E11; ensures signal integrity during routing |
| Application | Aerial, Direct Burial, Duct, Submarine (shallow), Campus Networks | Telecom backbone, FTTH/FTTX, data center interconnect, utility and industrial networks |
| Certification | CE / RoHS / ISO 9001 / UL / TÜV | Certified for international market compliance and quality management systems |

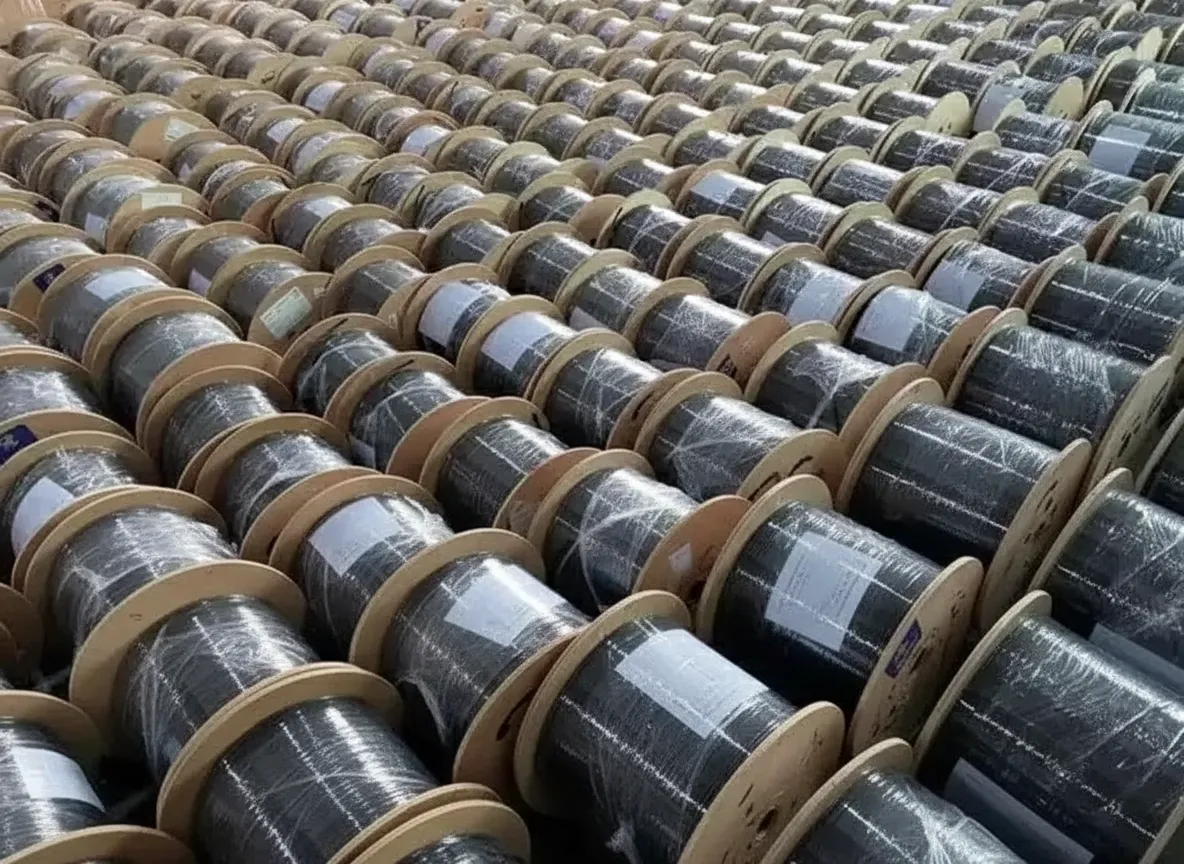

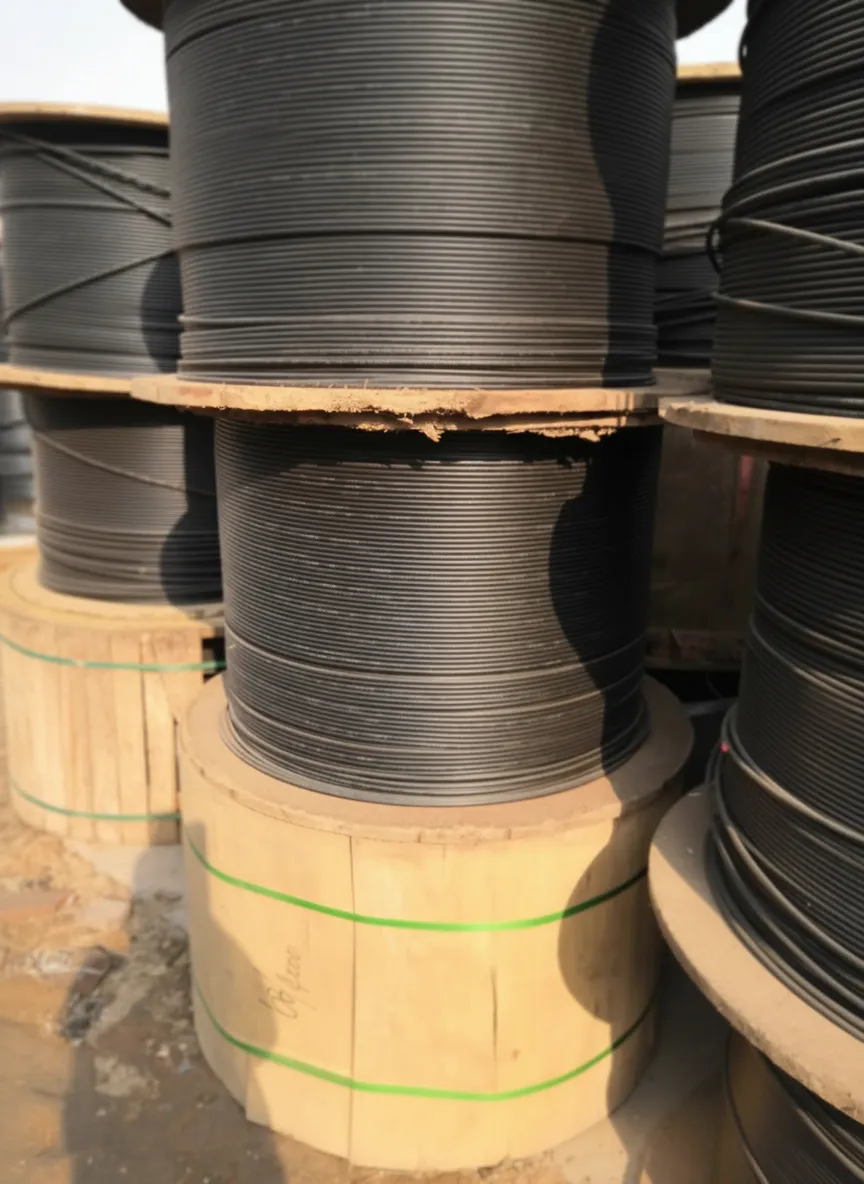

| Packaging | Wooden drum / Steel drum; 1000 m, 2000 m, 4000 m per reel | Standard reel lengths; custom lengths available upon request |
| MOQ | 1 km (standard); 500 m (custom order) | OEM/ODM available; bulk pricing for orders ≥10 km |
Product quality fine — initial shipment had a labeling discrepancy, now resolved
Ordered 60,000 meters of 48-fiber OS2 cable for a district cooling utility network in Dubai. Upon arrival, approximately 8 reels had drum length labels that did not match the OTDR trace data enclosed — a discrepancy of roughly 50–80 meters per reel. This created scheduling complications on-site. Raised the issue with the supplier and they responded within 24 hours, provided corrected documentation, and offered partial credit for the re-measurement labor cost. Cable itself tested correctly at ≤0.20 dB/km at 1550 nm per ITU-T G.652D — the fiber quality is not the concern. Issue has been resolved and we are considering a follow-up order, but quality control on labeling needs improvement.
