| Property | Parameter | Description |
|---|---|---|
| Product Name | Environment Friendly Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with low-VOC or VOC-free eco coatings |
| Material Grade | DX51D, DX52D, S280GD, S350GD (EN); CGCC, CGCD (JIS G3312); Q235, Q345 (GB) | International equivalents: ASTM A755M Grade 33/37/40/50/80 |
| Standard Compliance | EN 10169, JIS G3312, GB/T 12754, ASTM A755M | RoHS 2011/65/EU compliant; REACH regulation compliant; free of Cr(VI), Pb, Cd |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate ensuring good formability and weldability |
| Coating Type | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP, Epoxy | Water-based or solvent-free eco-friendly paint systems; zero heavy metal pigments |
| Zinc/Zinc-Alloy Coating | Z60–Z275 g/m² (hot-dip galvanized); AZ50–AZ150 g/m² (galvalume/Zn-Al-Mg) | Enhanced corrosion resistance; Zn-Al-Mg coating offers superior eco-performance |
| Tensile Strength | 270–560 MPa (per EN 10169 / GB/T 12754) | Grade-dependent; S350GD: ≥420 MPa; CGCC: ≥270 MPa |
| Yield Strength | 220–420 MPa | S280GD: ≥280 MPa; DX51D: ≥140 MPa; suitable for structural and decorative use |
| Elongation | ≥16%–30% (A80mm) | Higher elongation grades (DX52D/DX53D) for deep drawing and roll forming |
| Paint Film Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–12 µm | Total dry film thickness customizable; UV-resistant and weather-durable formulation |
| Thickness Range | 0.14 mm – 1.50 mm | Tolerance per EN 10143 / GB/T 2518; tighter tolerance available on request |
| Width Range | 600 mm – 1,500 mm | Slit coil and cut-to-length sheet available; standard width 914/1000/1200/1250 mm |
| Surface Finish | Smooth, embossed, matte, high-gloss, stone/wood grain print | Gloss level: 10–85 GU (60°); color matched per RAL, Pantone or custom standard |
| Application | Roofing, wall cladding, sandwich panels, home appliances, HVAC, interior decoration | Ideal for green buildings, prefabricated structures, and eco-certified construction projects |
| Certification | ISO 9001, ISO 14001, CE Marking, RoHS, REACH, SGS, BV | Environmental product declaration (EPD) available; LEED credit contribution eligible |

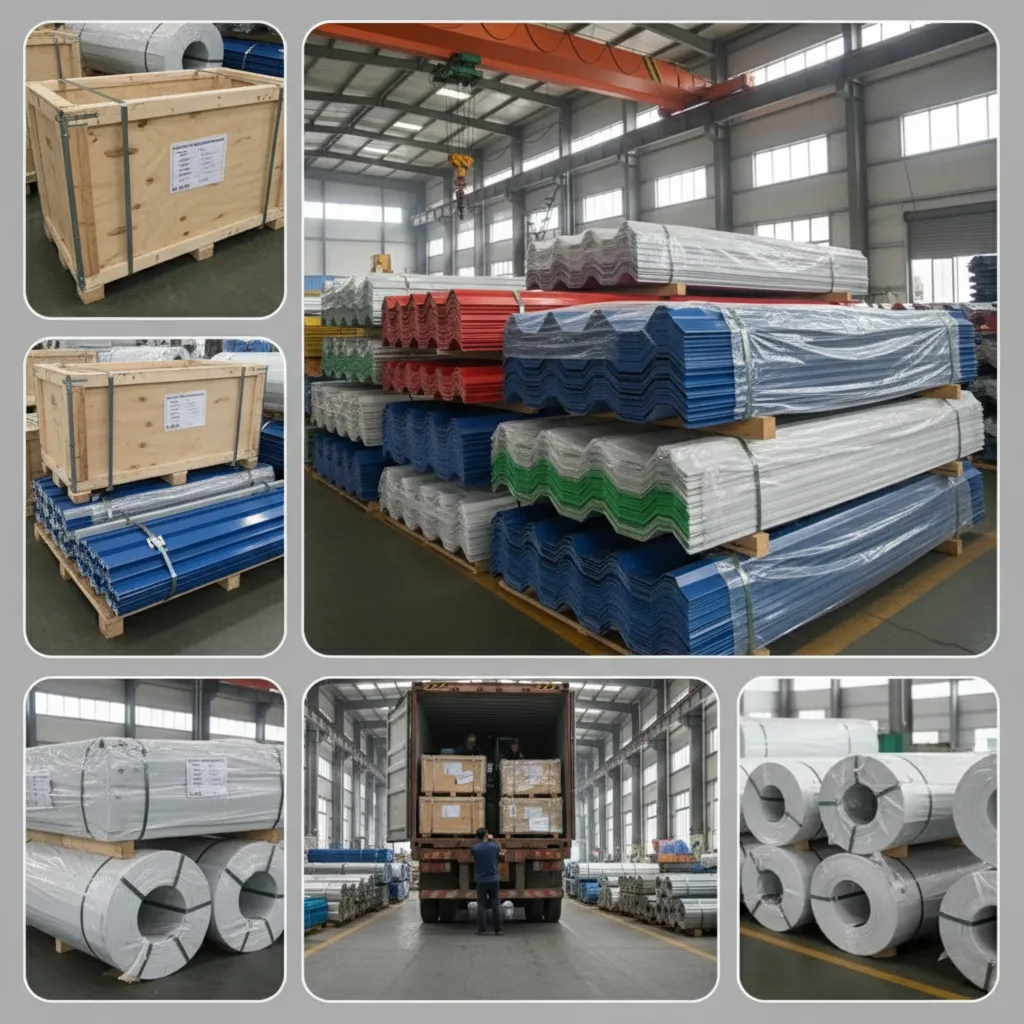

| Packaging | Coil: eye-to-sky or eye-to-wall on steel pallet; Sheet: wooden pallet with moisture-proof wrapping | Recyclable packaging materials used; inner VCI film protection against corrosion |
| MOQ | 25 MT per order (coil); 5 MT (cut-to-length sheet) | Mixed specifications accepted; sample order available for quality verification |
Initial documentation gap resolved — product quality is sound
Our first order of 35 MT of 0.6 mm SMP-coated panels (Z200) for a Dubai industrial workshop hit a delay because the mill test certificates did not initially include the chromate-free passivation declaration required by our client's environmental policy. We flagged this on day three after shipment booking. The supplier's technical team issued the correct documentation within 48 hours and also provided a third-party lab confirmation at no extra charge. Product itself passed all our QC checks — coating adhesion, hardness, and salt spray per ASTM B117. Process has since improved and we have placed a follow-up order.
