| Property | Parameter | Description |
|---|---|---|

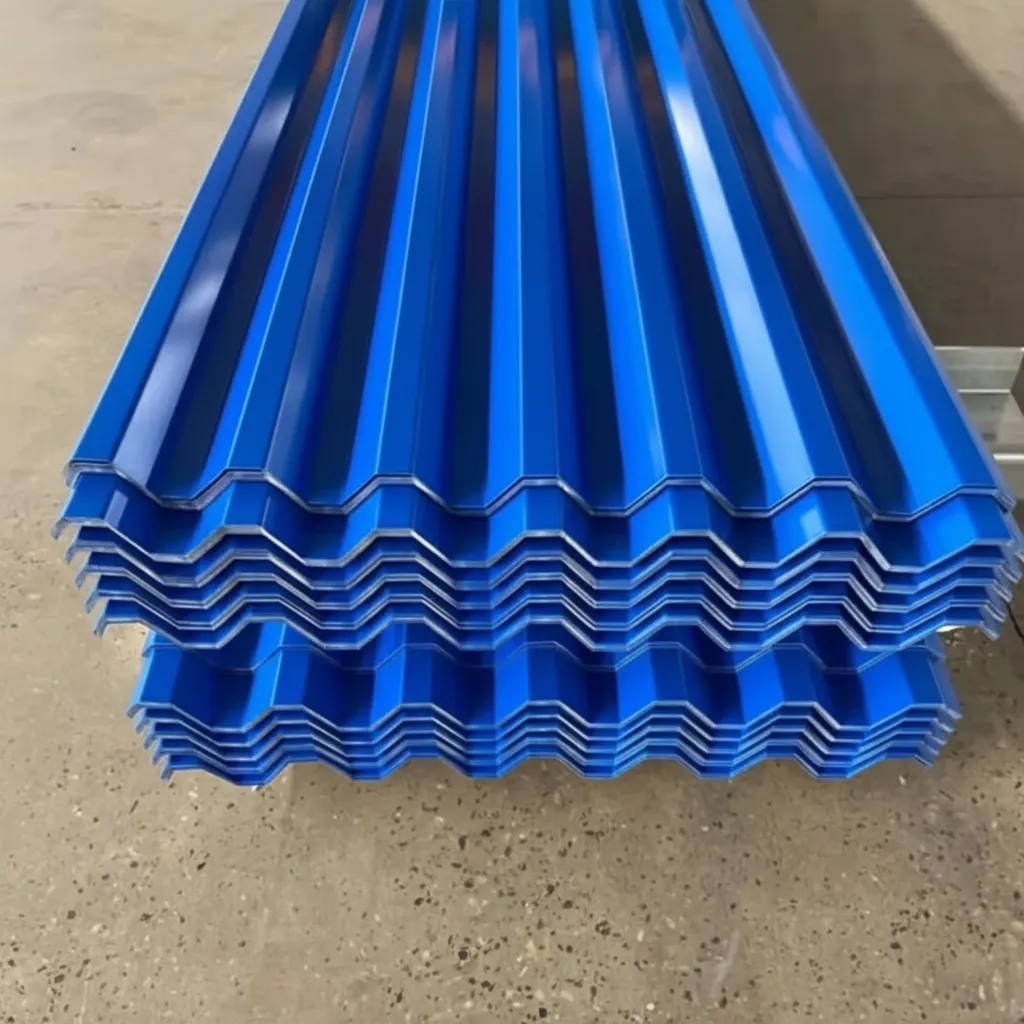

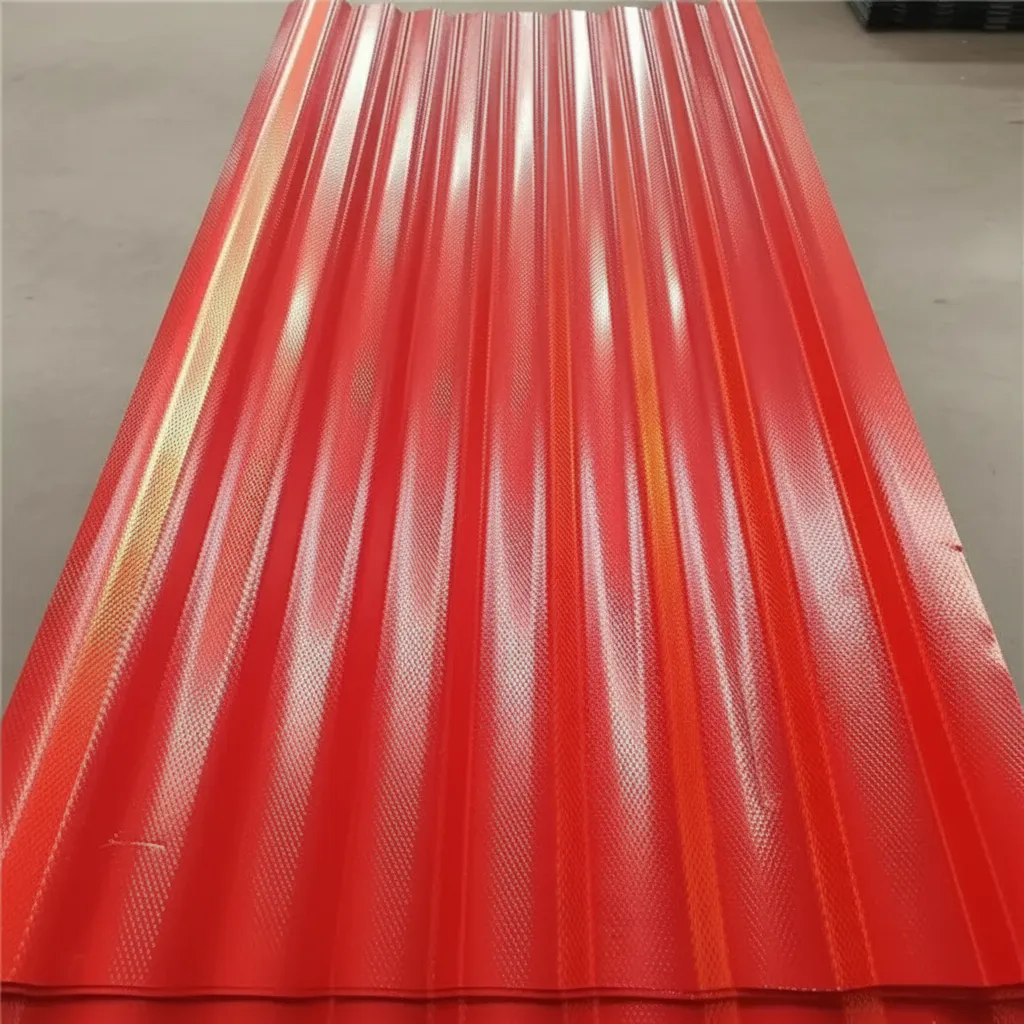

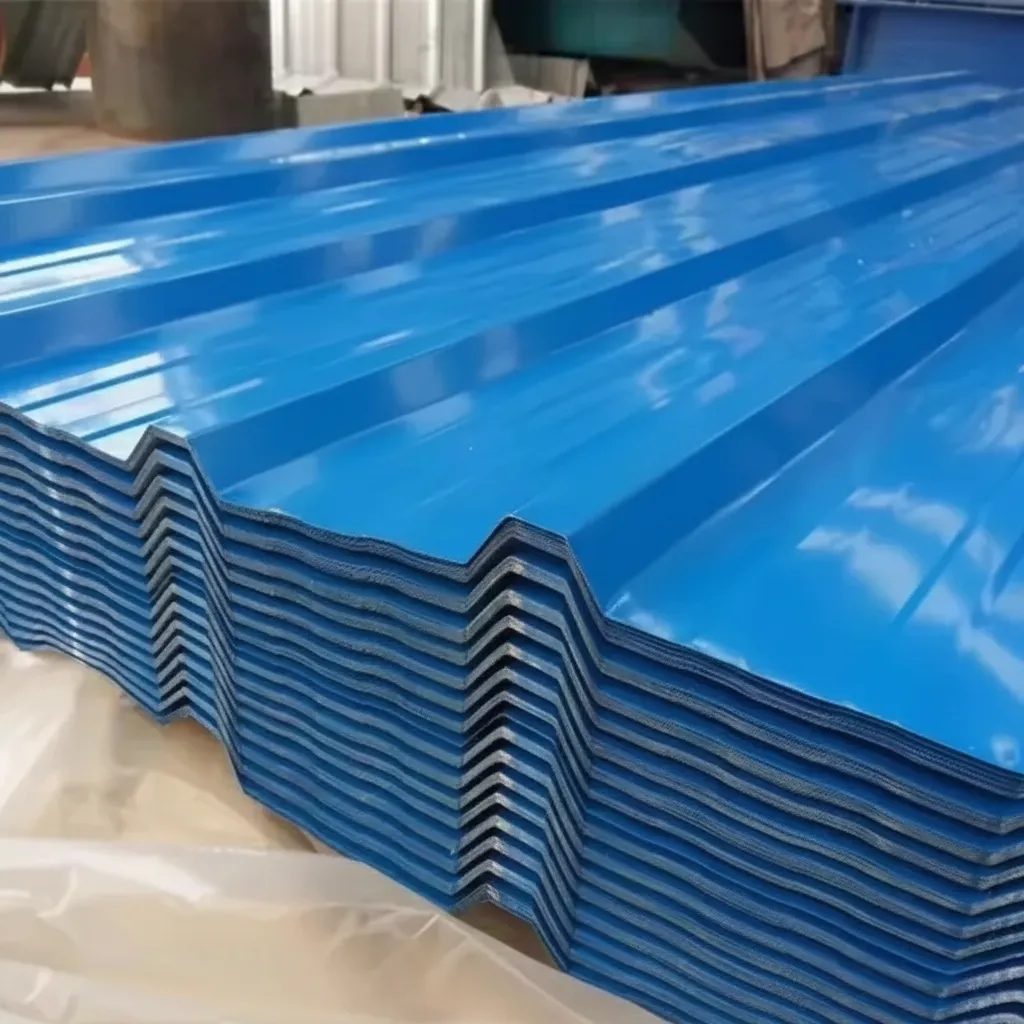

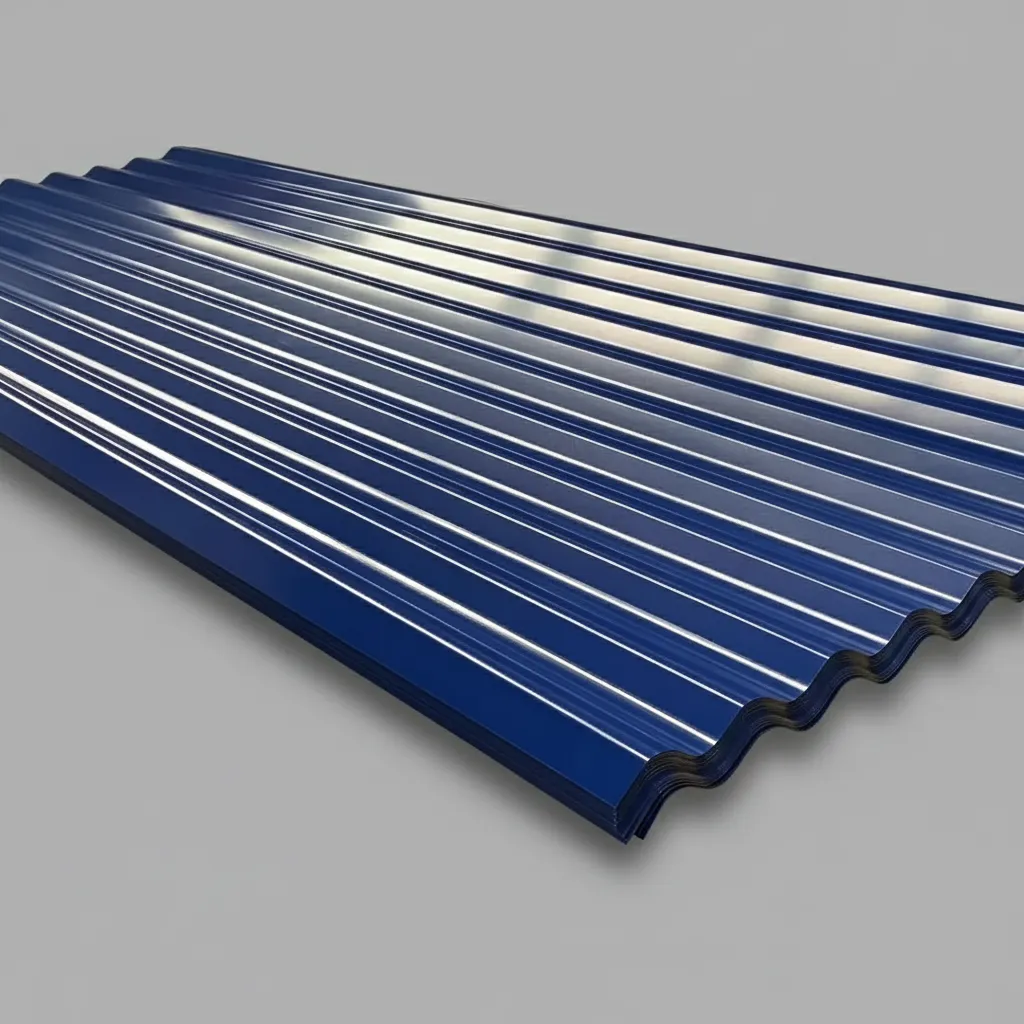

| Product Name | Construction Color Coated Aluminum Sheet | Pre-painted aluminum sheet with protective and decorative coating for building applications |
| Material Grade | 1100, 3003, 3004, 3105, 5052 (AA Grade) | Equivalent to EN AW-1100, EN AW-3003, EN AW-5052; suitable for various construction environments |
| Standard Compliance | ASTM B209, EN 485-2, GB/T 3880, AAMA 2604/2605 | Meets international standards for aluminum sheet and coil with coating performance requirements |
| Chemical Composition (Al) | Al ≥ 97.0%–99.0% | Core aluminum content varies by alloy grade; trace elements Mn ≤ 1.5%, Mg ≤ 2.5%, Cu ≤ 0.20% |
| Chemical Composition (Other) | Fe ≤ 0.70%, Si ≤ 0.60%, Zn ≤ 0.25% | Controlled impurity levels ensure corrosion resistance and coating adhesion performance |
| Tensile Strength | 110–260 MPa | Varies by alloy and temper; 1100-H14: ≥110 MPa; 3003-H16: ≥180 MPa; 5052-H32: ≥230 MPa (per ASTM B209) |
| Yield Strength | 85–215 MPa | 1100-H14: ≥95 MPa; 3003-H16: ≥170 MPa; 5052-H32: ≥160 MPa (0.2% offset, per ASTM B209) |
| Elongation | 3%–12% | Measured over 50 mm gauge length; higher elongation grades suitable for roll forming and bending |
| Coating Type | PVDF, Polyester (PE), HDP, SMP | PVDF (70% fluorocarbon) for superior UV resistance; PE for economy; HDP/SMP for mid-range durability |
| Coating Thickness | Top coat: 20–35 μm; Back coat: 5–15 μm | PVDF top coat ≥ 25 μm; primer layer 5–8 μm; total dry film thickness per AAMA 2604/2605 |
| Thickness Range | 0.20 mm – 4.00 mm | Common construction thicknesses: 0.5 mm, 0.7 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm |
| Width Range | 600 mm – 2000 mm | Standard widths: 1000 mm, 1220 mm, 1250 mm, 1500 mm; custom slit widths available |
| Length / Coil Weight | Sheet: 1000–6000 mm; Coil: 2–5 MT | Cut-to-length sheets or coil supply; coil inner diameter 505 mm or 610 mm |
| Surface Finish | Smooth, Stucco Embossed, Brushed, Mirror | RAL/Pantone custom colors available; gloss level 10–85 GU (60° geometry per ASTM D523) |
| Application | Roofing, Wall Cladding, Curtain Wall, Ceiling, Facade Panels, Canopy | Widely used in commercial buildings, industrial facilities, residential construction and renovation |
| Certification | ISO 9001, CE Marking, SGS, REACH, RoHS | Coating systems certified to AAMA 2604 (PE/HDP) or AAMA 2605 (PVDF) for weathering performance |
| Packaging | Coil: moisture-proof paper + steel strip; Sheet: wooden pallet with edge protection | |
| MOQ | 5 MT per color/specification | Mixed specifications accepted for trial orders; standard lead time 15–25 days after order confirmation |
Color variance issue in first batch — replacement handled professionally
Initial order of 6 tons of 3003-H24 polyester-coated sheets at 1.0 mm in a custom RAL 5015 color showed a visible gloss variance between two coils when installed side by side on a commercial facade. Raised the issue with the support team and provided photographic documentation. They acknowledged the batch inconsistency, arranged a replacement shipment within 15 days at no additional cost, and provided updated QC reports confirming gloss uniformity at 45 GU across the replacement coils. The resolution process was handled professionally. Upgraded confidence in their after-sales process as a result.
