HDP Color Coated Steel For Durable Roofing Applications

HDP Color Coated Steel is a pre-painted steel sheet with a high-durability polyester coating designed for roofing, wall cladding, and other exposed building applications. It serves overseas importers, roofing manufacturers, steel service centers, construction contractors, and distributors that need consistent appearance, forming performance, and corrosion protection. Compared with standard polyester finishes, an HDP system is selected where improved resistance to sunlight, weathering, and color fading is important. Buyers can specify the substrate grade, metallic coating, paint system, thickness, width, color, surface finish, packaging, and delivery terms according to the project environment and downstream fabrication process.

Product Overview: HDP Color Coated Steel

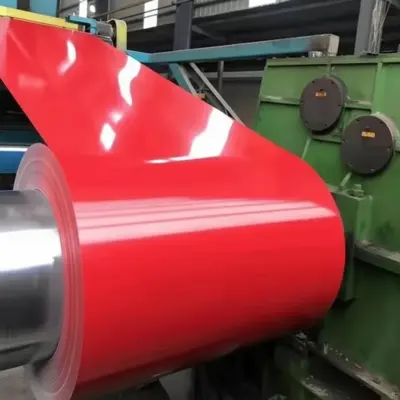

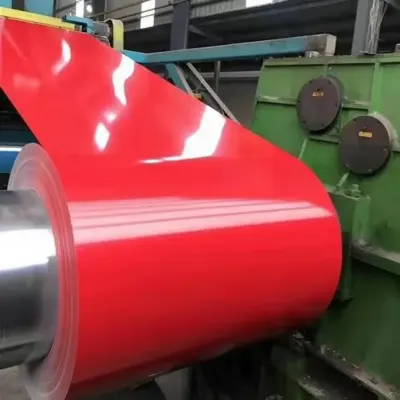

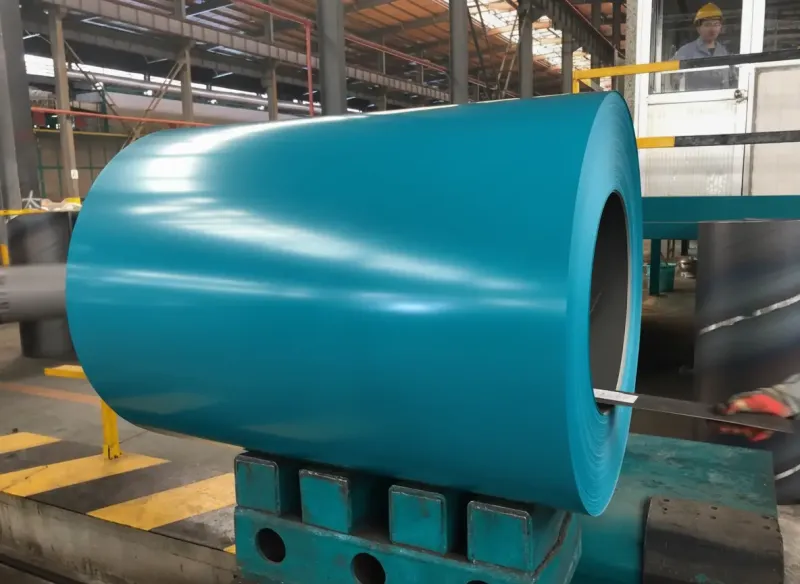

HDP Color Coated Steel is manufactured through a continuous coil-coating process. A steel substrate is cleaned, chemically treated, primed, and finished with a high-durability polyester topcoat. The coated coil is then slit or cut to the dimensions required by the customer. Depending on the construction specification, the substrate may be hot-dip galvanized steel or another metallic-coated steel product suitable for pre-painting.

The HDP coating system is designed for outdoor exposure. Its practical value lies in balancing weather resistance, appearance retention, fabrication suitability, and cost. The coating can be supplied in a broad range of colors and gloss levels, subject to the selected paint system and manufacturer’s production range. Common surfaces include smooth, embossed, matte, and textured finishes. Protective film may also be specified for applications where the visible surface must remain protected during transport and installation.

For related substrate information, buyers may review [[INTERNAL_LINK]] and compare the product with [[INTERNAL_LINK]] before finalizing the material specification. The correct product should be selected according to exposure conditions, forming geometry, design life, maintenance expectations, and local building regulations rather than color alone.

Specifications & Standards for HDP Color Coated Steel

HDP Color Coated Steel is normally specified by combining the steel substrate standard, metallic coating designation, paint system, dimensions, and delivery condition. The following international standards are commonly used as technical references:

• ASTM A755/A755M: specification for steel sheet, metallic coated by the hot-dip process and prepainted for building products.
• ASTM A653/A653M: specification for steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process.
• EN 10169: continuously organic coated steel flat products, including performance requirements and test methods.
• EN 10346: continuously hot-dip coated steel flat products for cold forming and structural applications.
• JIS G3322: continuously prepainted hot-dip coated steel sheet and strip.
• GB/T 12754: prepainted steel sheet and strip used for construction applications.

The applicable standard should be confirmed in the purchase contract because coating performance classifications, substrate grades, testing methods, and tolerances can differ between systems. A technical data sheet and inspection plan should identify the exact standard, coating designation, paint thickness, color tolerance, surface condition, and acceptance criteria.

Because HDP coating formulations and substrate grades vary, fixed mechanical values or chemical compositions should not be assumed from the product name. For each order, request the manufacturer’s certificate showing the actual substrate grade and test results. Relevant tests may include coating thickness, gloss, color difference, pencil hardness, flexibility, impact resistance, adhesion, and corrosion or accelerated weathering performance, depending on the selected standard and project specification. Buyers comparing [[INTERNAL_LINK]] should ensure that all test methods and exposure classifications are equivalent.

Applications of HDP Color Coated Steel

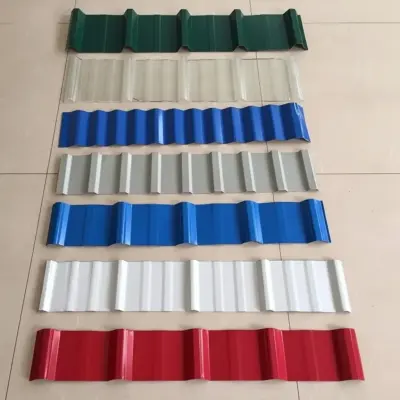

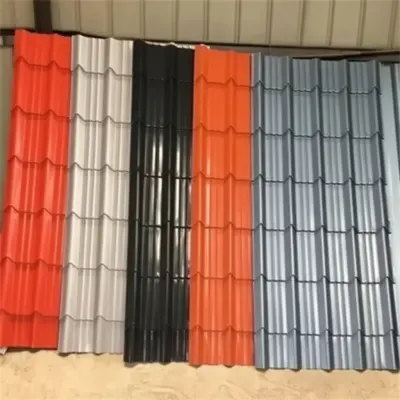

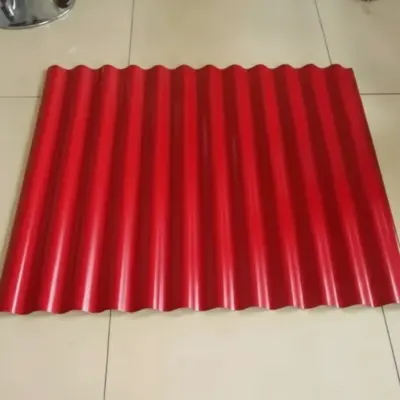

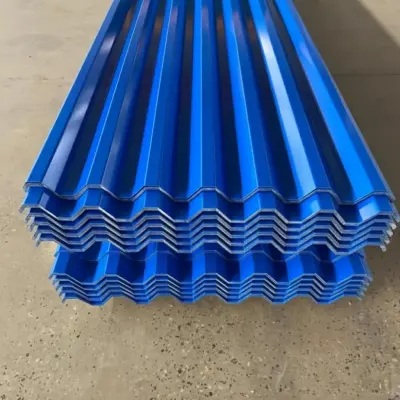

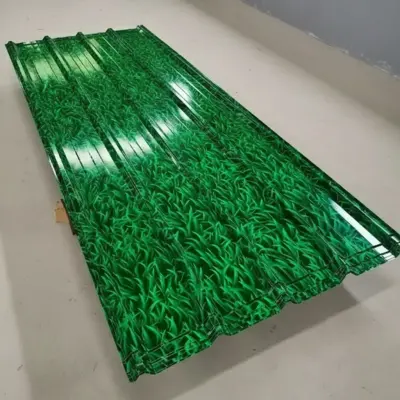

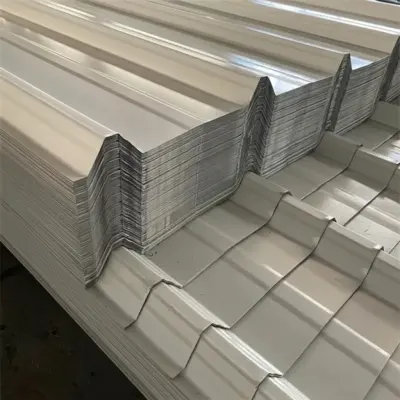

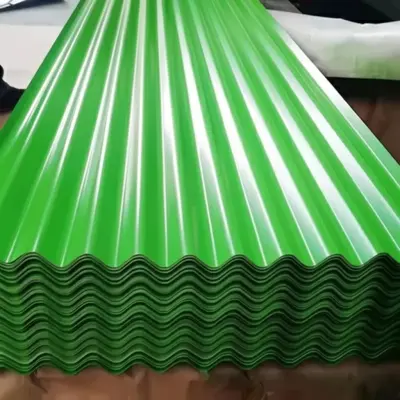

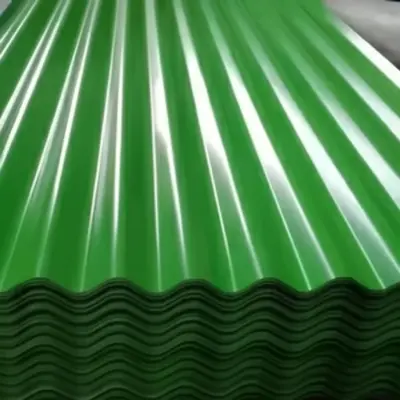

Roofing sheets and panels: HDP Color Coated Steel is widely used for corrugated roofing, trapezoidal panels, standing-seam systems, and sandwich-panel outer skins. The pre-painted surface reduces the need for site painting and supports consistent color across large roof areas.

Exterior wall cladding: It can be roll-formed into wall panels and facade profiles for warehouses, industrial buildings, commercial facilities, and agricultural structures. Color, gloss, and profile selection can be coordinated with architectural requirements.

Insulated sandwich panels: The material is used as the outer and inner facing of insulated roof and wall panels. Selection should consider forming conditions, adhesive compatibility, fire requirements, and the atmosphere surrounding the finished building.

Prefabricated buildings: Modular buildings, site offices, storage units, and light industrial structures often use pre-painted steel because it combines efficient fabrication with a finished appearance.

Building components: Flashings, gutters, trim, doors, partitions, and other formed components may use the same color-coated material to maintain a coordinated building envelope. For specialized products, buyers can also review [[INTERNAL_LINK]] and [[INTERNAL_LINK]].

How to Choose / Buying Guide for HDP Color Coated Steel

1. Define the service environment. Identify whether the material will be installed in a rural, urban, industrial, coastal, humid, or high-UV location. Salt exposure, condensation, pollutants, temperature changes, and cleaning chemicals can affect the required substrate and coating system. HDP is not a substitute for a specification designed for severe chemical or marine exposure; those projects may require a different coating technology.

2. Match the substrate to forming requirements. Confirm the required yield strength, tensile strength, elongation, and minimum inside bending radius from the roll-forming or press-forming process. A stronger grade is not automatically better if the profile requires tight bends. The coil supplier should verify compatibility with the customer’s equipment.

3. Specify coating and appearance precisely. State the topcoat type, nominal coating thickness, primer requirements, color reference, gloss range, coating side, and whether a protective film is needed. Color should be matched using an agreed reference system or physical sample. For repeat projects, retain an approved master sample and define acceptable color deviation.

4. Confirm standards and inspection documents. The purchase order should name the governing standard, substrate grade, metallic coating designation, dimensions, tolerances, testing requirements, and certificate format. Ask whether inspection is performed by the producer, an independent agency, or both. A product data sheet for [[INTERNAL_LINK]] can help establish a consistent comparison format.

5. Review MOQ and production planning. Minimum order quantity depends on the production line, color, thickness, width, and whether the item is standard or customized. Do not assume a universal MOQ. Request the supplier’s current batch requirement, sample policy, and whether multiple sizes or colors can be combined in one production plan.

6. Plan delivery and logistics. Confirm coil or sheet packing, moisture protection, lifting points, marking, container or break-bulk suitability, and destination documentation. Delivery time depends on raw-material availability, coating color, production scheduling, inspection, and shipping arrangements. Establish the agreed Incoterm, loading port, shipment window, and document list before placing the order. Packaging guidance for [[INTERNAL_LINK]] may be useful when comparing suppliers.

Frequently Asked Questions About HDP Color Coated Steel

Q: What is the difference between HDP and ordinary polyester color-coated steel?

A: HDP means high-durability polyester. It is formulated for improved outdoor durability compared with a conventional polyester system, particularly in resistance to weathering and color change. Actual performance depends on resin formulation, film thickness, substrate, exposure, and the test standard. Buyers should compare certified test data rather than rely only on the coating name.

Q: Is HDP Color Coated Steel suitable for coastal or industrial buildings?

A: It may be suitable for some coastal or industrial applications, but the decision requires an exposure assessment. Salt spray, high humidity, acidic pollutants, and chemical vapors can exceed the design conditions of a standard HDP system. Request the supplier’s corrosion-resistance classification and confirm whether a more specialized coating or metallic substrate is required.

Q: Which standards can be used for HDP Color Coated Steel?

A: Common references include ASTM A755/A755M, ASTM A653/A653M, EN 10169, EN 10346, JIS G3322, and GB/T 12754. The correct standard depends on the destination market and project requirements. The order should identify one governing specification and any additional customer tests.

Q: Can the material be roll-formed into roofing profiles?

A: Yes, it is commonly supplied for roll-forming, provided that the selected substrate grade, thickness, coating system, and forming radius are compatible with the machine and profile. Control over coil handling and tool condition is important because scratches or excessive bending can damage the painted surface.

Q: What is the usual minimum order quantity?

A: There is no universal MOQ for HDP Color Coated Steel. It varies with width, thickness, color, coil weight, production line scheduling, and whether the order is a standard or customized specification. Request a written quotation that separates sample quantities, trial quantities, and regular production quantities.

Q: What payment methods and trade terms are available?

A: Payment arrangements depend on the supplier, order value, customer history, and destination. Common commercial structures may include a deposit with the balance against shipping documents, documentary credit, or another mutually agreed arrangement. The quotation should clearly state the currency, Incoterm, payment timing, banking charges, and required documents.

Q: How long is the delivery time?

A: Lead time depends on material availability, color and size requirements, production capacity, inspection, packing, and vessel schedules. A reliable quotation should provide a production lead-time estimate and shipment window after technical details and payment terms are confirmed. Buyers should also allow time for sample approval when appearance is critical.

Q: What documents should be requested before shipment?

A: Typical documents include a commercial invoice, packing list, bill of lading, certificate of origin where applicable, mill test certificate, coating or inspection report, and any agreed third-party inspection certificate. The exact list should follow the destination customs rules and the purchase contract. Related documentation requirements can be reviewed through [[INTERNAL_LINK]].

Send your required thickness, width, substrate grade, metallic coating, color reference, coating specification, quantity, destination, and preferred trade term to request an HDP Color Coated Steel quotation. A technical review can then confirm suitability for your roofing or cladding profile, inspection documents, production schedule, packing method, and shipping arrangement.
