| Property | Parameter | Description |
|---|---|---|
| Product Name | Heavy Duty Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with high-strength coating for demanding applications |
| Material Grade | Q345B / S355JR / SGCC / DX51D+Z | Equivalent to ASTM A653 Grade 50, EN 10346 DX51D, JIS G3302 SGCC |
| Standard Compliance | GB/T 12754, EN 10169, ASTM A755 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, Si ≤0.50%, P ≤0.045%, S ≤0.045% | Base metal chemistry per GB/T 12754 and EN 10346 requirements |
| Tensile Strength | ≥340 MPa (Grade 340) / ≥550 MPa (Grade 550) | Per ASTM A755 / EN 10169; higher grades available for structural use |
| Yield Strength | ≥280 MPa (Grade 340) / ≥500 MPa (Grade 550) | Ensures structural rigidity under heavy load conditions |
| Elongation | ≥20% (Grade 340) / ≥2% (Grade 550) | Measured on 50 mm gauge length per EN 10169 |
| Base Metal Thickness | 0.3 mm – 1.5 mm | Heavy duty range typically 0.6 mm – 1.5 mm; custom thickness available |
| Sheet Width | 600 mm – 1,250 mm | Standard slit widths; custom widths available upon request |
| Sheet Length | 1,000 mm – 6,000 mm | Cut-to-length or coil supply; tolerance ±5 mm |
| Coating Type | Polyester (PE), PVDF, SMP, HDP | PVDF recommended for heavy duty / outdoor long-life applications (≥25 years) |
| Coating Thickness | Top coat: 20–35 μm; Back coat: 5–15 μm | PVDF top coat ≥25 μm for enhanced UV and corrosion resistance |
| Zinc / Zinc-Aluminium Coating | Z100–Z275 g/m² / AZ150 g/m² | Hot-dip galvanized or Galvalume (55% Al-Zn) base per ASTM A653 / A792 |
| Surface Finish | Smooth, Embossed, Matte, High Gloss | RAL color matching available; gloss level 10–85 GU (60° angle) |

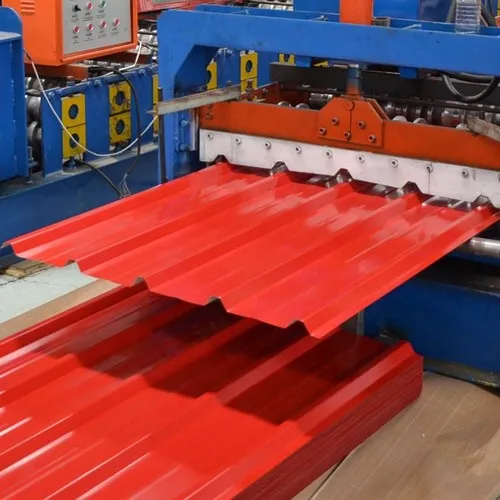

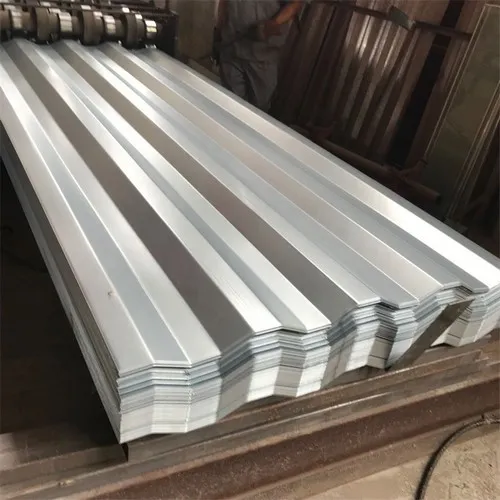

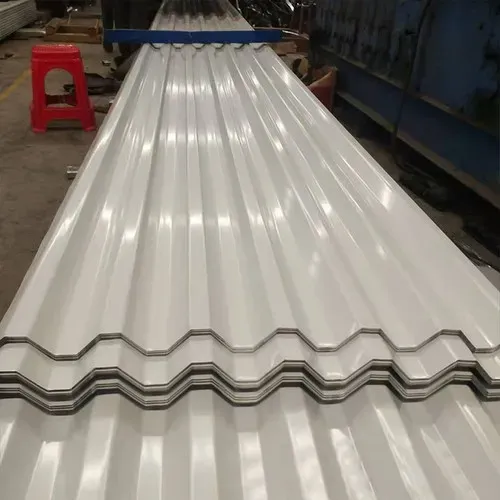

| Application | Roofing, wall cladding, industrial buildings, warehouses, cold storage | Suitable for heavy-load structural panels, sandwich panels, and corrugated sheets |
| Certification | ISO 9001, CE Marking, SGS, BV | Third-party inspection and mill test certificates (MTC) provided |
| Packaging | Coil or flat sheet; waterproof paper + steel strip bundling | Export seaworthy packaging; coil weight up to 10 MT |
| MOQ | 5 MT per color/specification | Mixed container orders accepted; lead time 15–25 days |
Initial shipment had coil weight discrepancy — resolved satisfactorily after follow-up
We placed a trial order of 8 MT of 0.45 mm HDP-coated sheet to evaluate this supplier for a longer-term contract. The coating quality itself was fine — cross-cut adhesion at Grade 0, gloss retention acceptable after QUV-B testing. However, two coils in the shipment came in approximately 4% under the stated coil weight, which created a material shortfall on-site. I raised this with the sales team, and to their credit they responded within hours, issued a credit note, and arranged supplementary material in the next available shipment. Issue is resolved, and the coating specs were never in question. Upgrading to 4 stars on next order if logistics are tighter.
