| Property | Parameter | Description |
|---|---|---|
| Product Name | PPGI Color Coating Processing | Pre-Painted Galvanized Iron / Color Coated Steel Coil & Sheet |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD | Equivalent to ASTM A653 CS/FS, EN 10346 DX51D+Z, JIS G3302 SGCC |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | International standards for continuous organic coating on metallic-coated steel flat products |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate ensuring good formability and coating adhesion |
| Zinc Coating Weight | Z60–Z275 (g/m²) / AZ50–AZ150 (Galvalume) | Hot-dip galvanized or Galvalume substrate; coating weight per ASTM A653 / EN 10346 |
| Tensile Strength | 270–500 MPa | Varies by grade; DX51D min. 270 MPa per EN 10346; SGCC min. 270 MPa per JIS G3302 |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; structural grades up to 420 MPa depending on specification |
| Elongation | ≥ 22% (A80mm) | DX51D+Z: ≥ 22%; higher elongation grades (DX53D) ≥ 30% for deep drawing applications |
| Top Coat Thickness | 15–25 μm (standard); up to 50 μm (HDP/PVDF) | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP coating systems available |
| Primer Coat Thickness | 5–8 μm | Epoxy or polyester primer applied before top coat for enhanced adhesion and corrosion resistance |
| Thickness Range | 0.14–1.50 mm | Base metal thickness excluding coating; custom thickness available upon request |
| Width Range | 600–1,500 mm | Slit coil and full-width coil available; tolerance per EN 10131 / ASTM A480 |

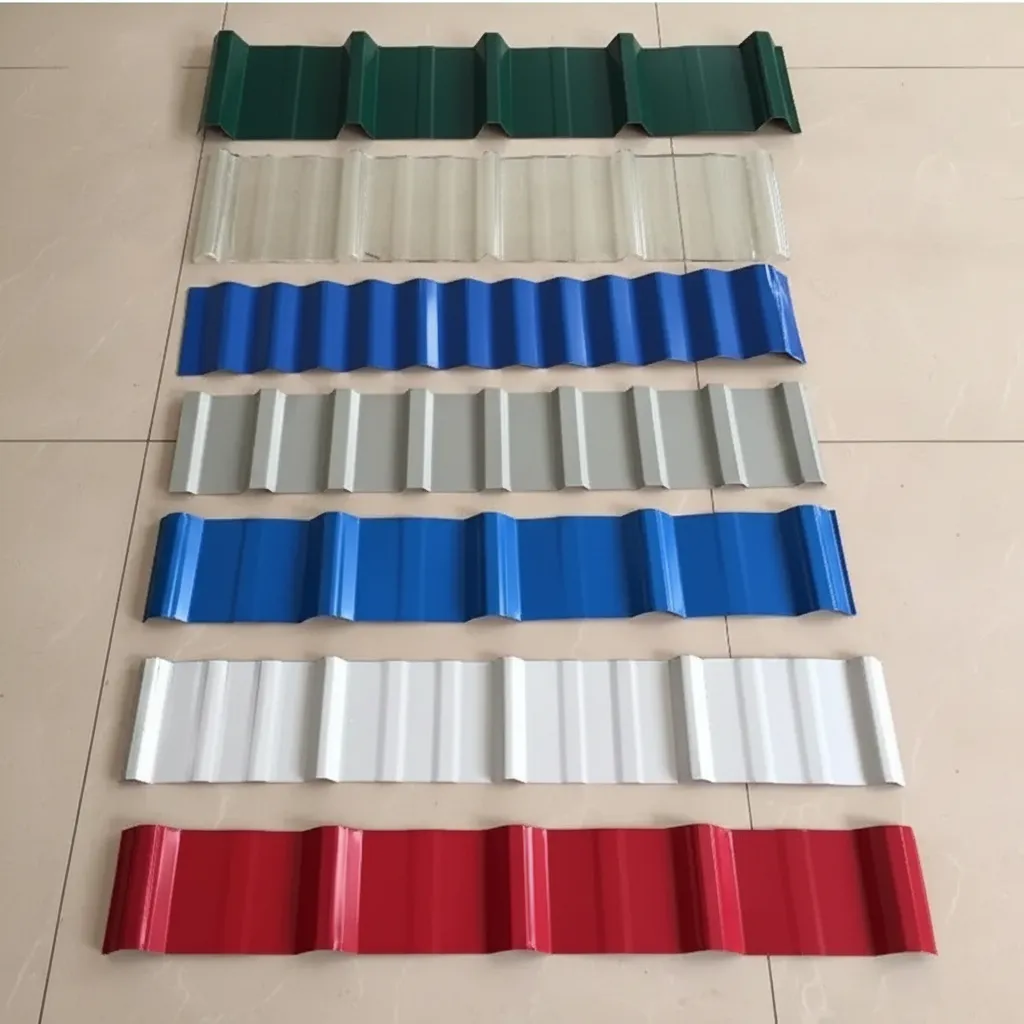

| Surface Finish | Smooth, Embossed, Matte, High Gloss | RAL/custom color matching; 60° gloss value 10–90 GU; T-bend ≤ 2T per ASTM D4145 |
| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, automotive parts | Widely used in construction, household appliance panels, and light industrial fabrication |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection and material test reports (MTR) available upon request |
| Packaging | Eye-to-sky or eye-to-wall coil; waterproof paper + steel strip strapping | Coil weight 3–8 MT; inner diameter 508/610 mm; export seaworthy packaging standard |
| MOQ | 25 MT per order | Mixed colors and specifications accepted; lead time 15–25 days after order confirmation |
Initial shipment had coating adhesion concern — resolved satisfactorily
Ordered 40 MT of PPGI at 0.40mm with epoxy primer and polyester topcoat for light industrial enclosure production. On arrival, cross-hatch adhesion tests on three coils from one batch showed borderline results — not a clear failure but below our internal acceptance threshold. We reported this with photographic evidence. The supplier's technical team responded within 24 hours, reviewed our test methodology, and agreed the batch was marginal. A replacement consignment was dispatched within two weeks and passed all adhesion tests per EN 10169 criteria. The resolution process was professional. Willing to trial again on next requirement.
